Germany HTechMT HT200-T Electric Pencil Hardness Meter, Screen Control Direction Time

SE
Load 0~10N, electric model, standard pencil 9B-9H, running time is set for 1-60 seconds, and the sound prompt can be observed and tested 30 seconds after the operation stops.
Model：
Contact
Details SPEC VIDEO CAT OI
Similar products

HTechMT HT200-T Pencil Hardness MeterSPEC

HTechMT HT200-T Pencil Hardness MeterDetails

HTechMT HT200-T Pencil Hardness MeterPacking list

SKU
NB010214
Load
0~10N
Applicable standards
ASTM D3363 ,BS3900-E19, EN 13523-4, ISO 15184
operating mode
Forward/backward
running time
1~60s
size
270*200*120mm
Standard pencil
9B-9H
Weight
3400g
Power Supply
12V transformer, transformer input Voltage 110-230V
HT200-T
Pencil Hardness Meter
Load 0~10N, electric model, standard pencil 9B-9H, running time is set for 1-60 seconds, and the sound prompt can be observed and tested 30 seconds after the operation stops.

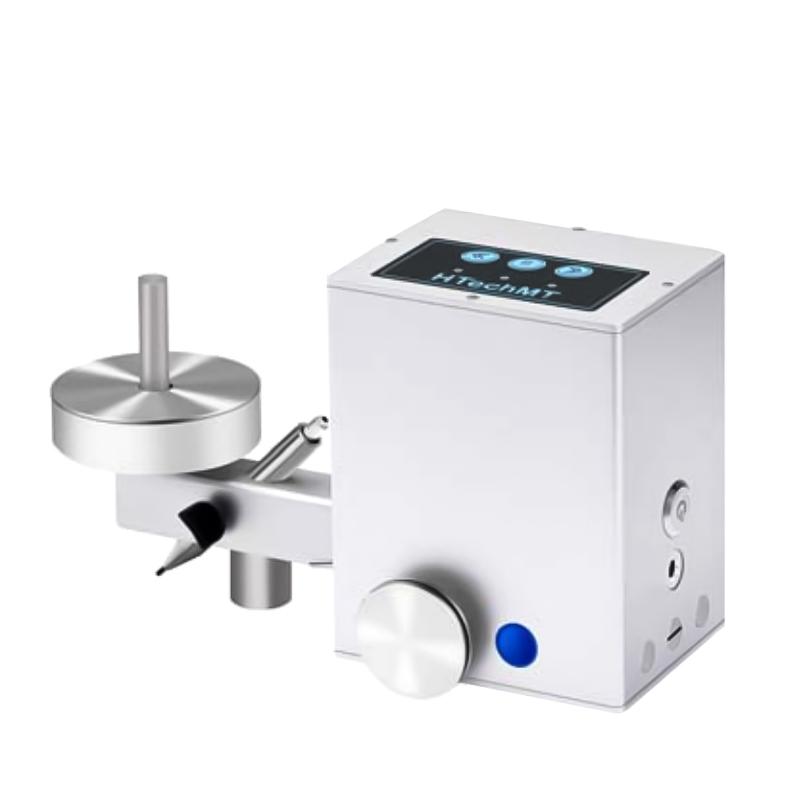

Germany HTechMT HT200-T Electric Pencil Hardness Meter, Screen Control Direction Time Picture

Pencils of different hardness are used to test the pencil hardness of the coating. In the experiment, a force of 0-10 N was applied to a pencil tilted at an angle of 45 degrees, and the coating was tested at a constant and steady speed. In order to obtain a stable and continuous force and speed, the HT200 has a built-in motor to ensure the accuracy and repeatability of the test.

Product Features

-Running mode: forward or backward

-Running time: 1-60 seconds setting

-Apply pressure: 0-10N

-Eliminate possible effects caused by instrument startup, and start timing two seconds after startup

-The sound prompts 30 seconds after the operation stops and the following observation tests can be carried out


Implementation standards : ASTM D3363, BS3900-E19, EN 13523-4, ISO 15184

Product Structure

German HTechMT HT200 electric pencil Hardness Tester product structure

Menu structure

German HTechMT HT200 electric pencil Hardness Tester operating interface

Accessories

Accessory modeldescribeAccessory model describe
HT200-9H12 refills (9H)HT200-9B12 refills (9B)
HT200-8H12 refills (8H)HT200-8B12 refills (8B)
HT200-7H12 refills (7H)HT200-7B12 refills (7B)
HT200-6H12 refills (6H)HT200-6B12 refills (6B)
HT200-5H12 refills (5H)HT200-5B12 refills (5B)
HT200-4H12 refills (4H)HT200-4B12 refills (4B)
HT200-3H12 refills (3H)HT200-3B12 refills (3B)
HT200-2H12 refills (2H)HT200-2B12 refills (2B)
HT200-H12 refills (H)HT200-B12 refills (B)
HT200-PHmechanical pencilHT200-HB12 refills (HB)


FAQ
QDoes it have a control screen now?
A There is a remote control, a real-time remote control, which cannot be preset. In the past, the running time and direction could be preset. Now the product has no control screen, no dialog box, only arrows.
QWhat brand is this matching pencil?
A The refill is original and the origin is Czech.
QHow often does this equipment need maintenance?
A There is no regulation, if there is a sports card astringent, you can send it back, this instrument has been calibrated before leaving the factory.
QThe price difference between this S and T is so much, what is the difference between them?
A The S one is manual direction control, and the T one can set the running direction and time. --S: Standard type, three buttons, forward, backward, stop --T: Screen settings, 1) forward/backward 2) travel time 3) automatically stop after the time, thus reducing the influence of human factors
QWhat is the difference between the two models of electric pencil Hardness instrument, HT200-S and HT200-T??
A The T type is digital display, you can set the time and direction, and the S type is a toggle switch, which manually controls stop and walk.
QIs the running speed of this device adjustable and what is the range?
A This one is non-adjustable.
QDoes this pencil hardness tester meet ASTMD2197 standard?
A The pencil hardness instrument is suitable for ASTMD2197, please consult customer service for detailed application definition
