LANDTEK HT-6510P Pencil hardness Tester film Hardness detection

SE
Stainless steel material, conforms to GB standard; standard 500/750/1000g load, 13 different Hardness pencils, as well as pencil sharpener and eraser.
$131.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

LANDTEK HT-6510P Pencil hardness TesterSPEC

LANDTEK HT-6510P Pencil hardness TesterDetails

LANDTEK HT-6510P Pencil hardness TesterPacking list

SKU
NB001138
Load
500/750/1000g
Measurement Certificate
without
material
stainless steel
Standard pencil
13 sticks
Standard pencil
6B-6H (13 pcs)
Appearance material
iron
HT-6510P
Pencil hardness Tester
Stainless steel material, conforms to GB standard; standard 500/750/1000g load, 13 different Hardness pencils, as well as pencil sharpener and eraser.
LANDTEK HT-6510P Pencil hardness Tester film Hardness detection Picture

Introduction

LANDTEK HT-6510P pencil Hardness Tester is a mechanical scratch Hardness Tester, which is suitable for testing the hardness of paint film coatings in paint and other industries. It is produced and designed strictly according to national standards. The HT-6510P Pencil Hardness Tester uses three points to contact the surface to be tested (two points are the wheel, and one point is the pencil lead). The pencil and the test surface form an angle of 45°. By pushing the pencil Hardness Tester to slide, pencils with different hardness values Scratches of different depths are drawn on the surface of the paint film to judge the hardness of the paint film.

Introduction to pencil scratch method

The HT-6510P pencil Hardness Tester uses the pencil scratch method to measure the hardness of the paint film. The pencil scratch method is to use a pencil with a certain hardness to describe the coating, and determine the hardness of the paint film by visually observing the scratch depth of the paint film. The pencil scratch method is an economical and rapid method to test the hardness of the coating film, which is widely used in the world.

The standard Chinese pencils are: 6B, 5B, 4B, 3B, 2B, B, HB, H, 2H, 3H, 4H, 5H, 6H, a total of 13 pieces.

Applications

LANDTEK HT-6510P Pencil Hardness Tester is suitable for use in laboratories or construction sites in coatings, paints and other industries.

product structure

LANDTEK HT-6510P pencil Hardness Tester structure diagram

1-level indicator; 2-pencil; 3-wheel; 4-paint film; 5-substrate;

6-weight; 7-fixing screw; 8-direction of movement; 9-pencil lead

Pictures

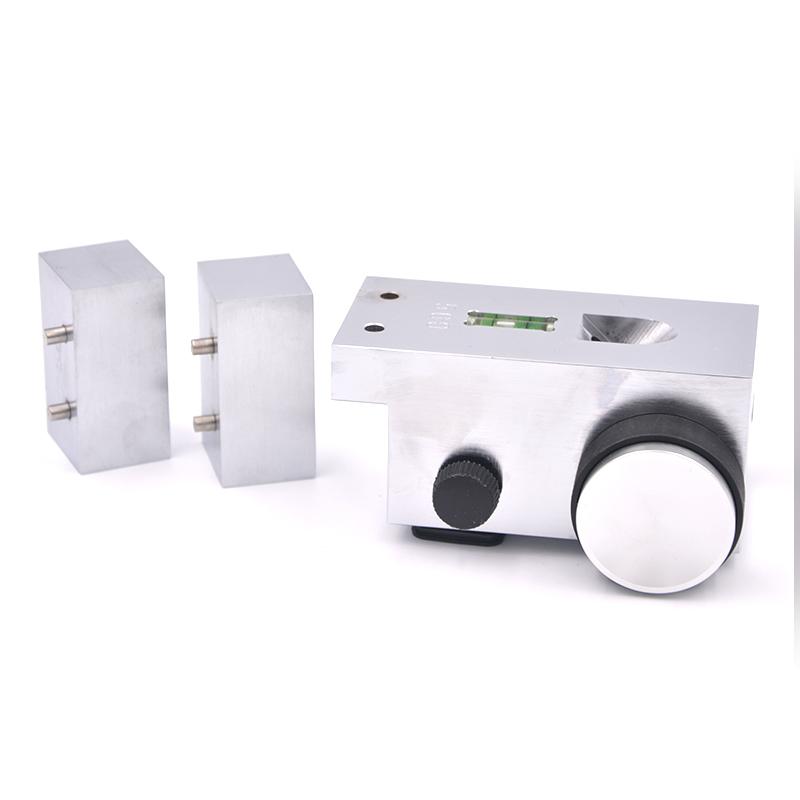

LANDTEK HT-6510P Pencil Hardness Tester Weight Chart

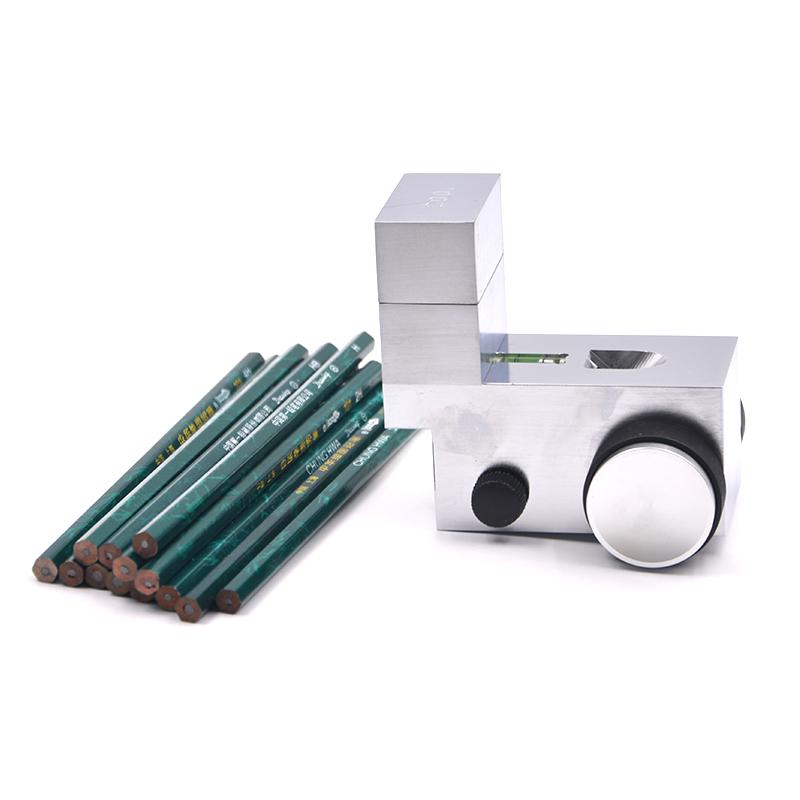

LANDTEK HT-6510P pencil Hardness Tester overall details

LANDTEK HT-6510P pencil Hardness Tester packing list

LANDTEK HT-6510P Pencil Hardness Tester Outer Package

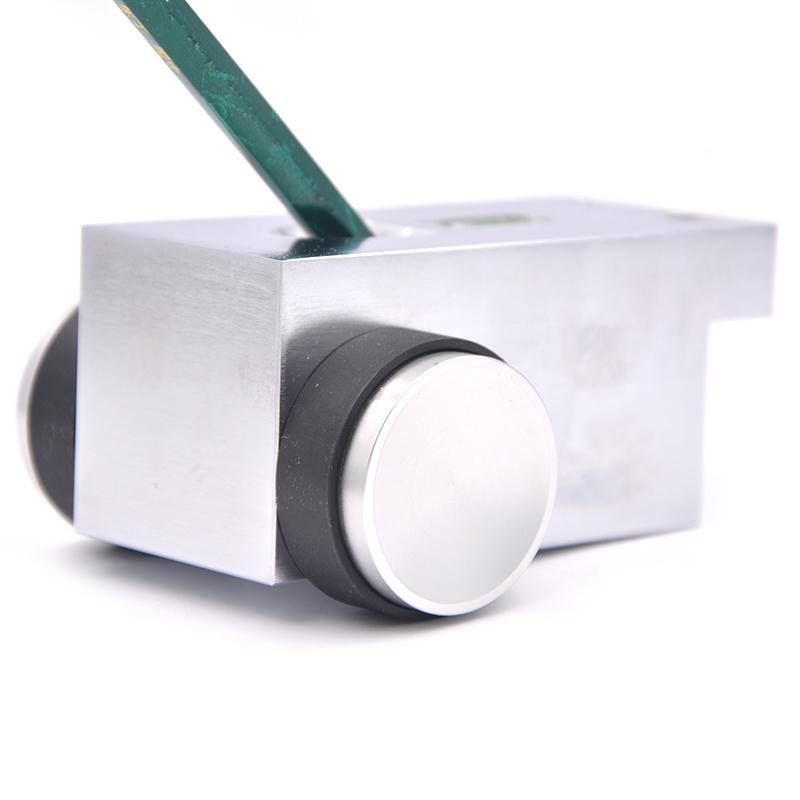

The overall picture of LANDTEK HT-6510P Pencil Hardness Tester

FAQ
QWhere is this Pencil hardness tester suitable?
A HT-6510P is mainly used for laboratory testing and construction site mass monitoring in the coatings and paints industry.
QHT-6510P Pencil hardness tester sharpener has a designated brand?
A Hello, no, an ordinary pencil sharpener will do.
QHT-6510P Pencil hardness tester contains two replaceable weights?
A Hello! HT-6510P contains two weights of 750g + 1000g
QDo you have the Pencil hardness tester involved in ASTMD3363?
A The HT-6510P Pencil hardness tester will do
QWhat is the use of horizontal spacers in Encasement?
A Hello, this kind of horizontal spacer is mainly used as a support before the experiment. (Put the horizontal spacer under the instrument body, take out the pencil prepared with the corresponding specification, and insert it obliquely into the hole inclined 45 degrees on the detection trolley. The extension length of the pencil lead is just in contact with the surface of the tested sample. Tighten the fixing screw so that the pencil cannot be loosened, and then choose whether to increase the weight according to the test product test requirements. Take out the horizontal spacer, observe the horizontal indicator, and ensure that the bubble is between the two marking lines. If the bubble is not between the two marking lines, re-adjust it and then make a measurement.) When loading the pencil, you need to use the equilibrate spacer to pad the lower front end of the trolley to avoid the angle difference of the loaded pencil.
QWhat kind of pencil does this come with? Can it go with a Miscellaneous brand pencil?
A Hello, the pencil of this Pencil hardness tester is 6H-6B, which are 6B, 5B, 4B, 3B, 2B, B, HB, H, 2H, 3H, 4H, 5H, 6H, a total of 13 Chinese pencils, which belong to the standard configuration, so there is no Miscellaneous brand pencil replacement. Please forgive me, thank you!
