MODERNER PM240-IV digital plane grinding machine pigments relative tinctorial strength and dilution

SE
In line with GB5211.19 to measure the relative tinctorial strength and dilution of pigments, the machine Glass grinding disc has high flatness and good preparation effect
$1700.47/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO OI
Similar products

Moderner PM240-IV Digital plane grinding machineSPEC

Moderner PM240-IV Digital plane grinding machineDetails

Moderner PM240-IV Digital plane grinding machinePacking list

SKU
NB015144
Grinding disc diameter
240mm
load pressure
43/64/100kg
Power
380V 50Hz (220V can be customized)
Grinding disc speed
75±5rpm
Counting range
0~9999
Counting range
0~9999
Overall dimensions
570*350*500mm
Weight
About 80kg
Motor power
750W
Standards
GB/T 5211-16，GB/T 5211-19，GB/T 21867.1，GB/T 21868.5，ISO 787-16，ISO 787-17，ISO 8780-5，ISO 8781-1
Load weight
1.75kg 、 1.75kg * 2 、 1.75kg * 2 + 2.92
PM240-IV
Digital plane grinding machine
In line with GB5211.19 to measure the relative tinctorial strength and dilution of pigments, the machine Glass grinding disc has high flatness and good preparation effect

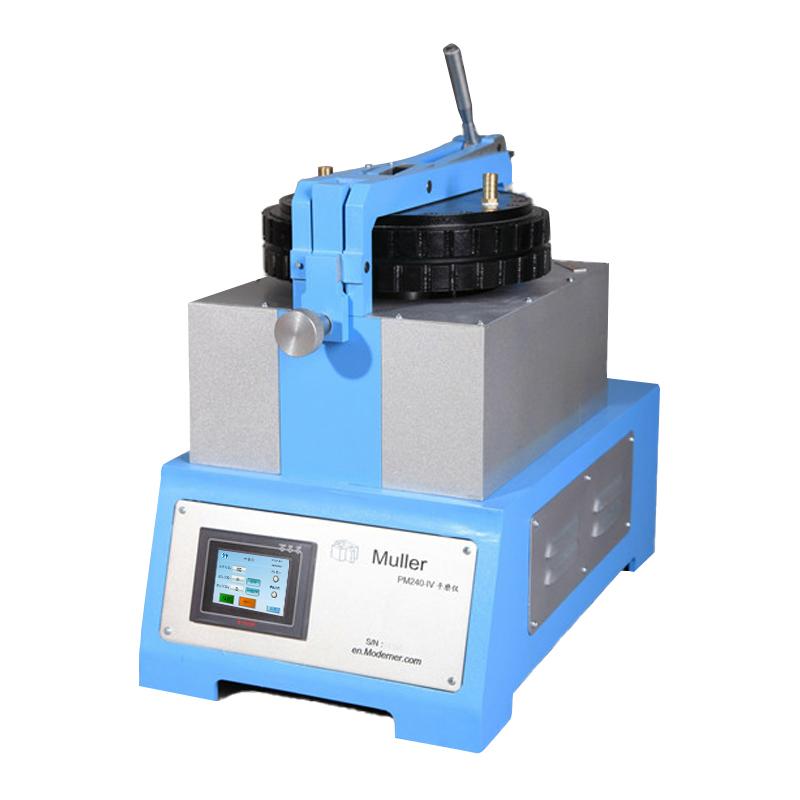

MODERNER PM240-IV digital plane grinding machine pigments relative tinctorial strength and dilution Picture

product description:

The flat grinder is the required instrument in the national standard GB5211.19 "Determination of relative tinting strength and diluted color of coloring pigments by visual comparison method".
This machine can be used as a special physical performance testing instrument for the pigment, paint and ink industries. The whole machine is compact in structure, simple in appearance, easy to change the number of revolutions and loads, and easy to assemble and disassemble the glass plate. Microcomputer control, LCD display, easy parameter setting. When the input parameters are wrong, the controller will automatically display "invalid input", which achieves the purpose of reliable control and simple operation. The operation adopts the touch screen mode, and the display and operation are simple and clear.

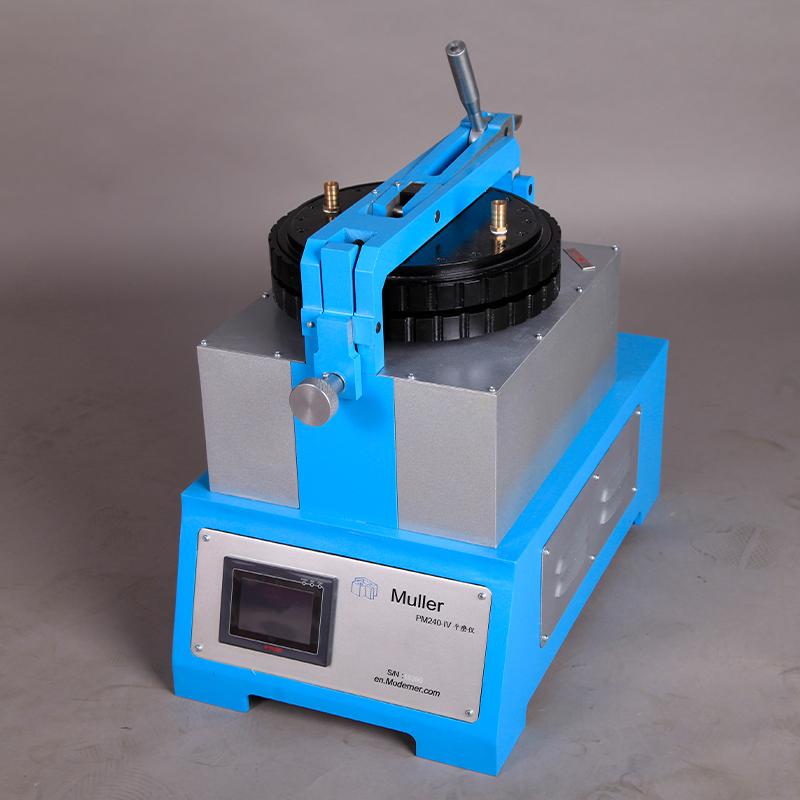

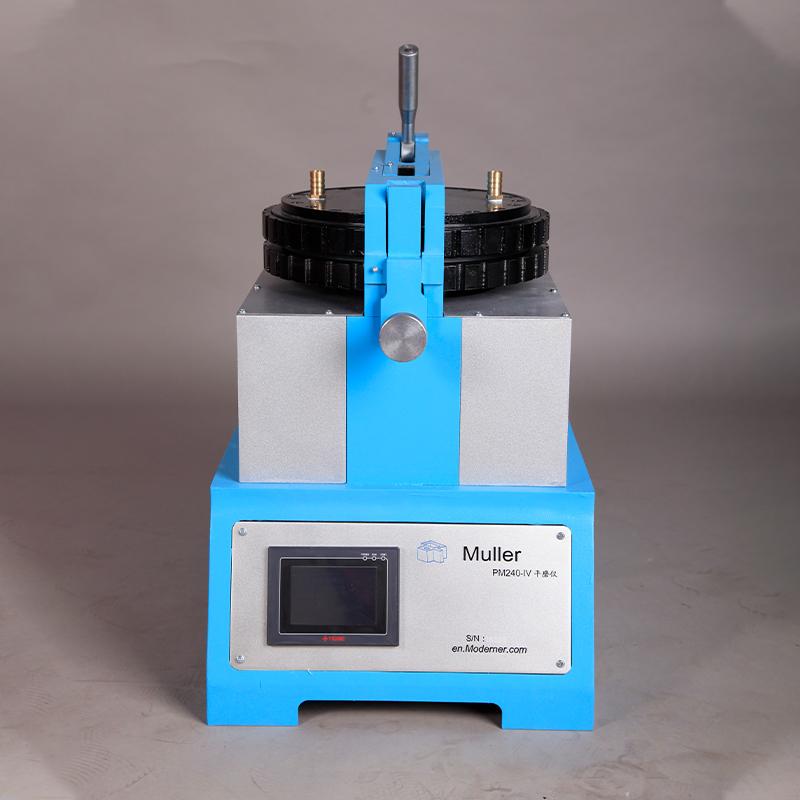

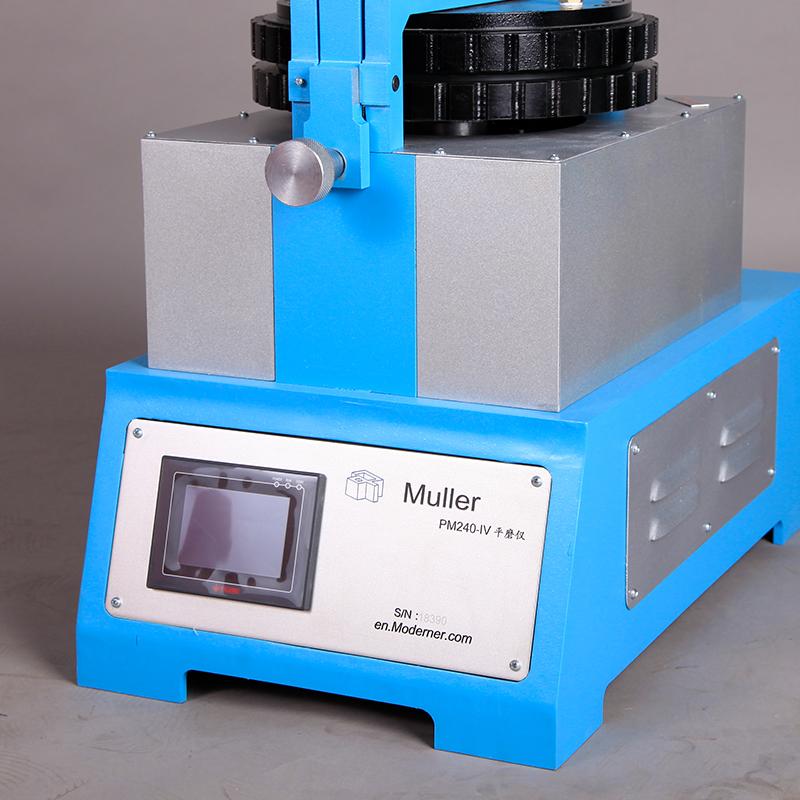

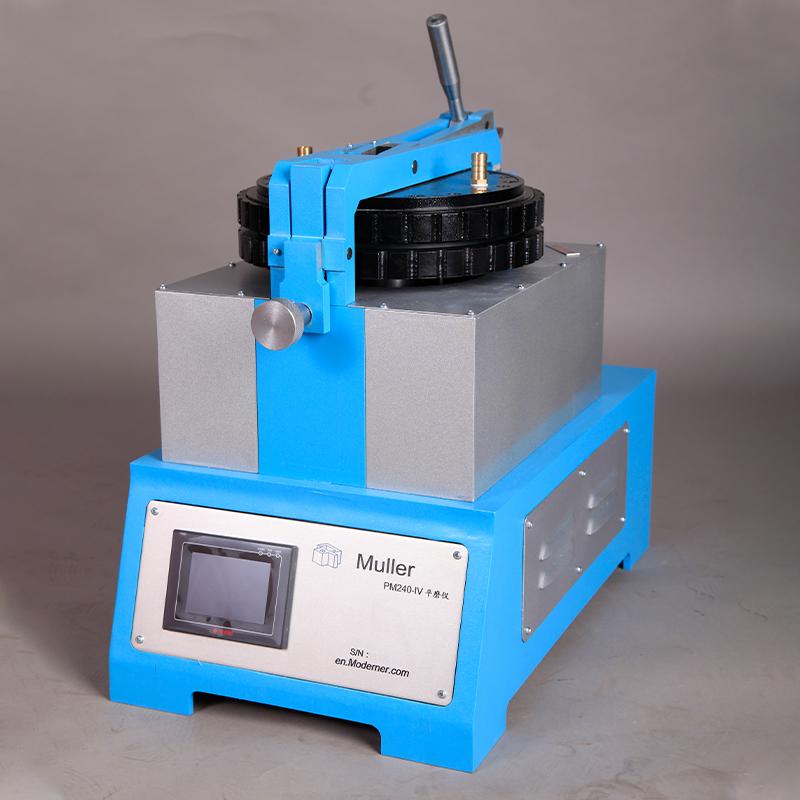

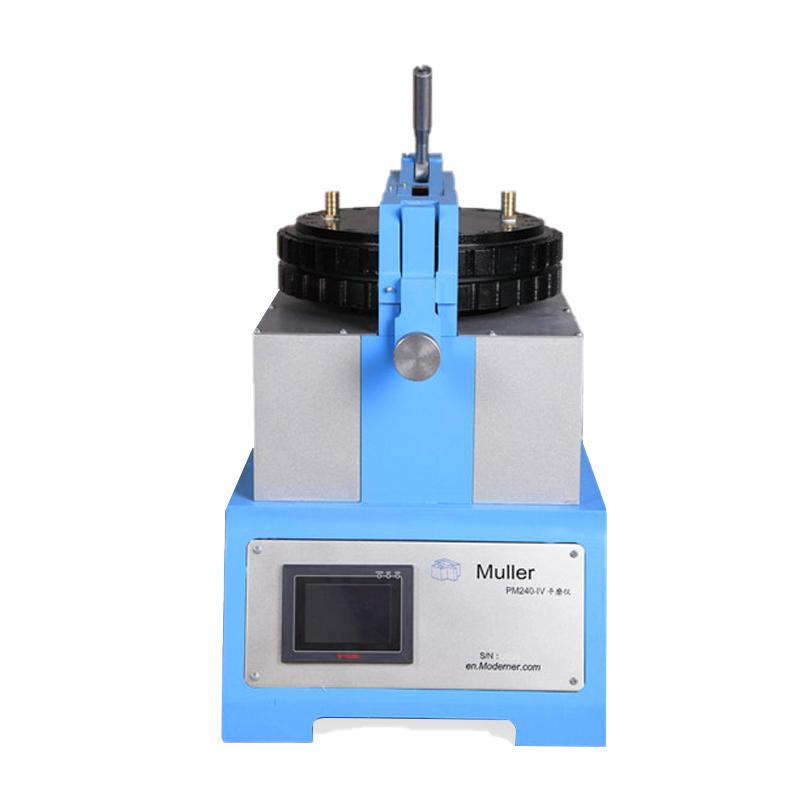

Products real shot



Related standards:

GB/T 5211-16, GB/T 5211-19, GB/T 21867.1, GB/T 21868.5, ISO 787-16, ISO 787-17, ISO 8780-5, ISO 8781-1

FAQ
QWhat is the thickness spacing between the upper and lower flat grinding discs?
A There is no spacing between the upper and lower flat grinding discs.
QWhat is the diameter of the White Glass in the middle of this device?
A Glass plate diameter is 251.283mm.
QIs there anything to pay attention to when the plane grinding machine is running without load?
A When running without load, the upper grinding disc needs to be opened, and the lower grinding disc should be turned counterclockwise.
QIs this a sample that can be used to prepare chromadizing slurry?
A OK
QCan you directly measure the tinting strength?
A Flat grinder was used to make chromadizing slurry, and the tinting strength was determined visually.
QFlat grinder gearbox how long to refuel?
A Hello, after the instrument is used for one year, it is necessary to inject oil into the gearbox.
QPM240-IV Flat grinder how many kinds of weight?
A Hello, there are three kinds of 43kg, 64kg and 100kg.
QIs there a digital plane grinding machine with GB/T21868.5 standard?
A This MODERNER digital plane grinding machine is OK!
QDoes this PM240-IV Flat grinder have a 220V power supply?
A Hello, 380V is standard. If 220V is required, the manufacturer supports customization.
