JUNSHUN YA1001P-F2 Fluorine Gas Detector 0-1ppm

JUNSHUN YA1001P-F2 Fluorine Gas Detector is a portable fluorine Gas Detector with a range of 0-1ppm and an accuracy of 0.1ppm. YA1001P-F2 Fluorine Gas Detector can set high-low alarm points and has two-level alarm function.
Model：
Certificate
Contact
Details SPEC

Junshun YA1001P-F2 Portable Toxic Gas DetectorSPEC

Junshun YA1001P-F2 Portable Toxic Gas DetectorDetails

Junshun YA1001P-F2 Portable Toxic Gas DetectorPacking list

SKU
NB016233
Detect gas
F2
Range
0~1ppm
Accuracy
0.1ppm
resolution
＜±3%（F.S）
Response time
≤60s
Sensors Life
24 months
Sensors principle
electrochemistry
Intrinsically safe Power Supply
lithium battery
Sampling method
diffusion
Operating current
150mA
Maximum open circuit Voltage Uo
3.2V
Maximum short circuit current Io
7A
Explosion-proof sign
Intrinsically safe
Explosion-proof sign
Exib ⅡC T3 Gb
Protection level
IP45
Operating temperature
-20~50℃
Environmental humidity
0~90%RH
Dimension
110*70*30mm
Weight
150g
Display
LCD displays real-time data
Alarm mode
Sound, light.
YA1001P-F2
Portable Toxic Gas Detector

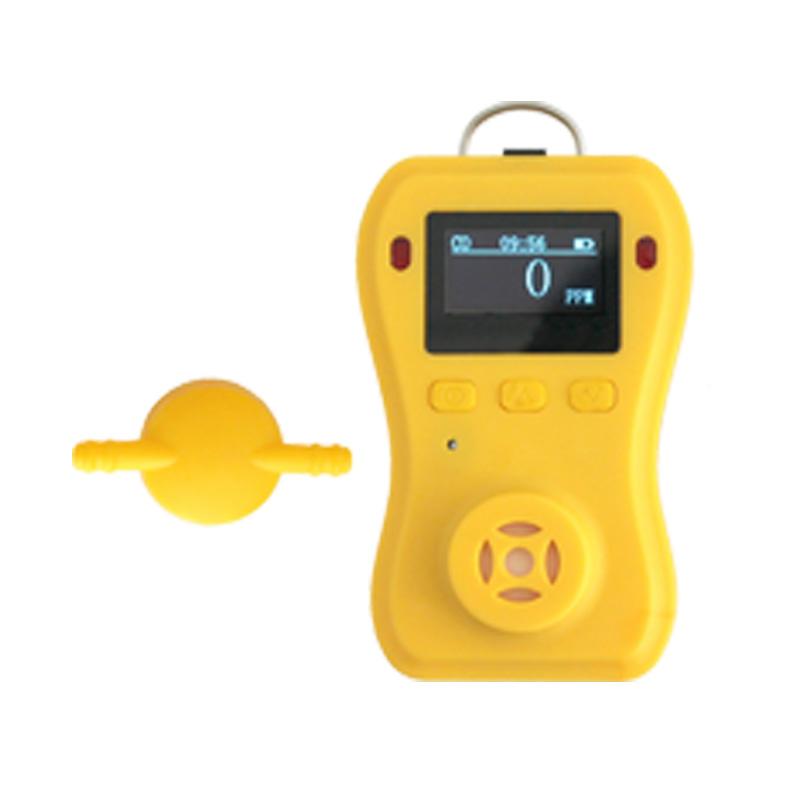

JUNSHUN YA1001P-F2 Fluorine Gas Detector 0-1ppm Picture

Introduction

 YA-1001 series portable single Gas Detector (hereinafter referred to as Detector) is a portable intrinsically safe detection and alarm instrument that can continuously detect the concentration of ambient gas in the workplace.

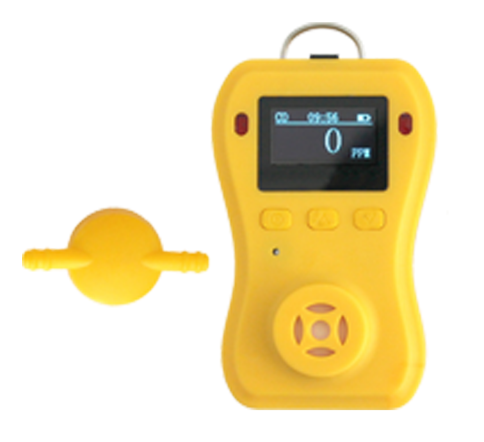

Junshun Electronics YA1001P-F2 Portable Toxic Gas Detector

The Detector uses natural diffusion to detect the surrounding ambient gas, and the sensitive element adopts a good imported gas sensor, which has excellent sensitivity and good repeatability;

●The instrument adopts embedded microcomputer control, which is simple to operate, complete in function and high in reliability;

●Use graphic LCD display, Chinese menu, intuitive and clear;

●Built-in sound, light and vibration alarm;

●Adjustable high-low alarm function;

●Alarm information and alarm concentration can be recorded.

Features

It adopts 32-bit ARM low-power and high-speed processor

Ultra-wide Viewing Angle, high-brightness OLED graphic LCD display

Chinese menu, easy to use

High-low alarm points can be set, and two-level alarms can be set

Real-time clock display

Battery underVoltage indication

Two-stage triple alarm (sound, light, vibration)

3000 records, query function

Accurate battery level display

UNIVERSAL MICRO-USB CHARGING PORT

POST

FAQ
QGas detector can be applied to GB3836.1?
A OK
QYA1001P-F2 Toxic Gas detector Sensors principle is electrochemistry?
A Yes, this Gas detector uses electrochemistry principle. Detect gas F2
