Elcometer 501 H501----1 Pencil Hardness Tester

H501----1

Pencil Hardness Tester

The pencil hardness test, also known as the "Wolff-Wilborn" test, uses graphite pencils with different hardness values to evaluate the hardness of a coating.

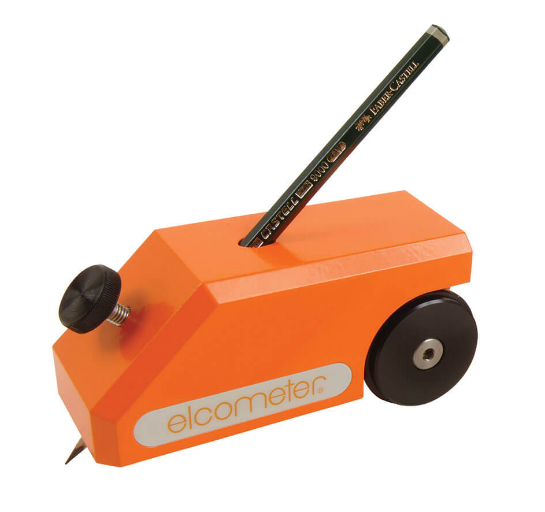

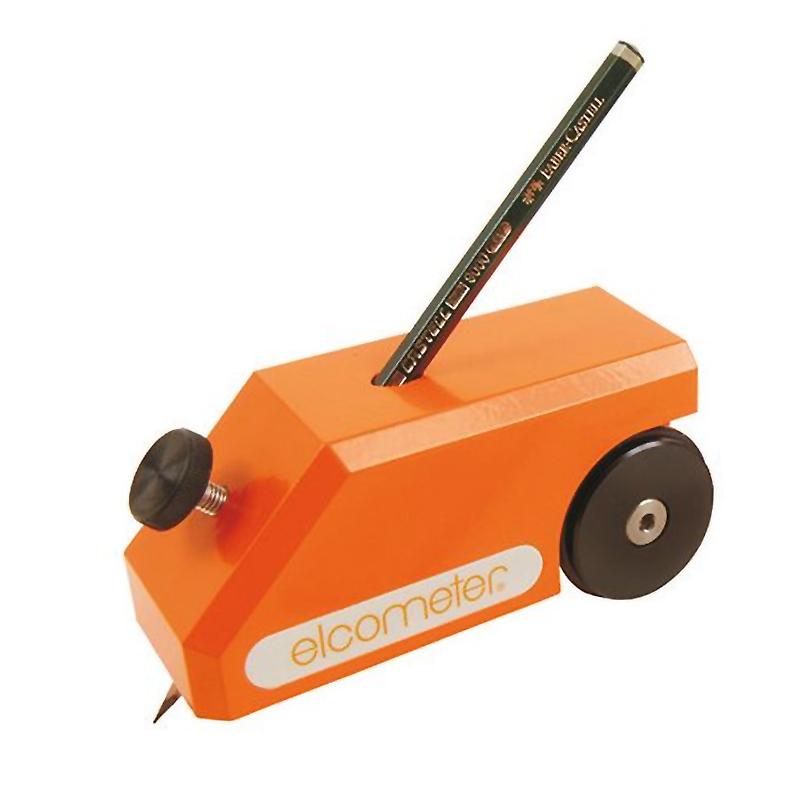

The design of the Elcometer 501 ensures that the cylindrical pencil lead can be maintained at a constant 45° angle and a force of 7.5N (1.68lbF).

The pencil lead is pre-prepared with a special pencil sharpener and matte paper and placed in the Elcometer 501 main unit on a smooth, flat surface. A pencil with the minimum hardness value that can leave a mark on the coating determines the hardness level of the coating.

The following standards are complied with:
ASTM D 3363, BS 3900-E19, ECCA T4, EN 13523-4, ISO 15184, JIS K 5600-5-4
Scribing is a standard that has been superseded but is still recognized in some industries.

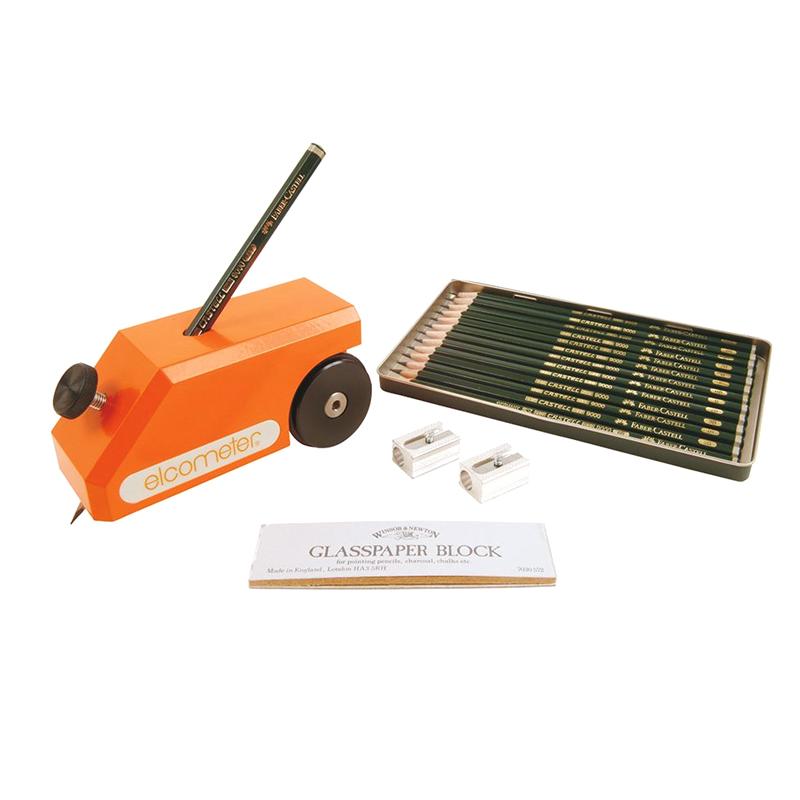

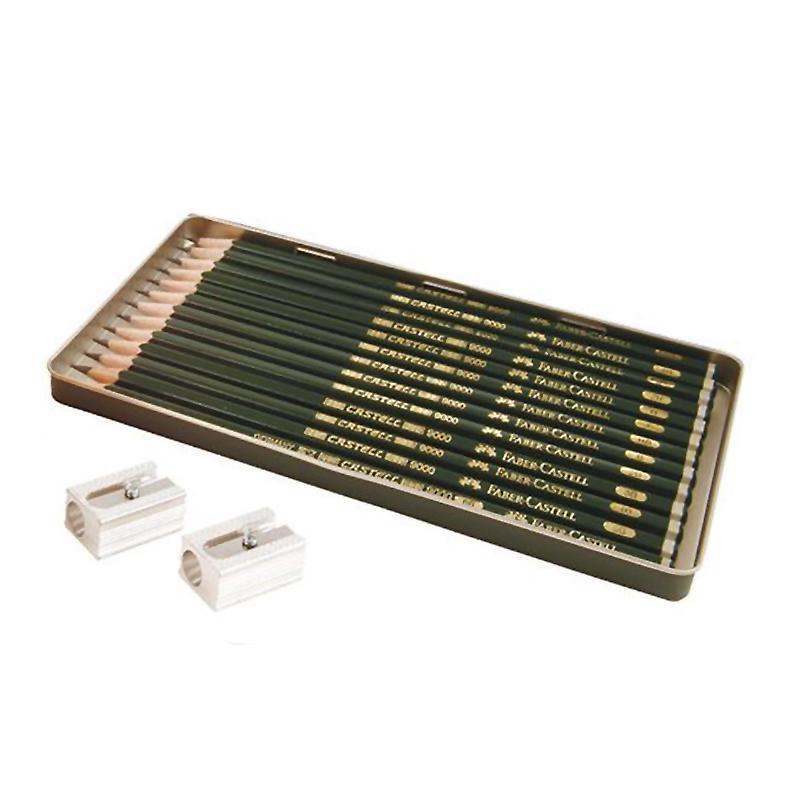

Packing list：Elcometer 501 Pencil hardness tester host x1, pencil set (14 pencils, 6B - 6H) x14, positioning block x1, pencil sharpener x1, sandpaper block x1, carrying case and operation manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
