YONGLIDA QCJ-120B Paint Film Impact Device 120cm/2000g ASTM D2794

SE
Impact height 120cm, sub-scale 1cm, drop weight mass 2000g, Striker Diameter φ 16mm, Impact depth 2.5mm, die base aperture φ 16.3mm, meeting the standard ASTM D 2794-92.
$350.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YongLiDa QCJ-120B Film Impact DeviceSPEC

YongLiDa QCJ-120B Film Impact DeviceDetails

YongLiDa QCJ-120B Film Impact DevicePacking list

SKU
NB018168
Impact height
120cm
Graduation
1cm
Drop Weight Mass
2000g
Striker Diameter
F16mm
Impact depth
2.5mm
die base aperture
F16.3mm
Standards
ASTM D2794-92
QCJ-120B
Film Impact Device
Impact height 120cm, sub-scale 1cm, drop weight mass 2000g, Striker Diameter φ 16mm, Impact depth 2.5mm, die base aperture φ 16.3mm, meeting the standard ASTM D 2794-92.
YONGLIDA QCJ-120B Paint Film Impact Device 120cm/2000g ASTM D2794 Picture

Introduction

The QCJ-120 (120A, 1208) series paint film impactor is used for the impact resistance test of the film coating, which is represented by the maximum height of 120 cm when the weight of a fixed mass falls on the test plate without causing damage to the paint film. After the impact head of this instrument impacts the type plate, there is no secondary rebound phenomenon.

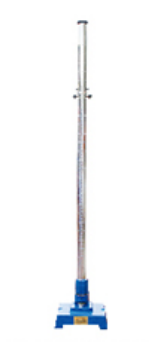

Yonglida QCJ-120B paint film impactor

application standard

GB/T6287.4-2000 Aluminum alloy building profiles Part 4 Powder coating profiles.

QCJ-120 series parameter comparison

modelQCJ-120QCJ-120AQCJ-120B
Instrument scale length120±0.2cm120±0.2cm120±0.2cm
graduation1cm1cm1cm
Hammer mass(1000±1) g(1000±1) g(2000±2) g
Impact head specificationsφ8mmsφ16mmsφ16mm
Pillow Block Hole Diameterφ15mmφ15mmφ16.3mm
radius of curvatureR2.5-3mmR2.5-3mmR2.5-3mm
Impact depth of impact head(2±0.1) mm(2.5±0.1)mm(2.5±0.1)mm
StandardsGB/T1732-93 Determination of impact resistance of paint filmGB/T5237.4-2000 Aluminum Alloy Architectural Profiles Part 4 Powder Coated ProfilesASTM D2794-92 Test Method for Resistance of Organic Coatings to Rapid Deformation (Impact) Effects
FAQ
QCan the YONGLIDA QCJ-120B Film Impact Apparatus meet the ASTMD5420 standard?
A Applicable, you can consult the customer service of the mall for details about the ASTMD5420 standard.
QDoes it meet the American standard ASTM D2794 coating Impact Tester?
A This one is it.
