YONGLIDA QGM-65 Three-roll Grinder size 65x135mm

SE
The size of the roller is 65x135mm, and the three rollers are squeezed against each other to destroy the bonding force between the molecules of the sample, so as to realize the grinding and uniform mixing of the sample. The speed ratio is 1:3:9, the speed of the middle roller is 88rpm, and the particle size of the starting material is 50~100μm, which is suitable for the grinding of the experimental interior paints.
$708.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YongLiDa QGM-65 Three-roll GrinderSPEC

YongLiDa QGM-65 Three-roll GrinderDetails

YongLiDa QGM-65 Three-roll GrinderPacking list

SKU
NB018234
Roller size
65x135mm
speed ratio
1:3:9
Medium roll speed
88rpm
Feed particle size
50 ~ 100µm
QGM-65
Three-roll Grinder
The size of the roller is 65x135mm, and the three rollers are squeezed against each other to destroy the bonding force between the molecules of the sample, so as to realize the grinding and uniform mixing of the sample. The speed ratio is 1:3:9, the speed of the middle roller is 88rpm, and the particle size of the starting material is 50~100μm, which is suitable for the grinding of the experimental interior paints.

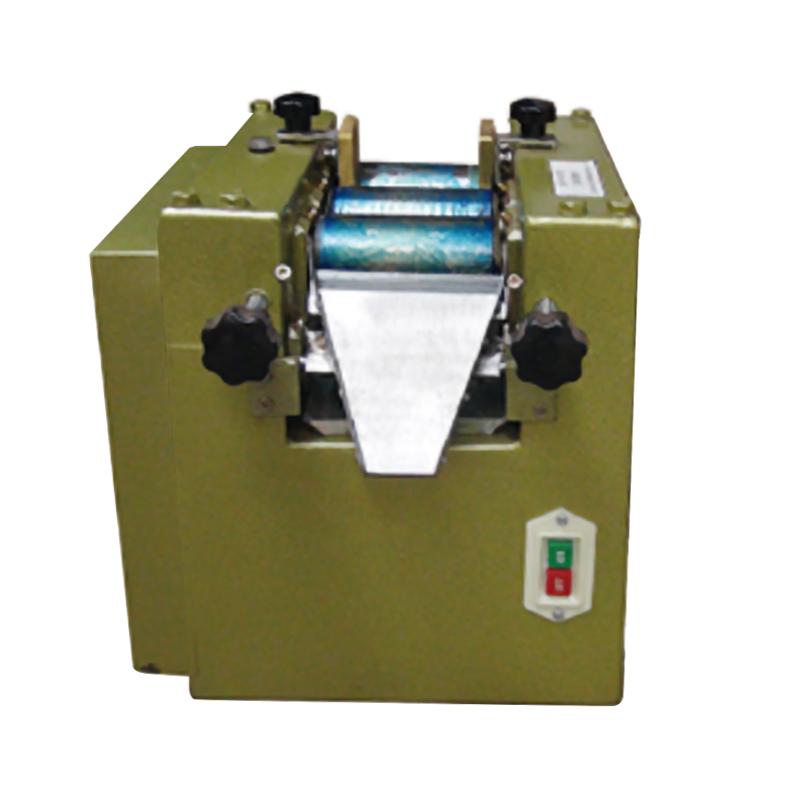

YONGLIDA QGM-65 Three-roll Grinder size 65x135mm Picture

Introduction

Yonglida QGM-65 three-roller Grinder uses three rollers to squeeze each other to destroy the bonding force between the molecules of the sample, so as to achieve the crushing, grinding and uniform mixing of the sample. It is suitable for crushing and grinding of paint fillers in the laboratory.

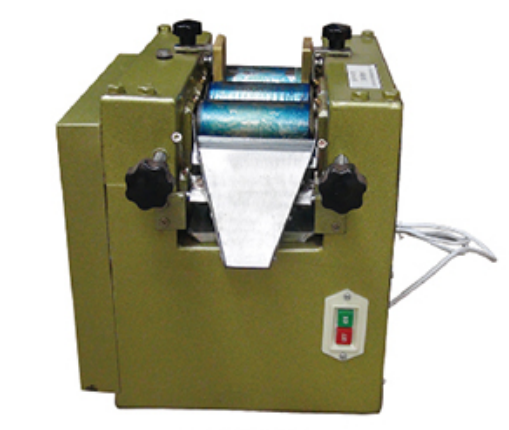

Yonglida QGM-65 three-roll mill display

FAQ
QWhat material is this roller made of?
A The roller is divided into fast, medium and slow, all cold hard alloy centrifugal casting, both ends are heat-treated high-quality steel shaft head, the left shaft head is equipped with a transmission gear, and the middle through hole of the right shaft head is a water hole for the roller to chill down when working. The thickness of the hard layer of the roller is not less than 15mm, its Hardness is not less than Shore Hardness 70, and the surface is precision ground.
QWhat material is this roller made of?
A Roller is divided into fast, medium and slow each, all cold hard alloy centrifugal casting, both ends of the high-quality steel shaft head after heat treatment, the left shaft head is equipped with a transmission gear, the right shaft head of the middle through hole for the water hole as the roller in the work of chilling down. Film thickness of the hard layer of the roller is not less than 15mm, its hardness is not less than Shore hardness 70, the surface is precision grinding.
QMeet GB/T21868.6 Three-roll grinder
A QGM-65 Three-roll grinder, please refer to it.
