CTM-208 Electrolytic Thickness Gauge measurement

SE
Material protection instrument CTM-208 Electrolytic Thickness Gauge can realize film thickness measurement of more than 20 single or composite coatings on metal, non-metal, NdFeB substrates, such as metal coatings, composite coatings, alloy coatings, etc.
$1853.79/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO CAT

COATTEST INSTRUMENT CTM-208 Electrolytic Thickness GaugeSPEC

COATTEST INSTRUMENT CTM-208 Electrolytic Thickness GaugeDetails

COATTEST INSTRUMENT CTM-208 Electrolytic Thickness GaugePacking list

SKU
NB018410
Measuring range
0.1 ~ 35µm
Error of indication
≤±10%
resolution
0.01µm
Display
126 * 64 dot matrix LCD
data processing
External micro-printer, can automatically print statistical reports: including plating type, Film thickness value, average value, standard deviation, coefficient of variation, MAX Maximum, MIN Minimum, measurement number and test time and other information
Key mode
4 quick plating selection buttons, no need to switch the plating clock frequently, to avoid misoperation
Power
AC 220V ± 10%, 50/60Hz
power
30W
Dimensions
240*200*70mm
Measurement of plating
Standard configuration: can measure Cr, Ni, Cu, Zn, Sn, Ag, Au, Cd, Co, In, Pb and other single metal coatings, composite coatings (such as Cr/Ni/Cu), alloy coatings (NiP, ZnNi, SZn, SPb, PMA, etc.) about 20 coating/matrix combinations
Coating substrate
Metal, non-metal, NdFeB
Number of coating layers
Single layer and composite multi-layer
Test size
Optional φ2.4mm, φ1.7mm, φ1.2mm, φ1.0mm, φ0.8mm aperture probe, and wire kit
Wire test
It is suitable for the testing of wire (wire) and columnar workpieces with a diameter of 0.1~ 4mm. (The standard test frame is upgraded to, the special test frame for the wire needs to be charged separately, and the software function also needs to be upgraded to the open wire function) Direct reading is not required
CTM-208
Electrolytic Thickness Gauge

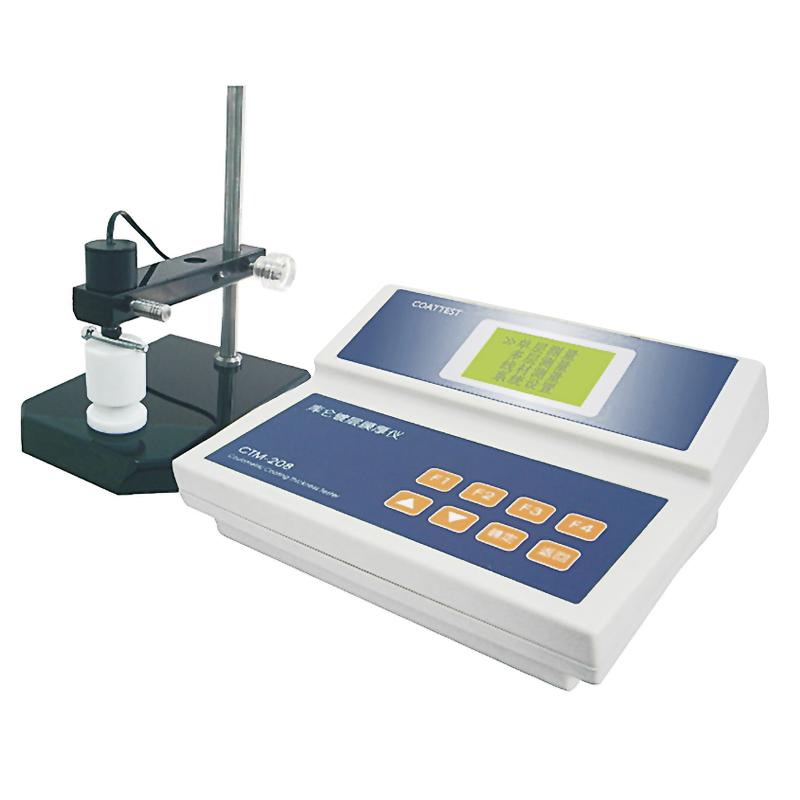

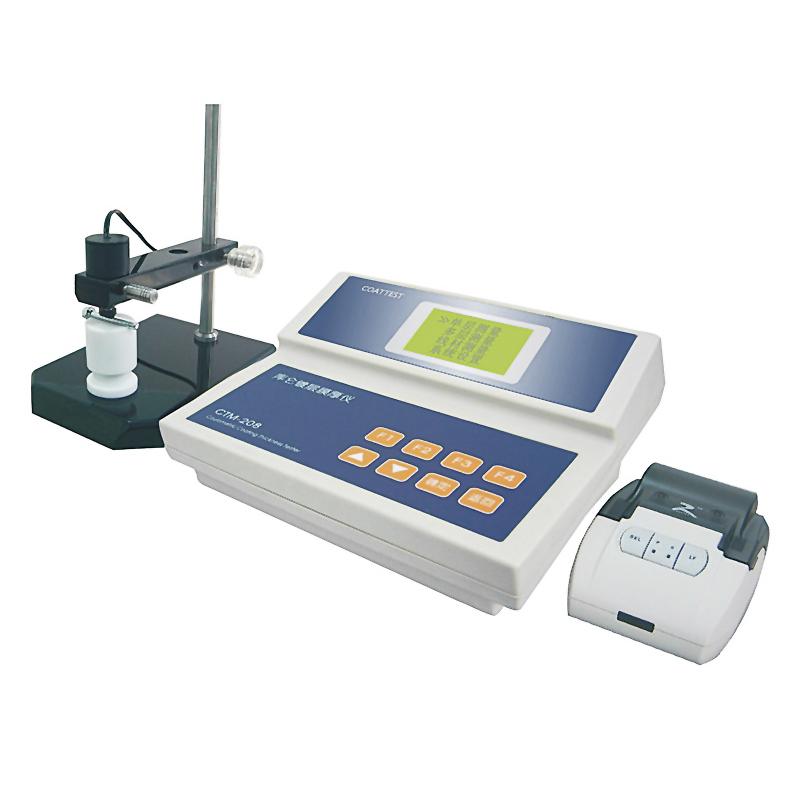

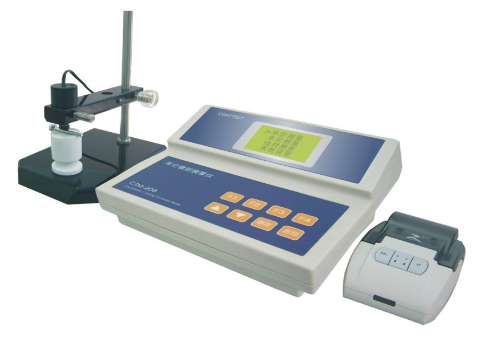

CTM-208 Electrolytic Thickness Gauge measurement Picture

Application

Applicable fields: automobile and motorcycle industry, aerospace and navigation industry, bicycle industry, electronic and electrical industry, daily hardware industry, sanitary ware industry, plastic electroplating industry, neodymium-iron-boron industry,

Standard parts industry, security industry, technical supervision departments and scientific research institutions.

Product use: Thickness measurement of single coating or composite multi-coating

Additional information

 The thickness gauge has been calibrated before leaving the factory. If you need a coating calibration plate (made in the United States), you need to purchase it separately (you need to use a standard test stand for testing)

FAQ
QCan tin platings on copper substrate be measured? Mine are metal platings, single tin, definitely conductive, thickness 5~ 20 microns
A Destructive thickness measurement only
QMatrix nonmagnetic, platings zinc, copper and oxidation electrodes, Coating thickness gauge which can be measured?
A Recommended Electrolytic Thickness Gauge
QIs there any kind of thickness measurement for platings? It is mainly copper on the surface of zinc alloy and plastic parts, and the thickness measurement of nickel-chromium layer? It is plated with 3 layers, the bottom layer is copper, nickel on copper, and chromium on nickel
A This Electrolytic Thickness Gauge can be tested.
QIs Electrolytic Thickness Gauge Destructive or Nondestructive?
A Destructive testing is the Destructiveness test.
QMeet JB/T10534 Electrolytic Thickness Gauge
A To meet the JB/T10534 Electrolytic Thickness Gauge, please use the DJH-G multilayer nickel thickness and potential difference tester. JB/T10534 needs to measure the thickness of each layer of nickel in multilayer nickel and the potential difference between nickel layers. The CTM-208 Electrolytic Thickness Gauge is used to measure multilayer nickel, which is the total thickness of the tested multilayer nickel. The thickness of each layer of nickel cannot be distinguished, nor can the potential difference between nickel layers be measured.
QDoes the CTM-208 Electrolytic Thickness Gauge test need to be calibrated?
A Okay, this Electrolytic Thickness Gauge has been adjusted before leaving the factory, and there is no need to calibrate it before each test. If you need to further calibrate the test, you need to buy a standard test piece for testing.
QCTM028 Electrolytic Thickness Gauge is used for thickness measurement of composite alloy coatings. Is it suitable?
A What kind of alloy is it? Like nickel-phosphorus alloy, zinc-nickel alloy, lead-tin alloy, etc., it can be tested. There are too many types of alloys, and a few common alloys can be tested. Miscellaneous is uncertain.
