HUITAI DHG-9260A Blast drying oven Electric heating oven 260L

SE
260L, RT + 10~ 25 0 ℃， +/- 1 ℃, 0.1 ℃, 2500W, fan speed control, air duct circulation system, mirror stainless steel liner, independent temperature limit alarm
$784.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HTAIYQ DHG-9260A Blast drying ovenSPEC

HTAIYQ DHG-9260A Blast drying ovenDetails

HTAIYQ DHG-9260A Blast drying ovenPacking list

SKU
NB018719
Temperature range
RT+10~250°C
Temperature fluctuation
±1℃
temperature resolution
0.1℃
Temperature Uniformity
±2.5%℃
Volume
260L
Interior size
600*595*750mm
Inner chamber material
Mirror stainless steel
Number of shelves (std.)
2pcs
Timer
1~9999min
Power
AC220V 50Hz/16A
Input power
2500W
Dimensions
880*800*930mm
Enclosure Material
Cold rolled steel plate surface electrostatic spraying
Optional accessories
Intelligent program Controller, independent temperature Controller, embedded printer, RS485 interface and special software, test hole 25mm/50mm
DHG-9260A
Blast drying oven
260L, RT + 10~ 25 0 ℃， +/- 1 ℃, 0.1 ℃, 2500W, fan speed control, air duct circulation system, mirror stainless steel liner, independent temperature limit alarm

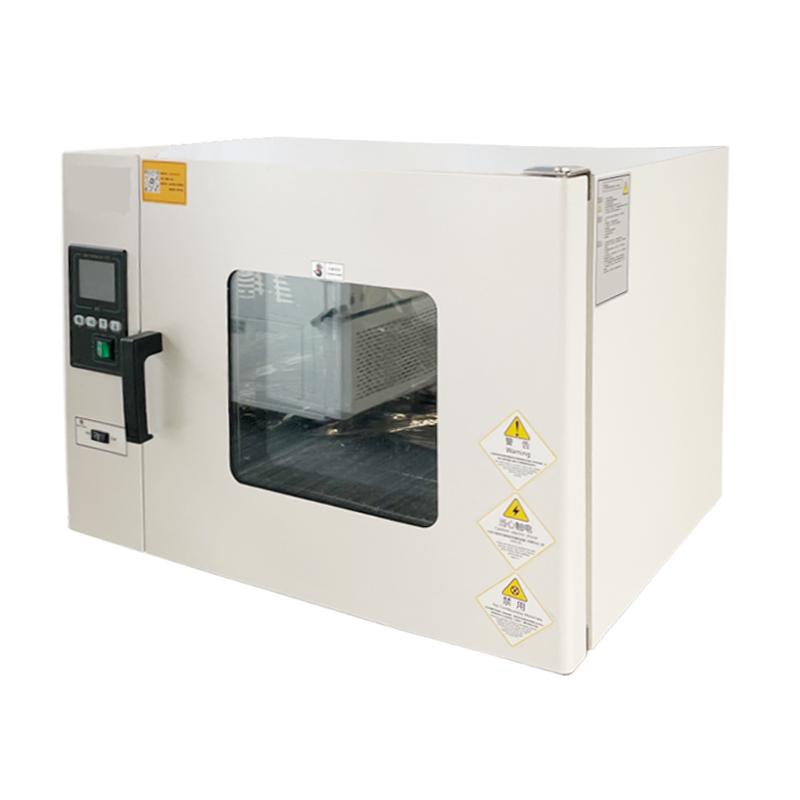

HUITAI DHG-9260A Blast drying oven Electric heating oven 260L Picture

Overview

Huitai DHG-9260A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional accessories

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

modelTemperature control rangeinput powervolume
DHG-9030ART+10~25085030
DHG-9050A110050
DHG-9070A155080
DHG-9140A2050136
DHG-9240A2500220
DHG-9240A Heightening2500260
DHG-9035ART+10~30085030
DHG-9055A110050
DHG-9075A155080
DHG-9145A2050136
DHG-9245A2500220
Unit: °C, W, L
other parameters
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1~9999min


Library
FAQ
QGlass baking equipment in our laboratory, about 60 liters, which one is suitable?
A Recommended DHG-9050A, volume 50 liters, daily baking Glass ware enough, Temperature range RT + 10~ 250 ℃, cavity mirror stainless steel clean easy, standard 2 shelves, air duct circulation to make the temperature uniform, cost-effective.
QDrying oven should be constant weight after drying. Is Temperature uniformity important?
A Important, uneven temperature will affect the drying constant weight result. Our DHG-9260A adopts fan speed control and self-developed air duct system, Temperature Uniformity +/- 2.5% ℃, which can effectively reduce the difference in sample heating and ensure accurate constant weight.
QI need to run regularly for a long time and I am afraid of the danger of overheating. What functions should I choose?
A It is recommended to choose an independent temperature limit controller, which will automatically power off when it exceeds the set temperature, which is safer. In addition, if you do multi-stage program temperature control, you can add a smart program controller; if you want to record data, choose the RS485 interface. I recommend you to choose independent temperature limit insurance. The most important function is very practical.
QThis drying oven can control the temperature of 70 ℃ and can hold 250L?
A Can meet, DHG-9260A blast drying oven Temperature range 10~ 250 ℃, volume 260L.
QCan HUITAI DHG-9260A blast drying oven meet the GB/T1714 standard?
A Applicable, you can consult the customer service of the mall for details about the GB/T1714 standard.
