PUSHEN CJQ-II Film Impact 50cm/1000g GB/T 1732

SE
Impact height 0~50cm, sub-scale 1cm, drop weight mass 1000g, Striker Diameter φ 8mm, Impact depth 2mm, die base aperture φ 15mm, meet the standard GB/T 1732
$260.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

Pushen CJQ-II Paint Film Impact Device (0.5 m)SPEC

Pushen CJQ-II Paint Film Impact Device (0.5 m)Details

Pushen CJQ-II Paint Film Impact Device (0.5 m)Packing list

SKU
NB019525
Impact height
0~50cm
Graduation
1cm
Drop Weight Mass
1000g
Striker Diameter
F8mm
Impact depth
2mm
die base aperture
F15mm
Standards
GB/T 1732-1993
Overall Dimensions
200*200*800mm
Shipment Weight
10kg
CJQ-II
Paint Film Impact Device (0.5 m)
Impact height 0~50cm, sub-scale 1cm, drop weight mass 1000g, Striker Diameter φ 8mm, Impact depth 2mm, die base aperture φ 15mm, meet the standard GB/T 1732

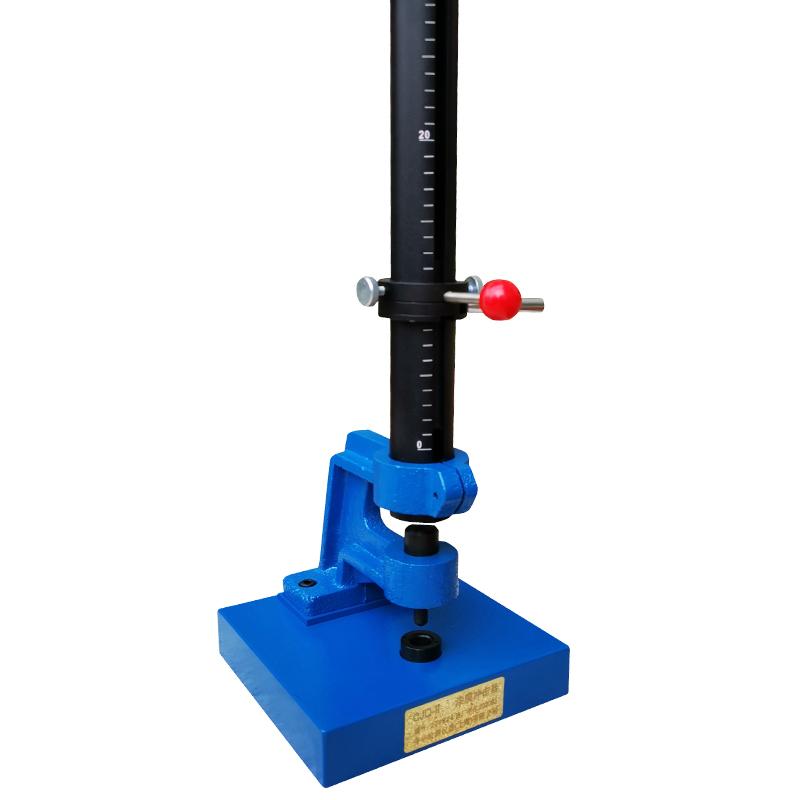

PUSHEN CJQ-II Film Impact 50cm/1000g GB/T 1732 Picture

CJQ-II paint film impactor

It is mainly used to test the damage degree of the paint film after being impacted. It has the advantages of simple structure and convenient operation.

A heavy hammer with a fixed weight falls on the test plate impact-coated with the sample to be tested at a certain height, and the impact force is expressed in kg.cm.

The impactor consists of a solid base with a bracket attached to the catheter, the catheter body is slotted and centered by using a collar suitable for weight

Guide the cylindrical weight to fall, with a marked height beside it to indicate the corresponding reading when the weight falls.

The impact height of Model 2702 is 0-50 cm, and the impact height of Model 2703 impactor is 0-100 cm.

The base of the instrument contains a die holder support, the punch is sized to fit the die holder,

This is important to prevent shearing of the test panel at the inner edge of the mold base.


Standards

GB/T 1732-1993 Method for Determination of Impact Resistance of Paint Film

Library
FAQ
QI need to test the impact performance of the paint film, weight 1kg, drop height 0-50cm, which one is recommended?
A CJQ-II is recommended, it fully complies with the GB/T 1732-1993 standard, with a drop weight mass of 1000g, an Impact height of 0-50cm, and a punch diameter of 8mm, which just meets your parameter requirements and is easy to operate.
QIn the car painting factory, the daily inspection of the paint film will not crack after being hit by stones. Is this instrument suitable?
A Appropriate. CJQ-II is to simulate the impact of the heavy hammer to evaluate the impact resistance of the paint film. The scene of the car paint surface being hit by stones is similar. It can be used to quickly determine whether the coating is easy to crack.
QI only need to measure the height of 0.5 meters Impact, but I see that there are 0-100cm models, which one is better?
A Just choose CJQ-II, its height is 0-50cm, Division 1cm, enough for you to measure 0.5 meters, and the structure is more compact and the operation is cheaper.
QWhat material is this steel ball CJQ-II made of? What steel?
A Bearing steel
QAccording to GB/T 1732 "Paint Film Impact Resistance Determination Method" for impact test, Impact 50kg · cm, the paint film should be free of crazing, wrinkles and flaking.
A This one is ok.
QCan the Impact tube be adjusted in height?
A Adjustable, Impact tube with scale
QHow big is the drop weight of the CJQ-II film impactor?
A Hello, the weight of the drop hammer is 1000g.
QWhat are the impactors that meet the national standard GB/T 1732-2020?
A This one matches.
QDoes this film Impact comply with GB/T22412 standard?
A This paint film Impact device is suitable for GB/T22412. Please consult customer service for detailed application definition.
