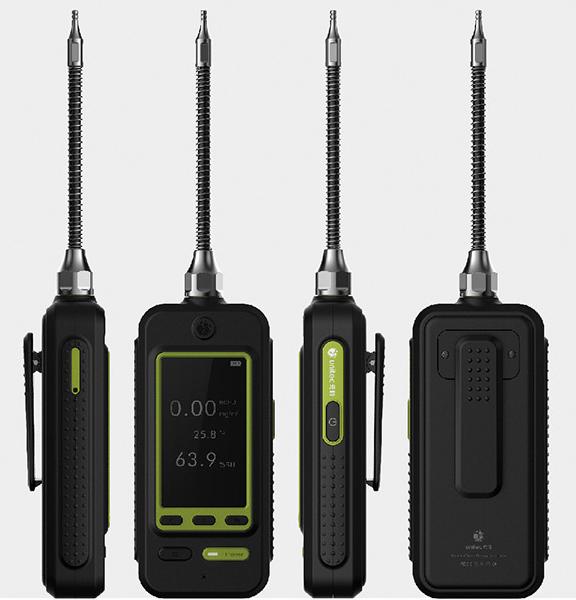

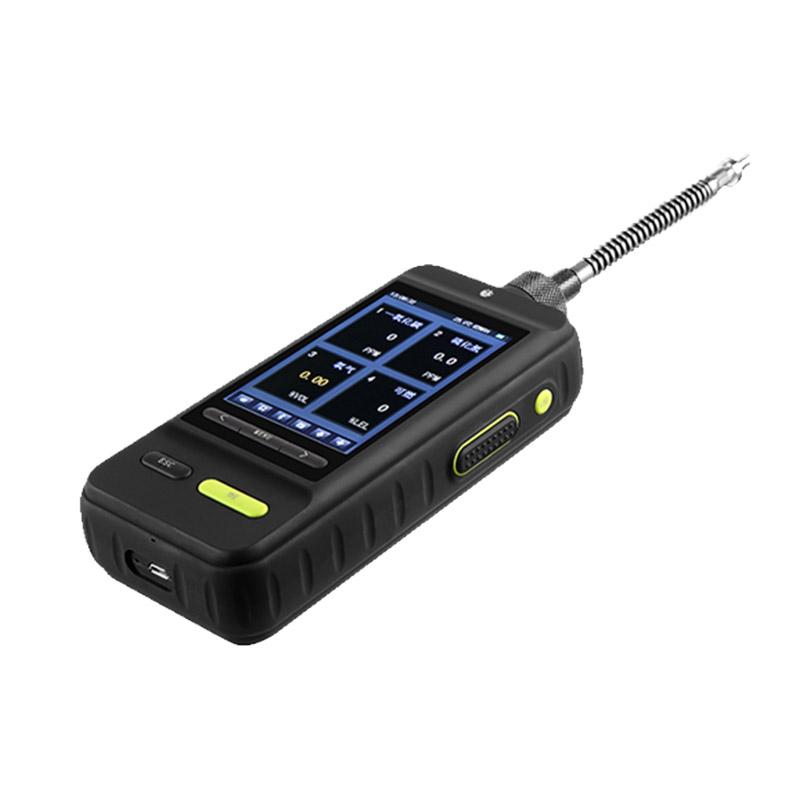

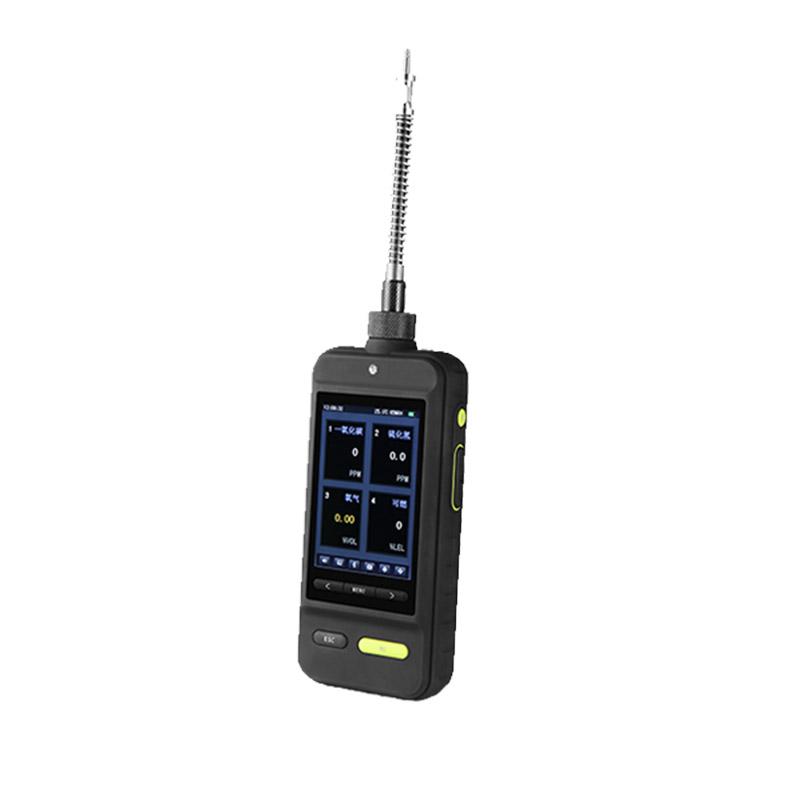

UNITEC SKY6000-F2O2S (0-100ppm) Sulfuryl Fluoride Detector
SKY6000-F2O2S(0-100ppm)
Unitec SKY6000-F2O2S(0-100ppm) Sulfuryl fluoride DetectorSPEC
Unitec SKY6000-F2O2S(0-100ppm) Sulfuryl fluoride DetectorDetails

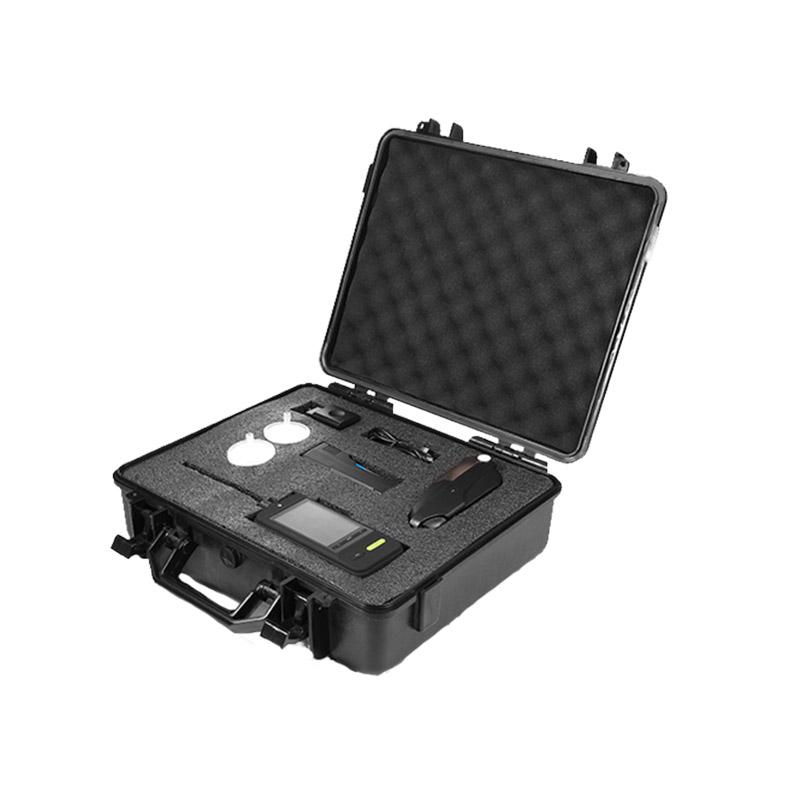

Unitec SKY6000-F2O2S(0-100ppm) Sulfuryl fluoride DetectorPacking list
- SKU
- NB020105
- Sensors principle
- electrochemistry
- Detect gas
- sulfuryl fluoride
- Sampling method
- Pump suction
- Range
- 0~100ppm
- detection Accuracy
- 2%F.S
- Response time
- ≤8s(T90)
- resolution
- 0.1ppm
- Humidity
- Temperature: -20 ℃ -50 ℃, resolution: 0.1 ℃; Humidity: 0-99% RH, resolution: 1% RH (optional)
- Pressure measurement
- 0.5-2 bar (optional)
- Flow rate of pump
- 0~500 mL/min 10 gears adjustable
- Display
- 3.5 inch color display, resolution 320 * 480
- display content
- Gas molecular formula, concentration data, Measurement unit, Linear dispersion trend, battery power, time, temperature, Humidity, pressure (optional), pump status, wireless status, printer status, screenshot status, etc
- Alarm mode
- Buzzer, white flashing light and alarm status prompt on the Display, low battery alarm
- Data Logging
- Independent SD memory card, standard 8G, up to 32G, automatic measurement data recording function, can customize the recording time interval
- Power Supply
- 3800mAh rechargeable lithium battery
- wireless network
- Bluetooth (with printing function), ZigBee, Lora + (relay DTU), DTU (optional)
- Network Frequency
- Lora（470M）、DTU（2.4G）
- Wireless transmission distance
- Lora (1.6 km), DTU (unlimited)
- Operating language
- Chinese and English bilingual switch
- Environmental humidity
- 0~95% RH (no condensation) (Humidity is too high, optional filtrating device)
- Operating temperature
- -30~50℃
- Explosion-proof sign
- Exic II CT3 Gc
- Dimension
- 270*75*41mm
- Host Weight
- 400G (host)
- Qualification Certificate
- Measurement equipment type approval Certificate, explosion-proof Certificate, CE certification
Features
1) 3.5-inch large screen display, beautiful appearance, independent patented structure design
It adopts 3.5-inch high-definition color screen, 120-degree wide Viewing Angle.
Comes with a detachable suction probe ≥130mm, double-layer pipeline: built-in PTFE layer, does not adsorb any gas; With the addition of a spring protective layer, it can be bent arbitrarily 360 degrees and is not easy to deform, and has obtained relevant structural design patents.
The novel air chamber structure makes the detection faster, and the relevant structural design patents have been obtained
2) Flashlight function, fall alarm function
Professional design - flashlight function to illuminate the darkness of some work sites, making underground operations easier;
Optional fall alarm function, so that the safety of underground workers can be more guaranteed;
3) Multi-gas simultaneous measurement, display mode can be switched arbitrarily
The instrument can detect up to 1-6 gas concentrations at the same time
The gas concentration data display and real-time gas concentration curve display mode can be switched arbitrarily
4) Flexible and adjustable pumping system, multi-layer filtration device
Built-in gas sampling pump, the flow rate of the pump can be adjusted in ten gears, and the gas detection flow rate can be customized for different detection environments
The instrument is equipped with a three-layer filtration device to effectively filter oil, water, dust and other impurities, even in the most harsh industrial environments, the test results can still be trusted
5) Powerful function and more user-friendly operation
Support a variety of gas display units arbitrarily switch, the concentration value is automatically converted by the system
The display can be switched between Chinese and English freely
It has a timed shutdown function and intelligent settings
Automatic sensor overload protection function
The Micro-USB charging port is designed with common data cables and power banks to charge anytime, anywhere
It is equipped with 8G large-capacity memory card as standard, supports one-click download function, and can choose the upper computer storage software to download and analyze data, and the storage data format is diversified
An external Bluetooth printer is optional, and the detection data can be printed on the move
One-click screenshot function, save detection data and curves in the form of pictures
It can be built-in wireless communication module, and users can view and monitor detection data in real time on the computer web client and mobile phone applet, and carry out security control (optional)
