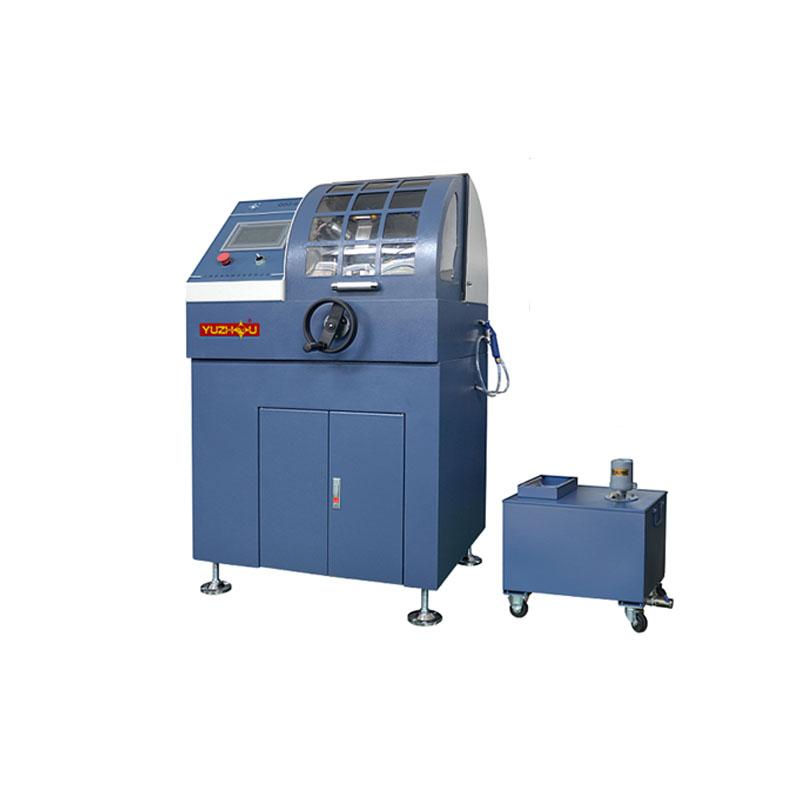

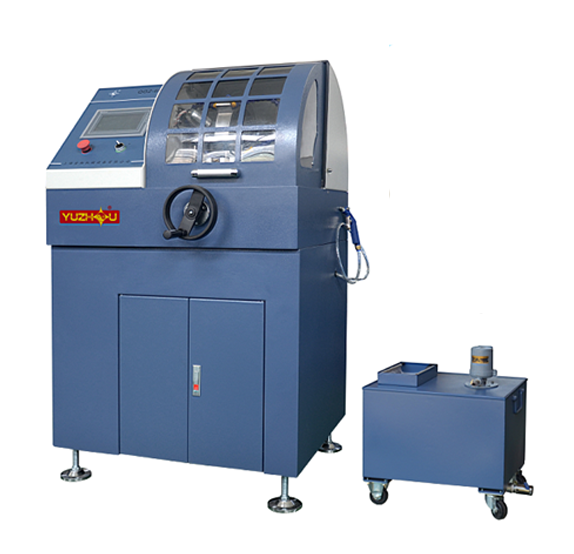

YUZHOU QGZ-65 Automatic Metallographic Specimen Cutting Machine Should 300 × 2 × Should 32mm

QGZ-65

Automatic metallographic sample cutting machine

Introduction

The QGZ-65 automatic metallographic sample cutting machine is a precision cutting machine that integrates manual and automatic functions. The whole machine adopts an electromechanical separation structure with reasonable design, which effectively protects electrical safety and is easy to maintain. The height of the spindle is adjustable, the Y-axis is automatically and accurately controlled, and it can automatically return to its original position after cutting. Equipped with automatic intelligent feeding, it can automatically adjust the speed according to the hardness of the material to avoid stalling. It is suitable for cutting samples of various shapes, sizes and materials. The surface of the cut sample is bright, flat and free of burns. It is an ideal equipment for cutting samples.

Features

1. The whole machine is made of thick plates, which is strong and stable;

2. 7-inch color high-definition touch screen, intuitive display and convenient operation;

3. Manual and automatic integration, flexible feeding method;

4. Y-axis automatic intelligent feeding, automatically adjusts the speed according to the hardness of the material to avoid stalling;

5. The Z-axis can be manually adjusted, suitable for grinding wheel cutting discs of various sizes, and can compensate when the cutting disc is lost, effectively improving the utilization rate of the cutting disc;

6. Explosion-proof transparent observation window, sudden stop protection when opening the cover, safe and reliable;

7. Adjustable LED lighting to achieve effective lighting of the entire cutting room area;

8. Comes standard with double-sided quick clamps and T-slot workbench, which are easy to operate, corrosion-resistant and easy to replace;

9. Three adjustable cooling water channels to prevent sample burns, and an independent cleaning water gun for easy cleaning;

10. Mobile circulating cooling water tank, effective filtration to prevent sample burns.

Application

Suitable for various ferrous metals, non-ferrous metals, heat treatment parts, forgings, semiconductors, crystals, ceramics and rocks and other samples.

Packing list：Host X1, water tank X1, cutting blade (Should 300 × 2 × Should 32mm, Resin abrasive wheels) X2, cutting fluid (3kg) X1, rigid hand (36mm, 14 × 17mm, 24 × 27mm) X3, water inlet pipe (Should 20mm) X1, water outlet pipe (Should 48mm) X1, manual X1, certificate X1,

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
