MODERNER GFX-9140A Forced Air Drying Oven 136L

SE
RT+ 10~250℃, Temperature fluctuation ± 1 ℃, Temperature resolution 0.1 ℃, Volume 136L, Interior size 550 * 450 * 550mm, Time fixed range 1~ 9999min, Power Supply AC220V 50HZ, Input power 2050W.
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

Moderner GFX-9140A Forced Air Drying OvenSPEC

Moderner GFX-9140A Forced Air Drying OvenDetails

Moderner GFX-9140A Forced Air Drying OvenPacking list

SKU
NB022061
Temperature range
RT+10~250°C
Temperature fluctuation
±1℃
temperature resolution
0.1℃
Volume
136L
Interior size
550*450*550mm
Timer
1~9999min
Power
AC220V 50HZ
Input power
2050W
Overall Dimensions
835*670*730mm
GFX-9140A
Forced Air Drying Oven
RT+ 10~250℃, Temperature fluctuation ± 1 ℃, Temperature resolution 0.1 ℃, Volume 136L, Interior size 550 * 450 * 550mm, Time fixed range 1~ 9999min, Power Supply AC220V 50HZ, Input power 2050W.

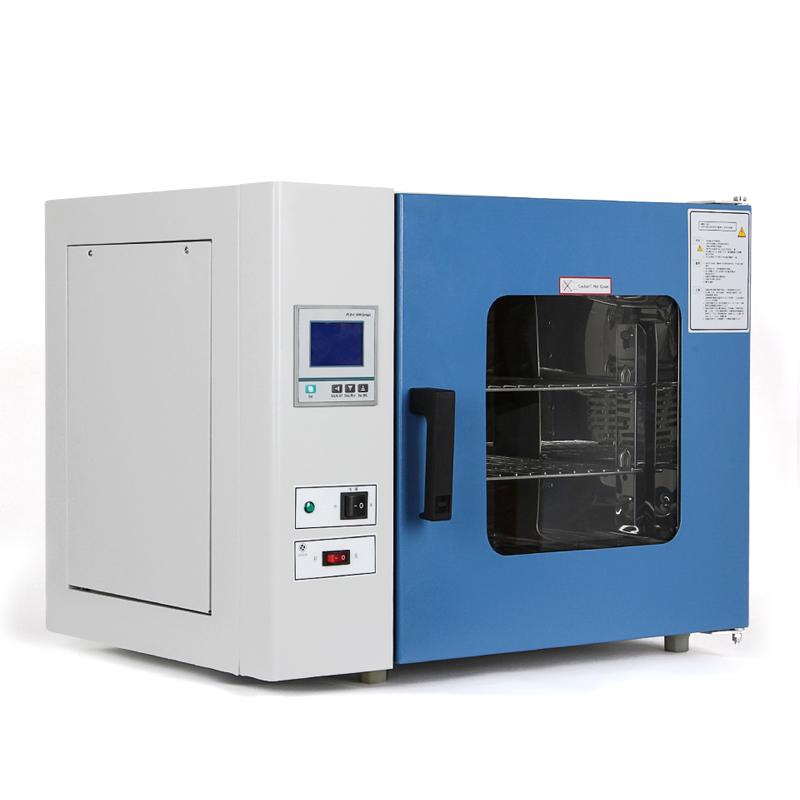

MODERNER GFX-9140A Forced Air Drying Oven 136L Picture

overview

For industrial and mining enterprises, laboratories, scientific research units, etc. for drying, baking, melting wax, and sterilization.

Features

■Large-screen liquid crystal display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (optional)

■Adopt the fan speed control method, which improves the temperature uniformity of the working room.

■The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

■It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

■The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

■The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

■Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

■With RS485 interface, it can be connected with Recorder and computer, and can record the change of temperature parameters. (optional)

Optional

Intelligent program controller

Large screen LCD monitor

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Series

modelTemperature control rangeinput powervolume
GFX-9013ART+10~28055010
GFX-9023ART+10~28085020
GFX-9053ART+10~280110050
GFX-9073ART+10~280155070
GFX-9123ART+10~2802050136
GFX-9203ART+10~2802500220
GFX-9030ART+10~25085030
GFX-9050ART+10~250110050
GFX-9070ART+10~250155080
GFX-9140ART+10~2502050136
GFX-9240ART+10~2502500220
GFX-9035ART+10~30085020
GFX-9055ART+10~300110050
GFX-9075ART+10~300155080
GFX-9145ART+10~3002050136
GFX-9245ART+10~3002500220
Unit: °C, W, L
Other parameters
VoltageAC220V 50HZ
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1-9999min
*Performance parameters are tested under no-load conditions, without strong magnetism and vibration, at an ambient temperature of 20°C and an ambient humidity of 50%RH


Library
FAQ
QI need a 136 liter blast drying oven with a temperature of 250 degrees. Which model should I choose?
A Recommend GFX-9140A. This one is exactly 136 liters, Temperature range to 250 ℃, to meet most of the drying and sterilizing needs. And it adopts fan speed control and autonomous air duct system, Temperature uniformity is good, can automatically drain moisture, use worry-free. The liner is mirror stainless steel, easy to clean.
QI want to use it for drying testing of electronic components. Is there anything I need to pay attention to?
A The main worry for electronic component testing is that the temperature overshoot will damage the sample. The GFX-9140A adopts a microcomputer temperature controller with over-temperature deviation protection, which can accurately control the temperature. If you are still worried about safety, you can add an independent temperature limit alarm system, and the overtemperature will automatically power off. In addition, this model also has an RS485 interface, which can be connected to a computer to record temperature changes, which is convenient for tracking the test process.
QCan this one be equipped with LCD screen and timing function?
A Yes, the GFX-9140A comes standard with ordinary buttons, but it can be equipped with a large-screen LCD display, multiple sets of data are displayed on one screen, and the Operating interface is more intuitive. The timing function is originally standard, with a range of 1 to 9999 minutes, which is enough for daily use. If you need to do multi-step program temperature control, you can also install an intelligent program controller, which is more suitable for complex processes.
QThis drying oven can control the temperature of 130 ℃ and can hold 140L?
A Can meet, GFX-9140A blast drying oven Temperature range 10~ 250 ℃, volume 136L.
QIs this the type of blast drying oven mentioned in GB/T1714?
A OK
