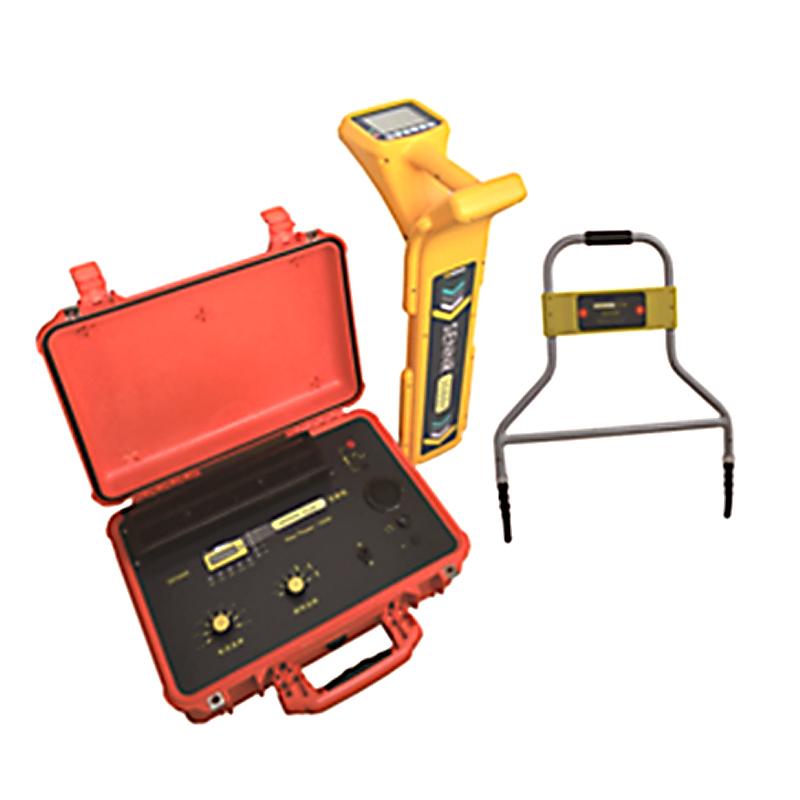

SENNR-PCM-150W-C Pipeline External Anti-corrosion layer Detector

SENNR-PCM-150W-C

Anti-corrosion layer Detector

Introduction

SENNR integrated pipeline anti-corrosion layer condition Detector can detect buried pipelines under trenchless conditions, realize quantitative evaluation of the damage of the outer anti-corrosion layer of buried pipelines, and can accurately locate and measure the pipelines, the detection technology can be used as a means of detection and acceptance of newly completed pipelines, and can also be used for regular monitoring of running pipelines. Inspecting the condition of the protective layer of the buried pipeline, replacing and repairing it in a targeted manner, and prolonging the service life of the pipeline can save a lot of maintenance and transformation funds. It is widely used in the quality evaluation of the outer anti-corrosion layer of oil, natural gas, city gas and tap water and other anti-corrosion pipelines.

Features

ULTRA-NARROW BANDPASS 0.2HZ PHASE-LOCKED LOOP DSP DIGITAL FILTER;

High-sensitivity receiver, detection depth and detection distance are greatly improved;

Independent ACVG Detector, no need to connect with the receiver, high reliability;

GPS geolocation function, automatic mapping of pipeline direction;

The left and right arrows indicate the location of the pipeline and quickly locate the pipeline;

The front and rear arrows of the damage point of the anti-corrosion layer are indicated for quick positioning;

The dB value indicates the size of the damage point of the anti-corrosion layer;

Professional data analysis software, automatic generation of test reports

Product parameters

SENNR-PCM+ receiver specifications

Positioning mode: valley mode, peak mode, broad peak mode, peak arrow mode

Bathymetry method: direct reading depth, 80% faymetry, 50% faymetry

Operating frequency: 128Hz, 512Hz, 1kHz

Positioning accuracy: ±2.5% of depth (no interference from adjacent pipelines)

Current accuracy: ±2.5% of actual current (no interference from adjacent pipelines)

Depth accuracy: ±2.5% of depth (no interference from adjacent pipelines)

Measuring range: 0-15 meters

Current mapping: It can accurately measure the magnitude of various signal currents and the direction of corrosion layer damage

Sensitivity: 10 mA at a depth of 1 m

Data records: pipe location, buried depth, current in pipe, distance between measurement points

Data download: The recorded data can be downloaded to a computer

Battery: Lithium battery, can work continuously for 20 hours

Housing material: ABS engineering plastic

Dimensions: 62x30x15cm

Weight: 2.5Kg

SENNR-PCM+ Transmitter Specifications

Frequency selection: 128Hz+8Hz+4Hz, 512Hz+8Hz+4Hz, 1kHz+8Hz+4Hz, 128Hz, 512Hz, 1kHz

Output current: 100mA, 300mA, 600mA, 1A, 1.5A, 2A, 2.5A, 3A

Output Voltage: 120V max

Output power: 180 watts max

Launch range: up to 30Km

AC power supply: 220V/50Hz AC

DC input: 24V 13AH high-capacity lithium battery (standard, optional 24V, 20AH lithium battery)

Operating temperature: -20°C- +50°C

Housing material: ABS engineering plastic

Dimensions: 380x280x180mm

Weight: 8.8Kg (only half of the weight of similar foreign instruments)

SENNR-PCM+ Detector (A-Frame) Technical Indicators

Reception frequency: LF low frequency

Gain control: Auto gain, range: 0-140dB

Positioning accuracy: ≤5cm

Depth range: ≤6m

Damage positioning: locate the location and direction of the damage point of the anti-corrosion layer, and the accuracy is within 2 cm

Power supply: 7.4V lithium battery pack

Operating Time: ≥ 20 hours

Weight: 2.5kg

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
