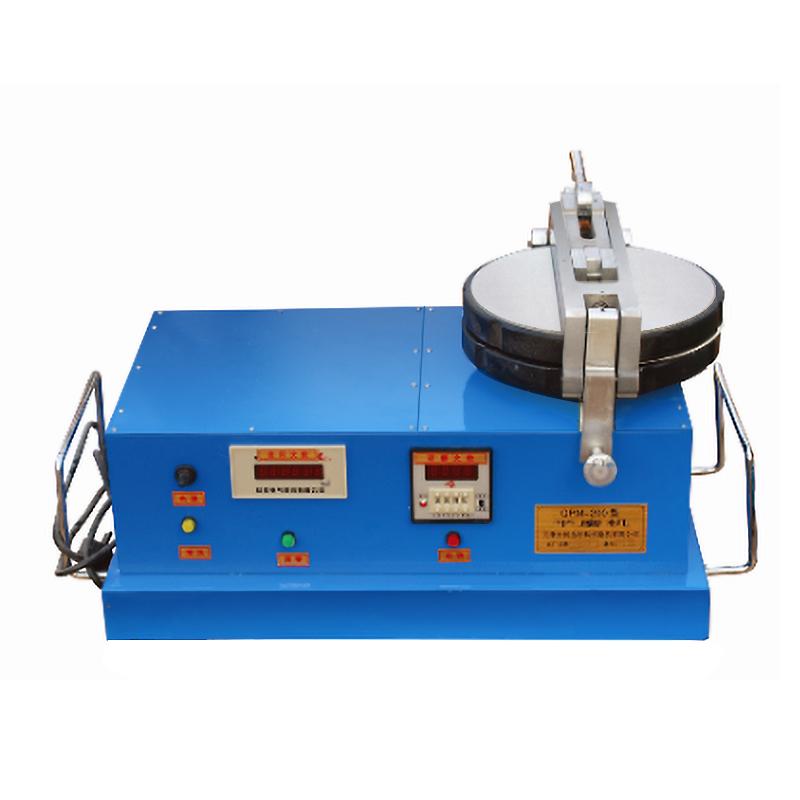

YONGLIDA OPM plane grinding machine Grinder
SEGrinding disc diameter 220mm, power supply 220V 50Hz (380v can be customized), grinding disc speed 86rpm, load weight 0.9, 1.75, 2.92kg.
$1066.00/set
PromotionLoading...
Coupon
Model：
QPM
Similar products
YongLiDa QPM plane grinding machineSPEC
YongLiDa QPM plane grinding machineDetails
YongLiDa QPM plane grinding machinePacking list
- SKU
- NB024809
- Grinding disc diameter
- 220mm
- Power
- 220V 50Hz (380v can be customized)
- Grinding disc speed
- 86rpm
- Load Weight
- 0.9, 1.75, 2.92kg

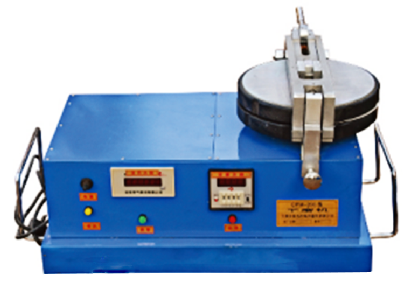

QPM
plane grinding machine
Grinding disc diameter 220mm, power supply 220V 50Hz (380v can be customized), grinding disc speed 86rpm, load weight 0.9, 1.75, 2.92kg.
Introduction
It is the required equipment in the national standard GB/T5211.19 "Visual comparison method for the determination of relative tinting strength and diluted color of coloring pigments". The whole machine is compact in structure, simple in appearance, easy to adjust the speed and load, and easy to assemble and disassemble the glass plate. At the same time, it adopts single-chip microcomputer automatic control, the digital display is clear, the parameter setting is convenient and the control is reliable.
FAQ
QHow many grams of pigment can the plane grinding machine grind?
A
Up to 15 grams of pigment can be ground.
QWhat is the thickness spacing between the upper and lower flat grinding discs?
A
There is no spacing between the upper and lower flat grinding discs.
QDo you have the plane grinding machine required by the QB/T2025 standard?
A
This QPM plane grinding machine will do.
Standard
- 1GB/T 17001.3-2025《Anti-counterfeiting printing ink—Part 3：Thermochromic anti-counterfeiting printing ink》
- 2ISO 8781-1《Pigments and Extenders - Methods of Assessment of Dispersion Characteristics - Part 1: Assessment from the Change in Tinting Strength of Coloured Pigments First Edition》
- 3ISO 8780-5《Pigments and Extenders - Methods of Dispersion for Assessment of Dispersion Characteristics - Part 5: Dispersion Using an Automatic Muller; (CEN EN ISO 8780-5: 1995)》
- 4ISO 787-17《General methods of test for pigments and extenders — Part 17: Comparison of lightening power of white pigments》
- 5ISO 787-16《General Methods of Test for Pigments and Extenders - Part 16: Determination of Relative Tinting Strength (or Equivalent Colouring Value) and Colour on Reduction of Coloured Pigments - Visual Comparison Method》
- 6HG/T 3239-2009《Technical specifications of plane grinding machine》
- 7HG/T 3854-2006《Determination of mobility of pigments》
- 8HG/T 3853-2006《Determination of resistance to heat of dry power of pigments》
- 9GB/T 7052-2012《Colour carbon black - Determination of flow characteristic》
- 10GB/T 7048-2012《Colour carbon black - Determination of blackness》
