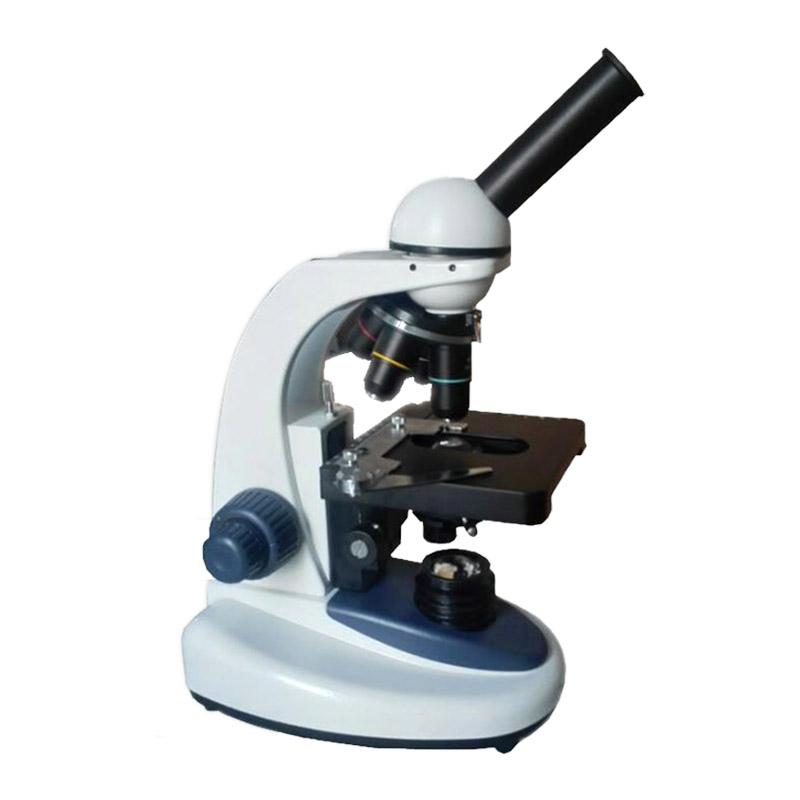

TEELEN XSP-3CA Monocular Biological Microscope

XSP-3CA

Monocular Biological Microscope

Monocular Biological Microscope double-decked platform 40-1600 times LED Light source

Uses and Features

The microscope can be widely used in biology, histology, chemistry and other research work, it can be used for clinical trials in medical treatment, and it can be used for teaching in school laboratories.

The instrument adopts a liftable Abbe condenser lens group, which makes the adjustment range of the converging light larger. This machine adopts an LED cold light source light path. The planetary coaxial coarse and fine focus adjustment device makes the focus comfortable and stable as well as fine and fine adjustment; the double-layer mechanical moving platform with reading scales, and its coaxial vertical and horizontal adjustment handwheels make the operation easier easy.

XSP-3CA Monocular Biological Microscope Specifications

Achromatic Objectives

4X dry mirror numerical aperture 0.10NA working distance 37.5mm

10× dry mirror numerical aperture 0.25NA working distance 7.31mm

40× Spring Dry Mirror Numerical Aperture 0.65NA Working Distance 0.63mm

100× spring oil lens, numerical aperture 1.25NA, working distance 0.18mm

wide field eyepiece

10× field of view diameter 18mm

16× field of view diameter 11mm

Packing list：machine X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
