Shanghai BENTING CBGLL-65BE vertical smart blast drying oven 300 ℃/65L

SE
Vertical design, turbine centrifugal blower, double air duct vertical hot air circulation, Temperature Fluctuation +/- 1.0 ℃, speed regulating fan, large screen LCD display, independent temperature limit alarm system
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

BenTing CBGLL-65BE Blast drying ovenSPEC

BenTing CBGLL-65BE Blast drying ovenDetails

BenTing CBGLL-65BE Blast drying ovenPacking list

SKU
NB028556
Temperature range
RT+10~300°C
Temperature fluctuation
±1.0℃
Temperature Resolution
0.1℃
Volume
65L
Interior size
400*360*450mm
Inner chamber material
stainless steel
Shelf (std.)
2pcs
Maximum total load
25/kg
Timer
1~9999min
Power
220V/50HZ
Heating power
1.6kw
Environment temperature
+5-40℃
Dimensions
550*550*840mm
Net Weight
47kg
Enclosure Material
Cold rolled steel plate
Packing size
640*640*905mm
Gross Weight
61Kg
CBGLL-65BE
Blast drying oven
Vertical design, turbine centrifugal blower, double air duct vertical hot air circulation, Temperature Fluctuation +/- 1.0 ℃, speed regulating fan, large screen LCD display, independent temperature limit alarm system

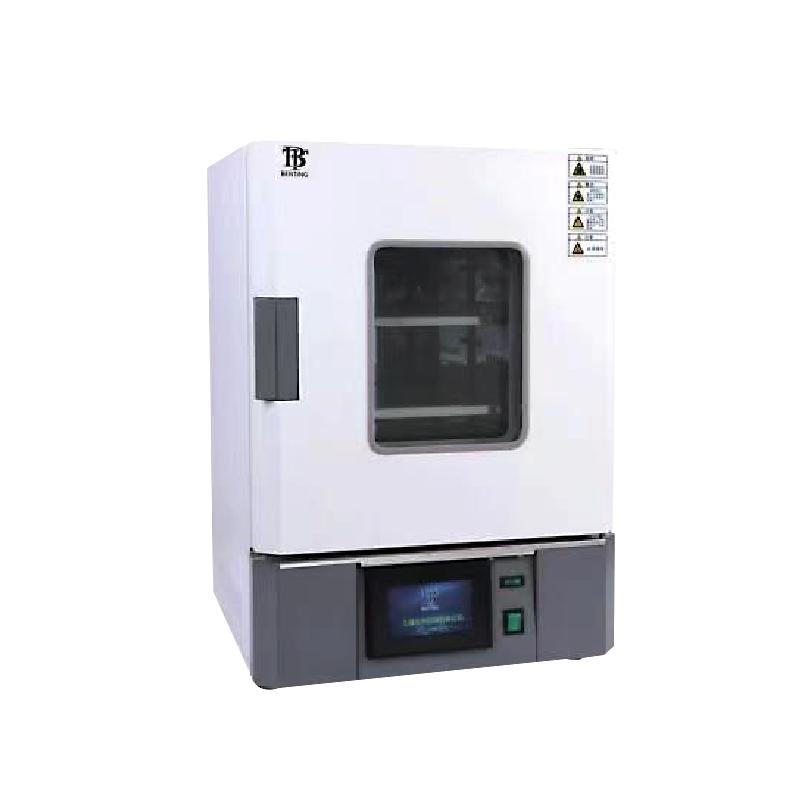

Shanghai BENTING CBGLL-65BE vertical smart blast drying oven 300 ℃/65L Picture

Overview

BGLL series Forced Air Drying Oven has the characteristics of excellent design, novel shape, professional technology, accurate temperature control, stable performance, easy maintenance, convenient operation, etc. It is suitable for drying, baking, For wax melting and heat treatment.

Features

1. Novel vertical design, enclosure is made of high-quality steel plate, the surface is treated by electrostatic spraying process, the appearance is beautiful, anti-corrosion and durable.

2. The four corners are in a circular arc transition, the distance between the partitions is adjustable, and the side plate of the air duct and the bottom heating cover are quick-detachable structures, which are easy to clean.

3. The unique bottom blowing and bottom heating of the turbine centrifugal fan blades are reasonably coordinated, and the vertical double air duct vertical hot air circulation design makes the temperature distribution in the working room more uniform.

4. The speed-adjustable fan can adjust the required air volume according to different experimental requirements of users, which not only ensures the temperature uniformity in the working room, but also does not blow powdery objects.

5. Large-screen LCD, multiple sets of data can be displayed on one screen, unique navigation operation keys, and the use method is more humanized. Timing and over-temperature alarm function, with parameter memory and call reply function to protect data loss due to power failure and crash state.

6. There is an independent temperature limit alarm system. When the main controller fails, it will alarm and cut off the output in time. The double protection ensures the safe operation of the experiment without accidents.

7. Optional 485 interface, can be connected to a computer, and can remotely monitor the change status of temperature parameters.

8. The door adopts a new structure with good heat insulation effect. There is a double-layer tempered glass observation window with a large Viewing Angle in the middle, equipped with a lock-type elastic adjustment door lock, and a high-temperature-resistant silicone sealing strip to ensure good sealing and prevent heat loss. .

Note: BGLL-230BE and BGLL-625BE have no fan speed regulation function; BGLL-625 is top blower.

Parameter comparison

modelheating powerstudio size
BGL-30B/BGLL-30BE0.8310×310×310
BGL-45B/BGLL-45BE1.2350×350×350
BGL-65B/BGLL-65BE1.6400×360×450
BGL-125B/BGLL-125BE2.3500×450×550
BGL-230B/BGLL-230BE3600×500×750
BGL-625B/BGLL-625BE5660×760×1250
Unit: KW, mm
Other parameters
Temperature control rangeRT+10-300℃
Constant temperature fluctuation±1.0℃
temperature resolution0.1°C
Working temperature+5-40℃
Timer Range1-9999min
* Performance parameter test under no-load conditions: ambient temperature 20°C, ambient humidity 50%RH


Library
FAQ
QOur laboratory often does powder sample drying, which one is recommended?
A Choose CBGLL-65BE, it has a variable speed fan, adjustable air volume, will not blow the powder away, Temperature uniformity is also good.
QGlass ware needs to be baked and heat treated, generally what volume is suitable?
A If the amount is not large, 65 liters is enough for daily use. The liner is stainless steel for easy cleaning, with fast heating and stable temperature control. It is very suitable for such routine experiments.
QWhat are the advantages of this model compared to other models?
A It has large air volume circulation and fan speed regulation, which is easier to use than the same series, and the large screen is easy to operate, as well as over-temperature protection, high safety, and cost-effective.
QI need a 65L blast drying oven for drying samples in the lab. What do you recommend?
A Recommended model CBGLL-65BE, volume 65L, temperature control stable at +/- 1.0 ℃, stainless steel liner easy to clean, vertical double air duct design temperature uniform, suitable for daily drying.
QCan a blast drying oven be used for wax melting or heat treatment?
A Temperature range RT + 10 to 300 ℃, small fluctuation, suitable for wax melting, heat treatment and other processes, bottom heating with double air duct circulation, uniform temperature distribution.
QWe sometimes need to dry powder samples for fear of being blown away by the wind. Can you adjust the wind speed?
A This fan with speed regulation can adjust the air volume according to needs, which not only ensures uniform temperature but also does not blow powder away, which is very practical.
QCan I put 60L samples at about 205 ° C thermostatic?
A The machine CBG-65BE blast drying oven Temperature range 10~ 300 ℃, the maximum can put 65L, properly.
QDoes this drying oven comply with GB/T16777 standard?
A The blast drying oven is suitable for GB/T16777, please consult customer service for detailed application definition
