JINGKELIAN QNG Putty coating scraper film

QNG

Putty scraper

Preparative putty film and thick paint film, Moulding thickness 1 +/- 0.05, 0.7 +/- 0.035, 0.5 +/- 0.03, in line with the standard GB1727-79 "general preparation method of paint film".

Applications

The putty scraper is designed and manufactured according to the scraping method in GB1727-79 "General Preparation Method of Paint Film". The putty applicator is suitable for uniformly preparing putty coating film and thick paint coating film on various substrates (tinplate plate, steel plate, aluminum plate) for the purpose of measuring the general properties of the paint film.

Structure and Principle

1. Structure:

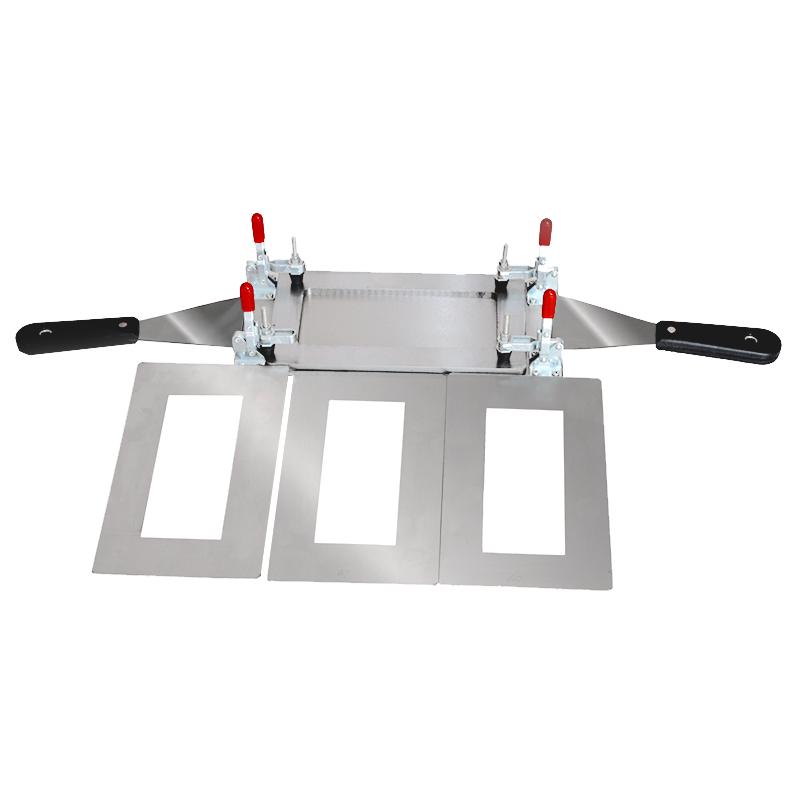

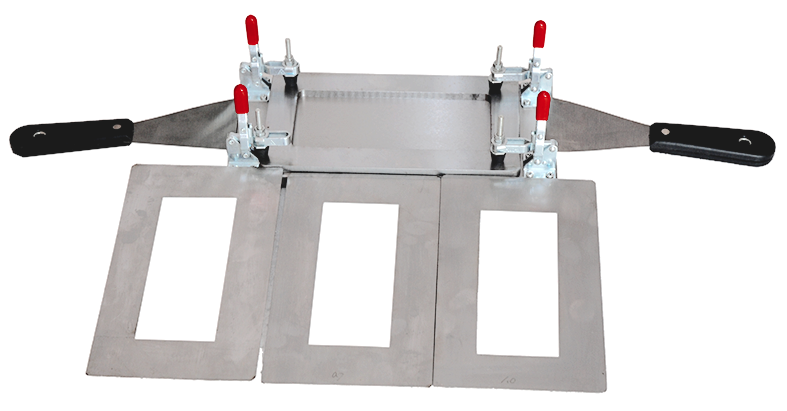

The putty coating scraper is composed of a bottom plate, a film frame and a scraper. There are four spring-loaded columns on the bottom plate to fix the film frame to prepare the coating film.

2. Principle:

After fixing the standard on the bottom plate, use a scraper to scrape from top to bottom to obtain a uniform putty film thickness on the lower stroke of the template thickness. The standard template of the putty scraper has three different thicknesses (1±0.05 0.7±0.035 0.5±0.03 ) The thickness of the putty required by the product standard can be selected. Due to the different solid components in the paint, when the wet film becomes a dry film, the thickness of the dry film formed is also different. Therefore, this should be fully considered when choosing to use a standard thickness film frame a little.

Packing list：Host X1, manual X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
