QEY Paint film RDI Tester YONGLIDA probe Pressure range 50~250N
SEThe probe pressure range is 50~250N, the probe pressure accuracy is +/- 10%, the diameter of the rubber probe is φ 40mm, and the rubber hardness of the probe is 60 +/- 5A.
$428.00/set
PromotionLoading...
Coupon
Model：
Similar products
YongLiDa QEY Film pulverization rate TesterSPEC
YongLiDa QEY Film pulverization rate TesterDetails
YongLiDa QEY Film pulverization rate TesterPacking list
- SKU
- NB003493
- Probe pressure range
- 50~250N
- Probe pressure Accuracy
- ±10%
- Rubber probe diameter
- F40mm
- Probe Rubber Hardness
- Class 60 +/- 5A
QEY
Film pulverization rate Tester
The probe pressure range is 50~250N, the probe pressure accuracy is +/- 10%, the diameter of the rubber probe is φ 40mm, and the rubber hardness of the probe is 60 +/- 5A.
Introduction of QEY paint film pulverization rate Tester
Yonglida QEY Paint Film Chalking Rate Tester is a Tester for evaluating the grade of paint film chalking rate. The probe pressure range of QEY paint film pulverization rate Tester is 50~250N, and the rubber probe is 40mm in diameter.
Principle of QEY paint film pulverization rate Tester
The paint film is combined with the glossy surface of the photo paper, and after applying a specified uniform load, take out the photo paper, observe the print of the photo paper and compare it with the standard chalking rate grade model.

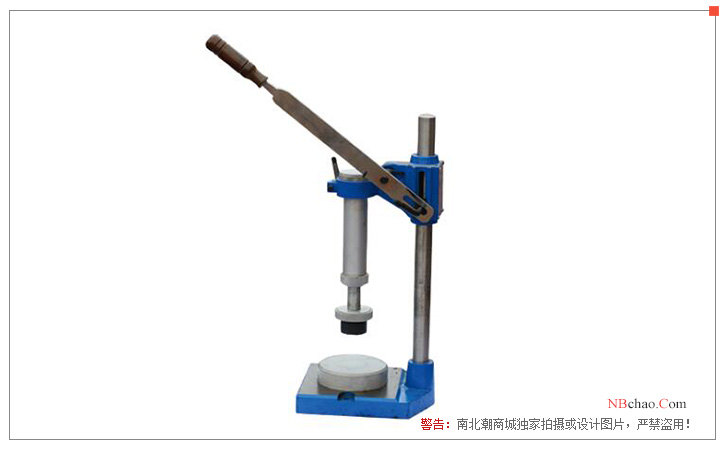

Display diagram of QEY paint film pulverization rate Tester
FAQ
QWhat is the probe size of the QEY Paint film RDI tester?
A
Hello, the side head is 40mm in diameter.
QCan this film pulverization rate tester be applied to GB/T1766?
A
OK
