TQC Sheen DV2300 Krebs Viscometer Stormer Viscometer Coating KU Viscometer

SE
The Sheen Krebs Viscometer is designed to meet ASTM D562, ASTM D1131, and ASTM D856 test standards for measuring Krebs (KU) viscosity values in industries such as Coating inks. Coating viscosity is induced at a constant 200 rpm using a weight-driven swirl/spin propeller to ensure highly repeability results in fully automated test cycles.
$6875.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

TQC sheen DV2300 Stormer ViscometerSPEC

TQC sheen DV2300 Stormer ViscometerDetails

TQC sheen DV2300 Stormer ViscometerPacking list

SKU
NB040126
Unit display
KU/g/cP
Measurement range
37~141KU，10-5000cP/mPas，10P|0.1KU|1g
Precision
±2%F.S
Repeatability
1%F.S
Swirl/spin speed
200rpm
Container size
Minimum opening diameter 80mm
Instrument Weight
8500g
Dimensions
200*360*550mm
Environmental temperature
5~40℃
DV2300
Stormer Viscometer
The Sheen Krebs Viscometer is designed to meet ASTM D562, ASTM D1131, and ASTM D856 test standards for measuring Krebs (KU) viscosity values in industries such as Coating inks. Coating viscosity is induced at a constant 200 rpm using a weight-driven swirl/spin propeller to ensure highly repeability results in fully automated test cycles.
TQC Sheen DV2300 Krebs Viscometer Stormer Viscometer Coating KU Viscometer Picture


Sheen Krebs viscometers are designed to meet ASTM D562, ASTM D1131, and ASTM D856 test standards for the determination of Krebs (KU) viscosity values in industries such as coatings and inks. The TQC Krebs Viscometer uses a weight-driven rotating paddle to sense the viscosity of the paint at a constant 200 rpm, ensuring highly repeatable results from fully automated test cycles.


The device provides automated motor operation and digital motor control, allowing for accurate direct readings in KU (Krebs units), mPa.s (cP), or g (grams). The conversion between these units is automatically calculated by the microprocessor and displayed according to the requirements. The rugged construction allows for use in a production environment or in the lab.

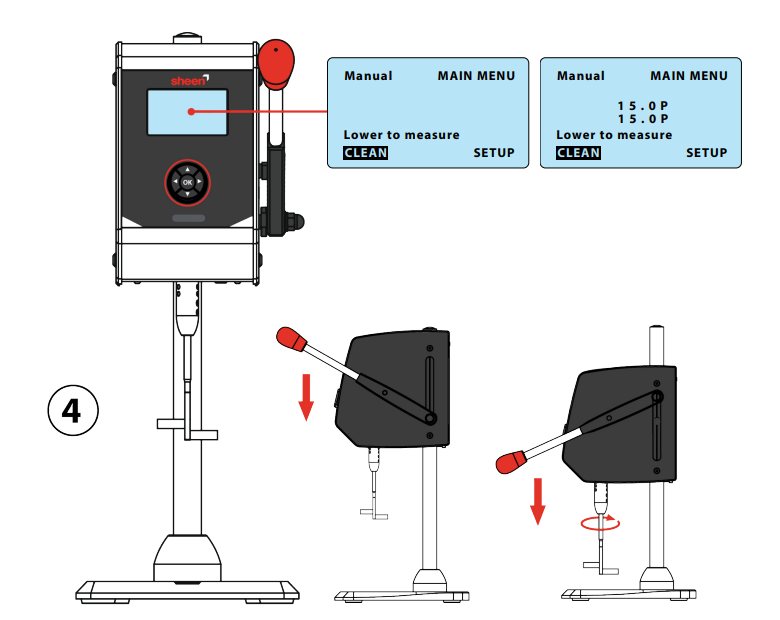

TQC DV2300 Stormer Viscometer Details Figure 1


FAQ
QOur lab needs to test paint viscosity. Is there an ASTM-compliant Stormer Viscometer recommendation?
A TQC sheen's DV2300 Stormer Viscometer is recommended to meet ASTM D562, D1131 and D856 standards for accurate determination of the KU viscosity value of coatings and is suitable for use in laboratory and production environments.
QWhat are the common application scenarios for this Viscometer in the paint inks industry?
A The DV2300 is primarily used for viscosity quality control of coatings and inks, such as rapid batch conformity testing online in production or evaluation of formulation flowability in R & D, as it automatically displays results in KU, cP or grams to ensure high Repeatability.
