QXP0-50S double-channel Fineness gauge YONGLIDA QXP Fineness gauge

SE
Double-channel, range 0~50μm, Graduation 5μm, Cr12 molybdenum vanadium material, scale unit μm.
$215.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT
Similar products

YongLiDa QXP0-50S ISO Fineness of Ground Gauge (double-channel)SPEC

YongLiDa QXP0-50S ISO Fineness of Ground Gauge (double-channel)Details

YongLiDa QXP0-50S ISO Fineness of Ground Gauge (double-channel)Packing list

SKU
NB004081
Scraper type
double-channel
Number of grooves
2
range
0 ~ 50µm
Scale unit
mm
Scraper material
Cr12 molybdenum vanadium
Scraper size
175*65*13mm
Graduation
5μm
QXP0-50S
ISO Fineness of Ground Gauge (double-channel)
Double-channel, range 0~50μm, Graduation 5μm, Cr12 molybdenum vanadium material, scale unit μm.
QXP0-50S double-channel Fineness gauge YONGLIDA QXP Fineness gauge Picture

Introduction of QXP0-25/50/100S double channel Fineness gauge

Yonglida QXP double-channel Fineness gauge is an ISO Fineness of Grind Gauge with two grooves. According to the fineness range, it is divided into three models: QXP0-25S, QXP0-50S, and QXP0-100S. The measured fineness range They are 0~25μm, 0~50μm, 0~100μm, and the division values are 2.5μm, 5μm, 10μm respectively. QXP0-25/50/100S double-slot fineness plate can be used in the experiment of the standard "Determination of Coating Fineness".

QXP0-25/50/100 double channel Fineness gauge display

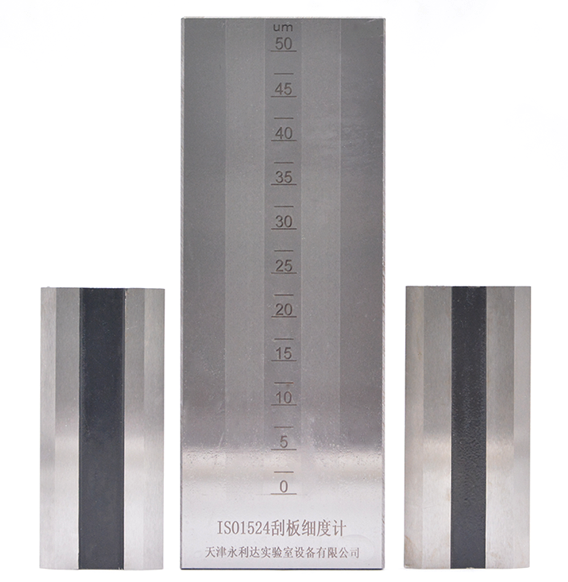

Yonglida QXP0-50S double channel Fineness gauge display picture

FAQ
QI want to ship it abroad. Parameters to weight
A 2 kg
QFineness of pigment particles is about 30 microns. Is this Fineness gauge suitable?
A Hello, the Fineness range of QXP0-50S is 0~ 50μm, which can be tested.
QThis one can measure the agglomeration of precious metal pastes?
A The agglomeration degree of precious metal slurry, commonly known as fineness, refers to the size of the solid agglomerates in the slurry and is therefore appropriate.
QCan the QXP50S Fineness gauge test materials around 38 microns?
A Suitable, the ISO Fineness of Ground Gauge (double-channel) scraping material fineness of 0~ 50μm or less.
QI want to do a test on the GB/T1724 standard. Is this Fineness gauge okay?
A Sure
