China

TRUIT TR 1006/8 Handle DIN Cup φ8.0mm

SE
Handle type, in line with DIN 53211 standard, φ8.0mm aperture, viscosity range 1200~3000cst, made of aluminum alloy.
$130.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

TRUIT TR 1006 / 8 Handle type DIN cupSPEC

TRUIT TR 1006 / 8 Handle type DIN cupDetails

TRUIT TR 1006 / 8 Handle type DIN cupPacking list

SKU
NB043175
Flow hole diameter
F8.0mm
outflow time
25 to 150 seconds
Viscosity range
1200～3000cst
Volume
100ml
Cup material
High quality aluminum alloy (anodic oxidation)
Nozzle material
High quality stainless steel
TR 1006 / 8
Handle type DIN cup
Handle type, in line with DIN 53211 standard, φ8.0mm aperture, viscosity range 1200~3000cst, made of aluminum alloy.

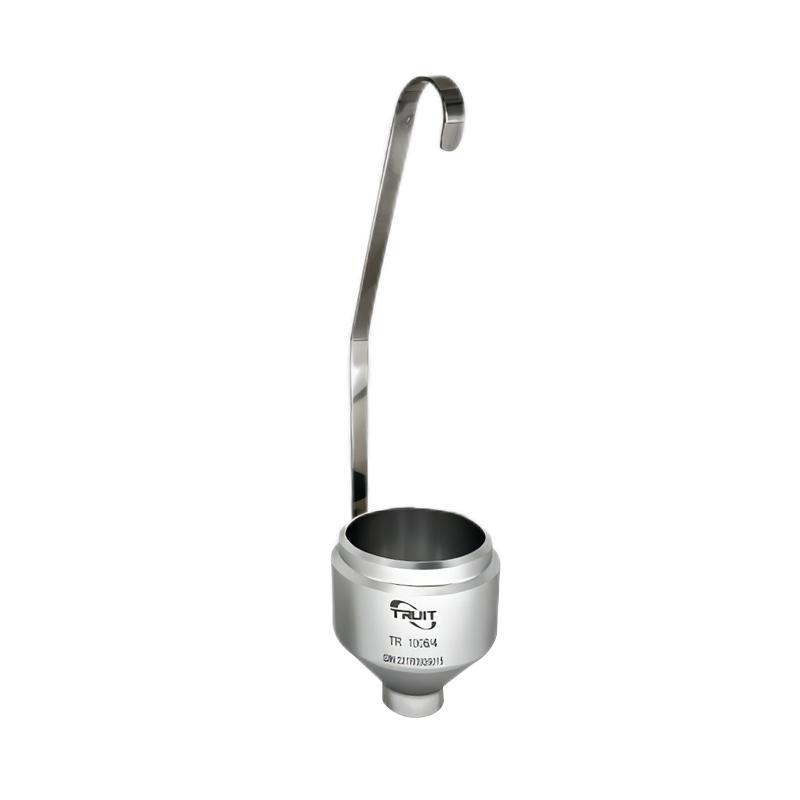

TRUIT TR 1006/8 Handle DIN Cup φ8.0mm Picture

Introduction

The DIN cup is designed in accordance with the DIN 53211 standard. It is used to measure the viscosity of ink, paint, paint and other Newtonian or near-Newtonian liquids. It is evaluated by measuring the time required for a certain volume of sample in the cup to flow out of the small hole at the bottom. The viscosity of the material is usually suitable for testing thin liquids with relatively low viscosity. The DIN Viscosity Cup is made of high-quality aluminum alloy cup body and stainless steel spout, with a volume of 100ml.

TR1006 series is a DIN cup with a handle, which can be used in the production line to quickly test the viscosity of samples. There are a variety of aperture specifications to choose from, and the outflow time of applicable samples is in the range of 25~150s.

Features

  • Cup material: high-quality aluminum alloy (anodized)

  • Nozzle material: high quality stainless steel

  • Volume: 100ml

Series

order numberOutflow aperture (mm)Measuring range (cst)
TR 1005/2φ2.015～30
TR 1005/4φ4.0112～685
TR 1005/6φ6.0550～1500
TR 1005/8φ8.01200～3000
TR 1006/2 (handle type)φ2.015～30
TR 1006/4 (handle type)φ4.0112～685
TR 1006/6 (handle type)φ6.0550～1500
TR 1006/8 (handle type)φ8.01200～3000
FAQ
QWhich cup size should be used for inks samples with viscosity measurements in the range of 1500 to 2000cSt?
A The viscosity measurement range of the TR 1006/8 handle DIN cup is exactly 1200~ 3000cSt, which is specially suitable for viscosity testing of inks, coatings and other liquids, and the handle design is convenient for quick testing of the production line.
QWhich viscosity cup is suitable for scenarios that require frequent rapid viscosity testing online in production?
A The TR 1006 series handle type DIN cup is designed with handle type, which is convenient for the operator to use in hand. It is especially suitable for the rapid testing needs of the production line. The cup body is made of high-quality aluminum alloy, and the flow nozzle is stainless steel, which is durable and meets the DIN 53211 standard.
QWhat equipment should be selected for viscosity measurement where a sample needs to be tested and the outflow time is 50 to 100 seconds?
A The viscosity cup has a volume of 100ml and an outflow time range of 25 to 150s. The viscosity is evaluated by measuring the time the fixed-volume sample flows out of the bottom orifice, making it ideal for testing Newtonian or near-Newtonian low-viscosity liquids.
