TRUIT TR 1202/015 double-channel Fineness ruler 0~15μm
SE
TR 1202 / 015
-
CHINA QXD-15 double-channel Grindometer Zirconia Ceramic Material 0~15μm$ 459.00SE -
Pushen 0-15um double-channel Fineness gauge 0~15μm$ 214.00SE -
TQC VF2110 double-channel Fineness gauge 0-15µm/1.5µm with calibrated certificate$ 980.00SE -
Erichsen 232 fineness grindometer 0~15μm Coating Fineness gauge$ 817.00SE
TRUIT TR 1202 / 015 Double-channel Fineness gaugeSPEC
TRUIT TR 1202 / 015 Double-channel Fineness gaugeDetails
TRUIT TR 1202 / 015 Double-channel Fineness gaugePacking list
- SKU
- NB043194
- Scraper material
- Wear and corrosion resistant alloy steel
- Hardness
- 52±2HRC
- drawdown blade
- Upper and lower working surfaces
- range
- 0~15μm
- Graduation
- 0.75μm
- Number of grooves
- 2
- Groove size
- 140*12.5mm
- Scraper type
- double-channel
Introduction

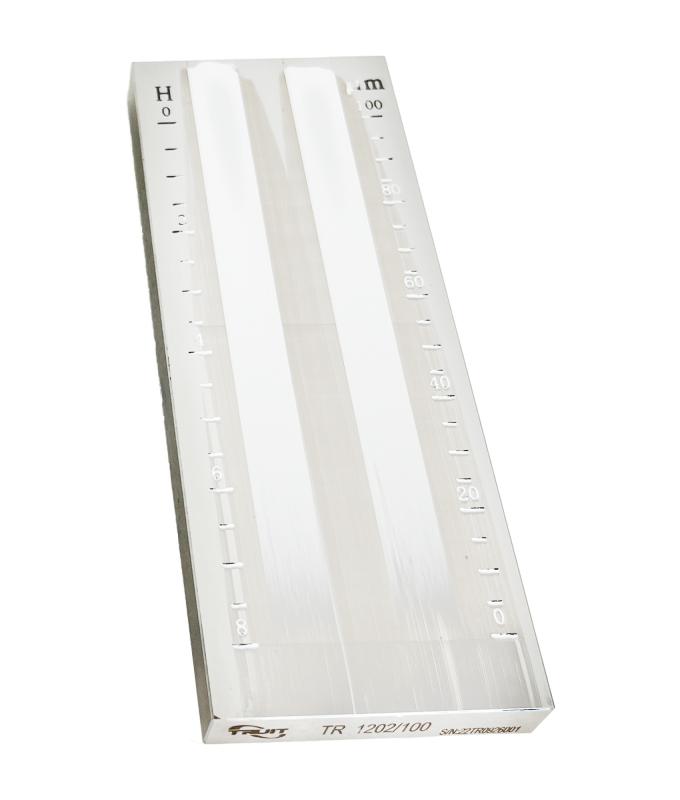

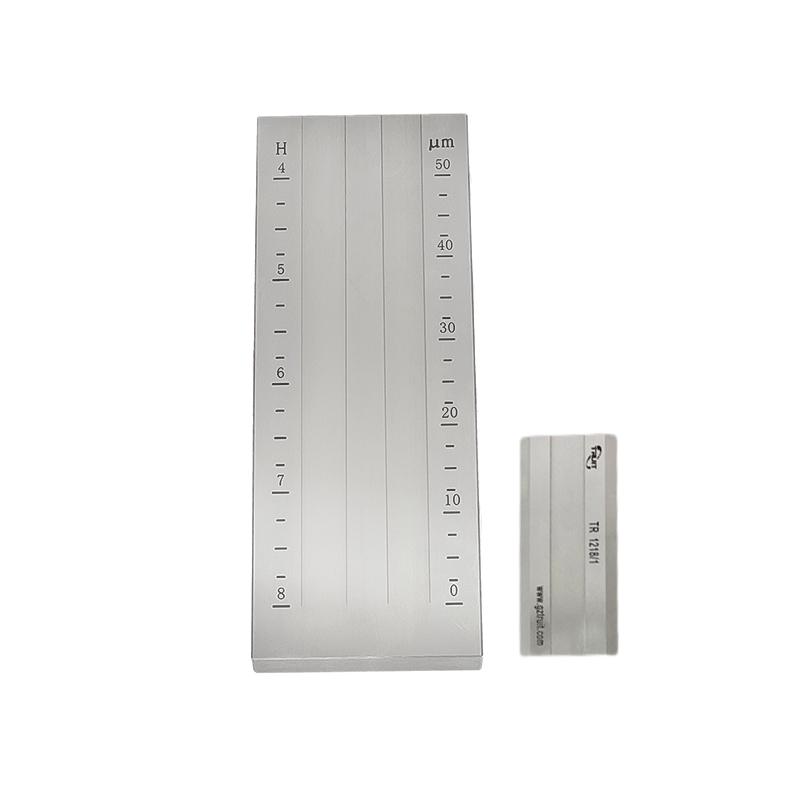

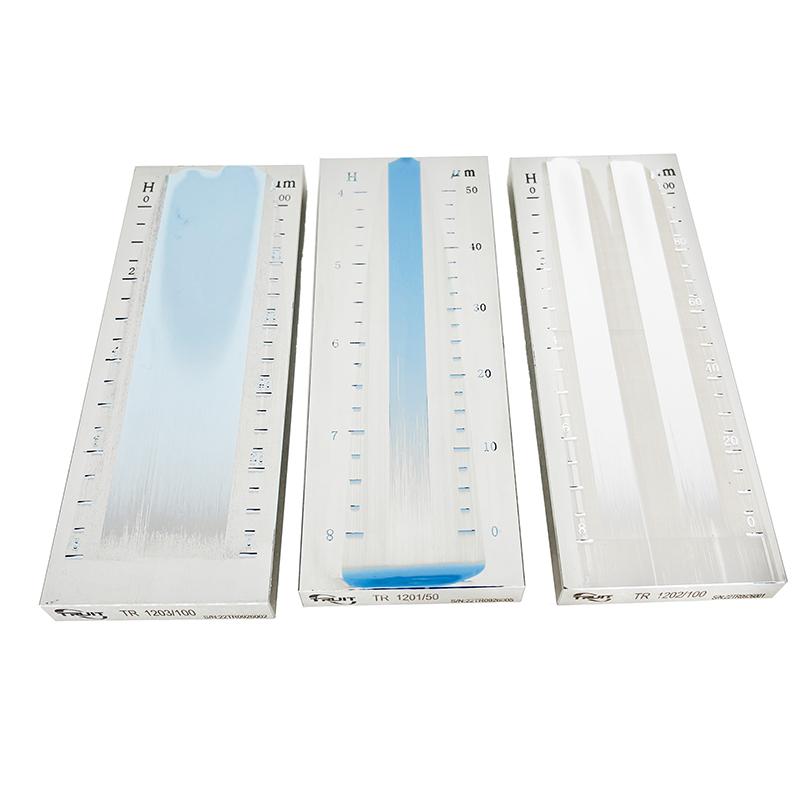

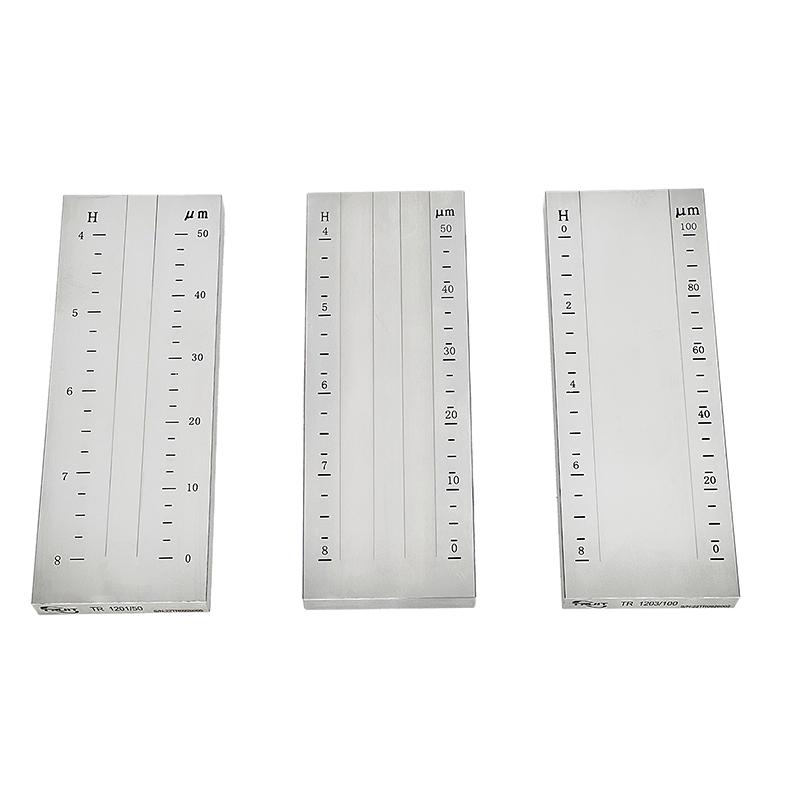

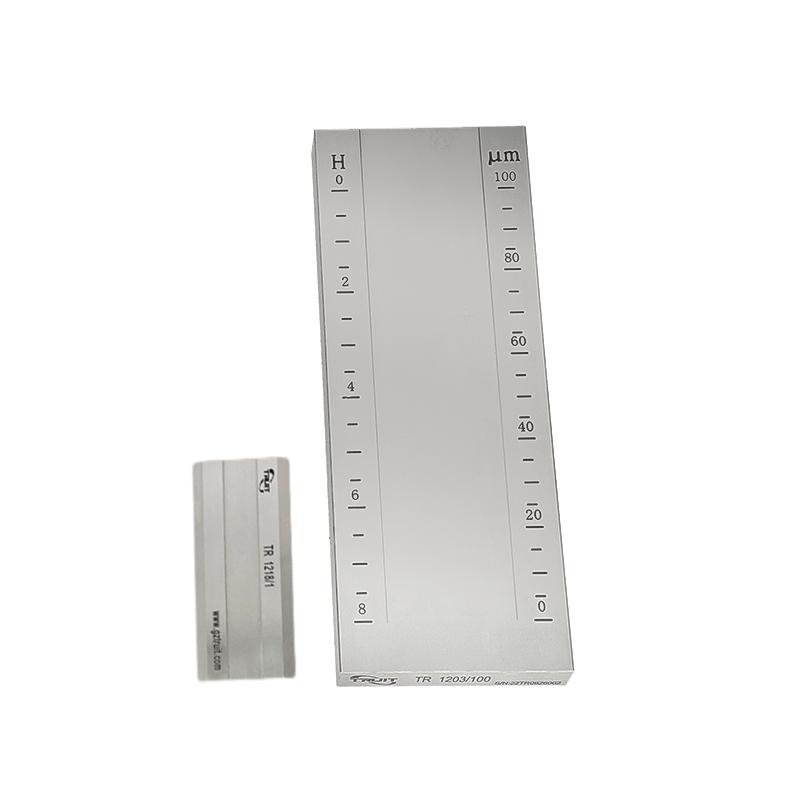

TR 1202 Fineness of Grind Gauge is a double-groove Fineness of Grind Gauge that conforms to GB and ISO standards. It has 2 grooves, with 0~15, 0~25, 0~50, 0~100, 0~150 Various measuring ranges, the groove size is 140×12.5mm, and it is made of high-quality wear-resistant and corrosion-resistant alloy steel with a hardness of 52±2HRC to ensure its long service life. It is suitable for the measurement of various materials and has a wide range of Applications.
Standards
Comply with GB/T 1724, GB/T 6753.1, GB/T 13217.3, ISO 1524 and other standards.
Applications
It is used to measure the particle size and degree of dispersion of pigments and impurities in paint, paint, plastic, ink, paper, ceramics, medicine, food, cosmetics, etc. and other liquids and slurries, so as to control the production, storage and application of dispersed products. in the quality.
Series
| order number | Measuring range (μm) | Graduation value (μm) | Groove size |
| TR 1201/015 | 0-15 | 0.75 | 140×12.5 |
| TR 1201/025 | 0-25 | 1.25 | |
| TR 1201/050 | 0-50 | 2.5 | |
| TR 1201/100 | 0-100 | 5 | |
| TR 1201/150 | 0-150 | 7.5 | |
| TR 1202/015 | 0-15 | 0.75 | 140×12.5 |
| TR 1202/025 | 0-25 | 1.25 | |
| TR 1202/050 | 0-50 | 2.5 | |
| TR 1202/100 | 0-100 | 5 | |
| TR 1202/150 | 0-150 | 7.5 | |
| TR 1203/015 | 0-15 | 0.75 | 140×37 |
| TR 1203/025 | 0-25 | 1.25 | |
| TR 1203/050 | 0-50 | 2.5 | |
| TR 1203/100 | 0-100 | 5 | |
| TR 1203/150 | 0-150 | 7.5 |
Note: TR1201 is a single-slot fineness gauge, TR1202 is a double-slot fineness gauge, and TR1203 is a single-slot fineness gauge.
- 1SJ/T 10454-2020《Dielelectric paste for multilayer lay out of thick film hybrid integrated circuits》
- 2HG/T 5173-2017《Waterborne primer for application on rusty substrates》
- 3GB/T 42541-2023《Coated steel pipes for gas piping》
- 4GB/T 1724-2019《Paints,varnishes and printing inks—Determination of fineness of grind》
- 5ISO 1524-2020《Paints, Varnishes And Printing Inks - Determination Of Fineness Of Grind》
- 6GB/T 13217.3-2008《Test method for fineness of grind of liquid ink》
- 7ISO 1524-2000《Paints, varnishes and Printing inks - Determination of ground fineness》
- 8GB/T 13217.3-2008《Test method for fineness of grind of liquid ink》
- 9GB/T 13217.3-1991《Gravure plate plastic inks inspection method, fineness inspection》
- 10GB/T 1724-1979《Methods of test for fineness of grind of paints》
