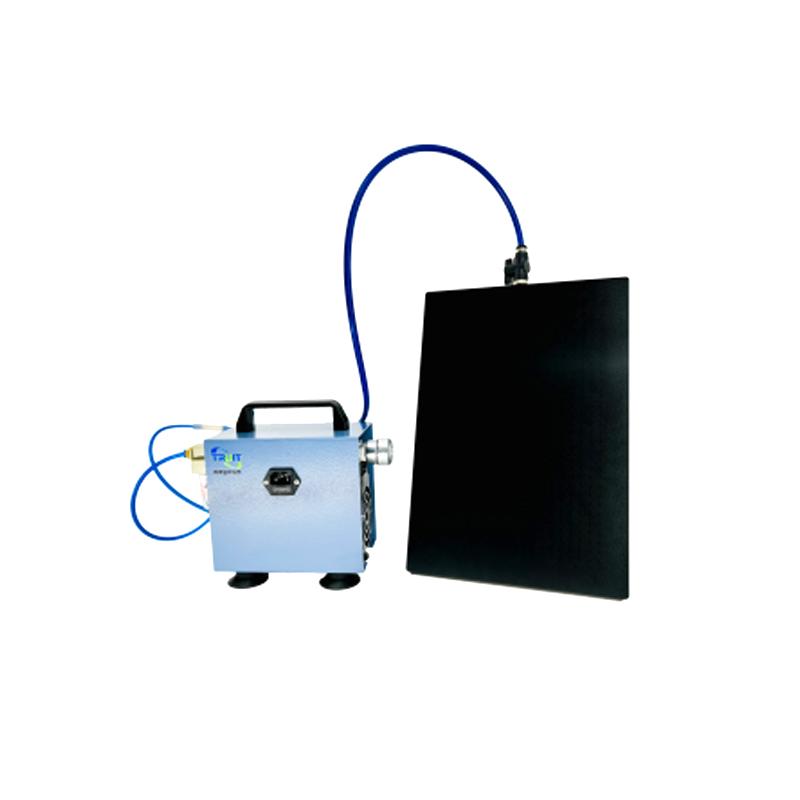

TRUIT TR 3502/A4 vacuum film stage 360X250mm
SEHigh-quality aluminum alloy material, size 360X250mm, hole spacing 18mm, number of holes 176, with oil-free Vacuum Pump.
$716.00/set
PromotionLoading...
Coupon
Model：
TR 3502/A4
TRUIT TR 3502/A4 Vacuum film stage (A4)SPEC
TRUIT TR 3502/A4 Vacuum film stage (A4)Details
TRUIT TR 3502/A4 Vacuum film stage (A4)Packing list
- SKU
- NB043284
- material
- High quality aluminum alloy
- aperture
- 1mm
- hole spacing
- 18mm
- Number of holes
- 176
- Vacuum pump Voltage
- 220V
- Vacuum Pump Power
- 150W
- Drawdown Vacuum Plate Dimensions
- 360X250mm
- Vacuum pump Dimensions
- 260X210mm
TR 3502/A4
Vacuum film stage (A4)
High-quality aluminum alloy material, size 360X250mm, hole spacing 18mm, number of holes 176, with oil-free Vacuum Pump.
Introduction
The vacuum coating table adopts the principle of vacuum adsorption, and absorbs the substrate flatly on the vacuum coating table for various film production. The working surface is ground with high precision and the surface is anodized. Equipped with special oil-free Vacuum Pump with adjustable vacuum switch.
The film size of TR 3502/A4 vacuum coating table is 360X250mm. It is made of high-quality aluminum alloy. The spacing between the plate holes is 18mm. There are 176 vacuum holes in total to ensure the effect of substrate adsorption. The oil-free Vacuum Pump ensures the environmental protection of the experiment.
Series
| model | product | Size (mm) |
| TR 3502/A4 | Vacuum coating table | 360 * 250 |
| TR 3501/A3 | Bakelite glass coating table | 460 * 270 |
| TR 3501/1 | Glass coated sheet | 145*110 * 8 |
| TR 3501/2 | Glass coated sheet | 240 * 160 * 8 |
| TR 3501/3 | Glass coated sheet | 310 * 230 * 8 |
| TR 3501/4 | Glass coated sheet | 440 * 180 * 8 |
| TR 3501/5 | Glass coated sheet | 440 * 355 * 8 |
