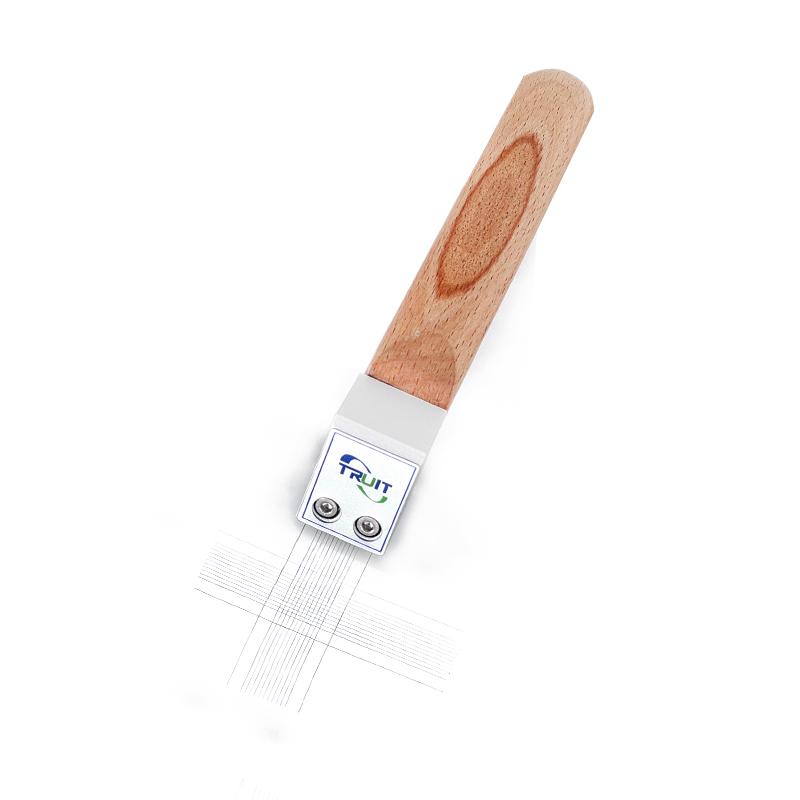

TRUIT TR 5001/2 Cross-cut adhesion instrument 1mm/11 teeth

TR 5001/2

Single Knife Face Cross Hatch Cutter

Wooden handle, alloy steel blade material, suitable for laboratories and construction sites, with 1mm knife spacing, 11 teeth, and a single working face.

Introduction

The adhesion scratcher is a tool used to evaluate the adhesion of coatings and is usually used for coating quality inspection and coating process control. It assesses the adhesion of a coating by scratching the surface of the coating in a series of grid patterns, then using an appropriate tool to cover the scratched area with tape and then quickly removing the tape.

Adhesion scorers can be used for on-site testing during the coating process or for coating research and quality control in a laboratory environment. It is a simple and rapid method for evaluating the adhesion of coatings and provides qualitative or semi-quantitative information on the strength of the bond between the coating and the substrate.

TR 5001/2 single blade scratcher is made of wooden handle material, high-quality alloy steel blade, tooth spacing 1mm, and the number of teeth is 11.

Features

• Ergonomic handshake design for effortless use

• Blades are easily replaceable

• Blade material: high quality alloy steel

• Blade top width: less than 0.05mm

• Blade angle: 30°±1°

Series parameter table

Note: The multi-edged cutting knife with 1mm spacing is suitable for hard substrates (metal) with paint film thickness <60μm.

The multi-edged cutting knife with a spacing of 2mm is suitable for hard substrates with a paint film thickness of 61 μm ~ 120 μm or soft substrates (wood, plastic) with a thickness <120 μm.

The multi-edged cutting knife with a spacing of 3mm is suitable for hard or soft substrates with a paint film thickness of 121μm to 250μm.

Packing list：Host X1, 3M tape X1, magnifying glass X1, brush X1, hexagonal spoon X1, certificate X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
