HANNA HI5222 Professional desktop acidity pH/mV-ISE-temperature tester

HI5222

Professional desktop acidity pH/mV-ISE-temperature tester

Support 5-point calibrated, optional resolution, data logging, alarm limit, GLP, support for multiple language options, Ion concentration ISE mode, unique Ion concentration incremental measurement method.

Introduction

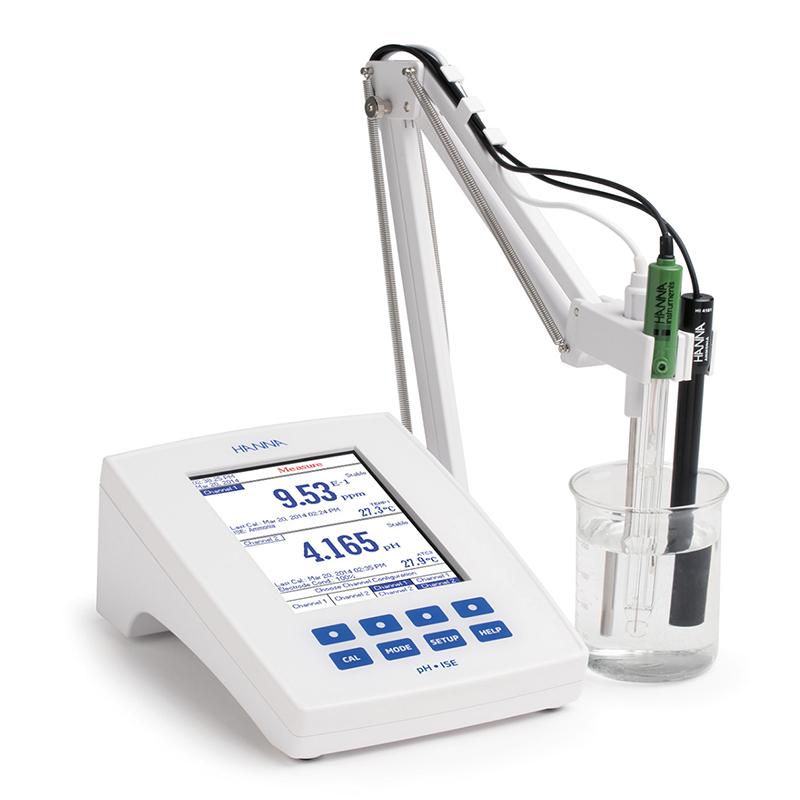

The HI5222 is an advanced research-grade dual-channel benchtop pH/ISE/mV meter that is fully customizable with a large color LCD, capacitive touch keys, and USB port for computer connection. The HI5222 is feature-rich, including 5-point calibration, selectable resolution, data logging, alarm limits, GLP and more. It retains simplicity, with both dedicated keys for day-to-day operations and virtual keys that guide users through setup options.

Features

1. Four types of item measurement

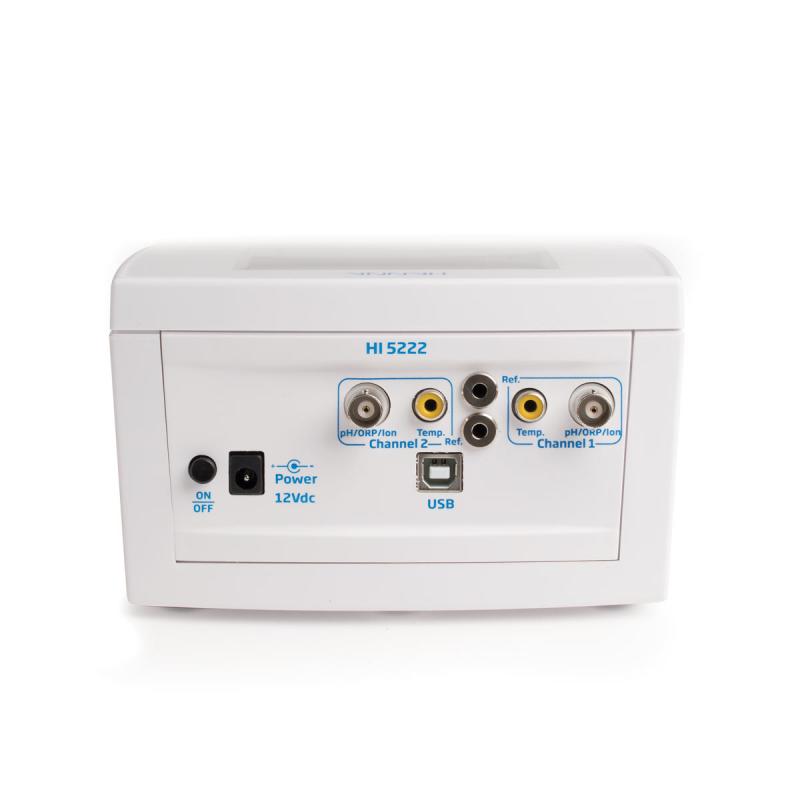

The H15222 laboratory high-precision water quality analyzer can quickly and accurately measure conventional important water quality indicators such as acidity pH-oxidation-reduction ORP-ion concentration ISE-temperature. Both measurement channels support separate pH/ORP electrodes, ISE ion electrodes, and separate temperature and reference electrode inputs to achieve dual-channel simultaneous measurement of four parameters. The measurement data of two channels can be displayed simultaneously in split screen. New development trends in water quality instruments.

2. User-friendly operation interface

Supports multiple language selections, on-screen measurement and calibration operation prompts, convenient and fast.

3. Powerful user customization function

Users can customize the display interface as needed. Basic mode and GLP management mode can be set as well as real-time chart display. Up to 10 custom files can be stored or viewed, that is, user-defined settings include: mode, standard point, isopotential point, ISE measurement unit and ISE electrode model, temperature unit, resolution and other information. Users can change measurement items and use the preset custom file function, which can greatly save measurement time.

4. Cal Check TM verification and diagnosis function

HANNA's unique Cal Check TM calibration diagnostic system avoids measurement data errors caused by electrode failure or calibration fluid contamination during calibration. After calibration is complete, the screen will display an icon of the electrode status.

5. ISE ion concentration increment method

Ion concentration ISE mode, unique ion concentration incremental measurement method, multiple ion concentration units optional according to user needs, up to five points of automatic recognition calibration and five user-defined calibrations, five built-in standard calibration points; up to 200 Each measurement report is stored and retrieved, and the optional H192000 software and corresponding data cable can be used to print and transfer data to a PC.

Ion increment technology reduces reading errors caused by factors such as temperature, viscosity, pH or ionic strength; it can detect the ion concentration of special samples through the known concentration increase and decrease method.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
