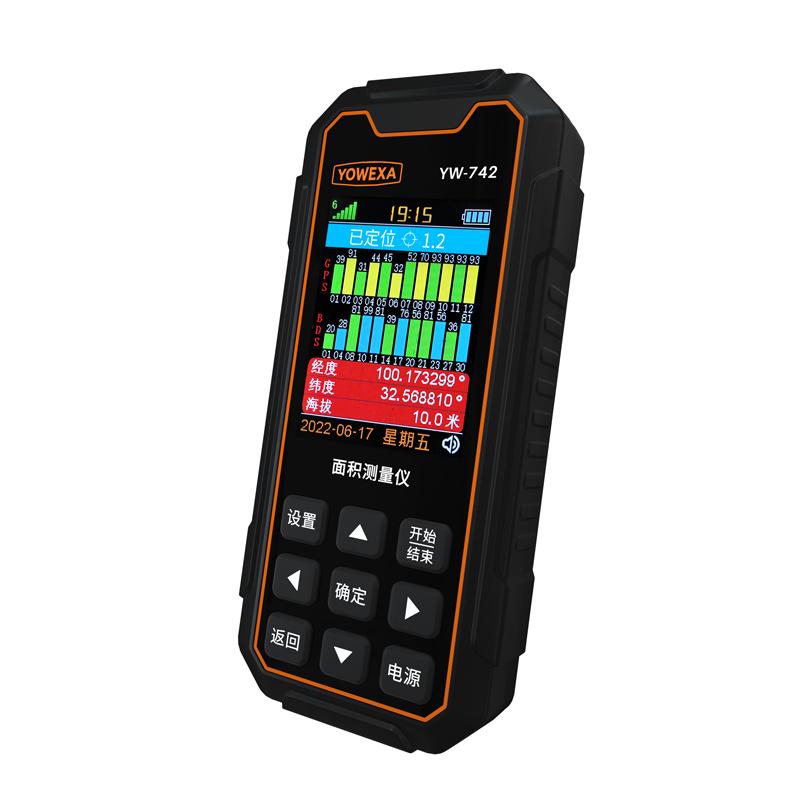

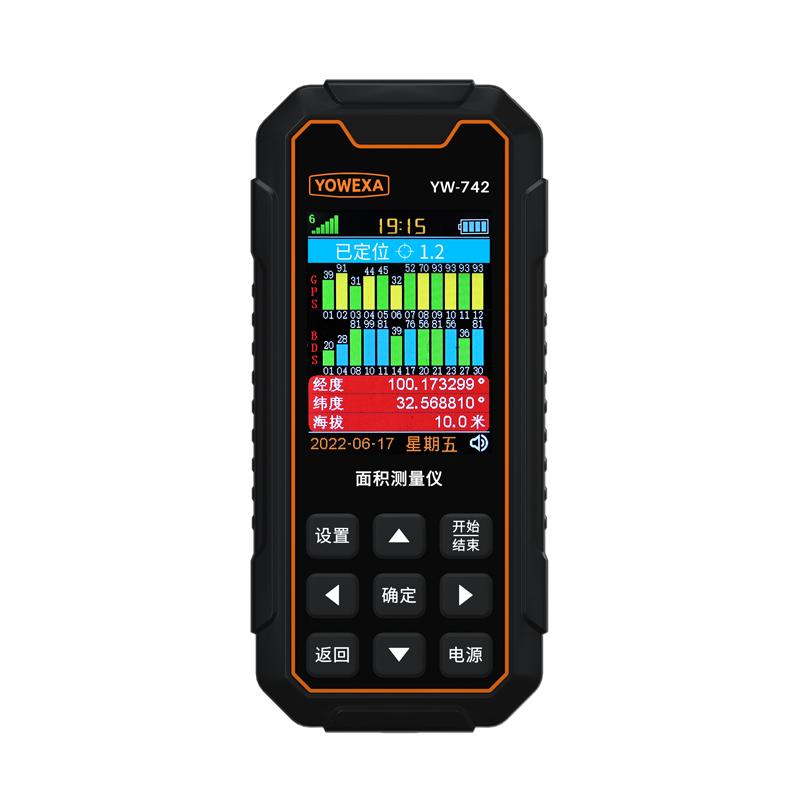

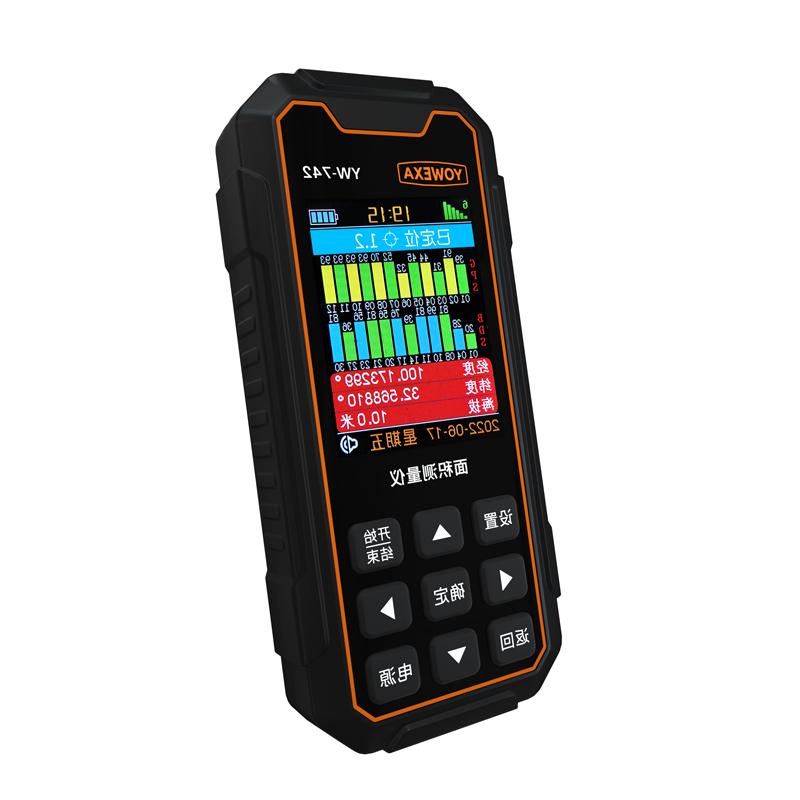

YOWEXA YW-742-A area measurement instrument, two-star positioning (GPS, Beidou)

YW-742-A

Area measurement instrument

Support GPS and Beidou dual satellite system, suitable for vehicle measurement and slope measurement, can accurately locate, positioning accuracy of less than 2 meters. Measurement range, support data export and PC software, Protection level IP40.

Introduction

YW-742 series instruments are used to measure area and distance, such as farmland area measurement, mechanical operation area measurement, pond and lake measurement and highway distance measurement. There are four models of this series of instruments: YW-742, YW-742-LP, YW-742-HP and YW-742-S. The YW-742 series screen is a high-definition color screen, which is clear and easy to read. The instrument uses the global positioning system to provide longitude and latitude positioning information in real time, and can display the measurement trajectory in real time. YW-742 series has a variety of area measurement modes, which can meet the various measurement needs of users. As long as the user selects the appropriate measurement mode according to the measurement needs, the user can easily obtain the data such as the perimeter, area and mu value of the measured plot. YW-742/-HP/-S is equipped with PC software, through which users can view measurement data and export a variety of file formats (CSV/KML/DXF/PNG).

Features

• Precise measurements

• LED lighting

• Voice broadcast

• USB lithium battery direct charging

• Multi-Satellite Positioning (Some Models)

• Data storage

• Dustproof and shockproof

• Support in-vehicle

• Data transfer (some models)

• Unit settings

• Longitude and latitude coordinates are displayed

• Real-time display of trajectories

• Time display

• Color screen backlight

• The brightness of the backlight is adjustable

Application

Farmland Area Measurement,Forestry Area Surveying,Water Area Measurement,Measurement of the working area of the machine.

Packing list：host X1, charging cable X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
