TQC VF1573 prismatic bird type Film Applicator WFT 100μm

SE
TQC Bird Film Applicator 75mm, 100µm
$716.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO
Similar products

TQC sheen VF1573 Prismatic bird Film ApplicatorSPEC

TQC sheen VF1573 Prismatic bird Film ApplicatorDetails

TQC sheen VF1573 Prismatic bird Film ApplicatorPacking list

SKU
NB004740
type
single-sided
WFT
100μm
Application width
75mm
Accuracy
±2μm
material
DAIDO 440C
size
105*25*15mm
Surface preparation
polishing
VF1573
Prismatic bird Film Applicator
TQC Bird Film Applicator 75mm, 100µm

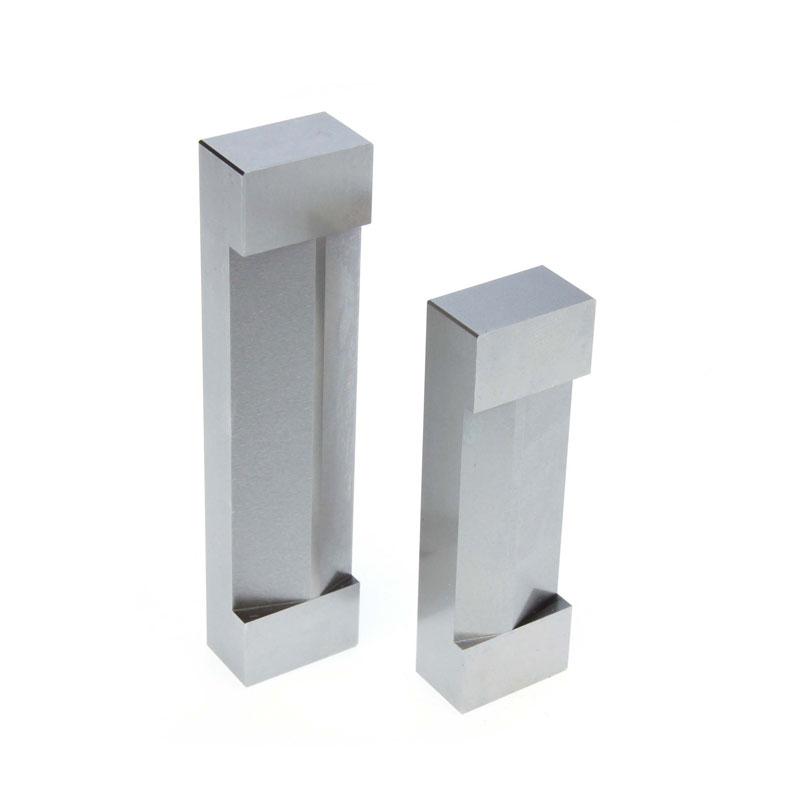

TQC VF1573 prismatic bird type Film Applicator WFT 100μm Picture

Introduction

The TQC bird single-sided applicator is used on paper, occlusion cards, glass plates or other smooth and flat surfaces. It is a simple and accurate production and quality control tool that does not require adjustment. Coating width 75mm.

Parameters


ModelVF1571VF1572VF1573VF1574VF1575VF1576
Wet film thickness (μm)5075100125150200
Coating width (mm)75
Materialstainless steel
Overall accuracy±2μm
precisionNo more than 3μm
size105x25x15mm
Surface treatmentpolished
MaterialDAIDO 440C material medical grade martensitics stainless steel tool steel. Sub-zero vacuum hardening (+1756°C~-70°C) with a hardness of HRC55 (the highest Rockwell hardness grade)

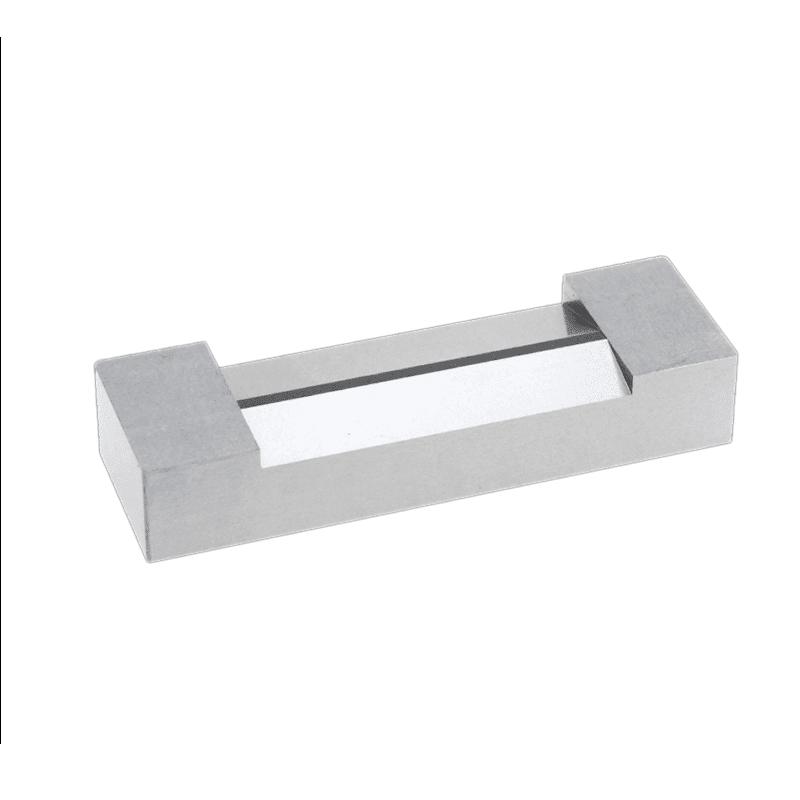

Product detail drawing

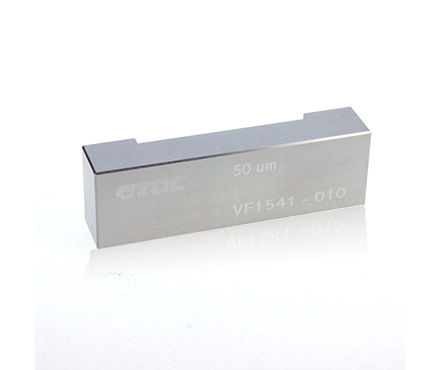

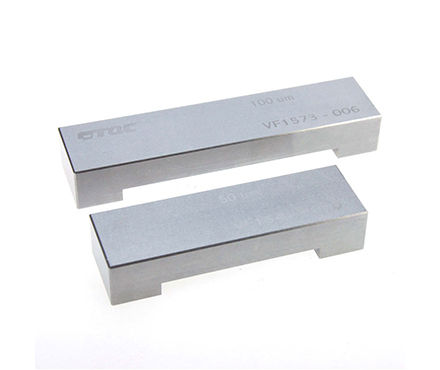

TQC鸟型单面涂布器细节图1TQC鸟型单面涂布器细节图2

TQC鸟型单面涂布器细节图3

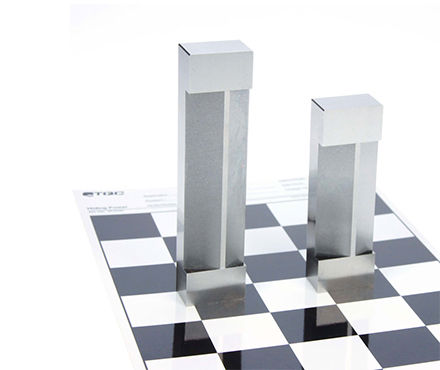

TQC鸟型单面涂布器细节图4

Take you to the Dutch TQC

TQC公司的历史发展

TQC自动化生产和严格的品质把控

TQC研发团队

FAQ
QEmulsion film formation is the preparation of this film applicator?
A Yes!
QAre all bird type film applicators available for inspection in the JB/T7663.2 standard?
A Not necessarily, but this VF1573 bird type film applicator can be considered.
QWhat is the difference between VF1574 and VF1573?
A Hello, VF1574 and VF1573 are mainly prepared with different wet film thicknesses, which are 125μm and 100μm respectively. Miscellaneous aspects are the same.
