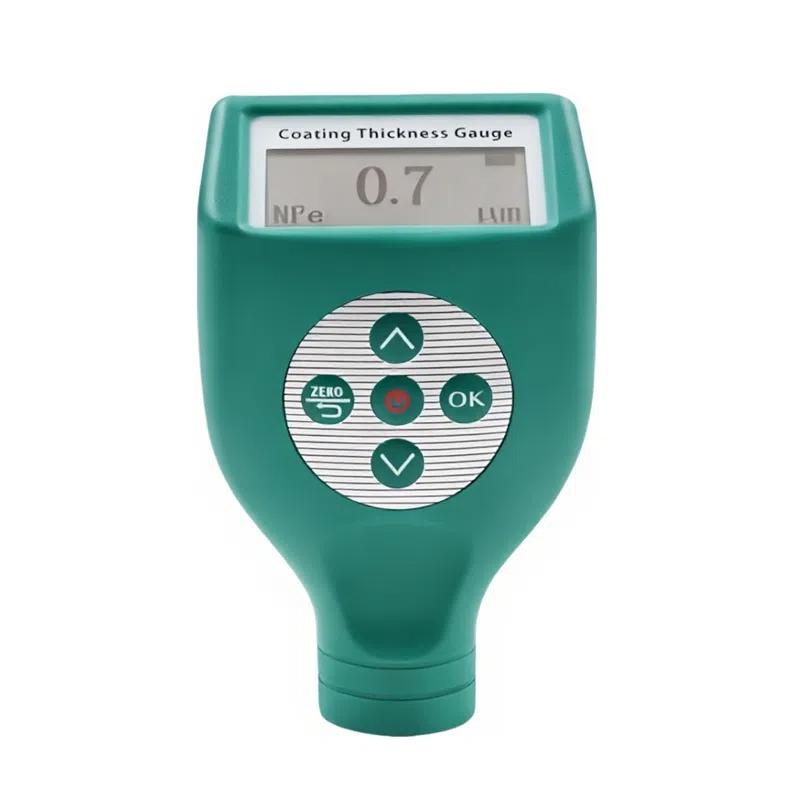

HUINUO BP-3000FN Coating Thickness Gauge 3000μm integrated dual-use standard type

BP-3000FN

Coating Thickness Gauge

Magnetic, eddy current integration, automatic identification substrate, super wear-resistant cemented carbide probe, measuring thickness of 3000 μm, Measurement accuracy ± 2% + 1 μm, reaction speed up to 0.3 seconds/time, with temperature compensation.

Introduction

BP-3000FN coating Thickness Gauge is a magnetic, eddy current integration, automatic identification of magnetic or non-magnetic substrates, automatic conversion, it can quickly, non-damage, precision coating thickness measurement. It can be used both in the laboratory and in the engineering field. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields. It is an instrument required for the material protection profession.

BP-3000FN coating Thickness Gauge has the functions of backlight, large-screen digital display, single-point and multi-point calibration, and this product is resistant to high-low temperatures, drops, probe wear-resistant (more than 500,000 times), good test stability, fast test speed, suitable for various measurement environments. Its technical parameters are in full compliance with national and international standards.

The FE function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc.

The NFe function detects the thickness of the insulating coating on all non-magnetic substrates, such as lacquer, plastic, porcelain, etc. These coatings must be applied to a non-magnetic metal substrate such as aluminum, copper, brass or stainless steel.

Features

●Measurement method: F magnetic induction, N eddy current

●The spring-guided bushing probe with super wear-resistant carbide probe can ensure that the probe has constant compression force and stable sampling value when measuring on hard or rough surfaces;

●It can quickly and automatically identify magnetic substrates and non-magnetic substrates;

●High precision, good stability, can measure 1-5μm ultra-thin coating;

●The measurement speed can reach 0.3 seconds/time;

●Large-screen digital display is clearer;

●Two shutdown modes: manual shutdown mode and automatic shutdown mode;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●It has the function of converting metric and imperial units to achieve μm/mil conversion;

●Newly designed shell and internal structure to enhance the beauty, drop resistance and impact resistance of the product;

●The light touch measurement accuracy is good.

Packing list：host X1, standard piece X6, base X2, manual X1, battery X2, warranty card X1, certificate X1, portable case X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
