COATTEST INSTRUMENT WIRE20 wire film thickness tester
SE
WIRE20
COATTEST INSTRUMENT WIRE20 Wire film thickness testerSPEC
COATTEST INSTRUMENT WIRE20 Wire film thickness testerDetails
COATTEST INSTRUMENT WIRE20 Wire film thickness testerPacking list
- SKU
- NB048076
- Measurement of plating
- Single-layer platings: Cr, Ni, Cu, Zn, Sn, Ag, Au, Cd, Pb, etc. Multilayer platings: such as Sn/Ni/Cu and other more than 10 multi-platings combination.
- Platings substrate
- Steel, copper and copper alloys, etc.
- Number of coating layers
- 3rd floor
- Wire testing
- It is suitable for testing of wire (wire) materials and cylindrical workpieces with a diameter of 0.1~ 4mm. Direct reading is not required.
- Measurement range
- 0.03~50.00um
- error of indication
- ≤10%
- resolution
- 0.01um
- Display mode
- 126 * 64 dot matrix LCD screen.
- calibrate
- Single platings calibrated or uniform calibrated (Calibration plate required)
- Sensitivity
- The instrument has been adjusted to optimum condition and no adjustment is required.
- test hotkey
- Customize single platings or multiple platings/matrix combinations to select hotkeys, no need to switch repeatedly, and quickly enter the test state with one click.
- data processing
- Built-in micro thermal printer, can automatically print statistical reports: including plating type, single thickness value, average value, standard deviation, coefficient of variation, MAX Maximum, MIN Minimum, measurement number and test time and other information.
- test stand
- Quick installation fixed table, convenient and fast length fixing device, base with length measurement ruler. In addition, thermostatic base is optional (recommended for winter and cold areas).
- power supply
- AC 110V or 220V optional
- Host size
- 230 * 210 * 86Mm (length * width * height)

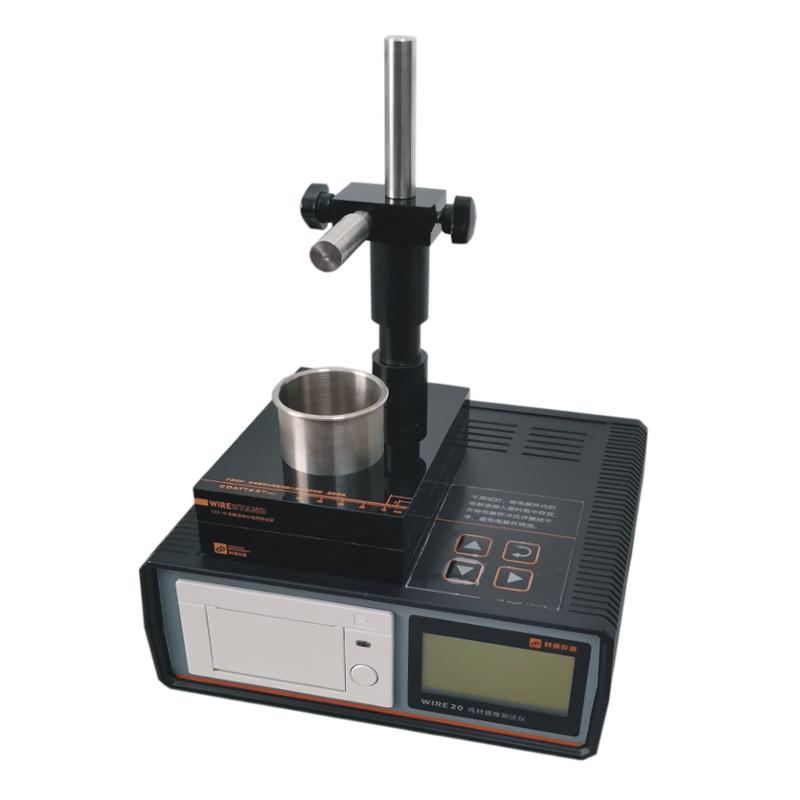

The WIRE20 Wire Film Thickness Tester is a high-precision instrument designed to measure a wide range of single and multi-layer coating thicknesses. The instrument is suitable for wire and cylindrical workpieces with a diameter of 0.1 to 4 mm, and the results can be read directly without conversion. It has a measurement range of 0.03 to 50.00 microns, a resolution of up to 0.01 microns, and an indication error of less than 10%. WIRE20 is equipped with a 126*64 dot matrix LCD display, which supports the calibration of single or multiple coatings, and has a built-in micro thermal printer that can automatically generate detailed statistical reports. The instrument is also equipped with a convenient quick-release station, a quick-length fixing device and an optional thermostatic base, which is suitable for measurement needs in different environments. Its compact design and sensitivity adjustment make it easy to operate and highly accurate, and are widely used for coating thickness inspection of materials such as steel, copper and copper alloys.
