HuiNuo TM3300/13 drawdown Bar & Blade heating vacuum adsorption coater customized 500 * 600mm

Customized model, Spreader area 500 * 600mm, bar + drawdown blade, mica heating, Spreader table aluminum alloy hard surface preparation, lower than the market φ 0.8mm adsorption aperture is more suitable for ultra-thin film, RT +~ 180 ℃, Temperature uniformity +/- 1 ℃.
$6918.39/set
PromotionLoading...
Coupon
Model:

HuiNuo TM3300/13 Drawdown Bar & Blade heating vacuum adsorption coaterSPEC

HuiNuo TM3300/13 Drawdown Bar & Blade heating vacuum adsorption coaterDetails

HuiNuo TM3300/13 Drawdown Bar & Blade heating vacuum adsorption coaterPacking list

SKU
NB048954
Spreader mode
Bar + drawdown blade
Spreader rate
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate fixing method
Vacuum adsorption + fixture
Spreader material
Surface hard treatment aluminum alloy
Spreader Platform size
Subject to the actual product
Bar Spreader Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Bar Spreader accuracy
±0.003mm
Coating size
500 * 600Mm (can be customized)
display screen
Color LCD touch screen
Host power supply
100V~220V/50~60HZ
Power
1800w
Drawdown blade Spreader thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Drawdown blade application width
500mm
Drawdown blade Spreader accuracy
±0.003mm
Vacuum adsorption size
500 * 600Mm (can be customized)
vacuum aperture
Φ0.8mm
Vacuum hole spacing
20*20mm
Heating Temperature range
RT +~ 180 ℃ (higher temperature can be customized)
Temperature uniformity
±1℃
Dimension
Subject to the actual product
weight
Subject to the actual product
Vacuum pump pumping rate
5.4m3/h
ultimate vacuum
50KPa
Vacuum Pump Power
180W
Vacuum pump weight
7.1kg
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Operating language
Chinese (can be customized in English)
TM3300/13
Drawdown Bar & Blade heating vacuum adsorption coater
Customized model, Spreader area 500 * 600mm, bar + drawdown blade, mica heating, Spreader table aluminum alloy hard surface preparation, lower than the market φ 0.8mm adsorption aperture is more suitable for ultra-thin film, RT +~ 180 ℃, Temperature uniformity +/- 1 ℃.
HuiNuo TM3300/13 drawdown Bar & Blade heating vacuum adsorption coater customized 500 * 600mm Picture

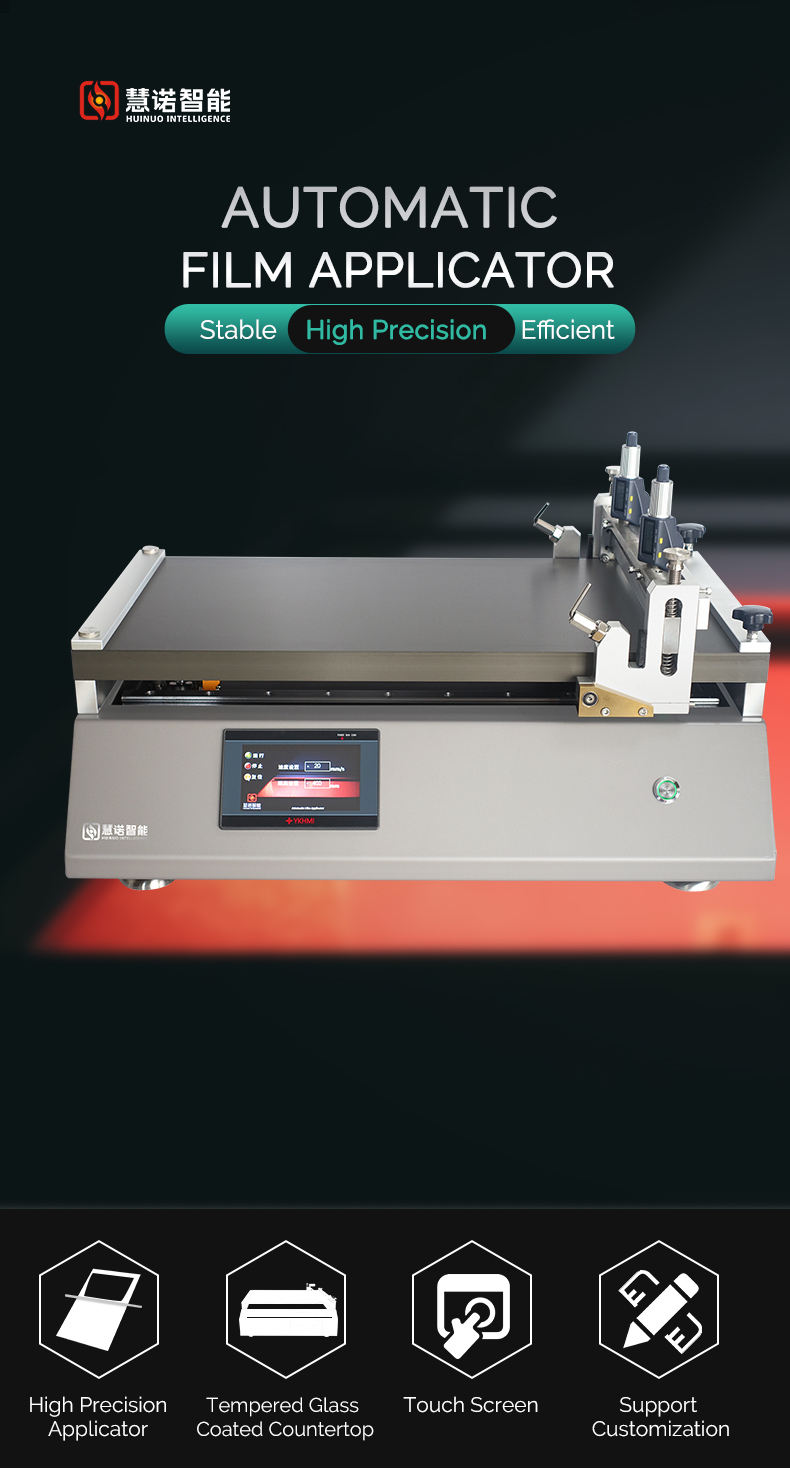

Huinuo TM3300/13 Wire Rod Scraper Heating Vacuum Adsorption Coater Details Figure 1

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater detail diagram 2

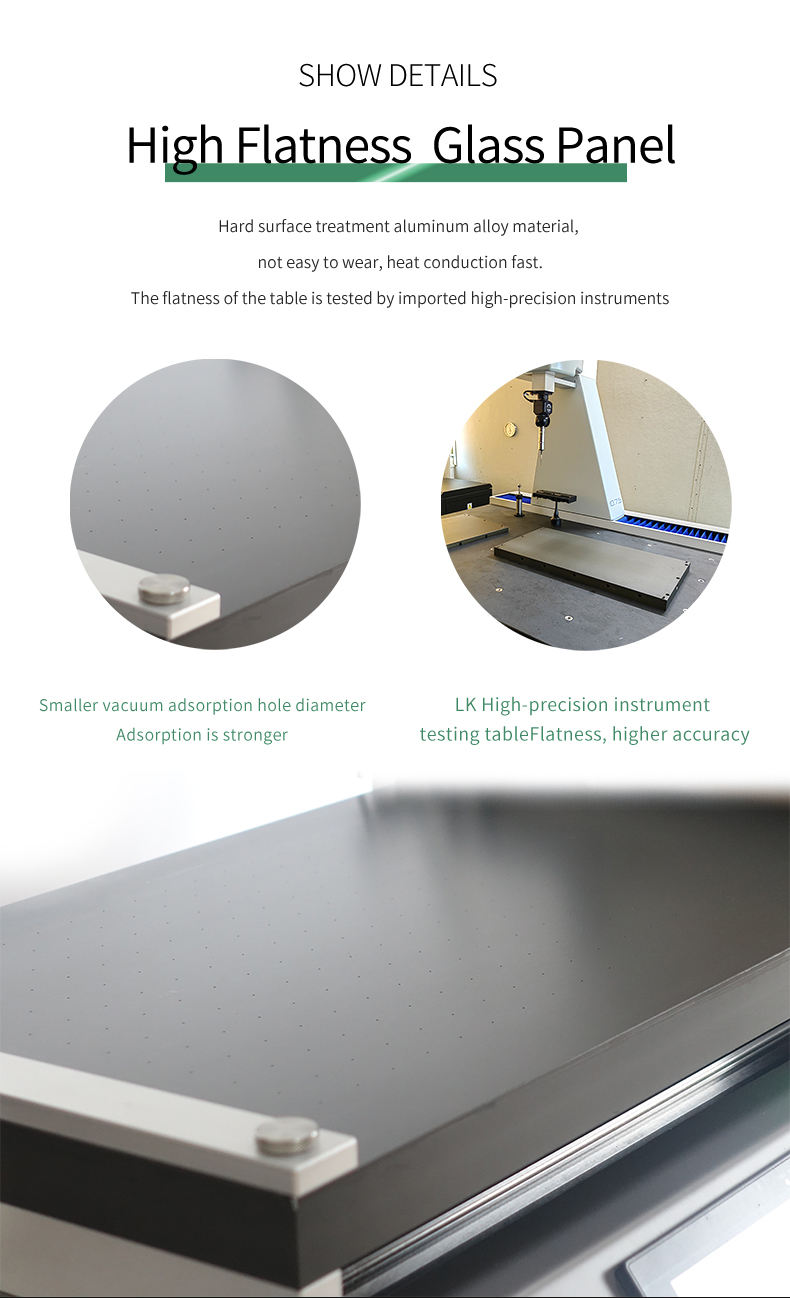

Huinuo TM3300/13 Wire Rod Scraper Heating Vacuum Adsorption Coating Machine Details Figure 3

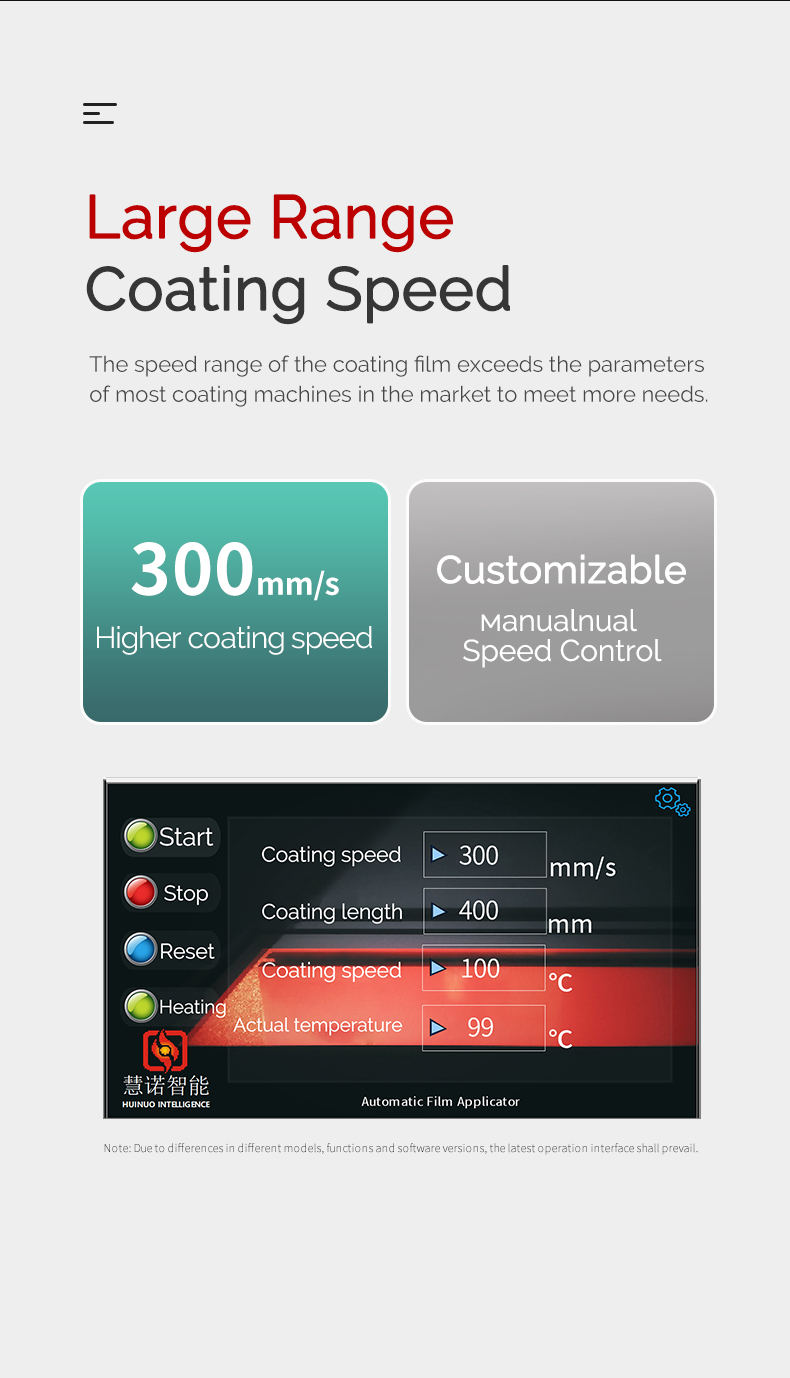

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater detail figure 4

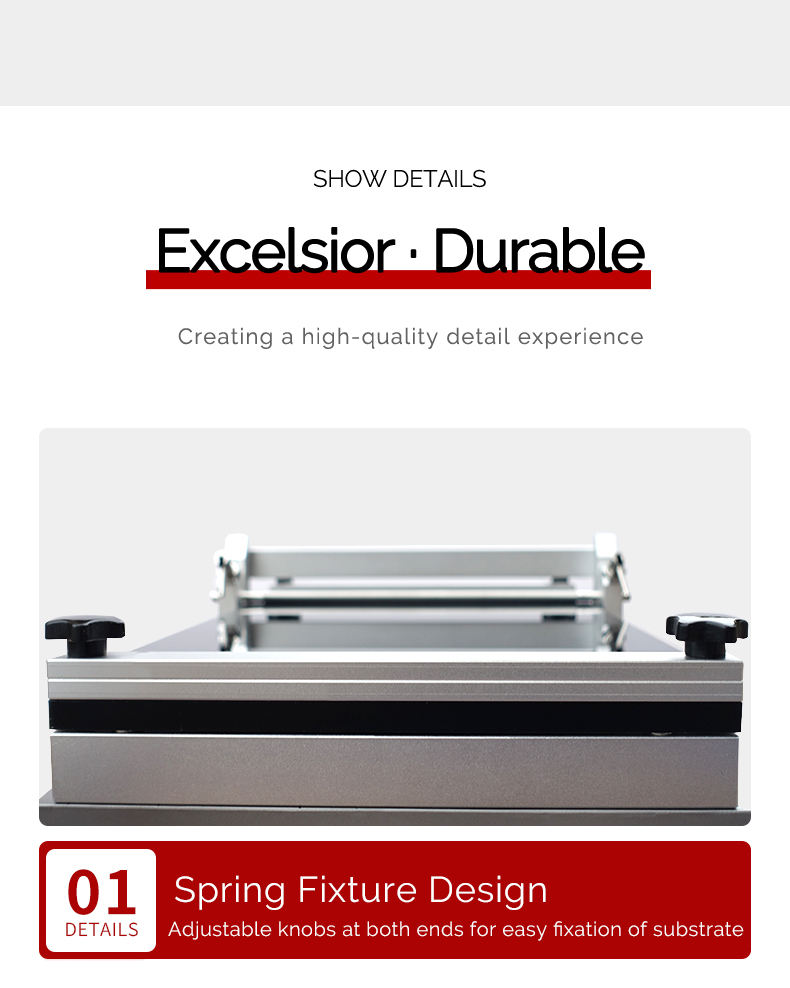

Huinuo TM3300/13 Wire Bar Scraper Heating Vacuum Adsorption Coater Details Figure 5

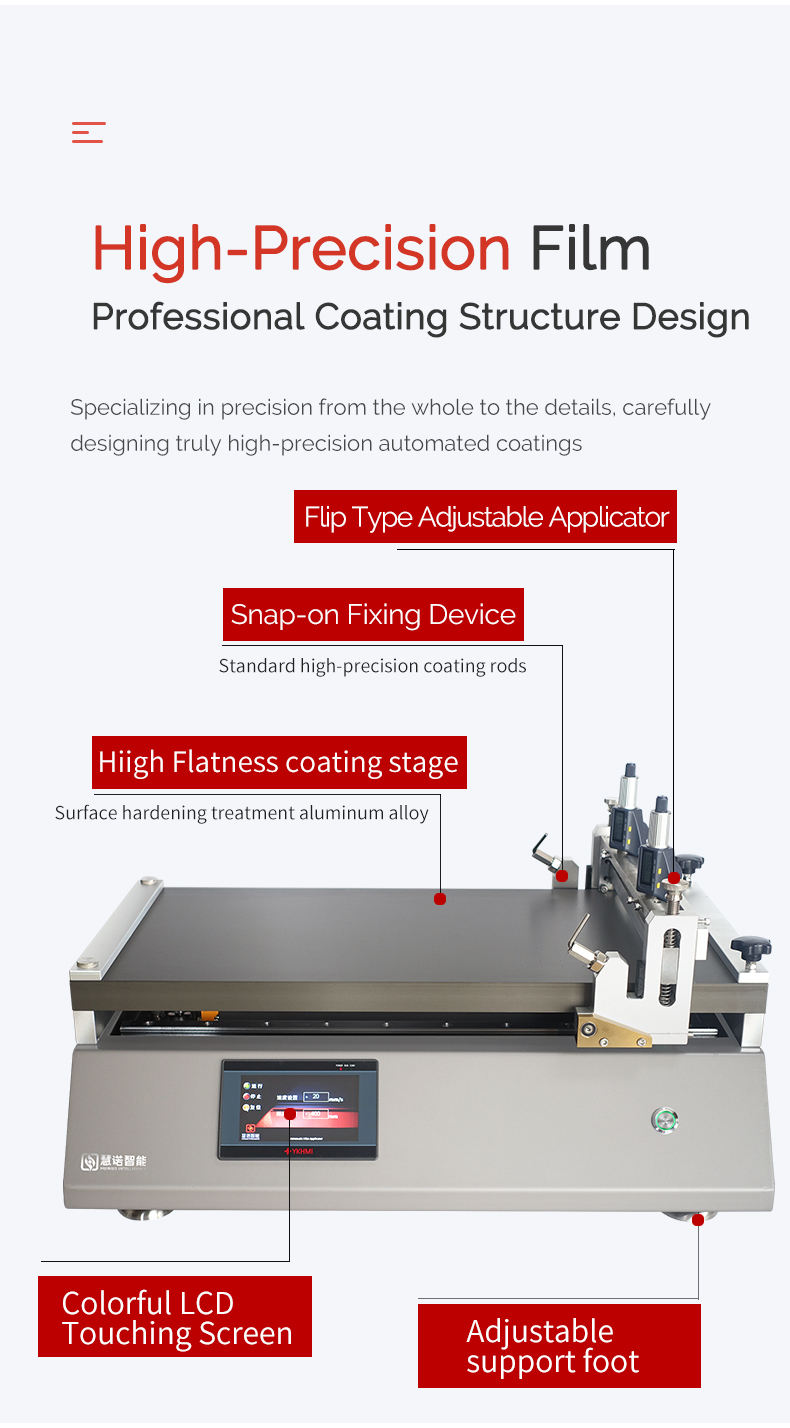

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater details 6

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater details 7

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater detail figure 8

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater details 9

Huinuo TM3300/13 Wire Rod Scraper Heating Vacuum Adsorption Coater Details Figure 10

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater detail 11

Huinuo TM3300/13 wire rod scraper heating vacuum adsorption coater details 12

Product Overview

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for laboratory high-precision automatic coating, in the university research institute, new materials, lithium battery, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, etc., and can be scraped on glass, cardboard and cloth.

Features:

1)The surface is hard treated aluminum alloy countertop, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments.

2) Big brand differential regulator, high film thickness control accuracy

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and has high precision

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely

7) With vacuum adsorption and heating function
