Brand：HuiNuo
Model：TM3300/13

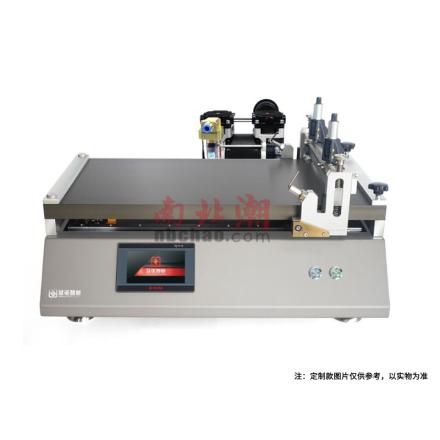

Name：Drawdown Bar & Blade heating vacuum adsorption coater
Specifications
| Spreader mode | Bar + drawdown blade |
| Spreader rate | 1~ 300Mm/s stepless speed regulation (can be customized) |
| Substrate fixing method | Vacuum adsorption + fixture |
| Spreader material | Surface hard treatment aluminum alloy |
| Spreader Platform size | 840*530mm |
| Effective Spreader Area | 600 * 500Mm (can be customized) |
| Bar Spreader Thickness Range | Different bar numbers have different thicknesses, with high-precision imported bars |
| Bar Spreader accuracy | ±0.003mm |
| Drawdown blade Spreader thickness range | 0.1~ 10Mm (clamshell design is easy to clean) |
| Drawdown blade material | Die steel |
| Drawdown blade application width | 500mm |
| Drawdown blade Spreader accuracy | ±0.003mm |
| Heating mode | Mica sheet heating (optional graphene heating, faster thermal conductivity) |
| Heating Temperature range | RT +~ 180 ℃ (higher temperature can be customized) |
| Temperature uniformity | ±1℃ |
| Vacuum pump pumping rate | 5.4m3/h |
| ultimate vacuum | 50KPa |
| Vacuum adsorption size | 680 * 460Mm (can be customized) |
| vacuum aperture | Φ0.8mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum Pump Power | 180W |
| Vacuum pump weight | 7.1kg |
| Operating language | Chinese (can be customized in English) |
| display screen | Color LCD touch screen |
| Host power supply | 100V~220V/50~60HZ |
| Power | 1800w |
| Dimension | 860*640*430mm |
| weight | Subject to the actual product |
Packing list
Host X1, manual X1, drawdown blade x1, import bar X1, certificate X1, vacuum pump X1
After-sales instructions
Warranty days: 730 days
