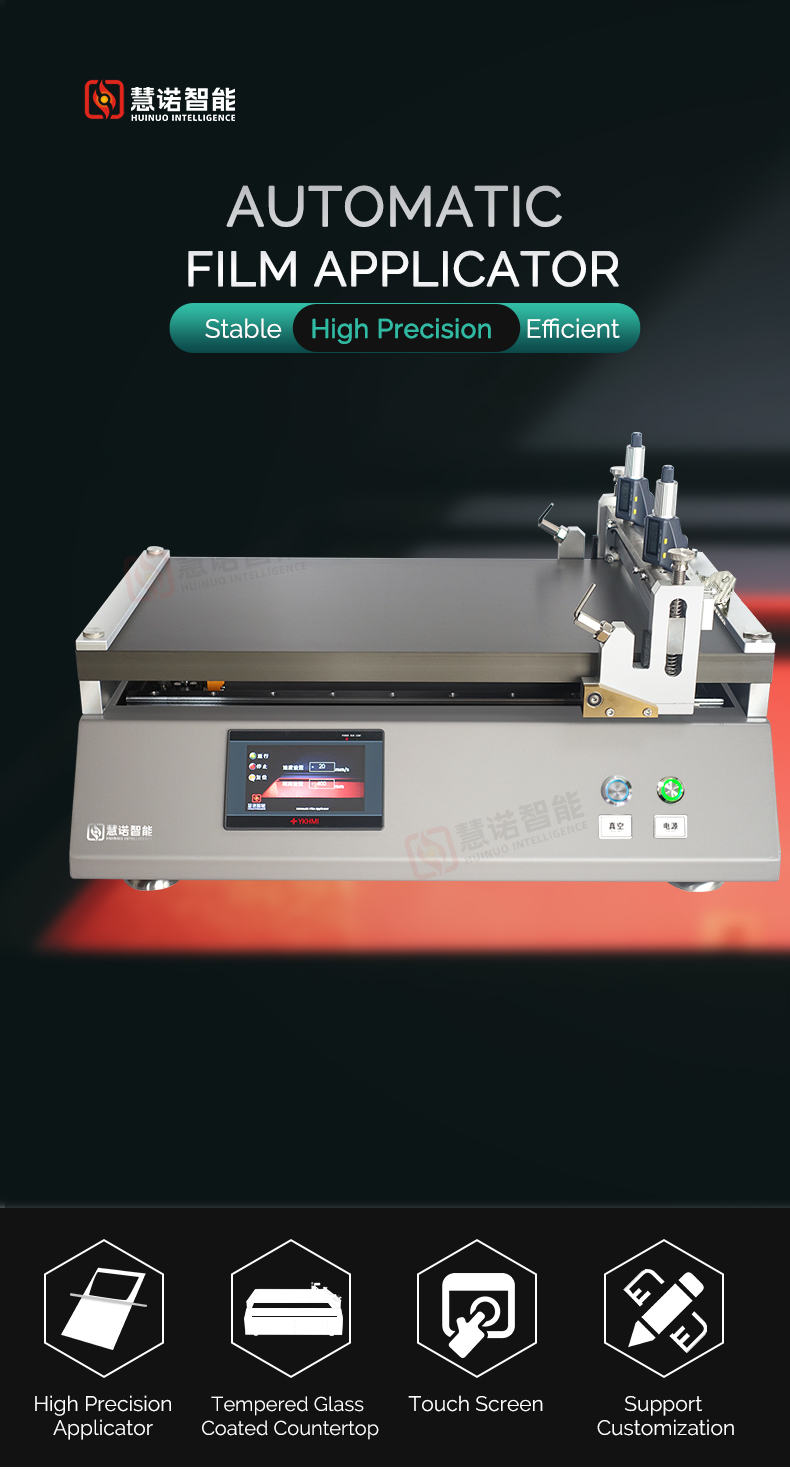

HuiNuo TM3200/05 drawdown Bar & Blade vacuum adsorption coater Effective area 400 * 600mm

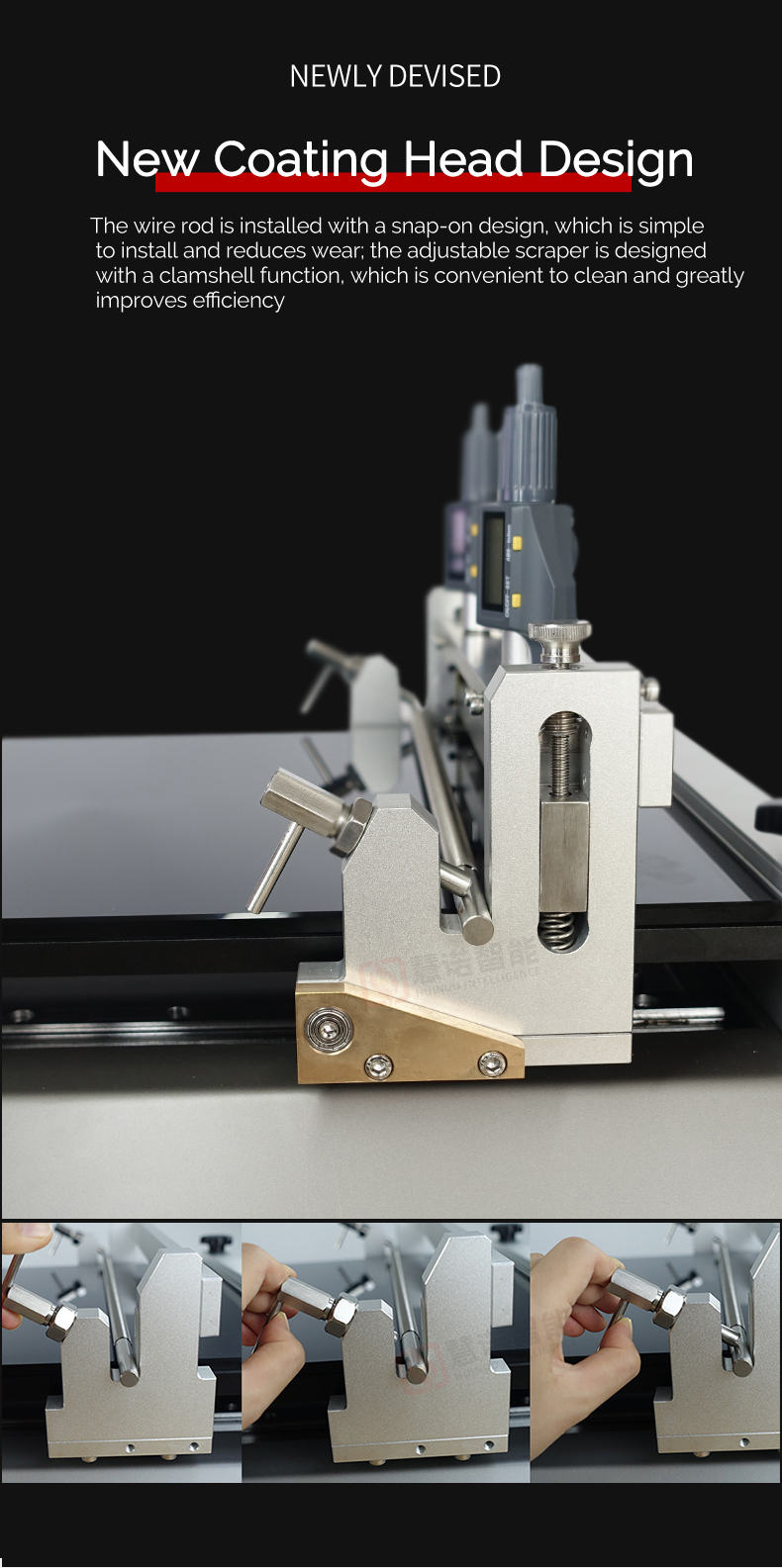

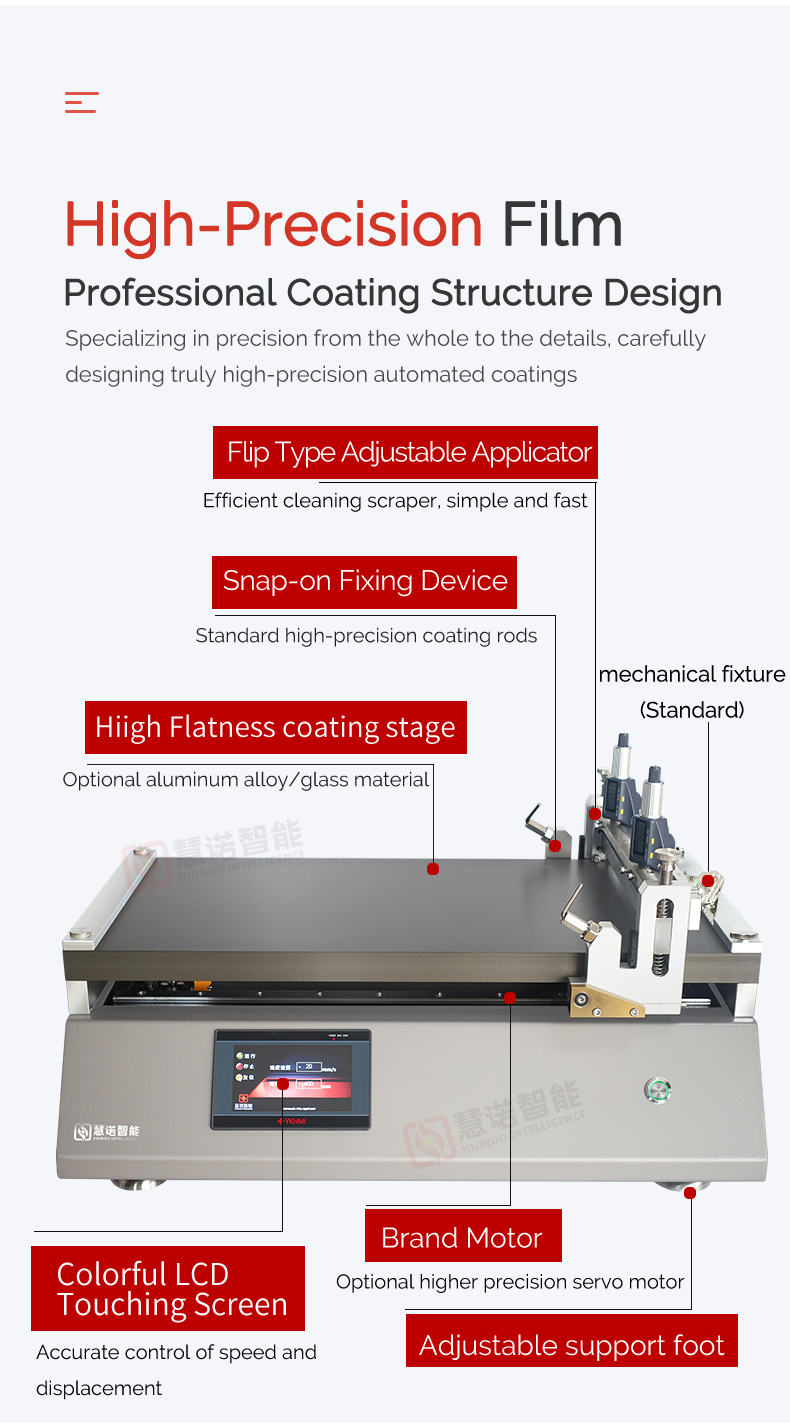

SEDrawdown Bar & Blade vacuum adsorption integrated type, stepper motor, effective area 400 * 600mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, fast cleaning, Smoothness aluminum alloy plate, High Hardness and wear resistance.
$5377.92/set
PromotionLoading...
Coupon
Model：
TM3200/05
HuiNuo
Chinese general agent
HuiNuo TM3200/05 Drawdown Bar & Blade vacuum adsorption coaterSPEC
HuiNuo TM3200/05 Drawdown Bar & Blade vacuum adsorption coaterDetails
HuiNuo TM3200/05 Drawdown Bar & Blade vacuum adsorption coaterPacking list
- SKU
- NB048958
- Spreader mode
- Bar + drawdown blade

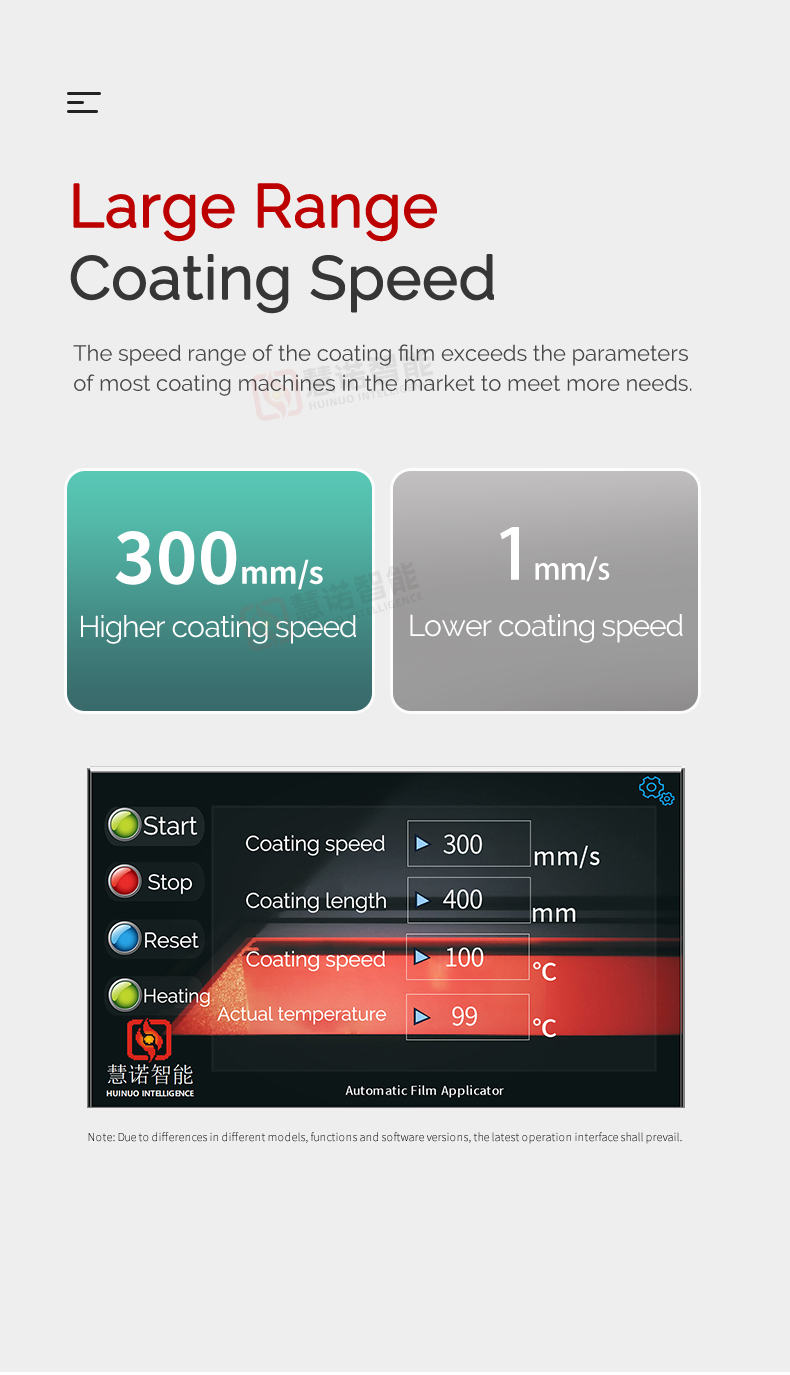

- Spreader rate
- 1~ 300Mm/s stepless speed regulation (can be customized)

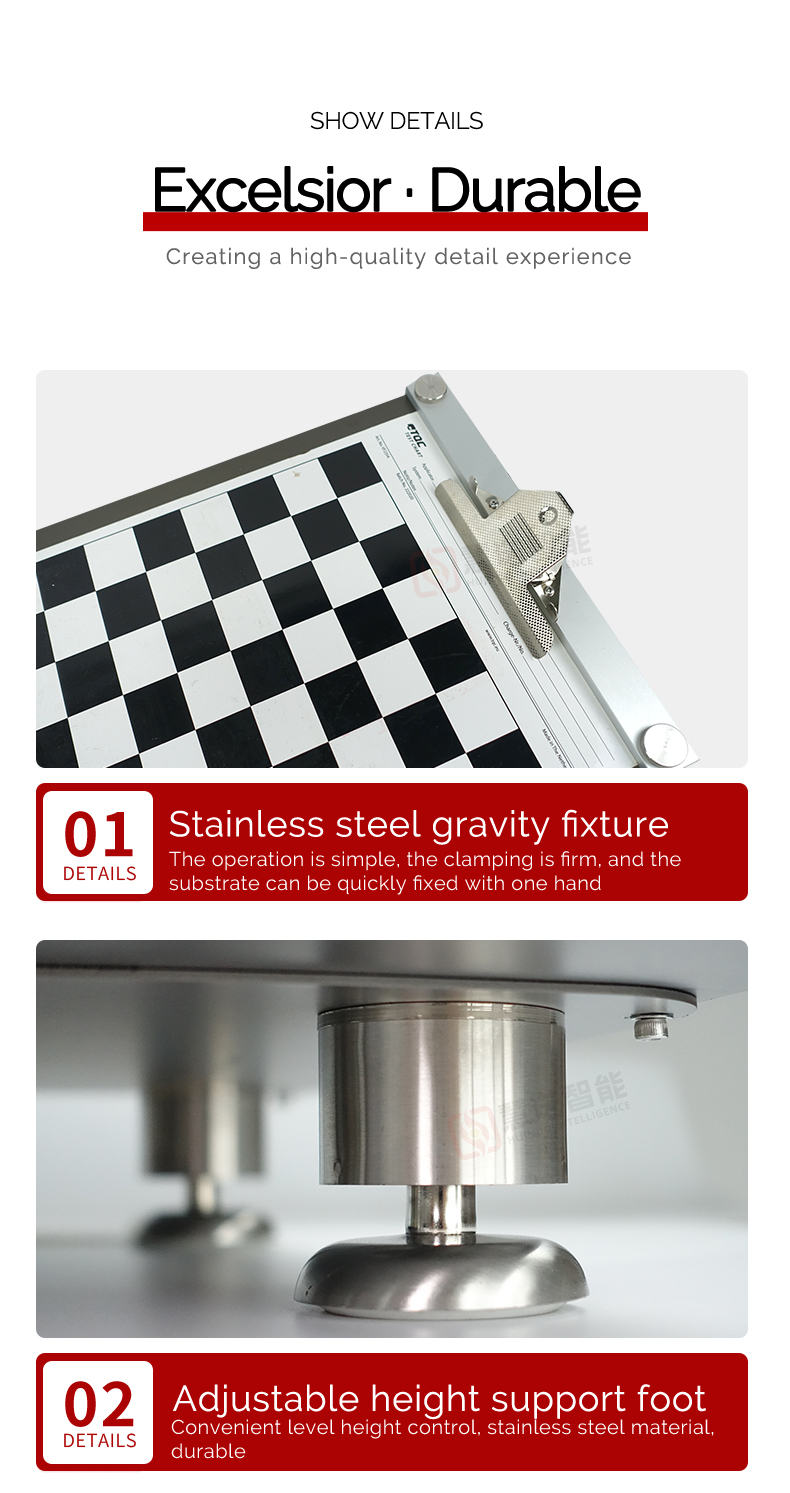

- Substrate fixing method
- Vacuum adsorption + fixture
- Spreader material

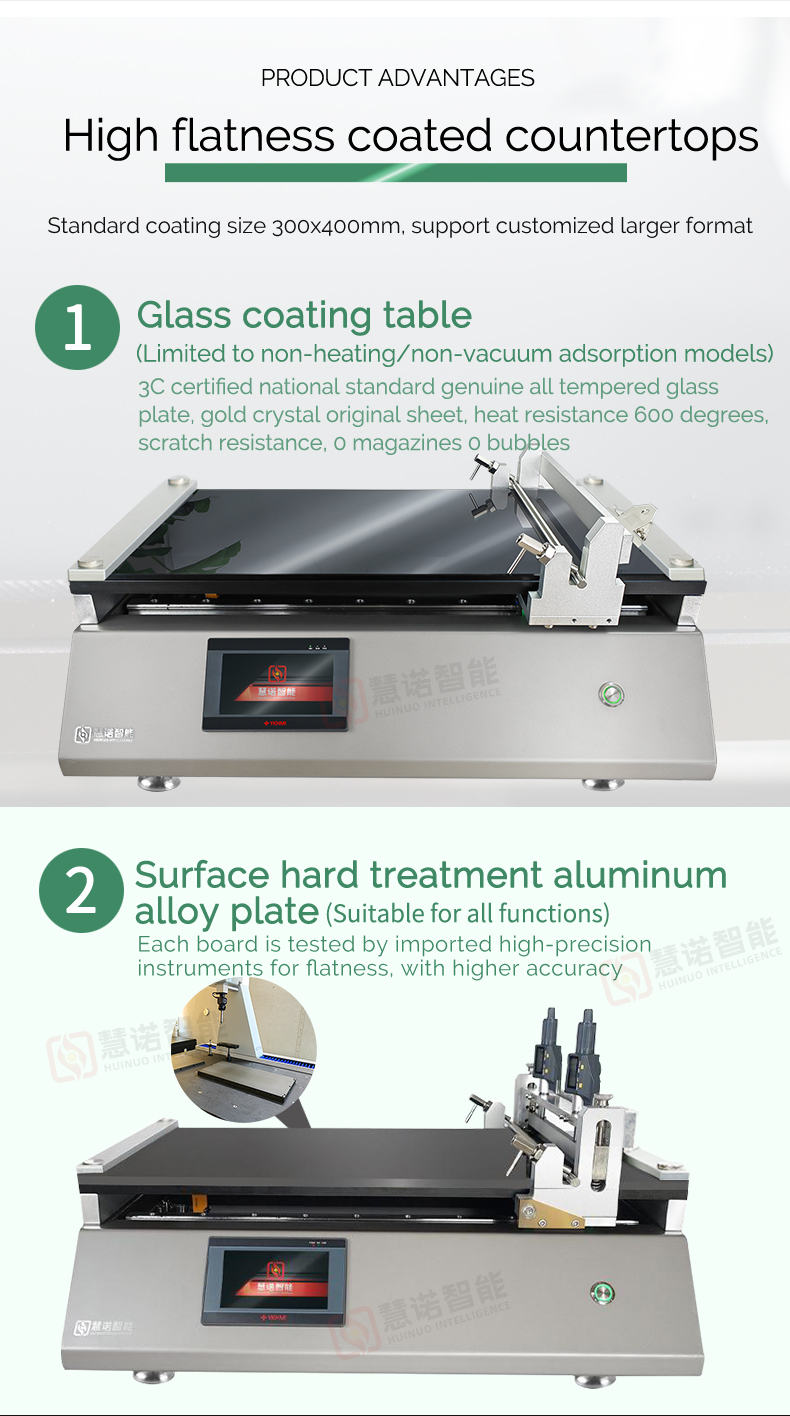

- Surface hard treatment aluminum alloy
- Spreader size
- 840*430mm
- Effective Spreader Area
- 600 * 400Mm (can be customized)
- Bar Spreader Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Bar Spreader accuracy
- ±0.003mm
- Drawdown blade Spreader thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 400mm
- Drawdown blade Spreader accuracy
- ±0.003mm
- Vacuum adsorption size
- 680*360mm
- vacuum aperture
- Φ1mm
- Vacuum hole spacing
- 20*20mm

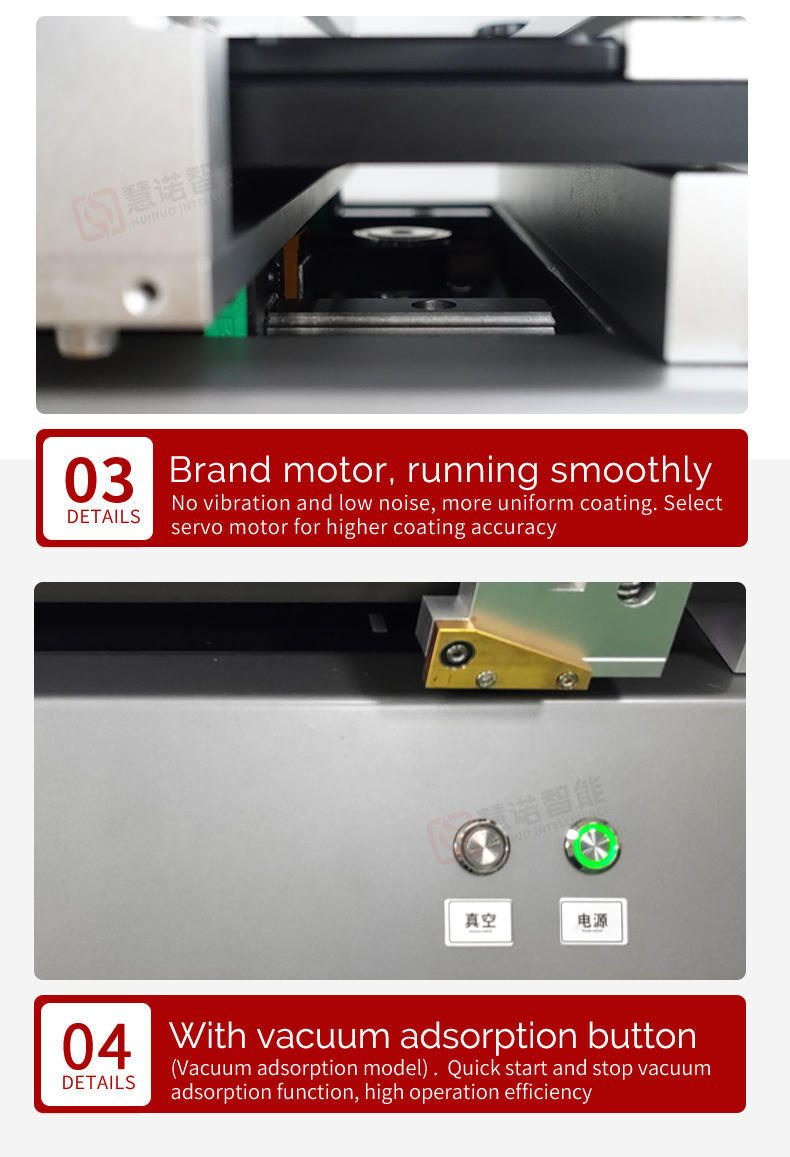

- Drive motor
- Servo motor
- Vacuum pump pumping rate
- 5.4m3/h
- ultimate vacuum
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump weight
- 7.1kg
- Power
- 600w
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD touch screen
- Host power supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- 860*540*430mm
TM3200/05
Drawdown Bar & Blade vacuum adsorption coater
Drawdown Bar & Blade vacuum adsorption integrated type, stepper motor, effective area 400 * 600mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, fast cleaning, Smoothness aluminum alloy plate, High Hardness and wear resistance.
