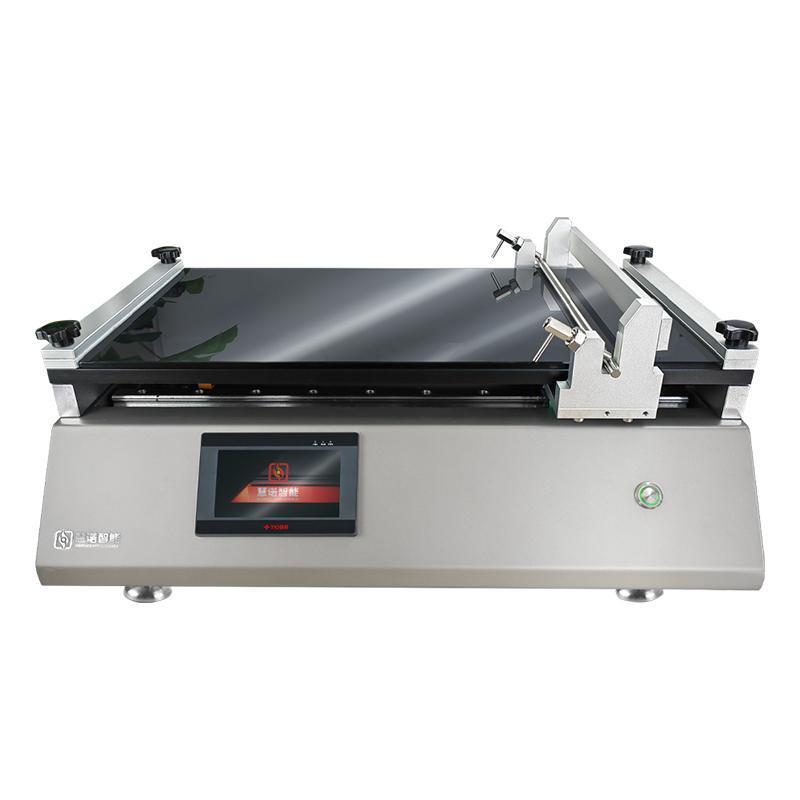

HuiNuo TM1000/04 bar Automatic Film Applicator Coating size 1000 * 500mm
SE
TM1000/04
-
HuiNuo TM1000 Automatic Film Applicator Bar Coater effective coating area 40 * 30cm$ 1470.00SE -
HUINUO TM1000 High-precision Wire Bar Film Applicator with 3 imported wire rods$ 1625.00SE -
China bar Lab Film Applicator Experimental small coater TBJ-AJ-XB with imported bar$ 1081.00SE -
HUINUO TM1000pro High-accuracy Wire-rod Film Coating Apparatus$ 1936.00SE -
China bar type Automatic Film Applicator TBJ-A1-XB with imported bar$ 1283.00SE
HuiNuo TM1000/04 Automatic Film ApplicatorSPEC
HuiNuo TM1000/04 Automatic Film ApplicatorDetails
HuiNuo TM1000/04 Automatic Film ApplicatorPacking list
- SKU
- NB004927
- coating method
- Bar Spreader
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)

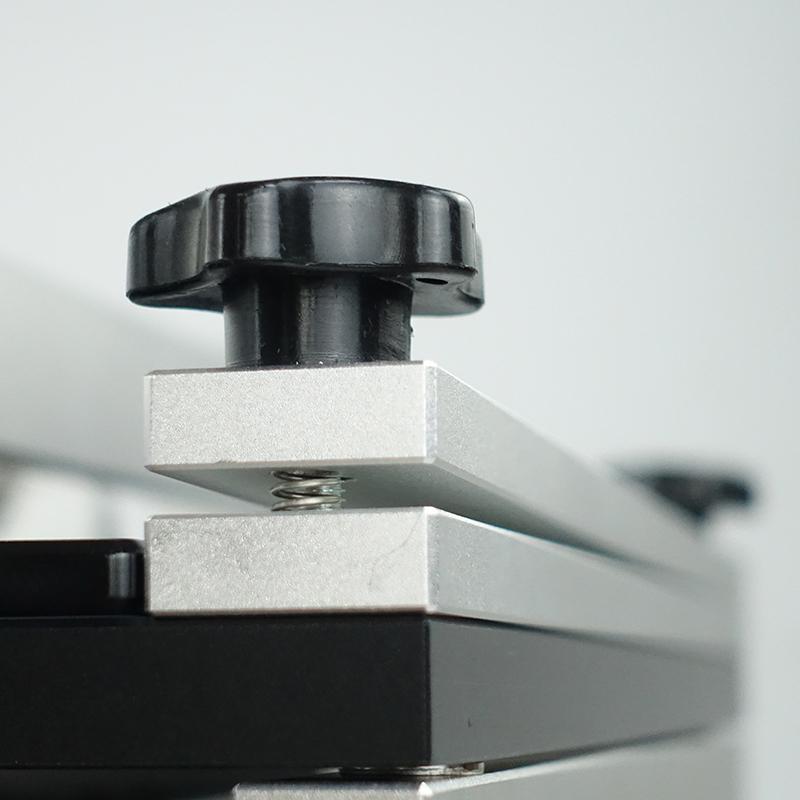

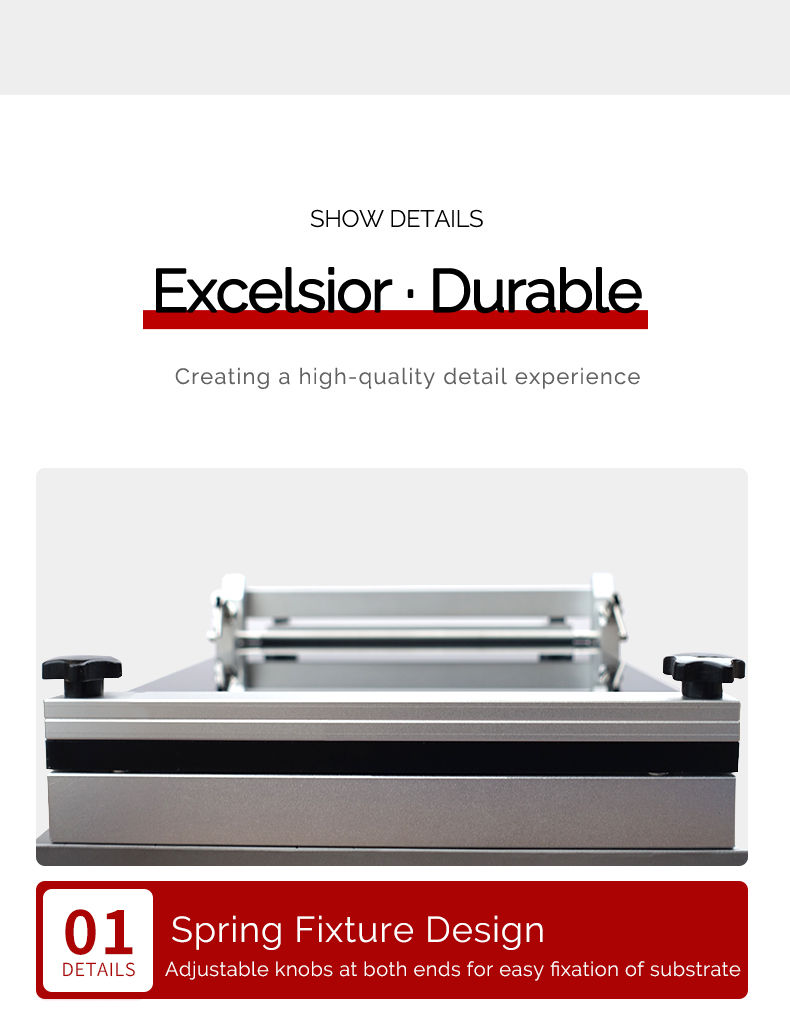

- Substrate clamping method
- fixture
- Coating table material
- Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
- Coating table size
- 1240*530mm
- effective coating area
- 1000 * 500Mm (can be customized)
- Film thickness
- Controlled by bar with High Accuracy import bar
- Bar film accuracy
- ±0.003mm
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 100V~220V/50~60HZ
- Dimension
- Size 1350 * 700 * 450
- weight
- About 90kg
- optional feature
- Drawdown blade, heating, Vacuum chuck
Introduction
The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.
This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.
Application
The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

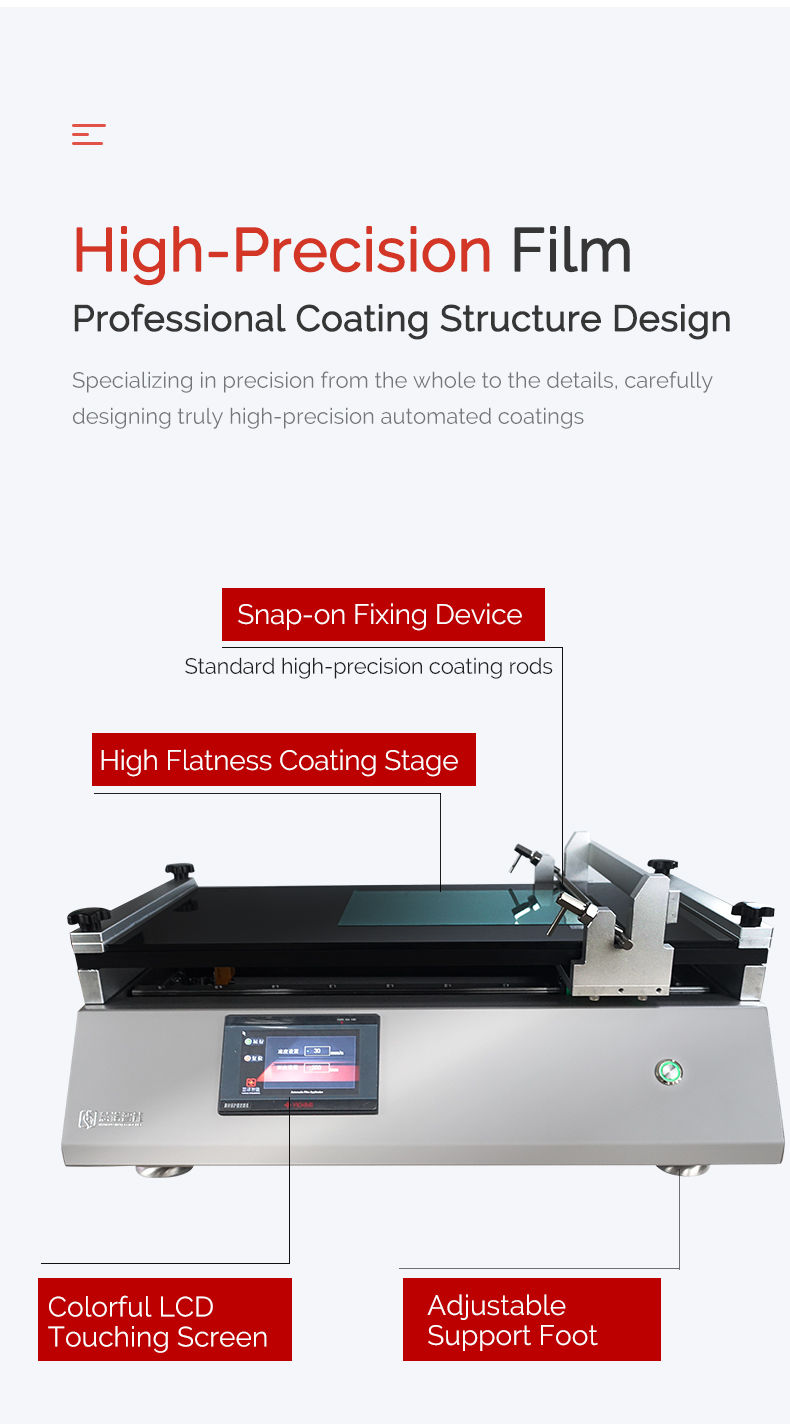

Features
1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

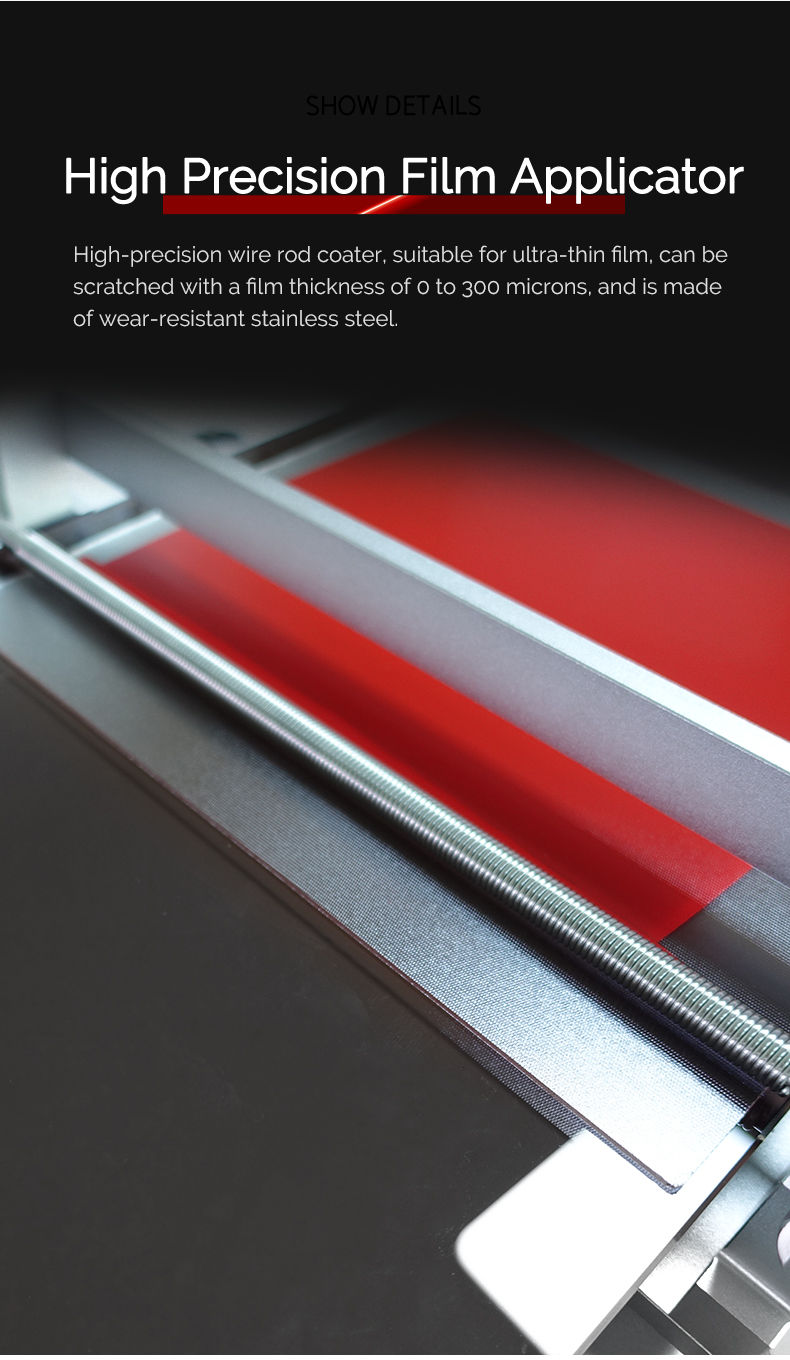

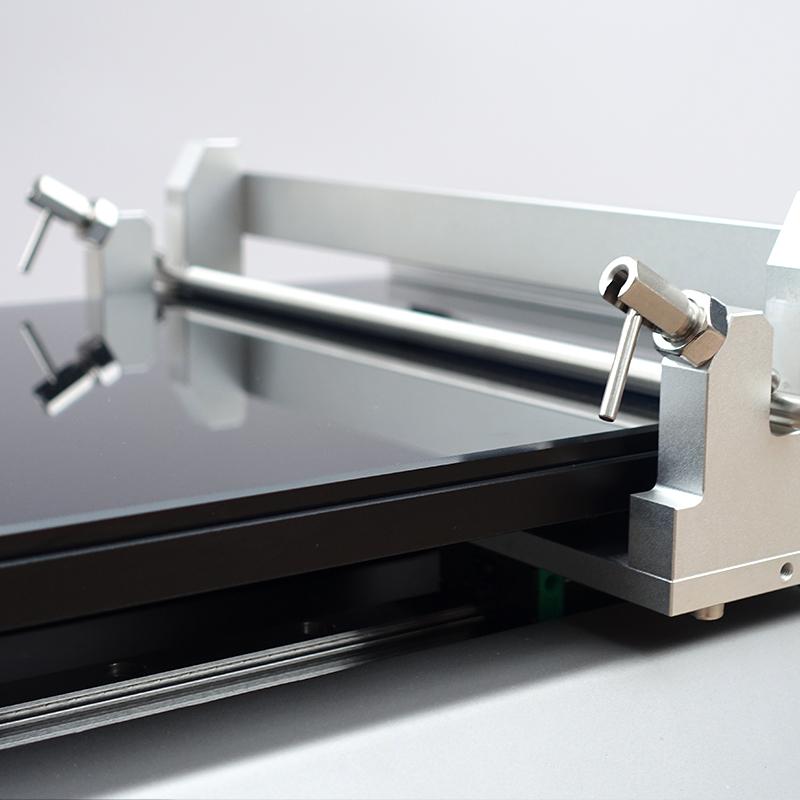

2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision
3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate

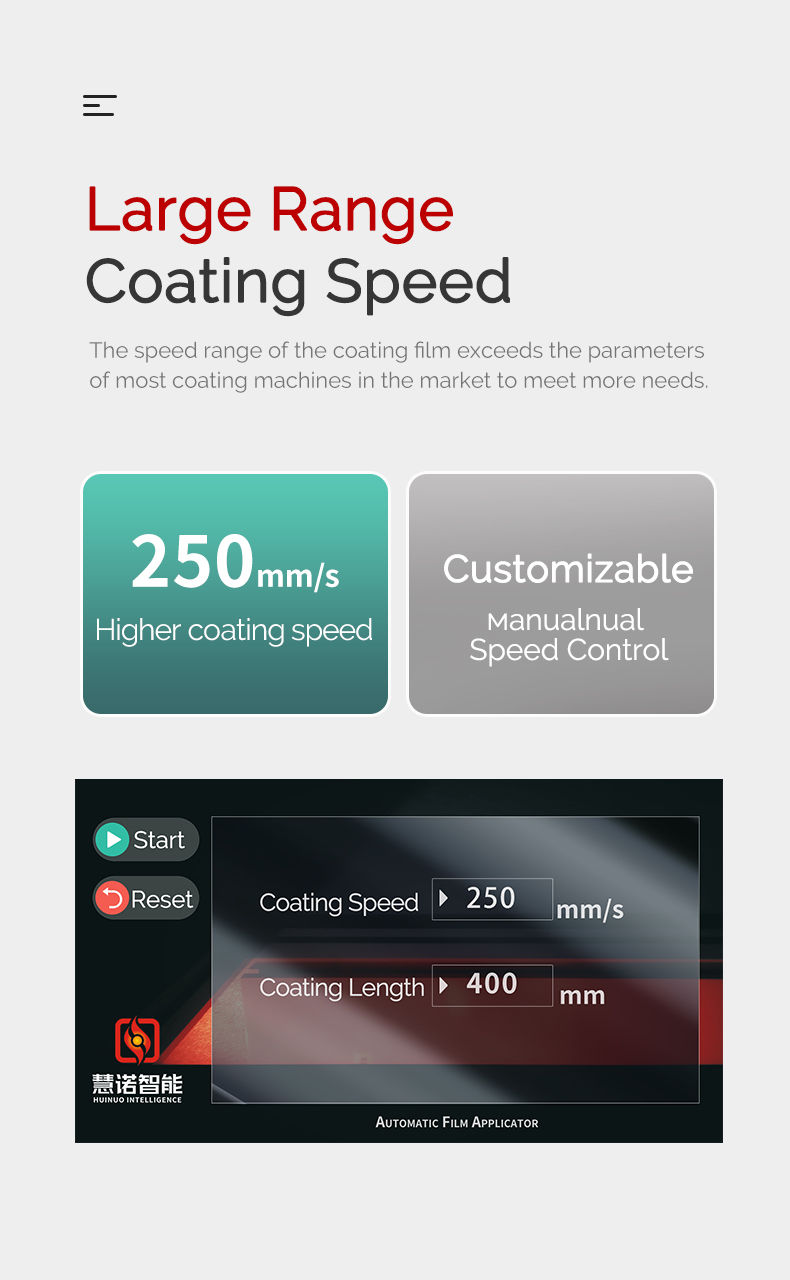

4) Touch screen control panel, easy to operate
5) Coating length and coating speed can be adjusted freely
