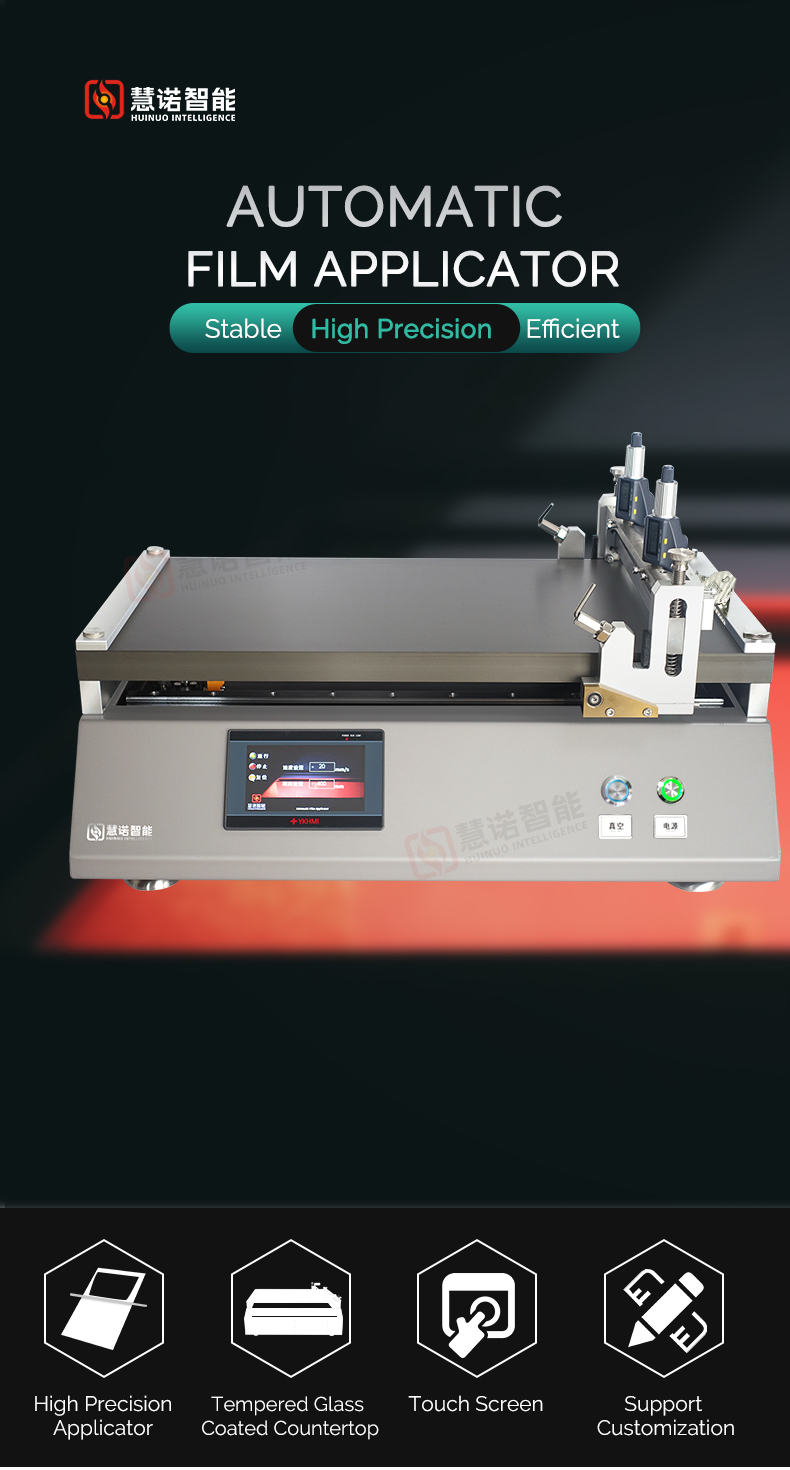

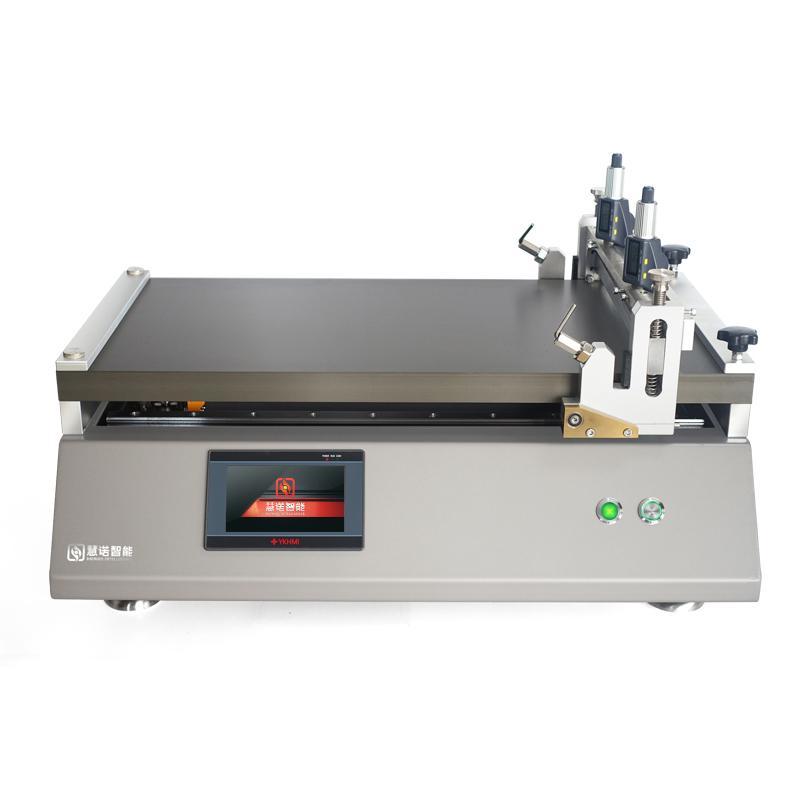

HuiNuo TM3000/02 Bar & drawdown blade Film Applicator Effective area 500 * 500mm

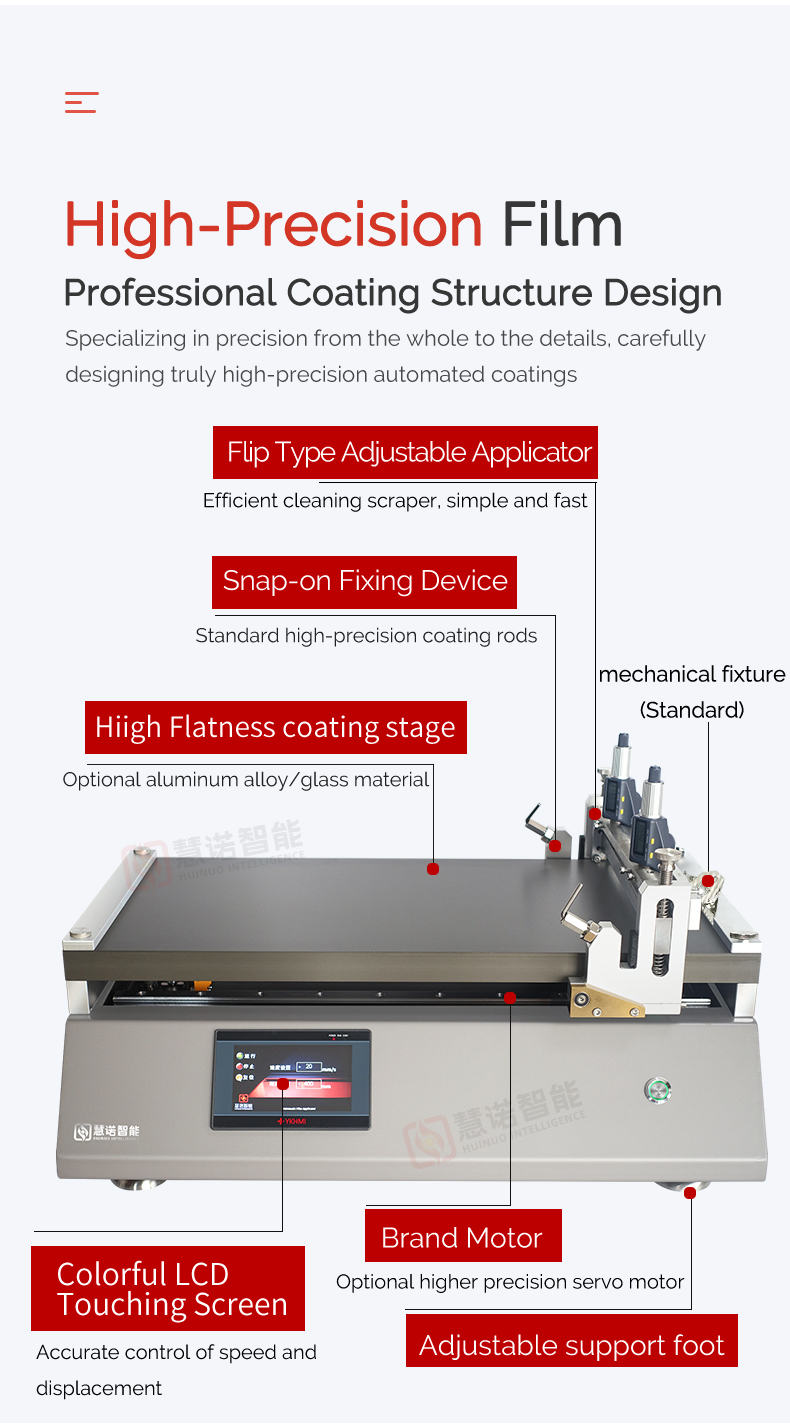

SEBar & drawdown blade integrated, effective area 500 * 500mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, easy cleaning, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
$4423.00/set
PromotionLoading...
Coupon
Model：
TM3000/02

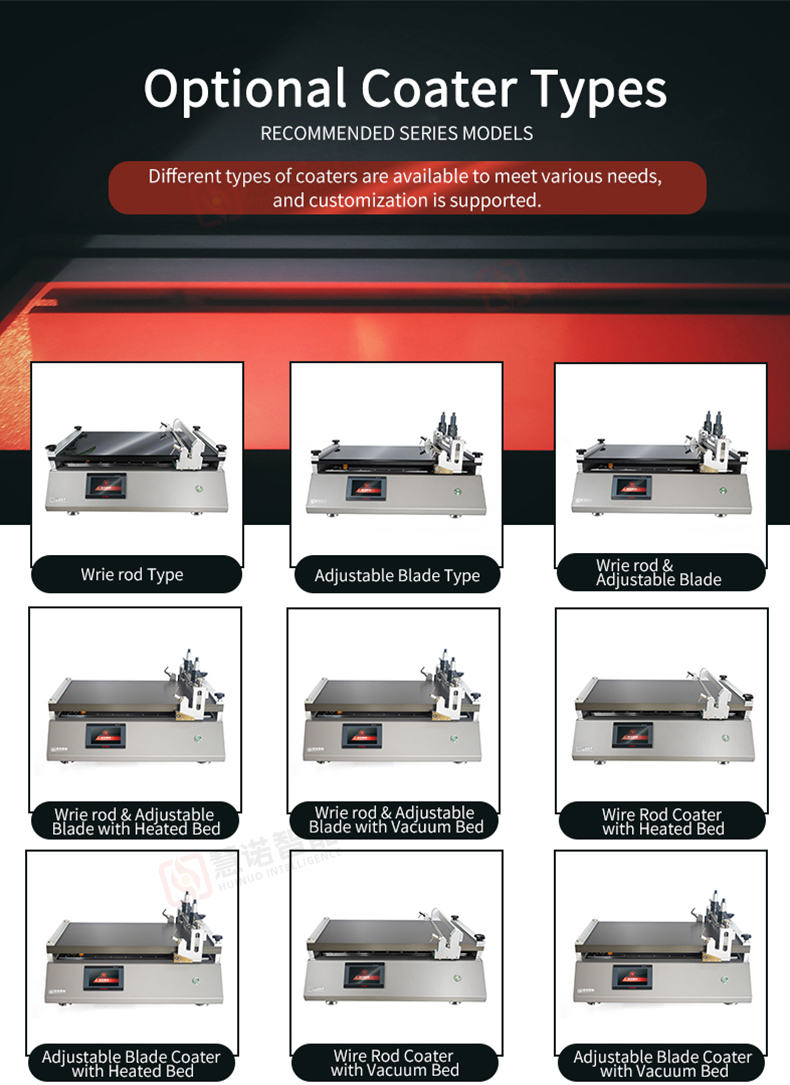

Similar products
-
HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade$ 2403.00SE -
HUINUO intelligent TM3000A metering rod & drawdown blade Automatic Film Applicator Aluminum alloy baseplate$ 2869.00SE -
China Drawdown blade bar Experimental Film Applicator TBJ-B2-DJ3 Automatic Film Applicator$ 2480.00SE -
China TBJ-B2-DJ4 drawdown Bar & blade Automatic Film Applicator UV ultraviolet curing Film Applicator$ 3957.00SE -
HUINUO intelligent TM3000pro laboratory wire rod drawdown blade coater Film Coater$ 2713.00SE
HuiNuo TM3000/02 Automatic Film ApplicatorSPEC
HuiNuo TM3000/02 Automatic Film ApplicatorDetails
HuiNuo TM3000/02 Automatic Film ApplicatorPacking list
- SKU
- NB004951
- Coating method
- Bar + drawdown blade
- Coating speed

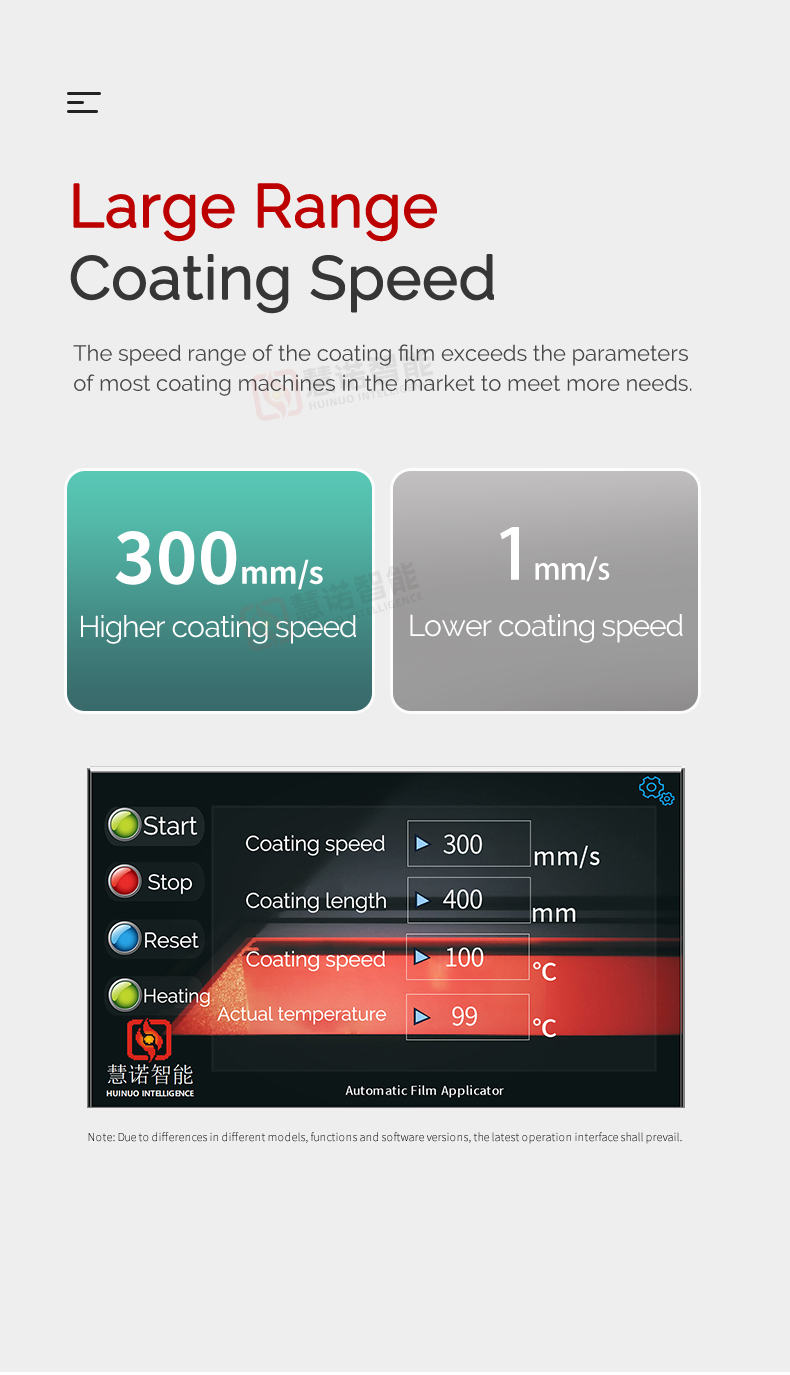

- 1~ 300Mm/s stepless speed regulation (can be customized)

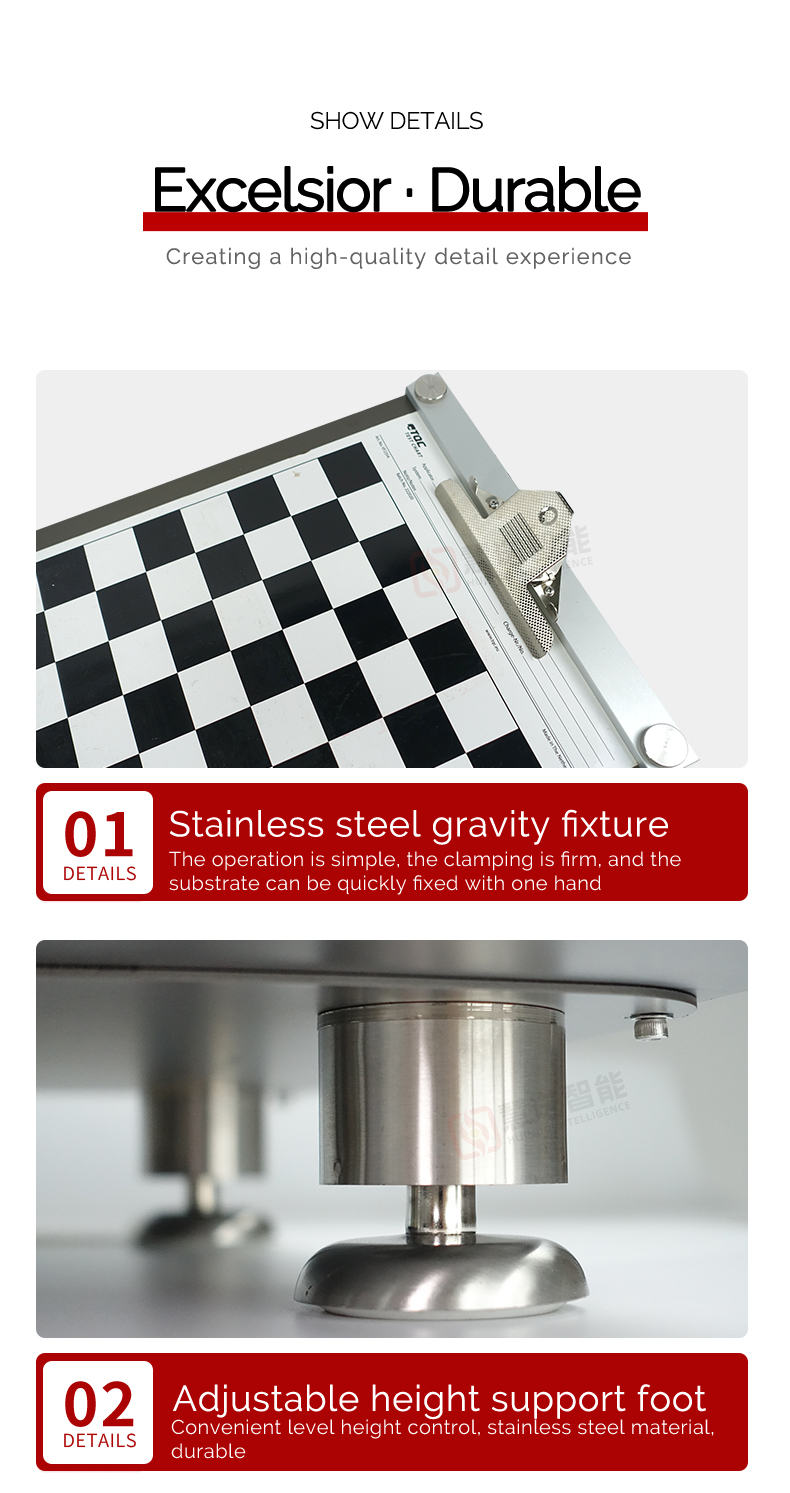

- Substrate clamping method
- fixture

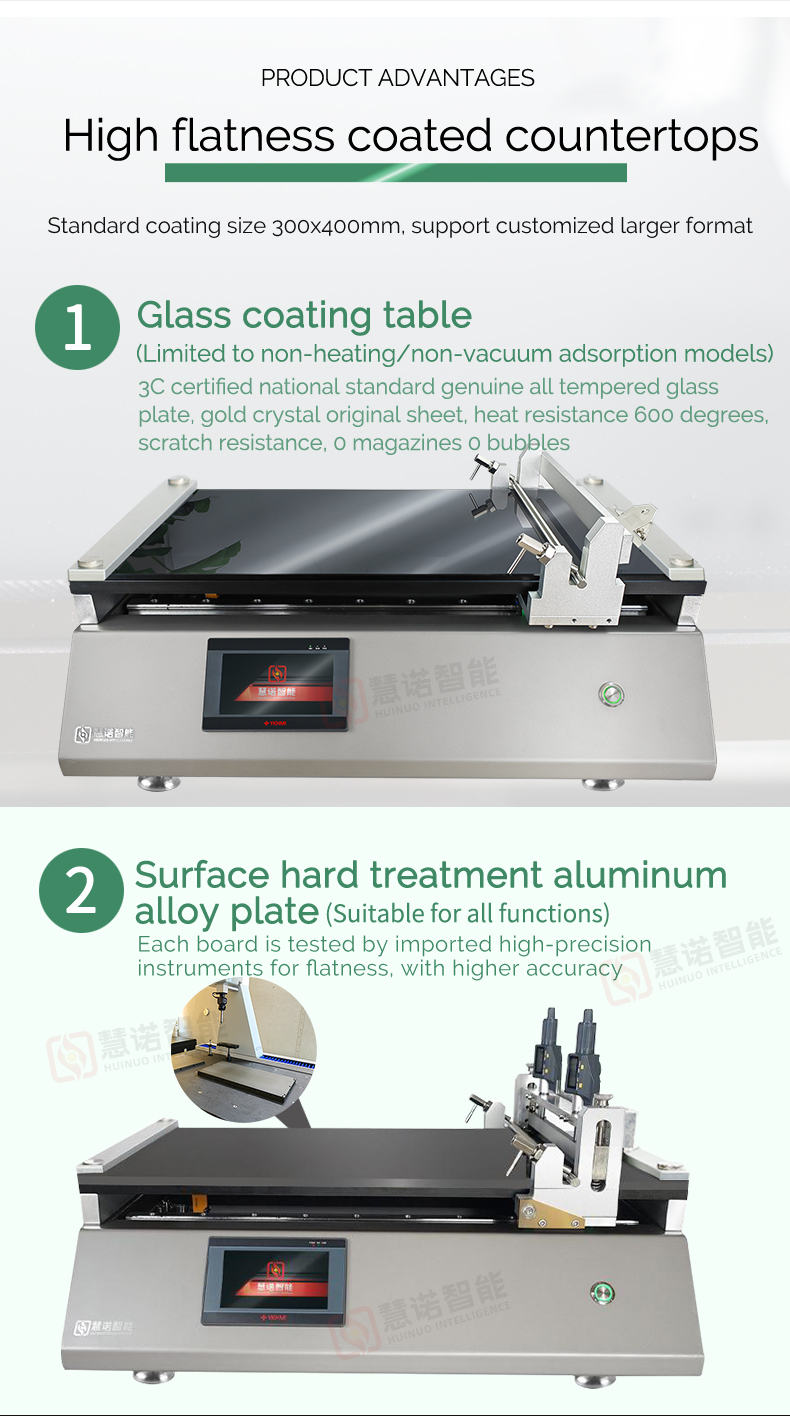

- Coating table material
- Glass plate
- Coating table size
- 740*530mm
- Effective coating Area
- 500 * 500Mm (can be customized)
- Mayer Rod Thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Mayer Rod Accuracy
- ±0.003mm
- Drawdown blade thickness range
- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 500mm
- Drawdown blade Accuracy
- ±0.003mm
- Power
- 400w
- Operating language
- Chinese (can be customized in English)
- Display
- Color LCD touch screen
- Host Power Supply
- 220V/50HZ (can be customized 110V/60HZ)
- Dimension
- Subject to the actual product
- optional feature

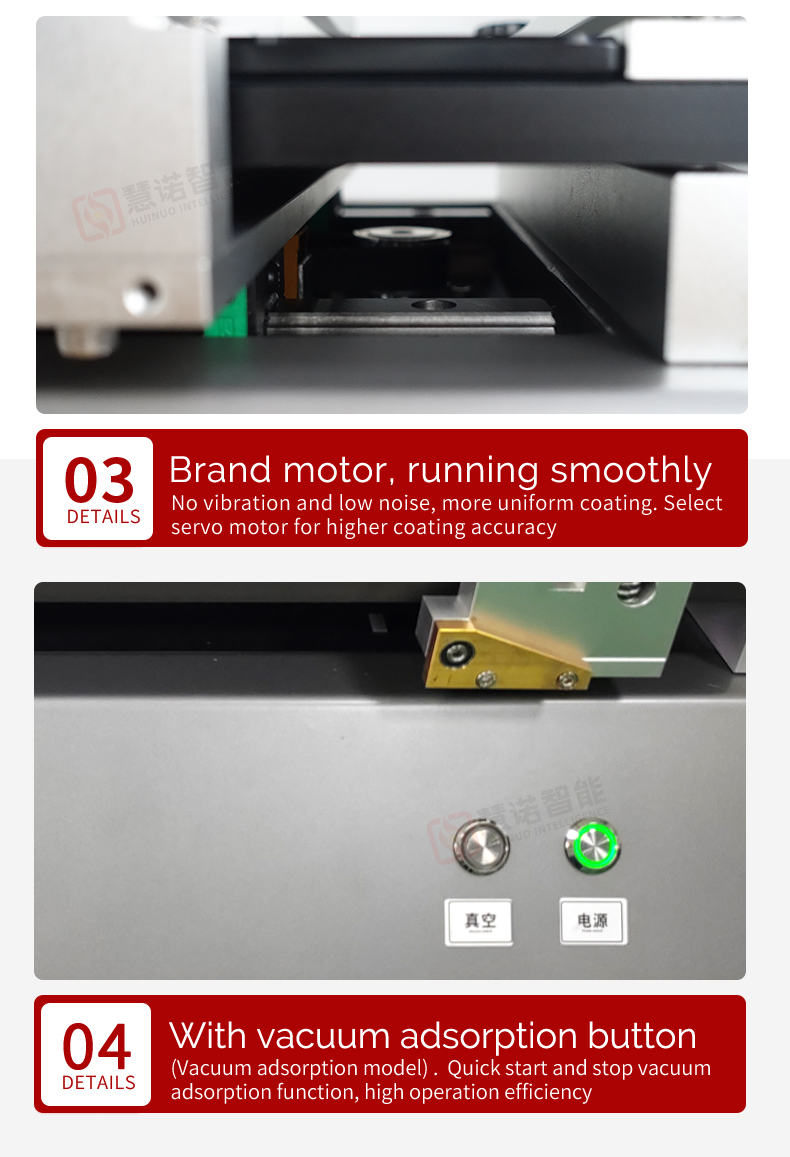

- Heating, vacuum adsorption
TM3000/02
Automatic Film Applicator
Bar & drawdown blade integrated, effective area 500 * 500mm, simple bar groove design, bar installation is simple, drawdown blade clamshell design, easy cleaning, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
