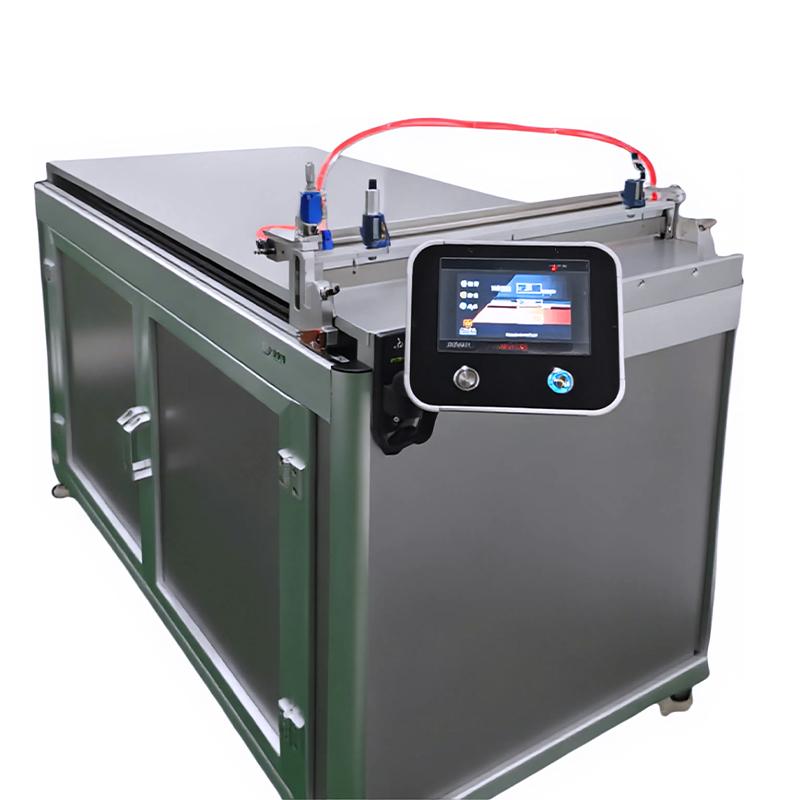

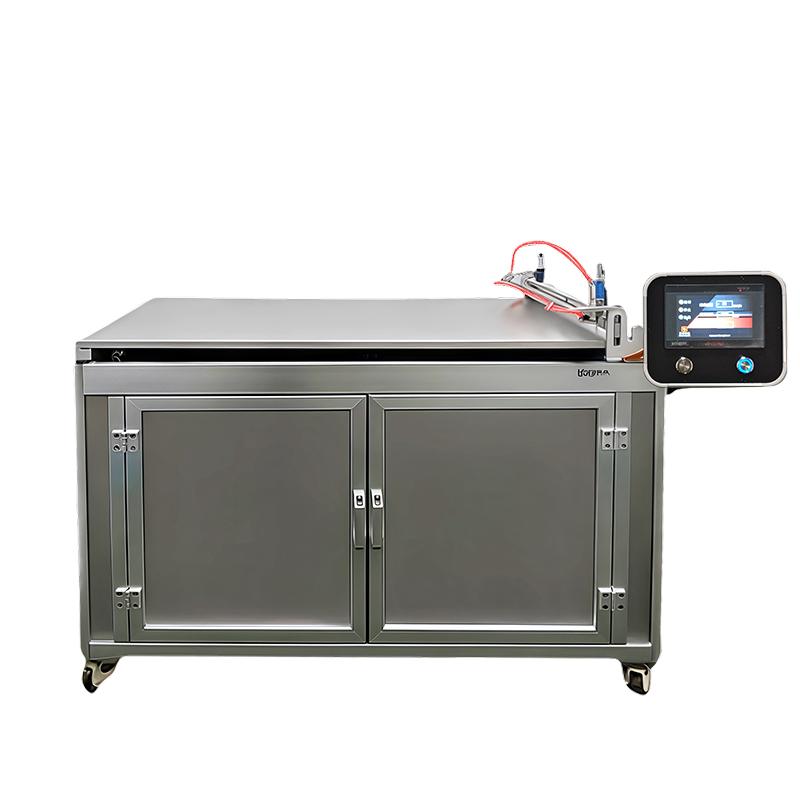

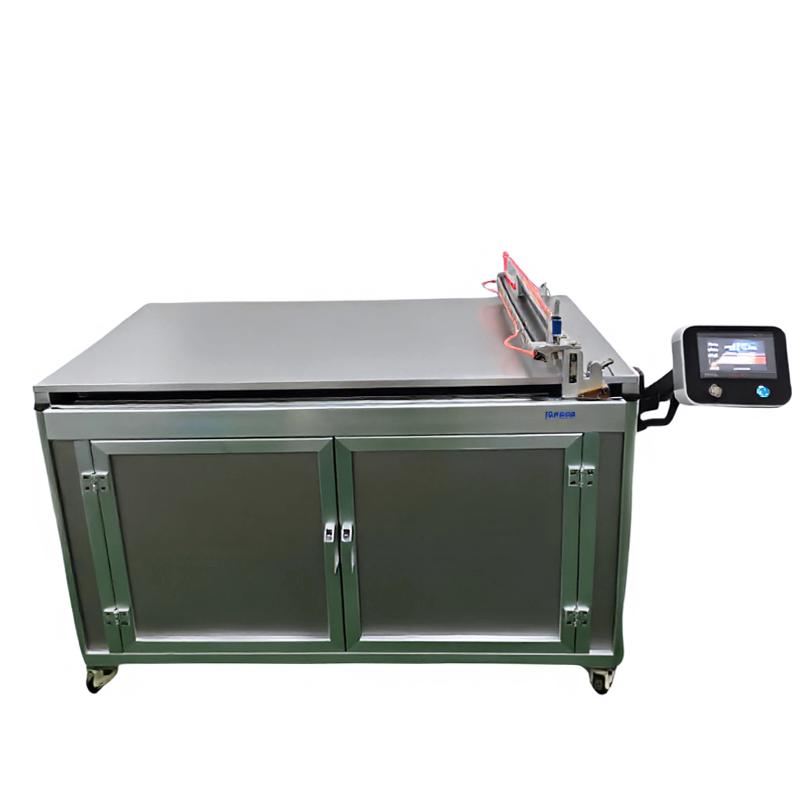

HuiNuo TM3100Pro/03AFD drawdown Bar & blade heating coater (automatic feeding floor model) Effective area 150 * 70cm
SECoating method bar + Drawdown blade, support discharge volume, pressure, stroke, speed and feeding times multiparameter manual adjustment, flip Drawdown blade is easy to clean. With mica sheet (optional graphene) heating function
Price: Please contact customer service
Model：
TM3100pro/03AFD
HuiNuo TM3100pro/03AFD Automatic Film ApplicatorSPEC
HuiNuo TM3100pro/03AFD Automatic Film ApplicatorDetails
HuiNuo TM3100pro/03AFD Automatic Film ApplicatorPacking list
- SKU
- NB049710
- Coating Method
- Bar + Drawdown blade

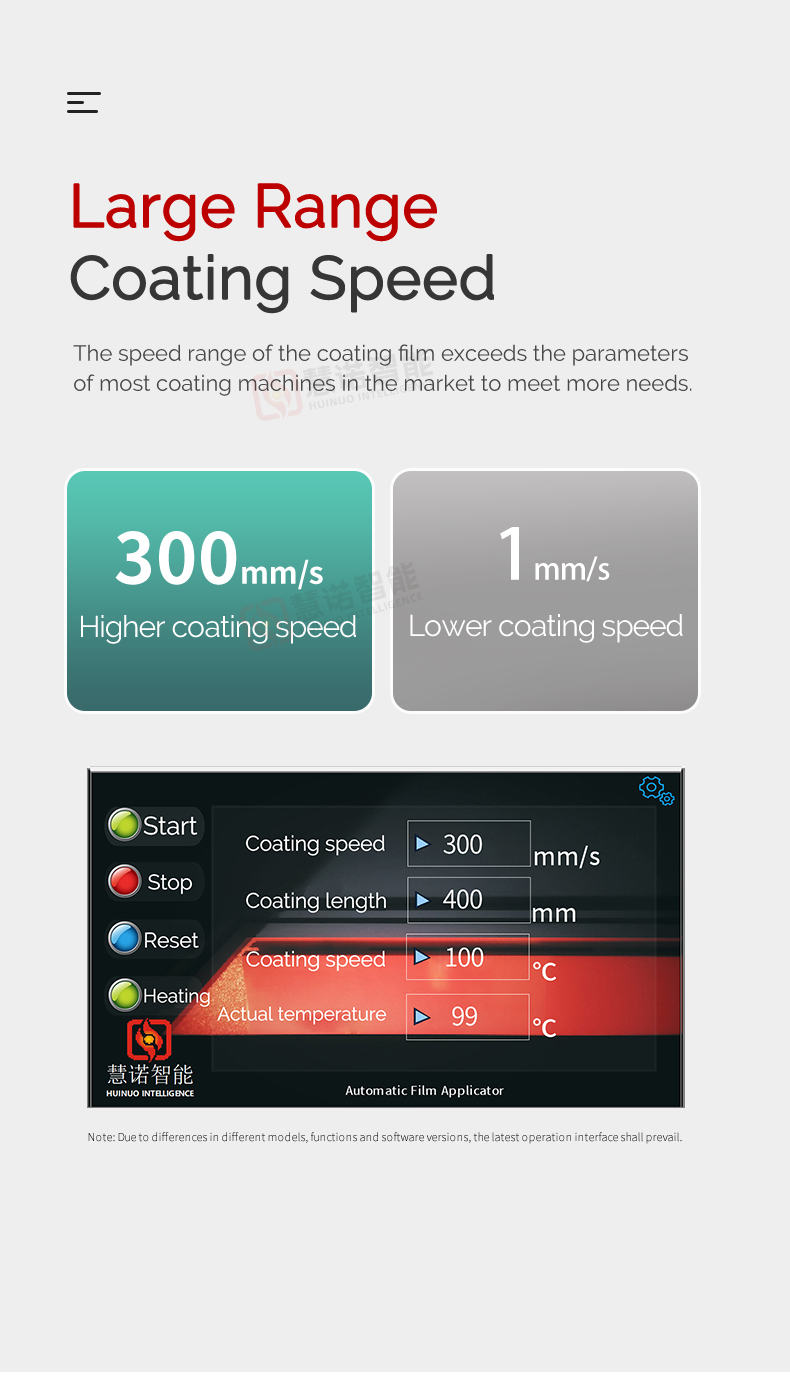

- Coating Speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method
- fixture

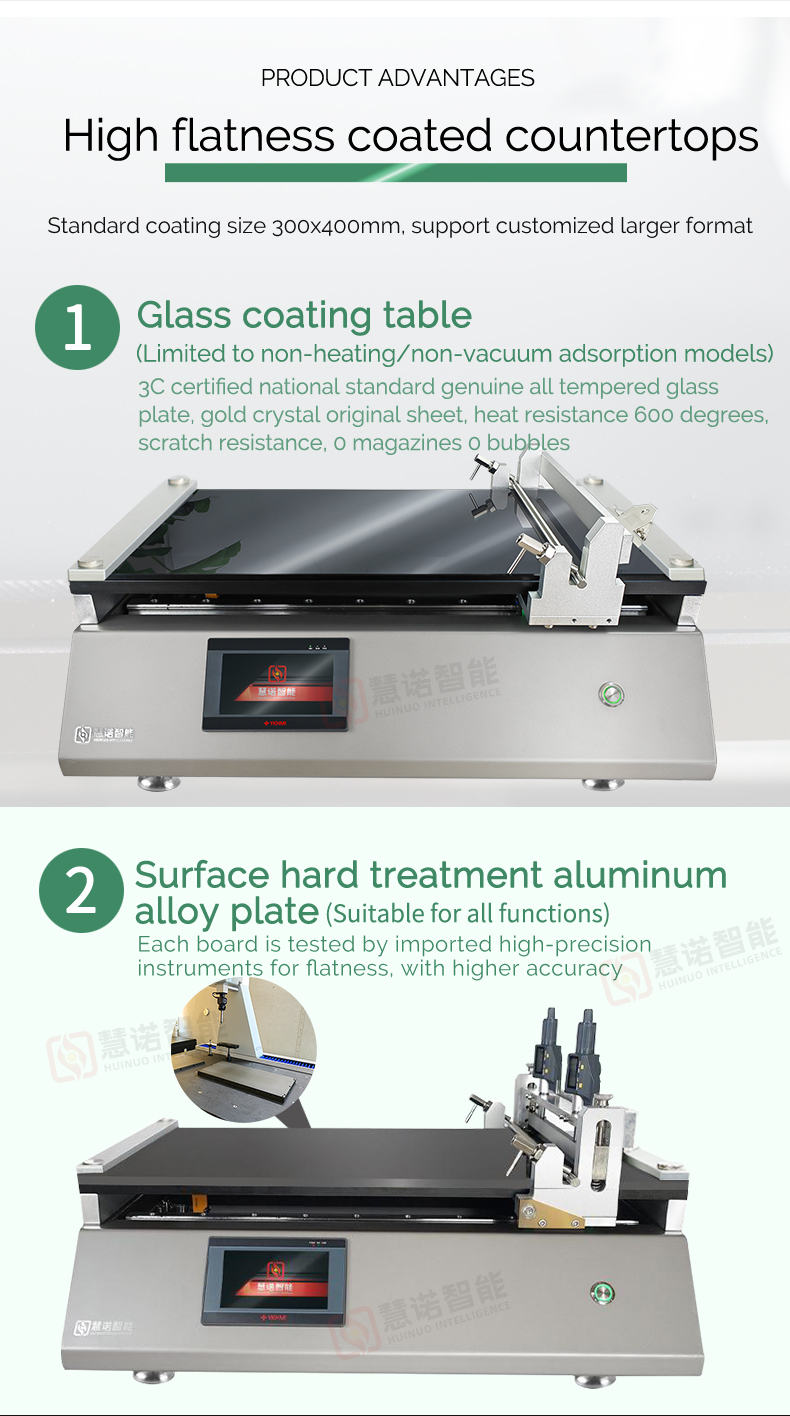

- Coating table material
- Glass plate
- Coating table size
- 1740*730mm
- Effective coating Area
- 1500 * 700Mm (can be customized)
- Meyer rod coating thickness Range
- Different bar numbers have different thicknesses, with high-precision imported bars
- Bar Accuracy
- ±0.001mm

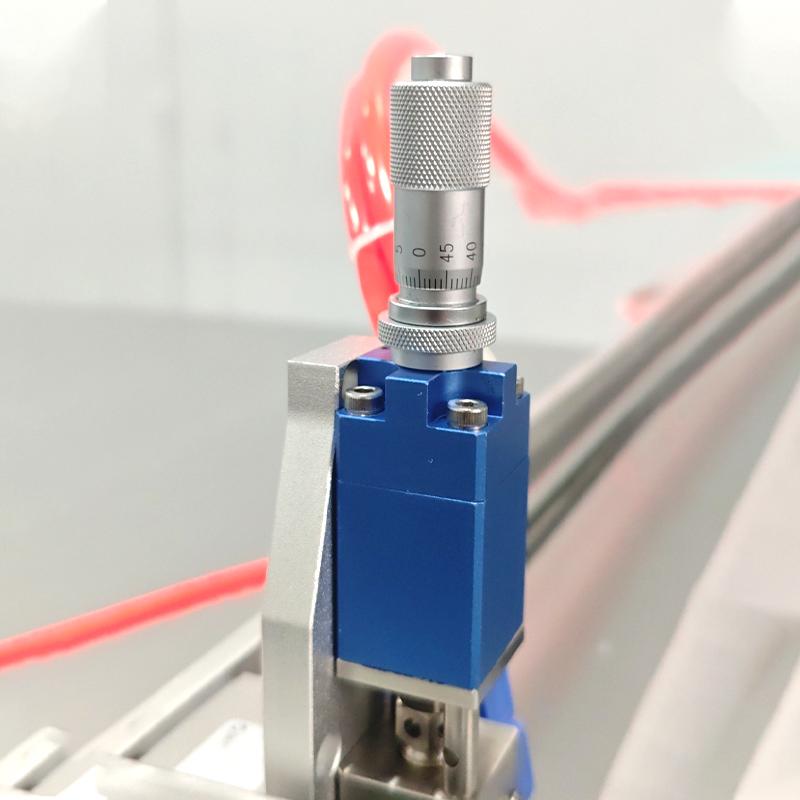

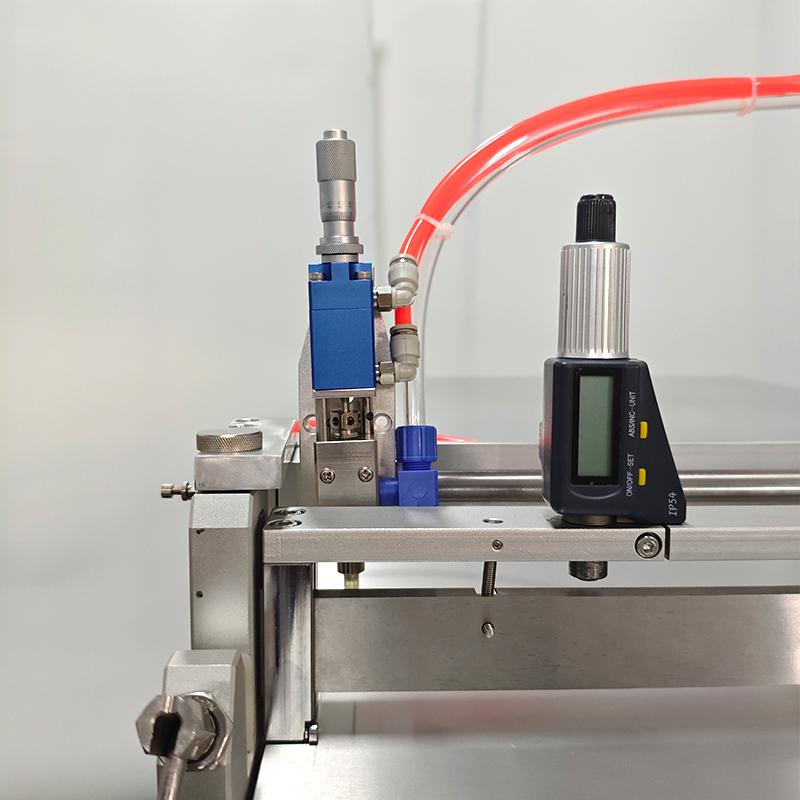

- Drawdown blade Coating thickness range

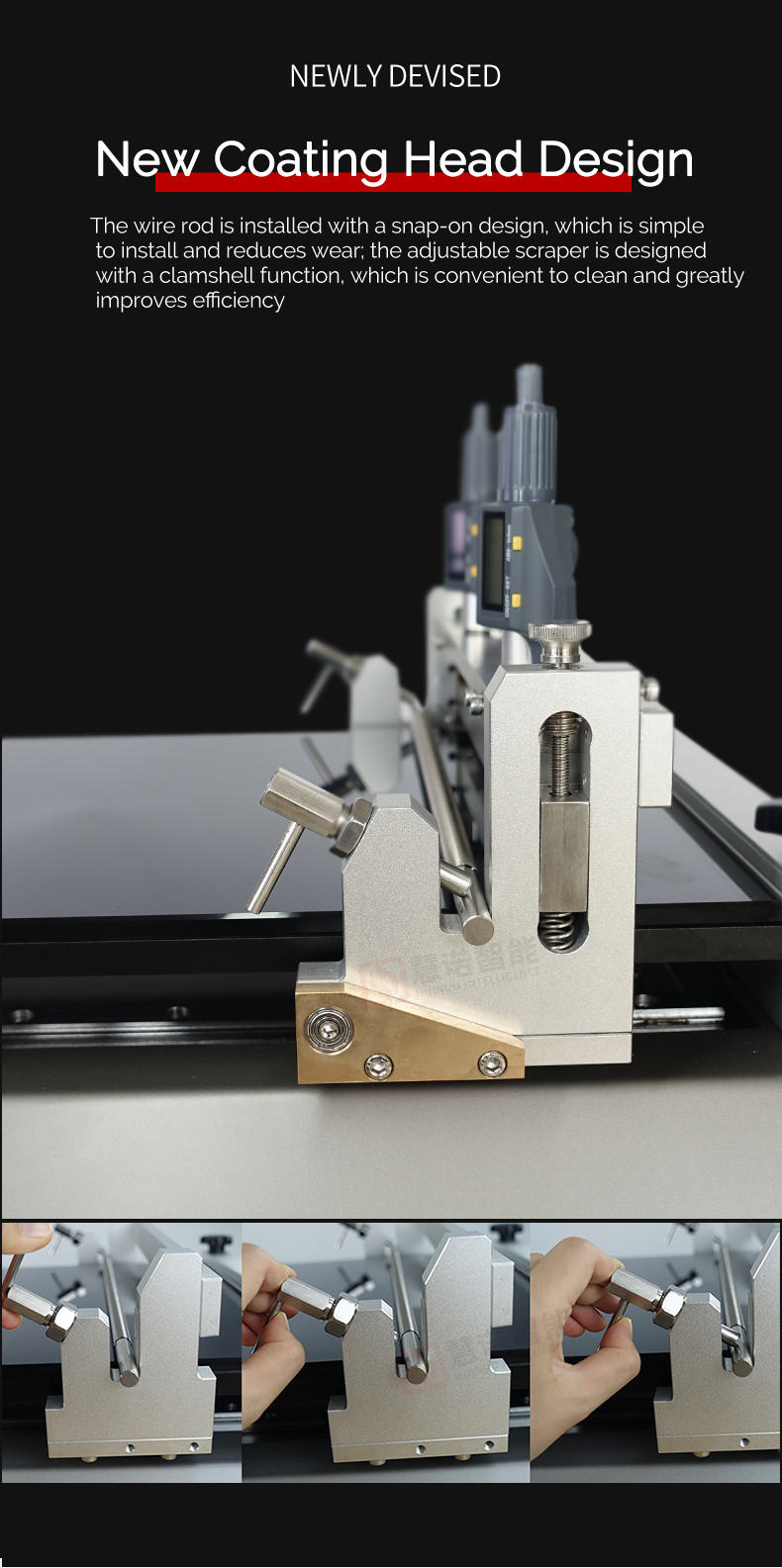

- 0.1~ 10Mm (clamshell design is easy to clean)
- Drawdown blade material
- Die steel
- Drawdown blade application width
- 700mm
- Drawdown blade Spreader Accuracy
- ±0.003mm
- Dimension
- 1760 * 840 * 940Mm (subject to the actual product)
- standard feature
- Automatic feeding system
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2~150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, which can be connected to the trachea of < unk > 8 (self-equipped).
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Feeding drum Volume
- 1L
- Heating mode
- Mica sheet heating (optional graphene heating, faster thermal conductivity)
- Temperature range
- RT +~ 180 ℃ (can be customized)
- Temperature Uniformity
- ±1℃
- Power
- 400w
- Display
- Color LCD touch screen
- Operating language
- Chinese (can be customized in English)
- Host Power Supply
- 100V~220V/50~60HZ
- optional feature
- Heating, Vacuum chuck
TM3100pro/03AFD
Automatic Film Applicator

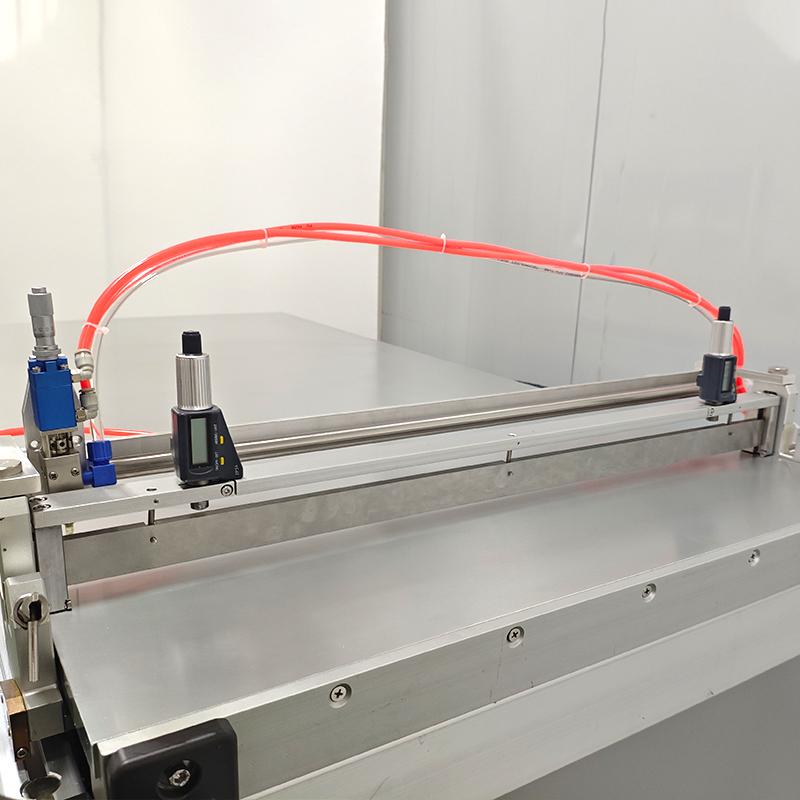

Coating method bar + Drawdown blade, support discharge volume, pressure, stroke, speed and feeding times multiparameter manual adjustment, flip Drawdown blade is easy to clean. With mica sheet (optional graphene) heating function
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
