HuiNuo TM3100Pro/04 Multifunctional Automatic Film Applicator (bottom substrate + upper heating) Coating size 40 * 30cm
SE
TM3100pro/04
HuiNuo TM3100pro/04 Automatic Film ApplicatorSPEC
HuiNuo TM3100pro/04 Automatic Film ApplicatorDetails
HuiNuo TM3100pro/04 Automatic Film ApplicatorPacking list
- SKU
- NB049765
- motor
- Servo motor, protection class IP55
- Coating Method
- Spreader with drawdown blade
- Spreader speed
- 5~ 180Mm/s stepless speed regulation
- Substrate fixing method
- fixture
- Coating table material
- 316 stainless steel (food grade)
- Spreader platform size
- 330*620mm
- Coating size
- 297mm*420mm
- Display
- 7-Inch color LCD touch screen
- Host Power Supply
- AC 220V50HZ
- power
- 2500
- Drawdown blade film Film thickness
- 0~5Mm (split and disassembly)

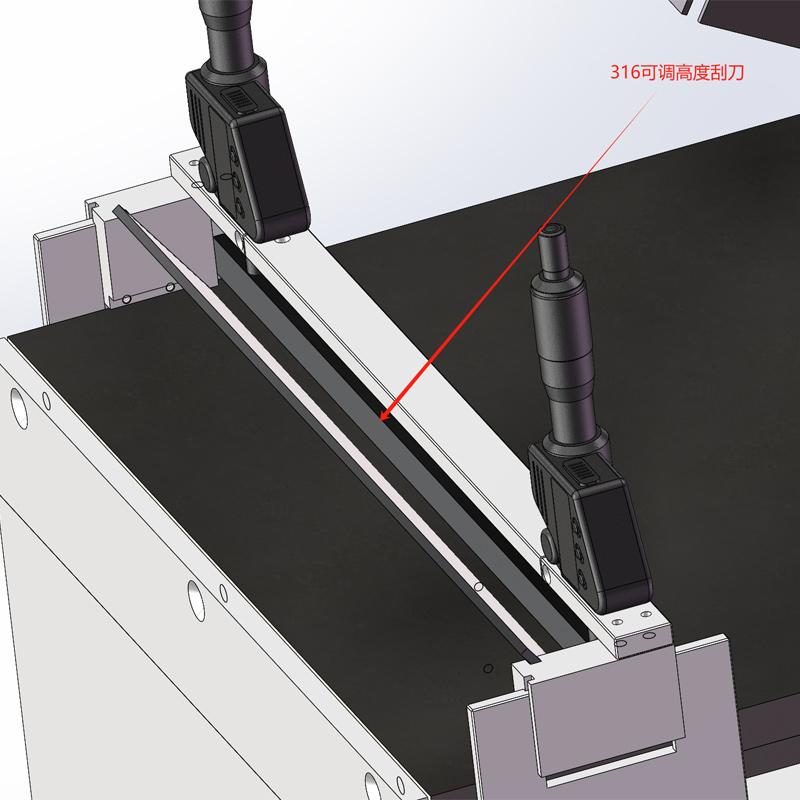

- Drawdown blade material
- 316 stainless steel material
- Drawdown blade Spreader width
- 297mm
- Drawdown blade Accuracy
- ±0.01mm
- Heating system

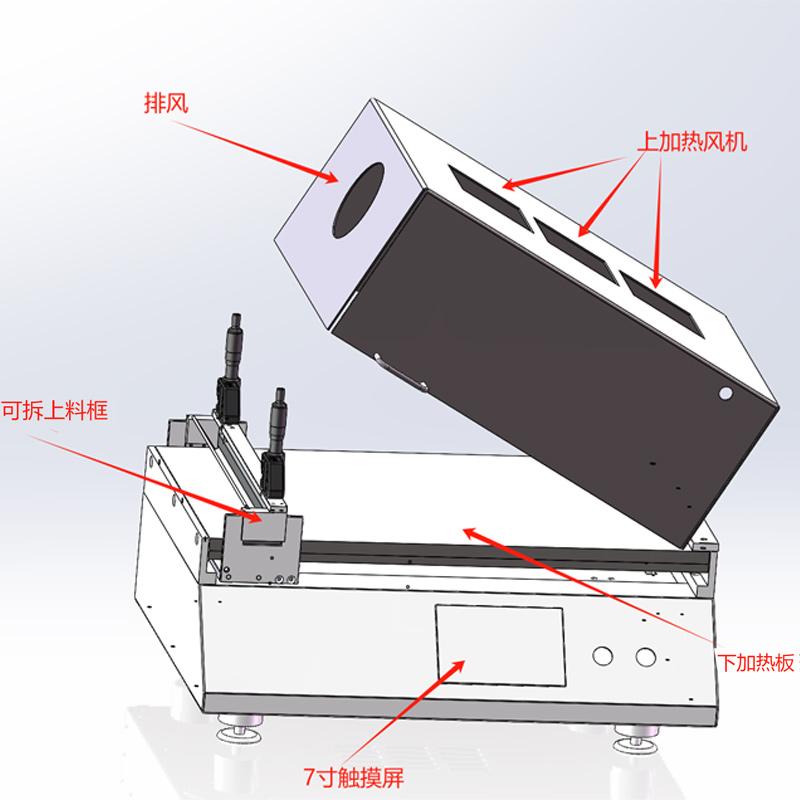

- Bottom substrate heating: RT +~ 180 ℃, temperature control Accuracy +/- 1 ℃ (PID intelligent temperature control) Upper heating: 3 220V hot air fans, temperature 80 ℃ +/- 20 ℃ (linked with bottom substrate temperature control)
- Dimensions
- About 620mm (length) × 500mm (width) × 300mm (height) (including the air cover, for reference only, the actual situation shall prevail)
- Weight
- About 45kg (the main material is stainless steel, the Weight is adjusted with the configuration)
Product Overview

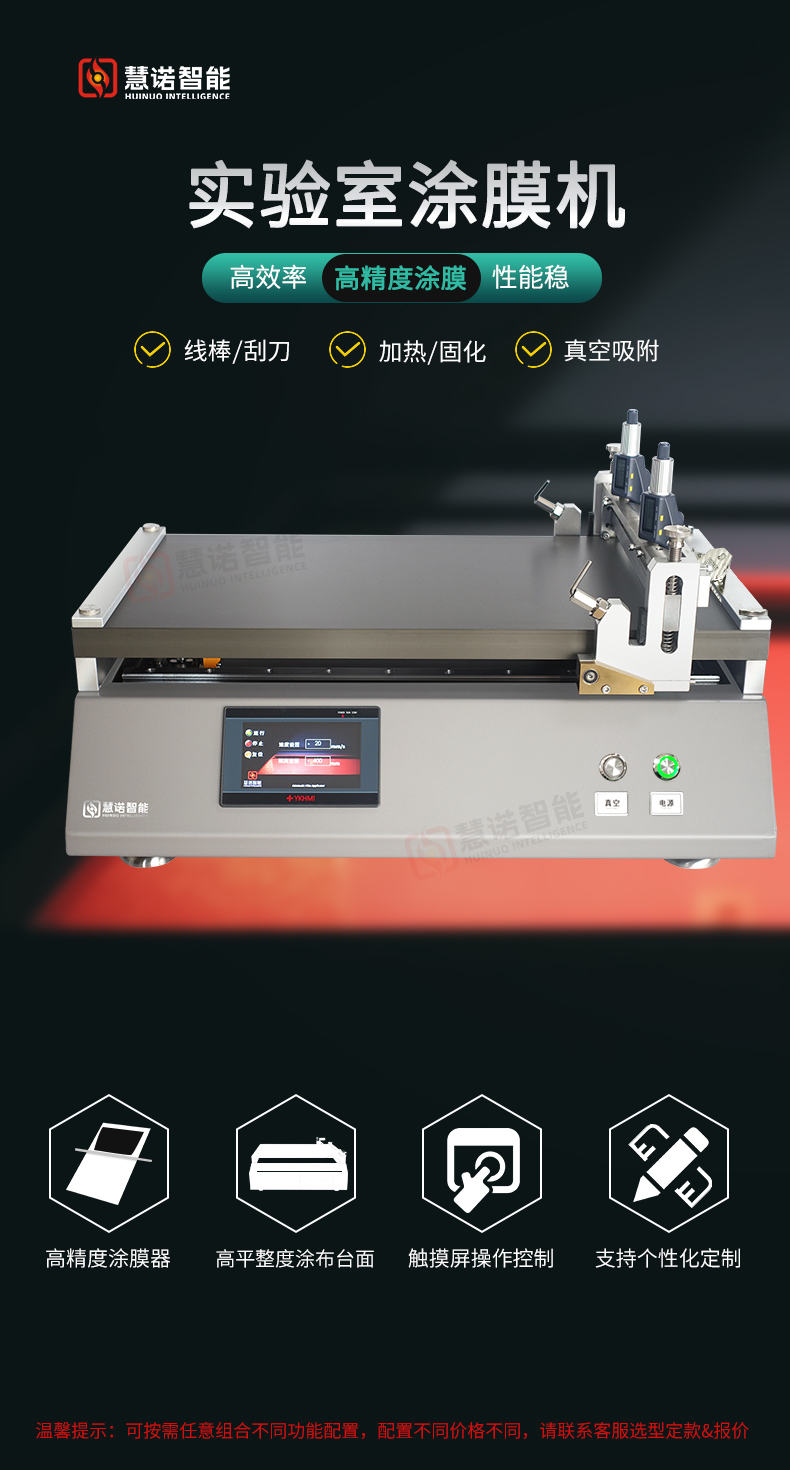

The automatic film coating machine is a device used to coat the film in the laboratory, replacing the manual coating film, and the coating film is carried out automatically, so as to improve the accuracy and efficiency of the coating film. The working principle of the experimental automatic film coater is to evenly coat the sample on the substrate by controlling the coating head and coating parameters to form the desired film.
This coating machine is a wire rod scraper coating machine, using two coating methods of wire rod and scraper, with vacuum adsorption function, the new type of wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, support speed control and coating length adjustment, suitable for high-precision automatic coating film in the laboratory, in the university research institute, new materials, lithium battery, glue, hot melt adhesive and other laboratories for film proofing.
Product Use:

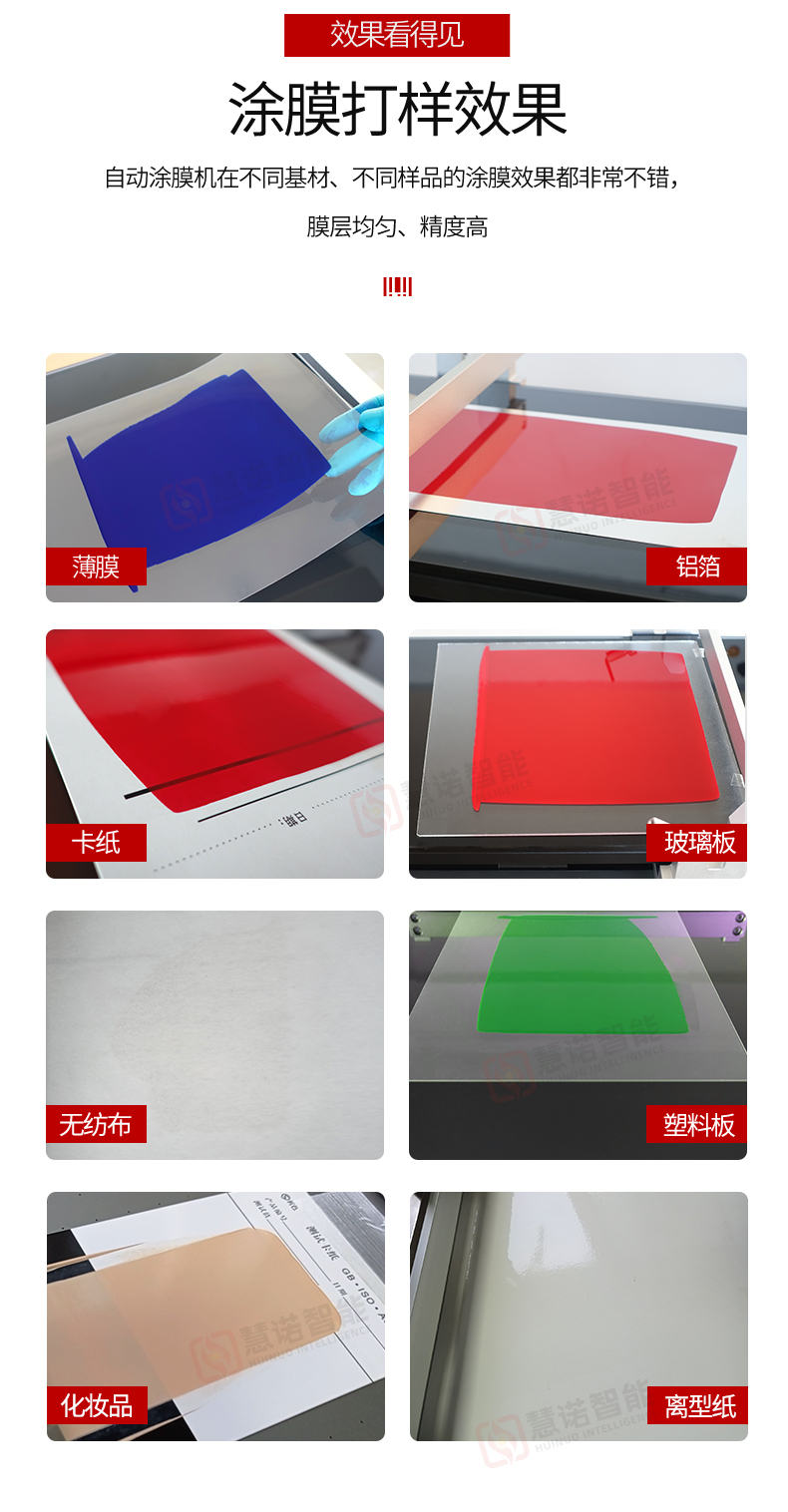

The film coating machine is suitable for coating samples of coatings, inks, paints, pastes, hot melt adhesives, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, etc., and can be scraped on films, cardboards, aluminum foils and copper foils.

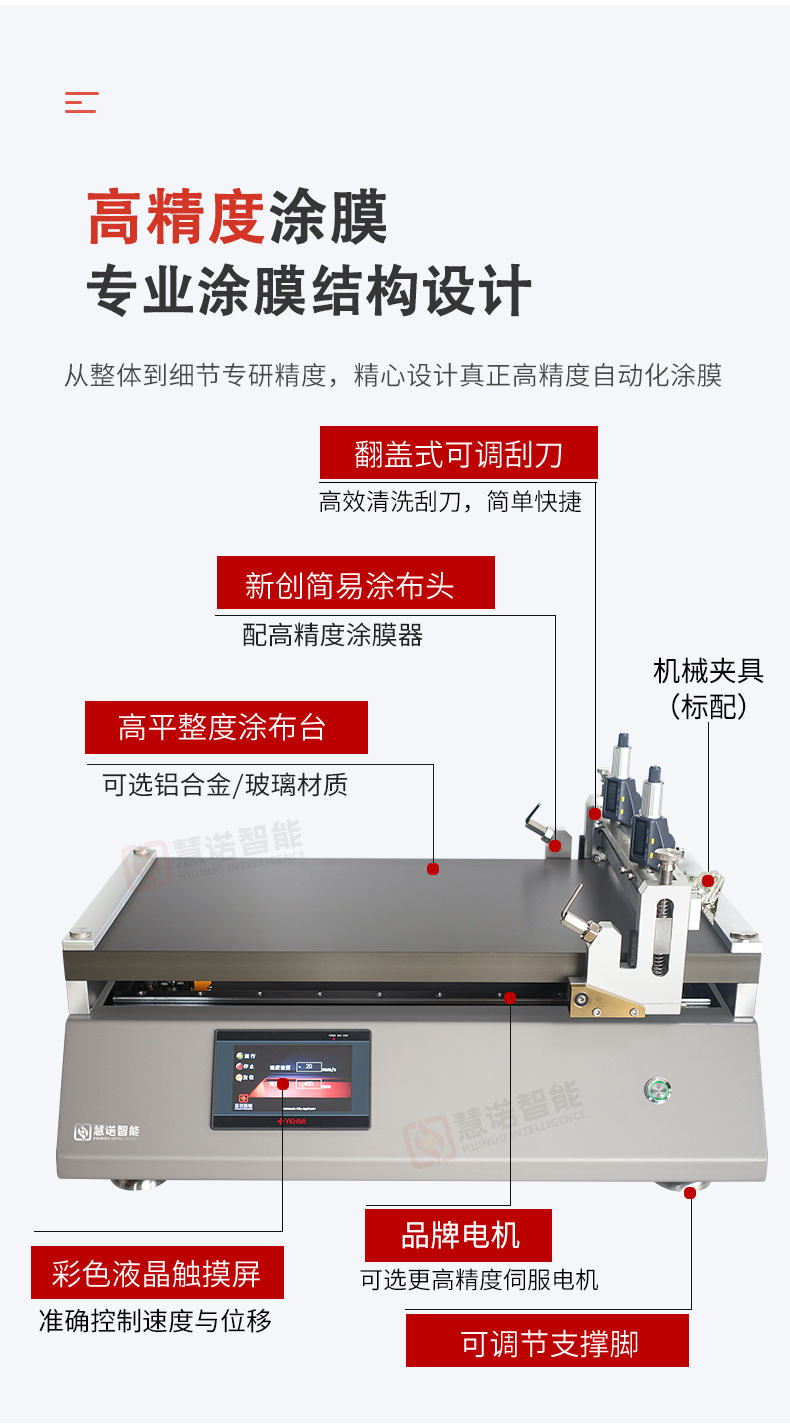

Features:

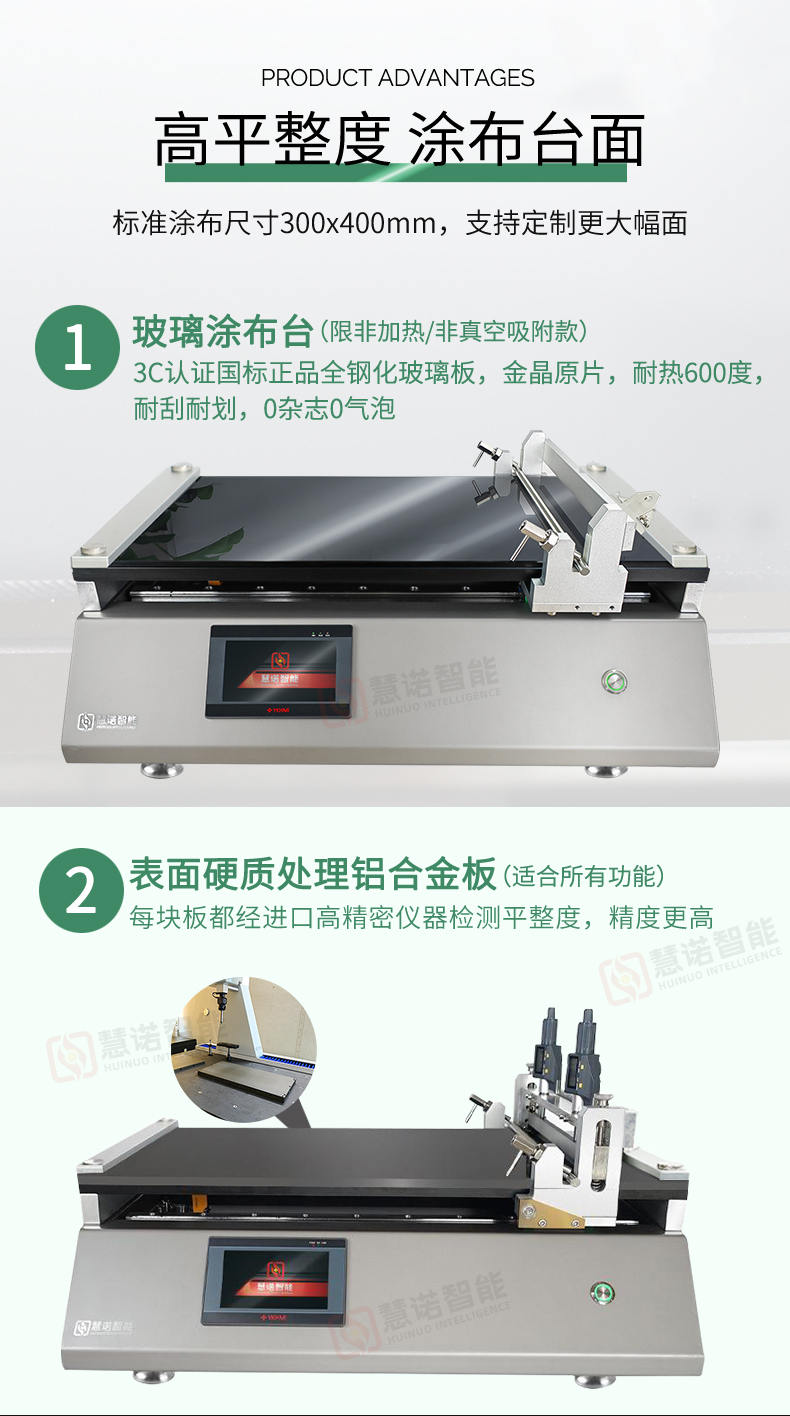

1) The surface is hard treated aluminum alloy table, with high hardness and wear-resistant, and the flatness of the table is tested by imported high-precision instruments
2) Big brand differential regulator, high film thickness control accuracy

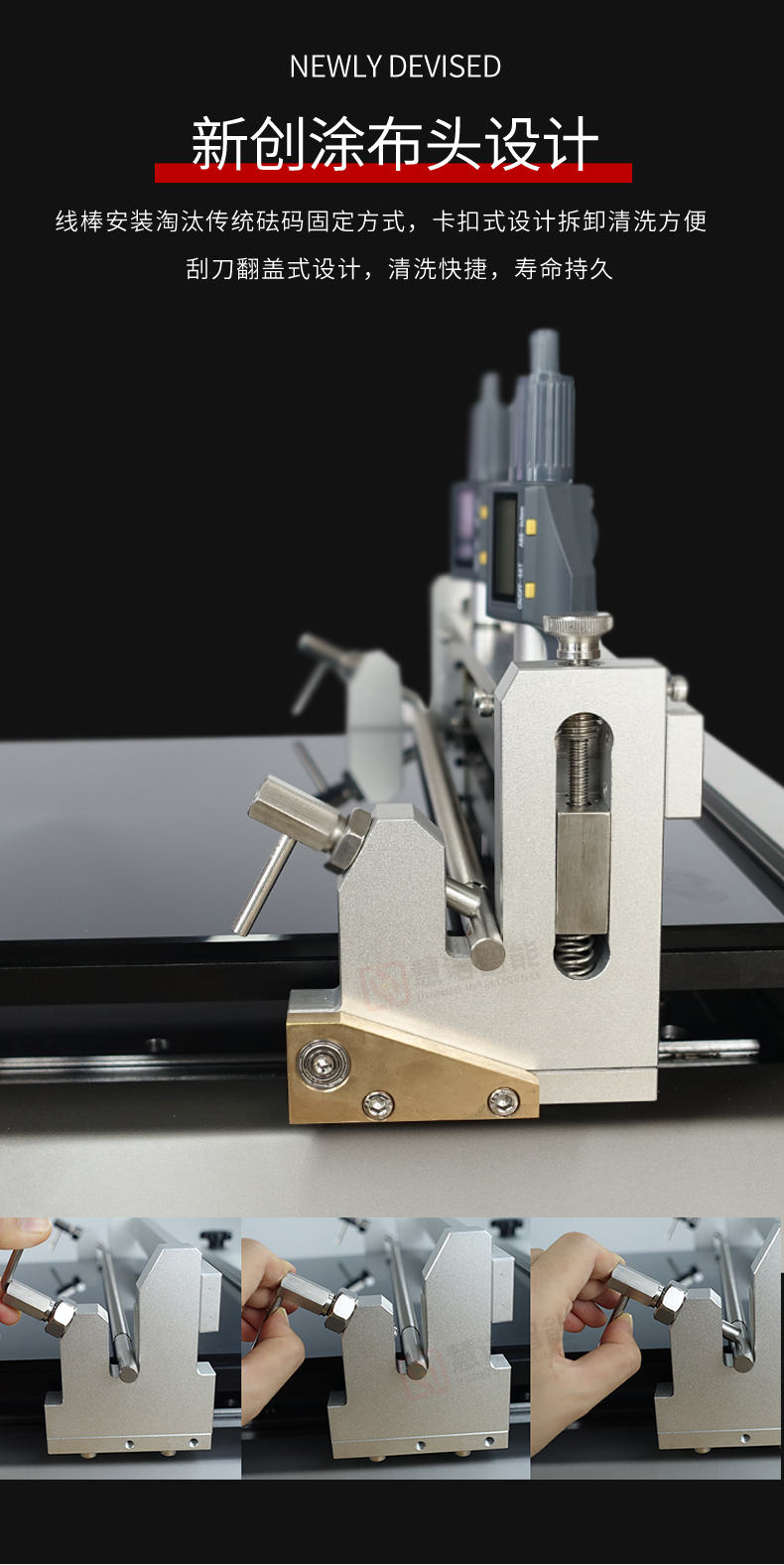

3) Clamshell scraper coating head, easy to clean

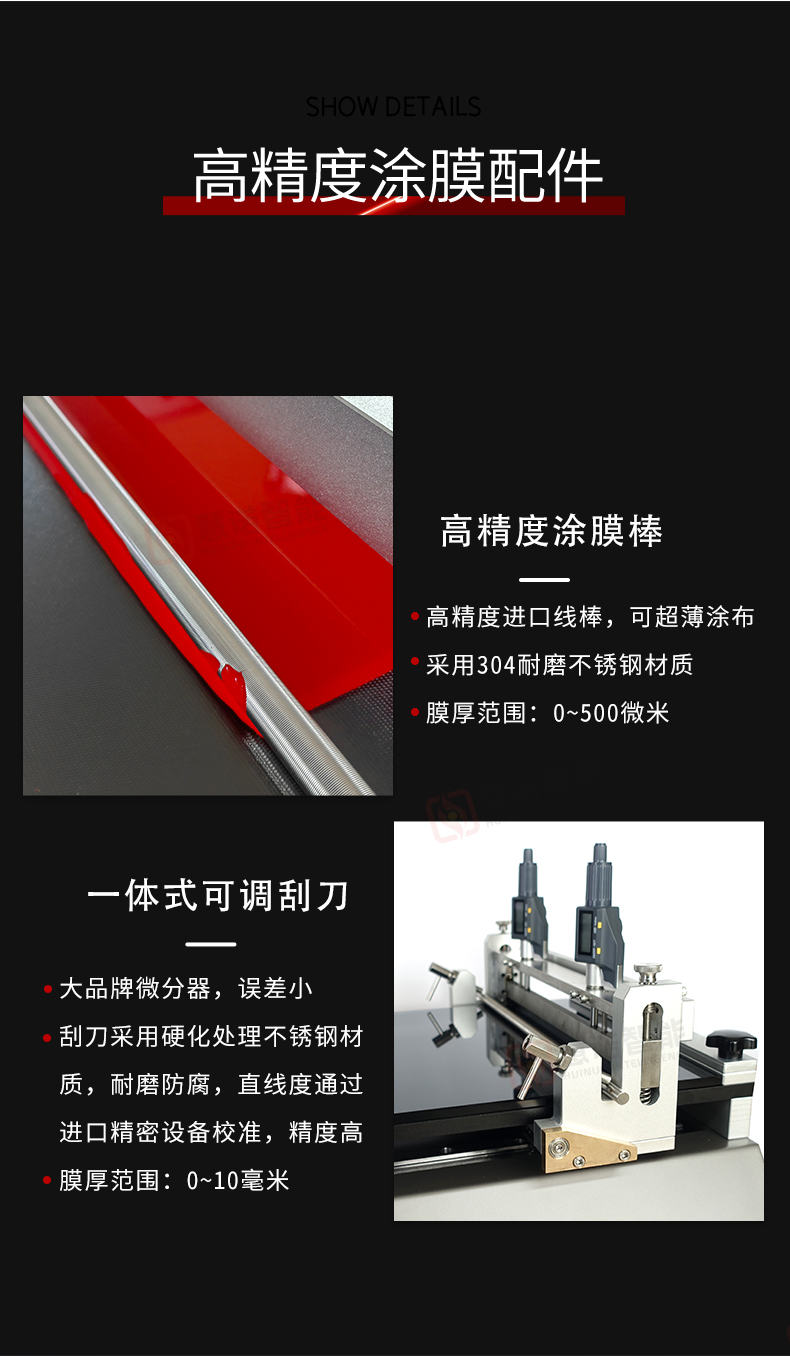

4) Equipped with high-precision Film Applicator, the original imported wire rod coating film is uniform and has high precision
5) Touch screen control panel, easy to operate
6) The coating length and coating speed can be adjusted freely

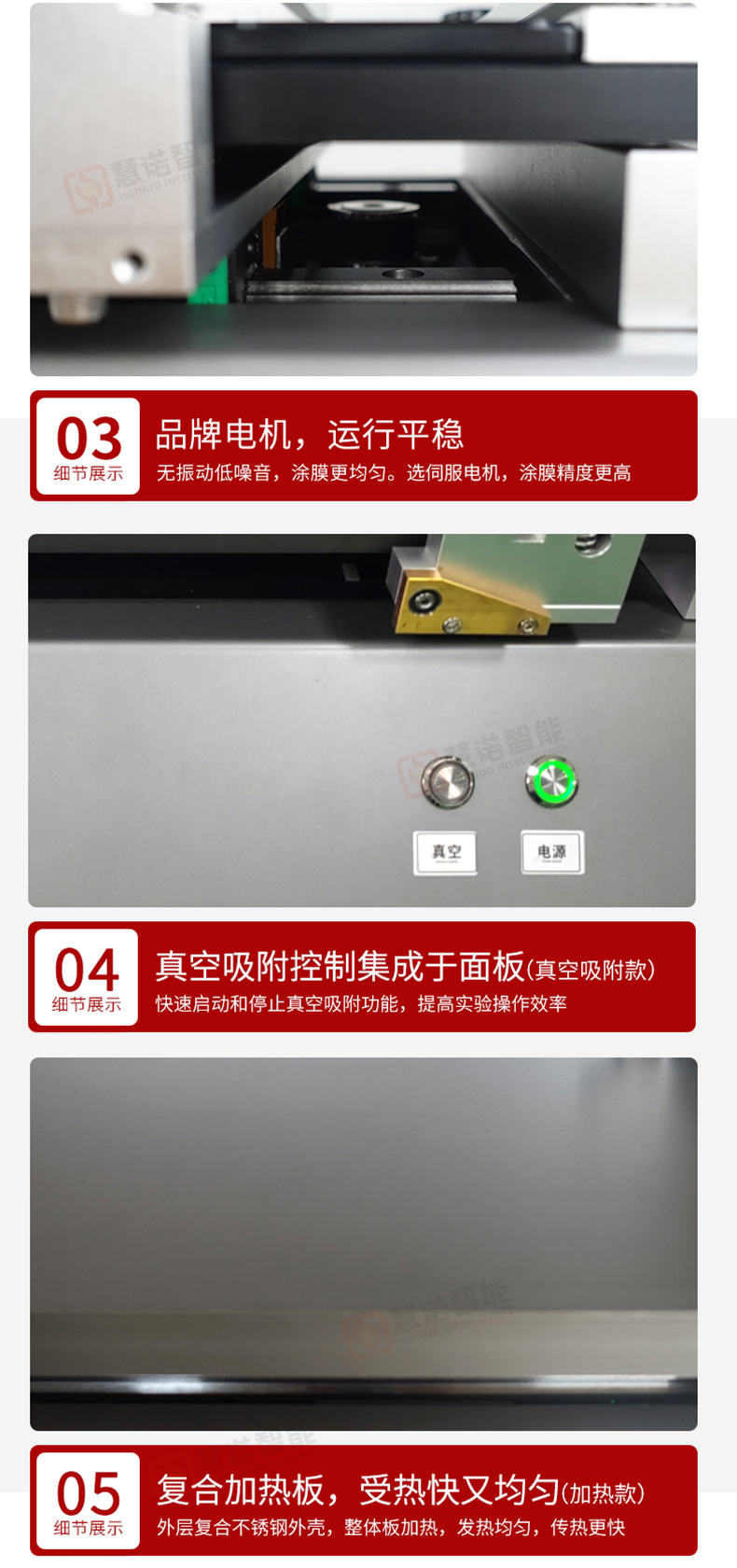

7) With vacuum adsorption function, it is suitable for coating soft substrates such as films
