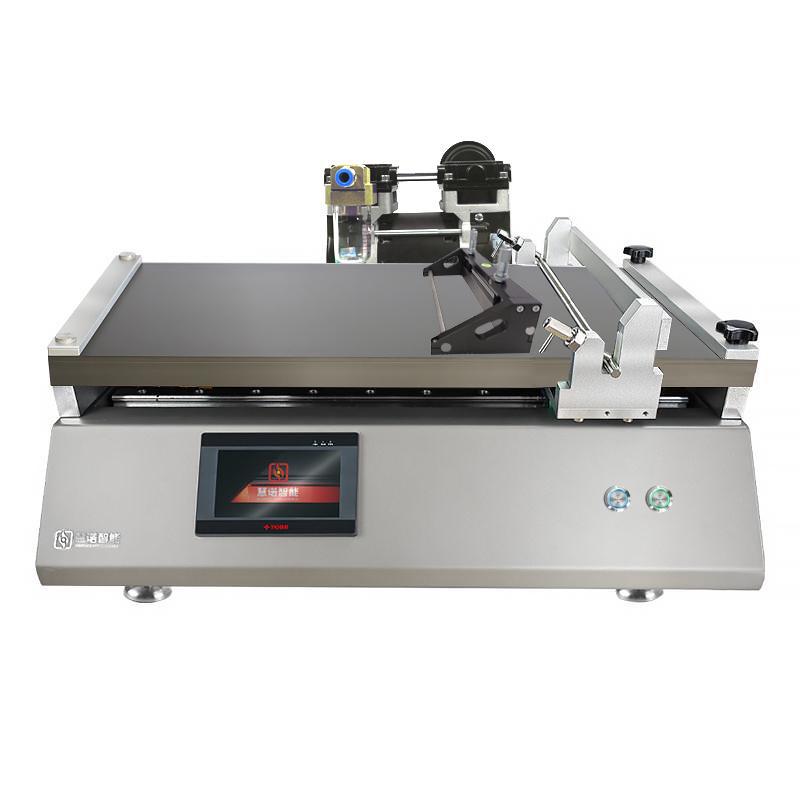

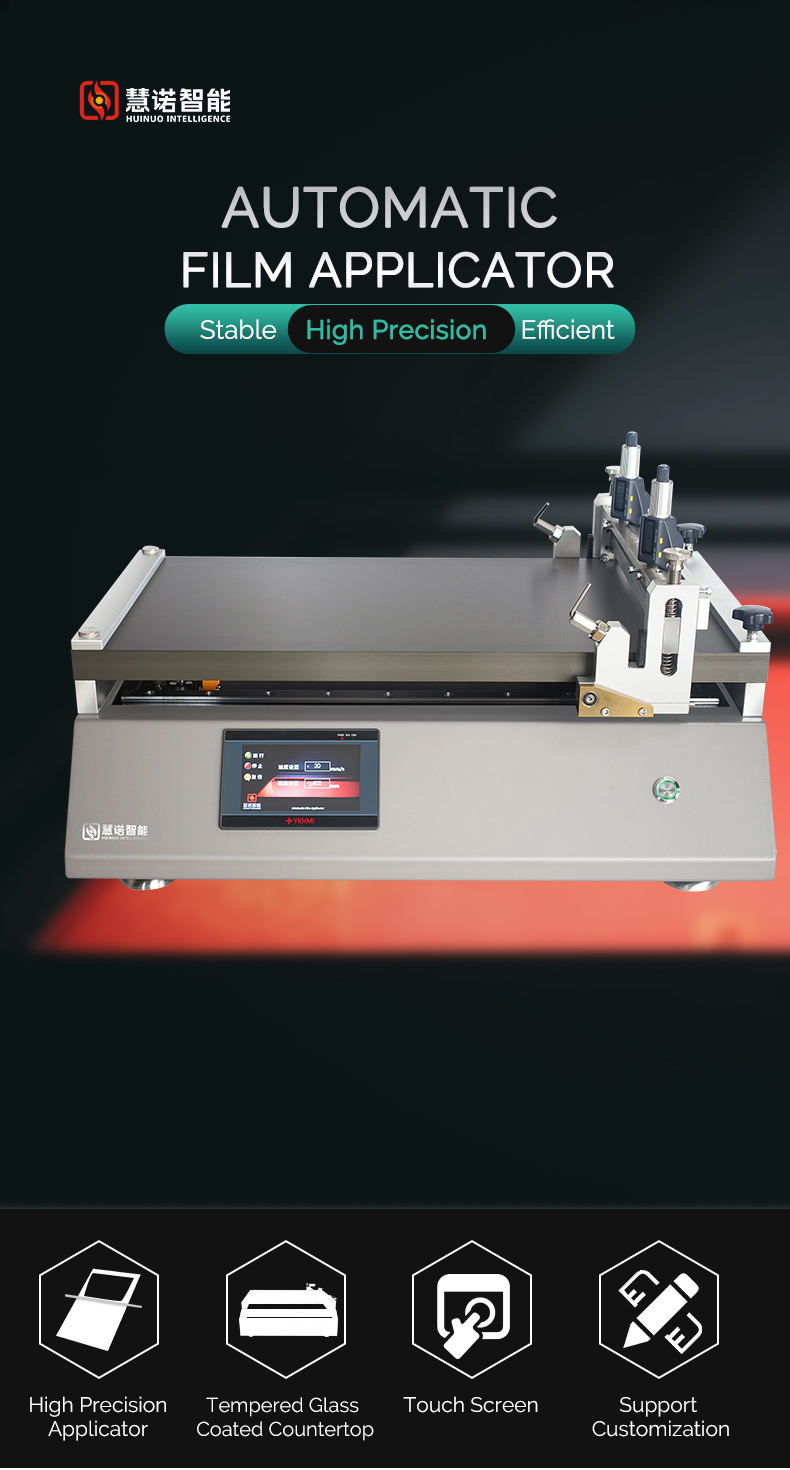

HuiNuo TM2300L Automatic Film Applicator drawdown blade coater Vacuum chuck heating effective coating area 40 * 30cm
SE
TM2300L
HuiNuo TM2300L Automatic Film ApplicatorSPEC
HuiNuo TM2300L Automatic Film ApplicatorDetails
HuiNuo TM2300L Automatic Film ApplicatorPacking list
- SKU
- NB050231
- coating method
- drawdown blade
- coating speed
- 1~ 300Mm/s stepless speed regulation (can be customized)
- Substrate clamping method

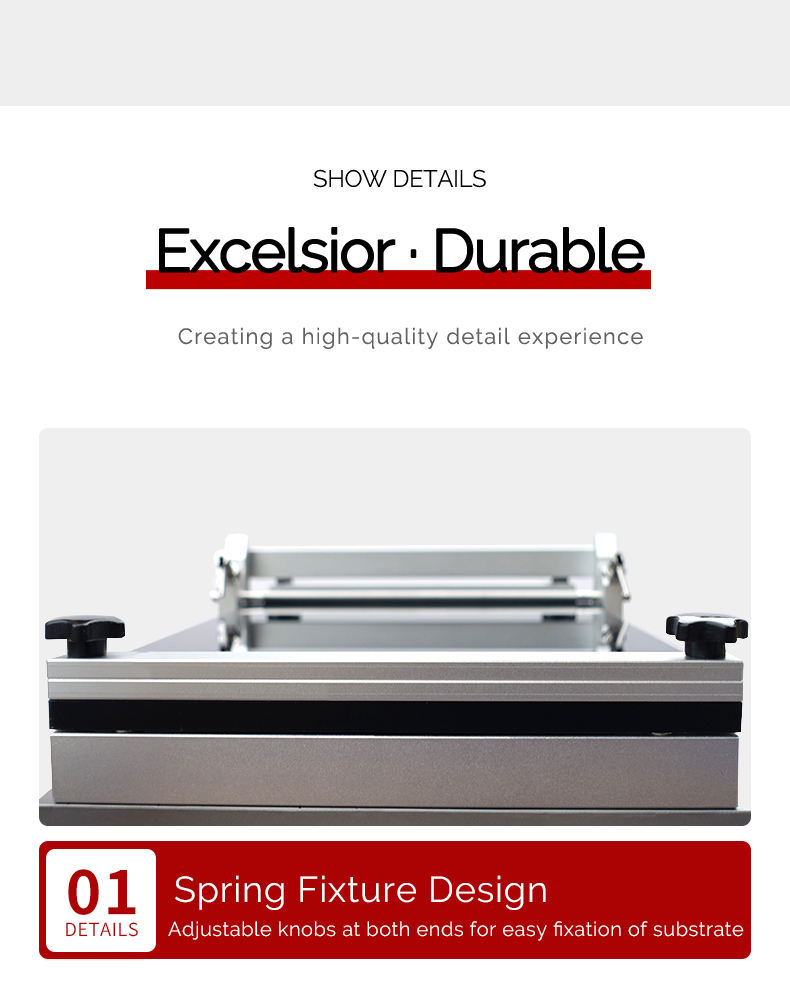

- Vacuum chuck + fixture
- Coating table material
- aluminum alloy
- Coating table size
- 600*300mm
- effective coating area
- 400 * 300Mm (can be customized)
- Blade Coating Thickness Range
- 0~5000μm
- Drawdown blade material
- Die steel
- Blade Coating Width
- 150Mm (maximum 300mm width can be selected)
- Drawdown blade straightness
- ±0.002mm
- Vacuum Area
- 480 * 260Mm (can be customized)
- Vacuum aperture diameter
- Φ0.8mm
- Vacuum hole pitch
- 20*20mm
- Vacuum pump pumping rate
- 5.4m3/h
- Ultimate vacuum degree
- 50KPa
- Vacuum Pump Power
- 180W
- Vacuum pump weight
- 7.1kg
- Heating Temperature range
- RT +~ 150 ℃ (can be customized)
- Digital temperature controller accuracy
- ±2℃
- Operating language
- Chinese (can be customized in English)
- display screen
- Color LCD Touchscreen
- Host power supply
- 100V~220V/50~60HZ
- Power
- 1800w
- Dimension
- 658*438*400mm
- weight
- 40kg
Product Overview
The automatic coating machine is equipment used for coating films in laboratories, replacing manual coating by automating the application process and improving the precision and efficiency of the coating. The working principle of the experimental automatic coating machine is to control the coating head and parameters to evenly coat the sample onto the substrate, forming the desired film.
This coating machine is a scraper coater that uses two functions: squeegee coating,Split typeThe squeegee head greatly improves coating efficiency, is easy to clean, features speed control and coating length adjustment functions, and is suitable for high-precision automatic coating in laboratories, suitable for film prototyping in university research institutes, new materials, lithium batteries, glue, resin, and other laboratories.
Product applications
The coating machine is suitable for sample preparation of coatings for coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, chemicals, and more, and can scrape and apply on glass, cardboard, and fabric.

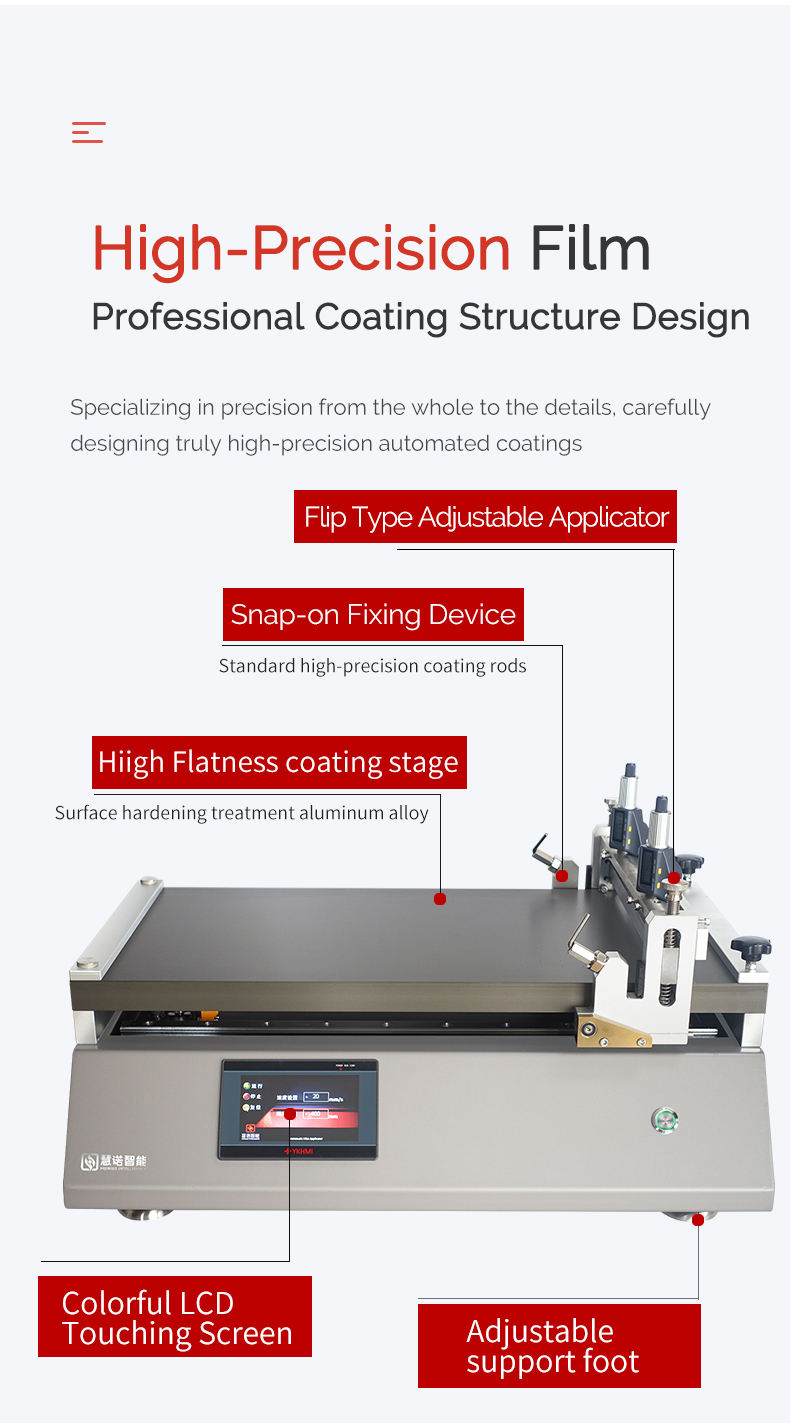

Product features

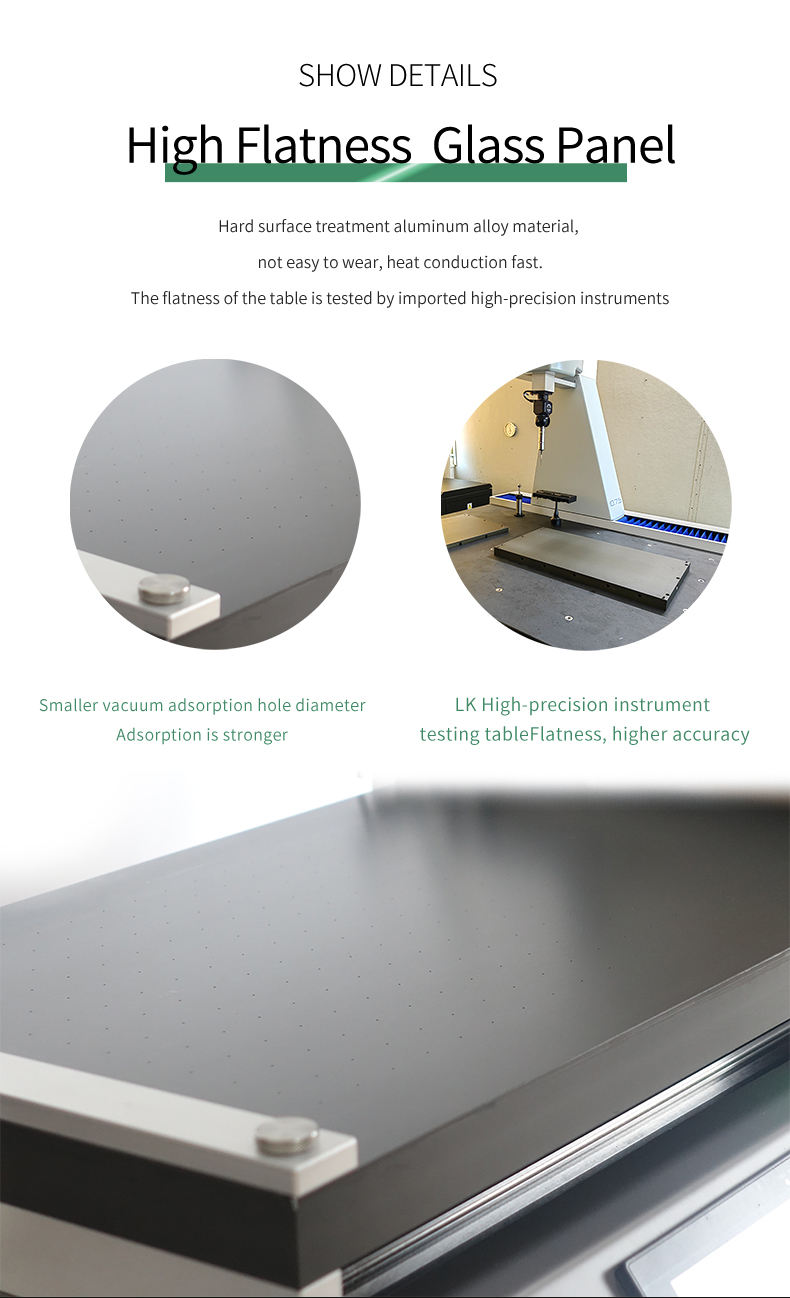

1）The surface is treated hard with aluminum alloy tabletops, offering high hardness and wear resistance. The flatness of the tabletop is tested using imported high-precision instruments.
2) Major brand differential regulators with high film thickness control accuracy

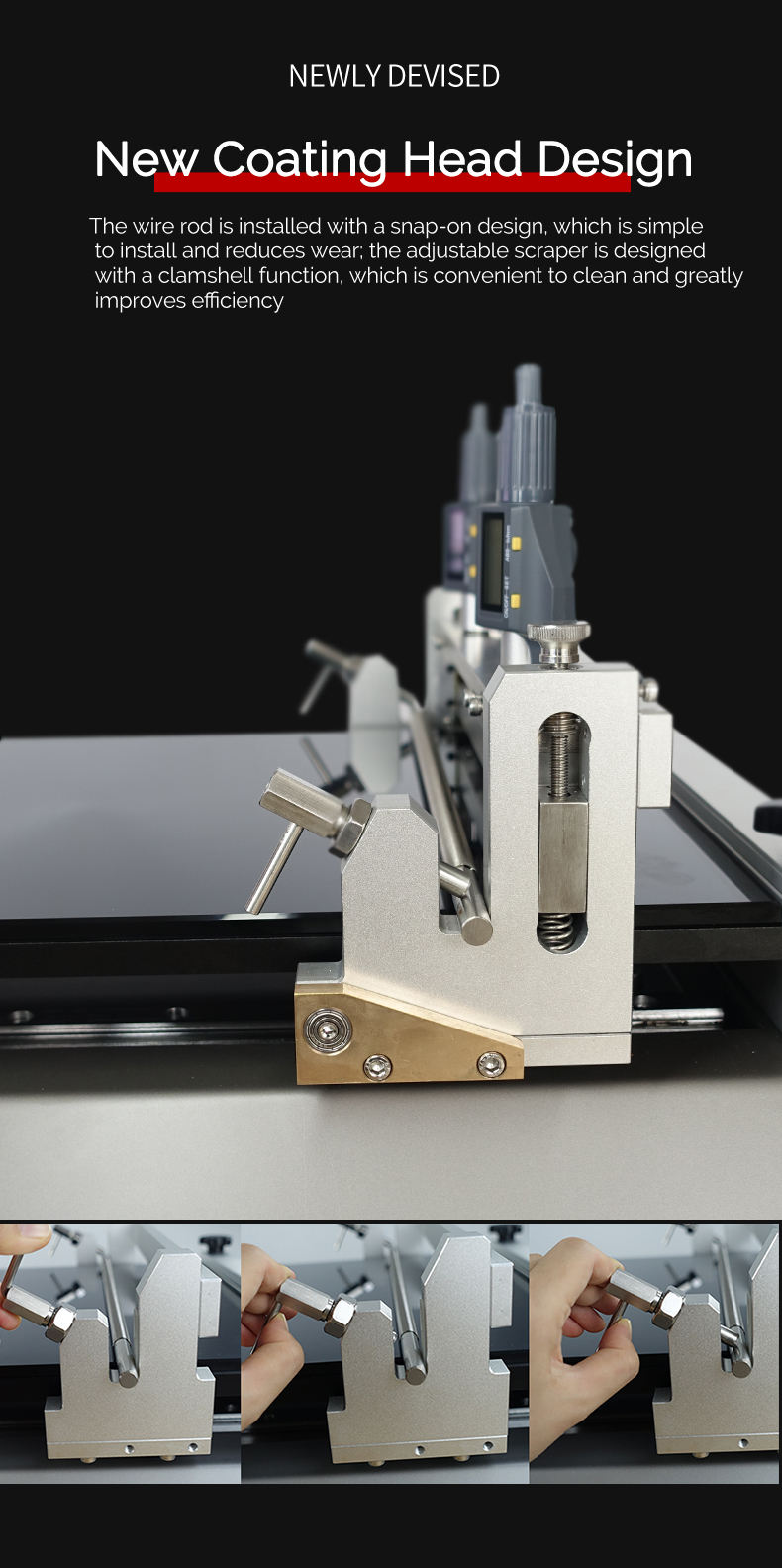

3) Split scraper coating head, easy to clean

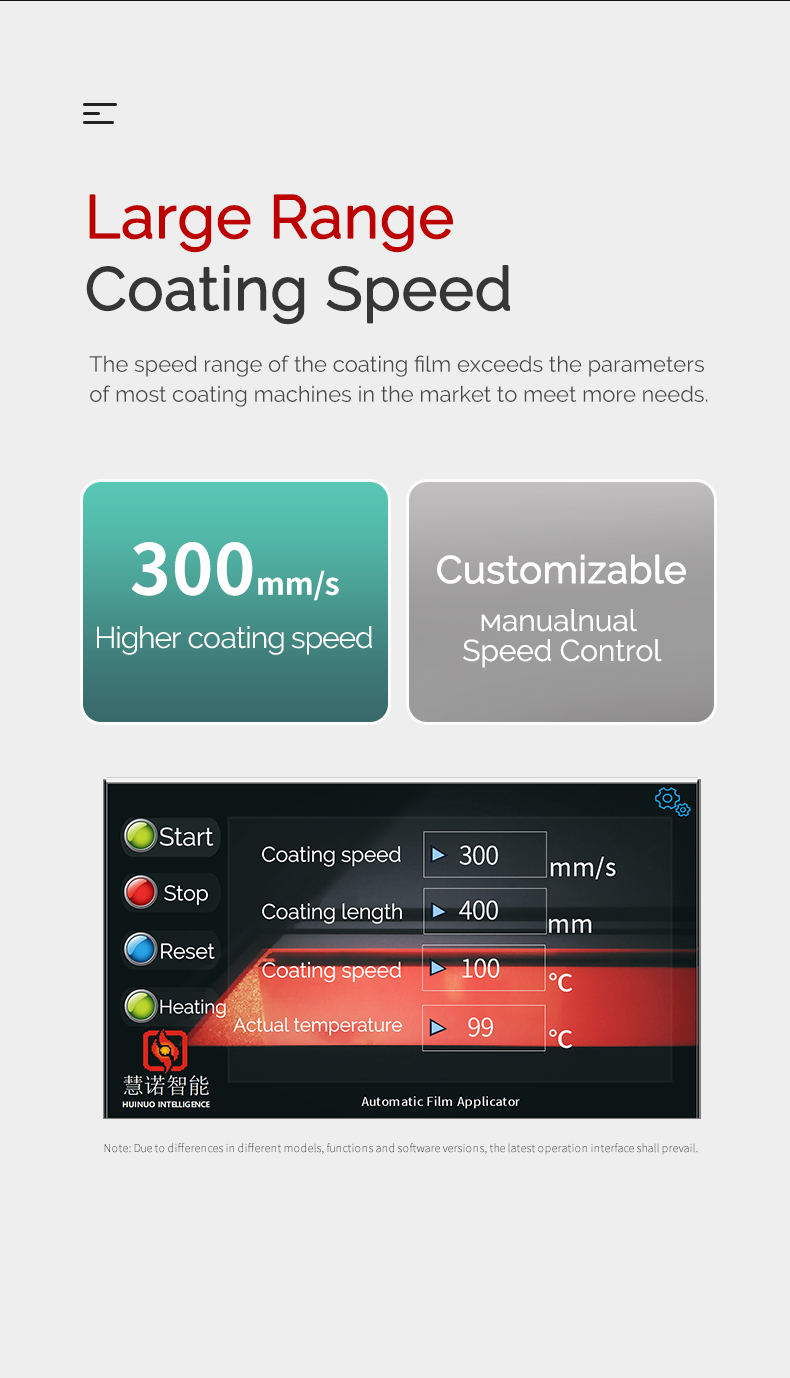

4) Touchscreen control panel for easy operation
5) Coating length and speed can be freely adjusted
6) Equipped with vacuum adsorption and heating functions
