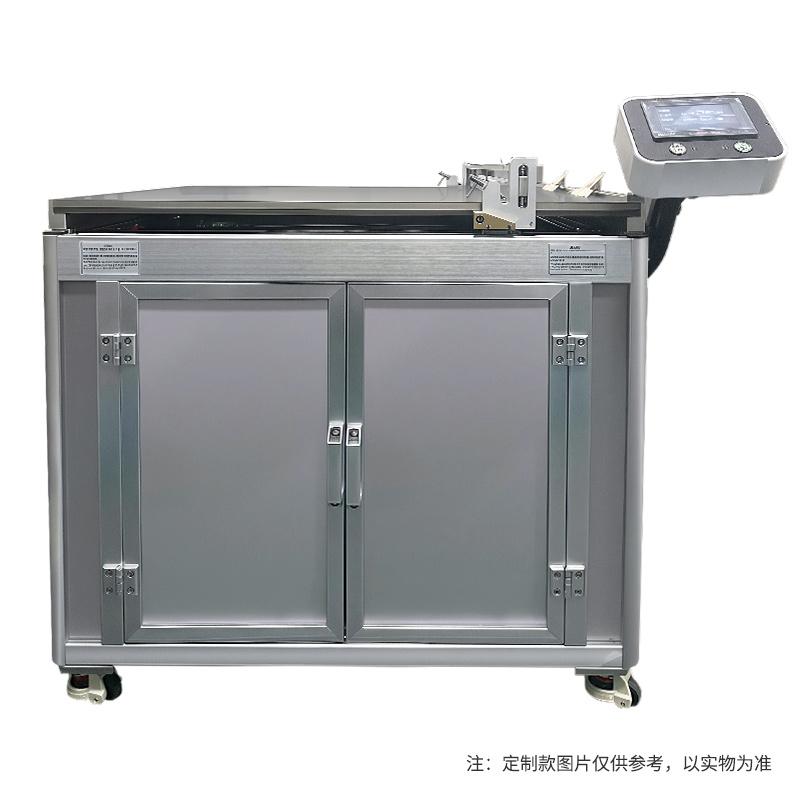

HuiNuo TM3000Pro/32D Automatic Film Applicator Floor drawdown Bar & blade coater effective coating area 80 * 60cm marble countertop

The equipment integrates bar and Blade Coating, the coating speed is 1~ 300mm/s stepless speed regulation, the effective coating area is 800 * 600mm, the clamshell Drawdown blade is used for easy cleaning, and is equipped with high Smoothness marble countertop and servo motor drive.

$8970.00/set

PromotionLoading...

Coupon

Model：

TM3000pro/32D

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con

HuiNuo TM3000pro/32D Automatic Film Applicator (Floor)SPEC

HuiNuo TM3000pro/32D Automatic Film Applicator (Floor)Details

HuiNuo TM3000pro/32D Automatic Film Applicator (Floor)Packing list

SKU: NB051054

coating method: Bar + Drawdown blade

coating speed: 1~ 300Mm/s stepless speed regulation (can be customized)

Substrate clamping method: fixture

Coating table material: Marble countertop

Coating table size: 1040*630mm

effective coating area: 800 * 600Mm (can be customized)

meyer rod coating thickness range: Different bar sizes have different thicknesses, with High Accuracy imported bars

Bar accuracy: ±0.001mm

Blade Coating Thickness Range: 0.1~ 10Mm (clamshell design is easy to clean)

Drawdown blade material: Die steel

Blade Coating Width: 600mm

Blade Coating accuracy: ±0.003mm

Drive motor: Servo motor

Power: 400w

Operating language: Chinese (can be customized in English)

display screen: Color LCD Touchscreen

Host power supply: 100V~220V/50~60HZ

Dimension: 1060 * 740 * 940Mm (subject to the actual product)

optional feature: Heating, Vacuum chuck

TM3000pro/32D

Automatic Film Applicator (Floor)

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 1

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 2

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 3

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 4

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 5

Huinuo TM3000pro/22D automatic coating machine (floor-to-ceiling model) details Figure 6

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 7

Huinuo TM3000pro/22D automatic film coating machine (floor-standing model) details Figure 8

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 9

Huinuo TM3000pro/22D automatic coating machine (floor-standing model) details Figure 10

Huinuo TM3000pro/22D Automatic Coating Machine (Floor-to-ceiling Model) Detail Figure 11

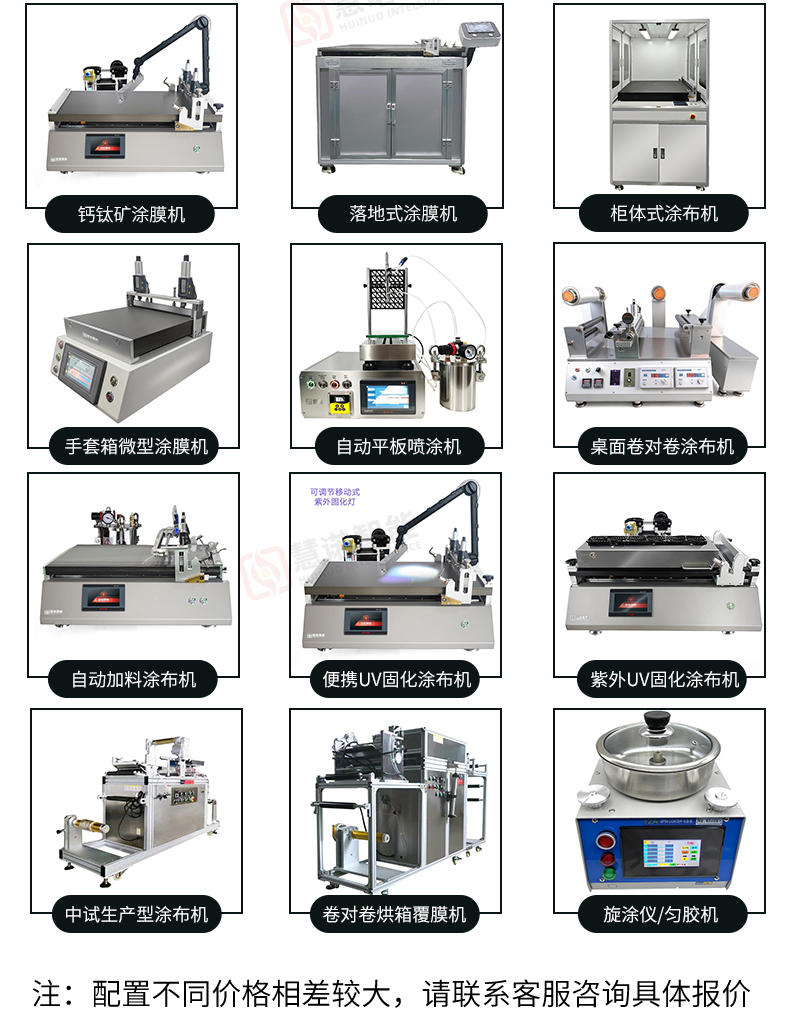

Huinuo TM3000pro/22D automatic coating machine (floor model) details Figure 12

Huinuo TM3000pro/22D automatic coating machine (floor-to-ceiling model) details Figure 13

Product Overview:

Automatic film coating machine is a device used to coat film in the laboratory, replacing manual film coating, automating the film coating, and improving the accuracy and efficiency of film coating. The working principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate by controlling the coating head and coating parameters, forming the desired film.

This coating machine is a wire rod scraper coating machine, with two functions of wire rod coating and scraper coating, the new wire rod installation method and clamshell scraper head greatly improve the coating efficiency, easy to clean, with speed control and coating length adjustment function, suitable for high-precision automatic coating of film in the laboratory, in university research institutes, new materials, lithium batteries, glue, resin and other laboratories for film proofing.

Product Use:

The film coating machine is suitable for coating and sample coating of coatings, inks, paints, pastes, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc., and can be scraped on glass, cardboard, and fabrics.

Product features:

1) High flatness hard aluminum alloy bottom plate, scratch and scratch resistance

2) Big brand differential adjuster, high film thickness control accuracy

3) Clamshell scraper coating head, easy to clean

4) Equipped with high-precision film applicator, the original imported wire rod coating film is uniform and high accuracy

5) Touch screen control panel, easy to operate

6) The coating length and coating speed can be adjusted freely
