Brand：LinShang
Model：NF2000-X2

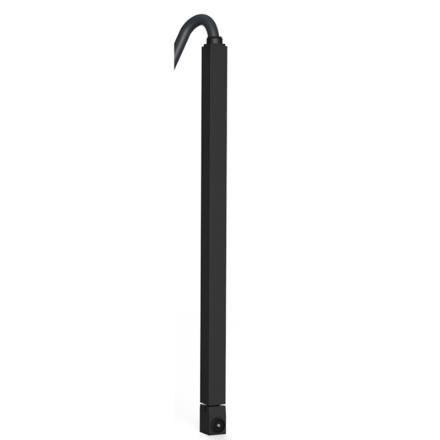

Name：Coating thickness gauge (Coating Thickness Gauge)
Specifications
| Probe type | Conventional straight |
| Measurement principle | eddy current induction |
| matrix material | Non-ferromagnetic metal |
| Measurement range | 0.0~2000μm |
| resolution | 0.1μm：(0μm - 99.9μm)，1μm：(100μm - 2000μm) |
| accuracy | H < 1000 μm ： +/- ( 2% H + 1 μm), H ≥ 1000 μm: +/- 3% H (five point calibrated, H is the Standard value) |
| time interval | 0.4s |
| minimum matrix thickness | 0.05mm |
| minimum radius of curvature | Convex 0.05mm |
| Probe size (excluding wiring) | Length 167mm * Width 8mm * Height 10.8mm |
| Probe weight | About 46g |
Packing list
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/52669/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
