PUSHEN WZJ-II T-Bend folding machine, film bending performance test

SE
PUSHEN WZJ-II T-Bend folding machine is mainly used for Color plate, Aluminum Panel bending performance testing, WZJ-II meets GB/T30791, ISO 17132 standards.
$686.73/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

Pushen WZJ-II T-Bend folding machineSPEC

Pushen WZJ-II T-Bend folding machineDetails

Pushen WZJ-II T-Bend folding machinePacking list

SKU
NB005858
Film thickness
0.1~ 1.0mm (steel), 0.1~ 2.0mm (aluminum)
Test board width
≤100mm
Overall dimensions
300*300*190mm
Shipment weight
50kg
Standards
GB/T 30791,ISO 17132
WZJ-II
T-Bend folding machine
PUSHEN WZJ-II T-Bend folding machine, film bending performance test Picture

WZJ-II T bending machine

It is mainly used for bending performance testing of color steel, aluminum plates, etc., with compact structure, simple appearance and easy to use.

how to use

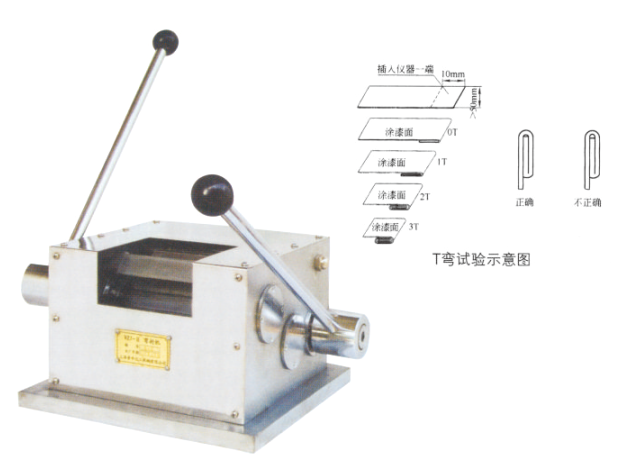

Insert one end of the sample about 10 mm, compress the sample, and turn the handle to bend the sample to an acute angle.

Take out the sample and insert it into the vise, and press the curved part of the sample tightly, which is regarded as 0T bending.

Check for cracks on the coating, coating within 5 mm from the edge is not considered.

Stick the scotch tape along the curved surface, tear off the tape along the 60° direction of the curved surface, and check whether there is any peeling coating.

The sample continues to be bent 180° around the 0T bending part, and the center of the folding is 1T bending.

Repeat the above steps until you see the desired result.

Standards

GB/T 30791-2014 Paints and varnishes T-bend test

ISO 17132-2008

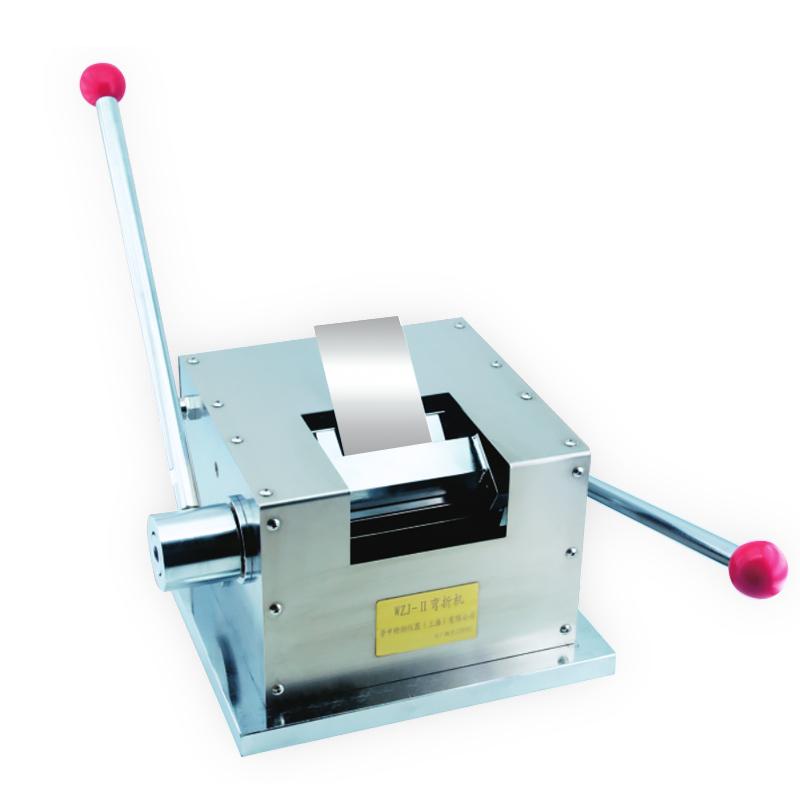

Pushhen WZJ-II T bending machine display

FAQ
QCan the thinnest one be pressed to 0.1mm?
A Yes, there is no limit to thinness, the most important thing is thickness.
QWhat are the steps of the T-Bend test?
A The "T-Bend" test involves preparing the specimen, setting up a bending device, applying a bending force, visually inspecting the specimen, and recording the test results.
QDo you have WZJ-II Bending Instrument? Can you bend 3mm Aluminum Panel?
A Nothing can be bent so thick, the thickest can only be bent by 2mm.
QWhat is the Film thickness test range of this T-bending machine?
A Hello, the steel plate Film thickness test range is 0.1~ 1mm, aluminum plate is 0.1~ 2mm.
QIs there a GB/T22412 standard T-Bend folding machine?
A This PUSHEN T-Bend folding machine is fine!
