HUITAI DHG-9050A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 50L

SE
Volume 50L, Temperature Control RT + 10~ 250 ℃, Temperature Fluctuation +/- 1 ℃, resolution 0.1 ℃, timing 1~ 9999min, fan speed control, air duct circulation system, mirror stainless steel liner, independent temperature limit alarm system optional
$479.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HTAIYQ DHG-9050A Blast drying ovenSPEC

HTAIYQ DHG-9050A Blast drying ovenDetails

HTAIYQ DHG-9050A Blast drying ovenPacking list

SKU
NB006923
Power supply voltage
AC 220V 50Hz
Temperature range
RT+10~250℃
Temperature Fluctuation
±1℃
Temperature Resolution
0.1℃
Input Power
1100W
Volume
50L
shelf (std.)
2pcs
Timer Range
1~9999min
Working size (mm)
418*338*352
Liner size (mm)
418*392*352
Dimensions (mm)
710*622*530
DHG-9050A
Blast drying oven
Volume 50L, Temperature Control RT + 10~ 250 ℃, Temperature Fluctuation +/- 1 ℃, resolution 0.1 ℃, timing 1~ 9999min, fan speed control, air duct circulation system, mirror stainless steel liner, independent temperature limit alarm system optional

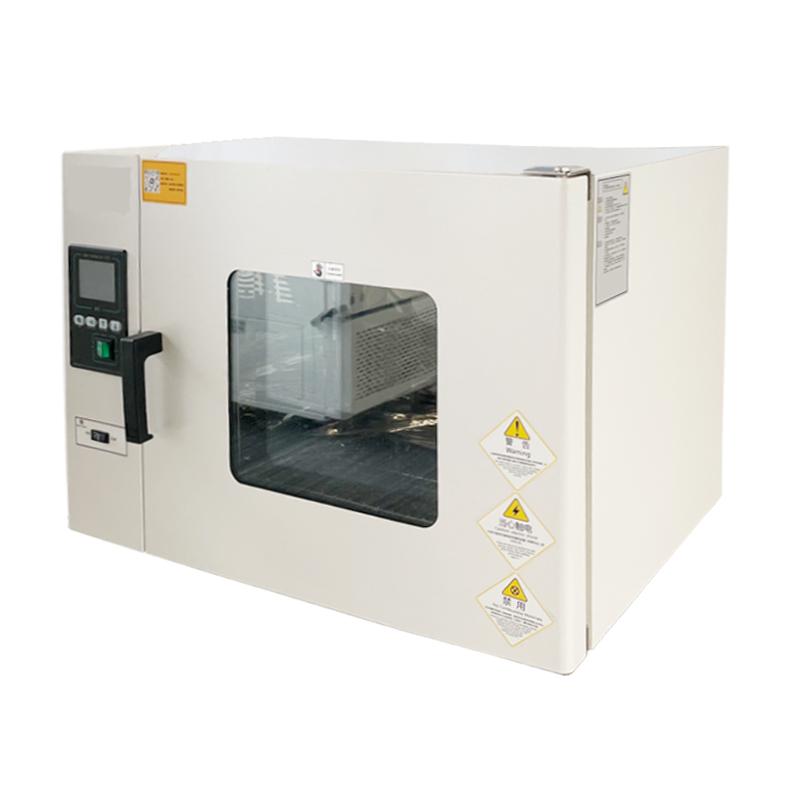

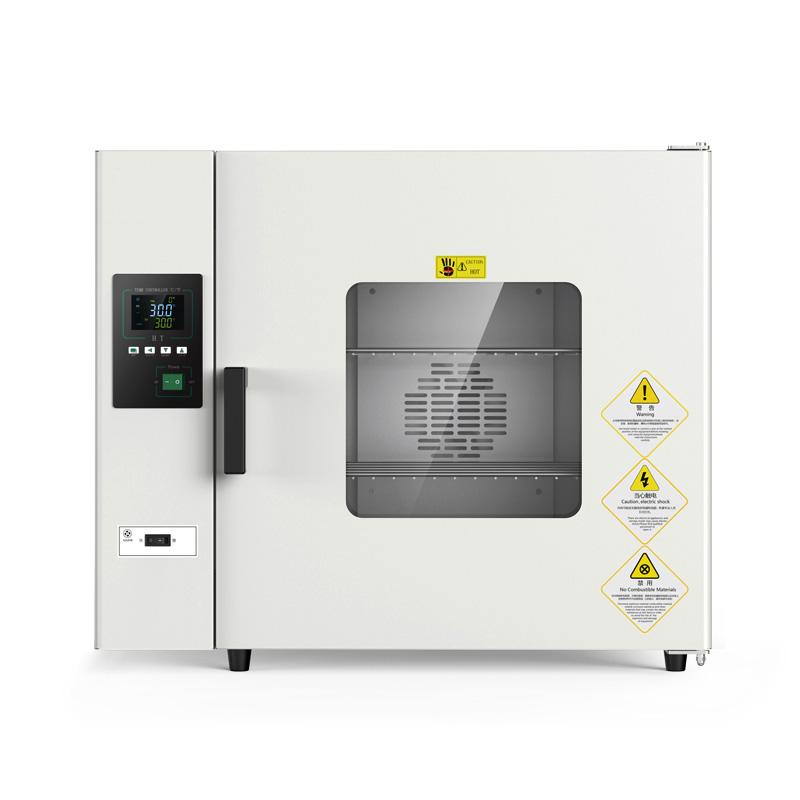

HUITAI DHG-9050A Blast drying oven temperature control RT + 10~ 250 ℃ Volume 50L Picture

Overview

Huitai DHG-9050A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

plan

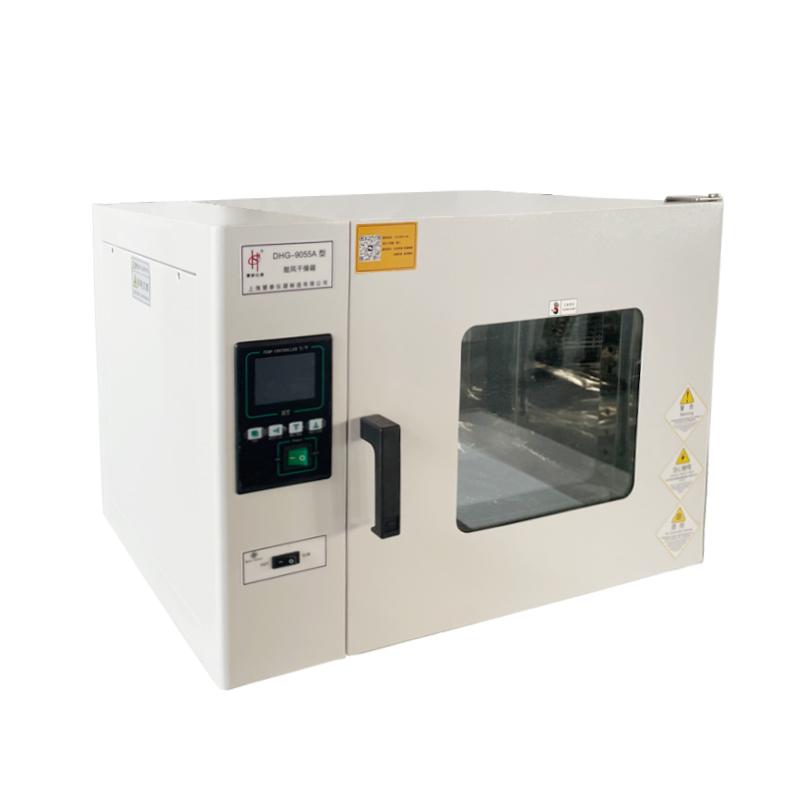

Display of Huitai DHG-9050A Forced Air Drying Oven

Optional accessories

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

modelTemperature control rangeinput powervolume
DHG-9030ART+10~25085030
DHG-9050A110050
DHG-9070A155080
DHG-9140A2050136
DHG-9240A2500220
DHG-9240A Heightening2500260
DHG-9035ART+10~30085030
DHG-9055A110050
DHG-9075A155080
DHG-9145A2050136
DHG-9245A2500220
Unit: °C, W, L
other parameters
Constant temperature fluctuation±1℃
temperature resolution0.1°C
Carrier2pcs (standard configuration)
Timer Range1~9999min


Library
FAQ
QI need a 50 liter blast drying oven, controlled to 250 degrees, what do you recommend?
A 50 liters volume is just right, can reach 250 degrees, with large screen LCD display and timing function, simple operation, suitable for daily drying and baking needs.
QWhat should I do if the sample is not uniformly heated when drying?
A This air duct circulation with fan speed control and self-developed can automatically drain moisture to ensure uniform temperature in the box, reduce the trouble of manual adjustment, and make the experimental data more reliable.
QDo the experiment of being afraid of overheating, is there any Safety protection function?
A Yes, an independent temperature limit alarm system can be selected. If the set temperature exceeds, the power will be automatically cut off. At the same time, an RS485 interface can be installed to connect to a computer to record temperature changes, so use it with confidence.
QCan Huitai DHG-9050A blast drying oven be connected to a printer?
A Hello, this blast drying oven can be used with an embedded printer.
QIs the liner of this drying oven galvanized or stainless steel?
A Hello, generally the drying oven model with A at the back is stainless steel, and the one without A is generally galvanized. The DHG-9050A you see is a stainless steel liner.
QThis drying oven can control the temperature of 175 ° C and can hold 50L?
A This model is suitable, DHG-9050A blast drying oven Temperature range 10~ 250 ℃, can accommodate 50L.
QI want to do a test on the GB/T1714 standard, is this blast drying oven okay?
A Sure
