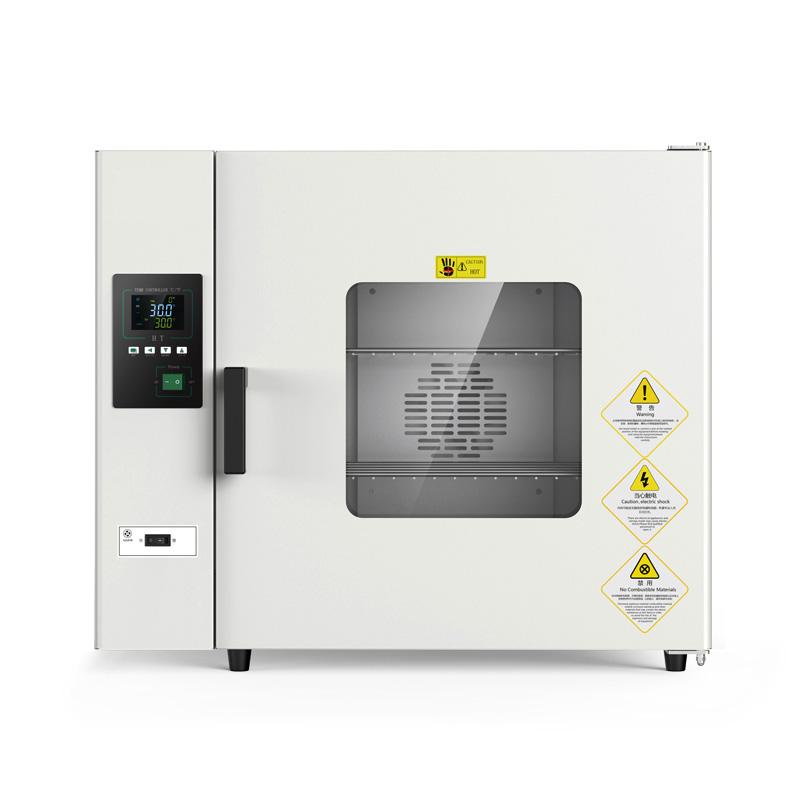

HUITAI DHG-9145A Blast drying oven oven 136L temperature control RT + 10~ 300 ℃
SE
DHG-9145A
HTAIYQ DHG-9145A Blast drying ovenSPEC
HTAIYQ DHG-9145A Blast drying ovenDetails
HTAIYQ DHG-9145A Blast drying ovenPacking list
- SKU
- NB006931
- Power
- AC 220V 50Hz
- Temperature range
- RT+10~300°C
- Temperature fluctuation
- ±1℃
- temperature resolution
- 0.1℃
- Input power
- 2050W
- Interior size
- 550*450*550mm
- Dimensions
- 835*670*730mm
- Volume
- 136L
- Number of shelves (std.)
- 2pcs
- Timer
- 1~9999min
Overview
Huitai Forced Air Drying Oven DHG-9145A is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Features
1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
2) The fan speed control method is adopted to improve the temperature uniformity of the studio.
3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.
4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.
5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.
6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.
7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)
8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
plan
Optional accessories
Intelligent program controller
Independent temperature limit controller
Embedded printer
RS485 interface and special software
Test hole 25mm/50mm
DHG series
| model | Temperature control range | input power | volume |
| DHG-9030A | RT+10~250 | 850 | 30 |
| DHG-9050A | 1100 | 50 | |
| DHG-9070A | 1550 | 80 | |
| DHG-9140A | 2050 | 136 | |
| DHG-9240A | 2500 | 220 | |
| DHG-9240A Heightening | 2500 | 260 | |
| DHG-9035A | RT+10~300 | 850 | 30 |
| DHG-9055A | 1100 | 50 | |
| DHG-9075A | 1550 | 80 | |
| DHG-9145A | 2050 | 136 | |
| DHG-9245A | 2500 | 220 | |
| Unit: °C, W, L | |||
| other parameters | |||
| Constant temperature fluctuation | ±1℃ | ||
| temperature resolution | 0.1°C | ||
| Carrier | 2pcs (standard configuration) | ||
| Timer Range | 1~9999min | ||
