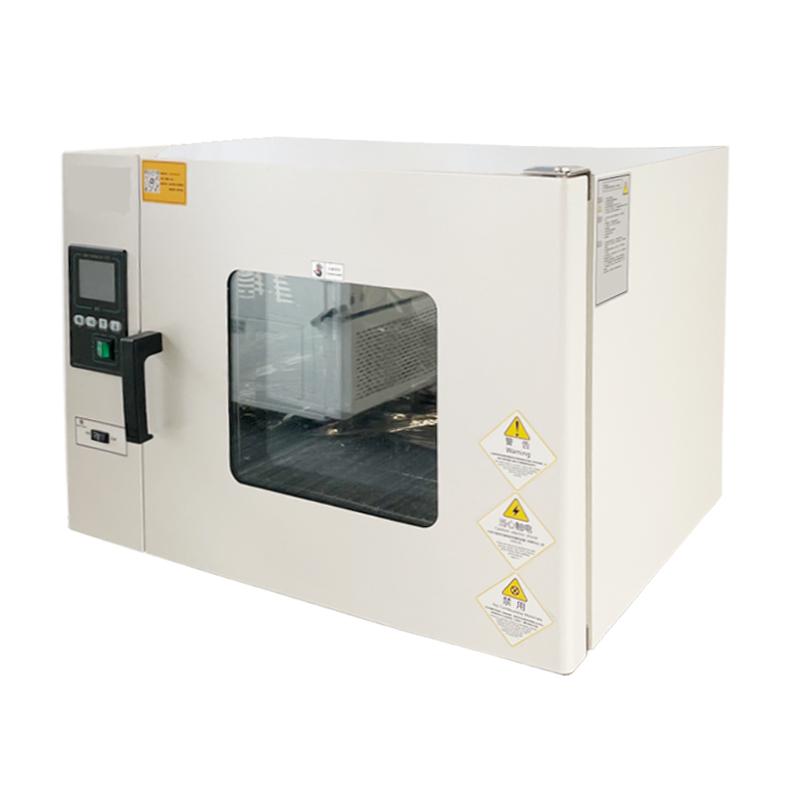

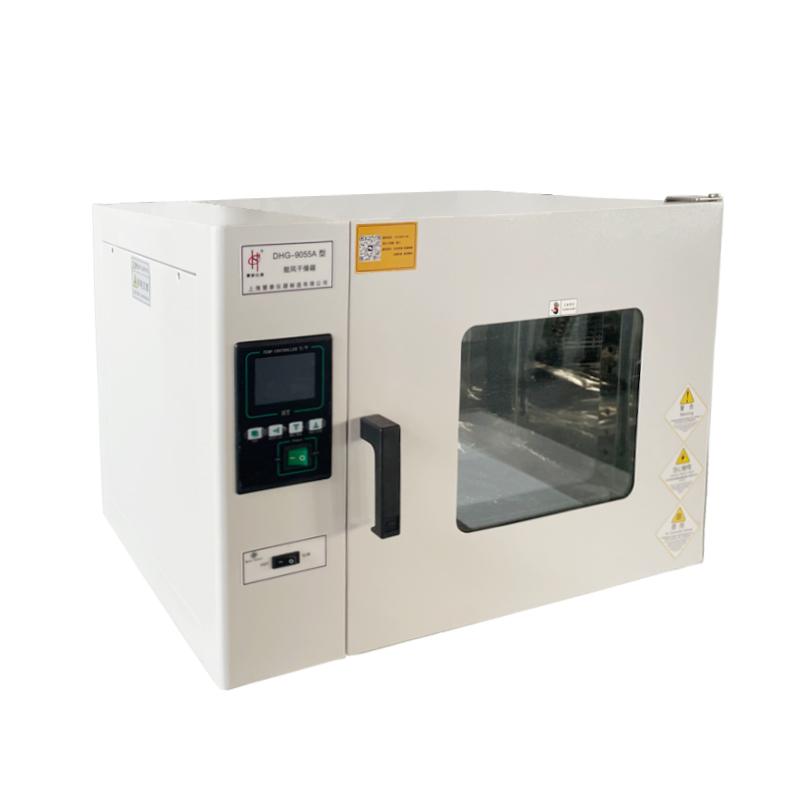

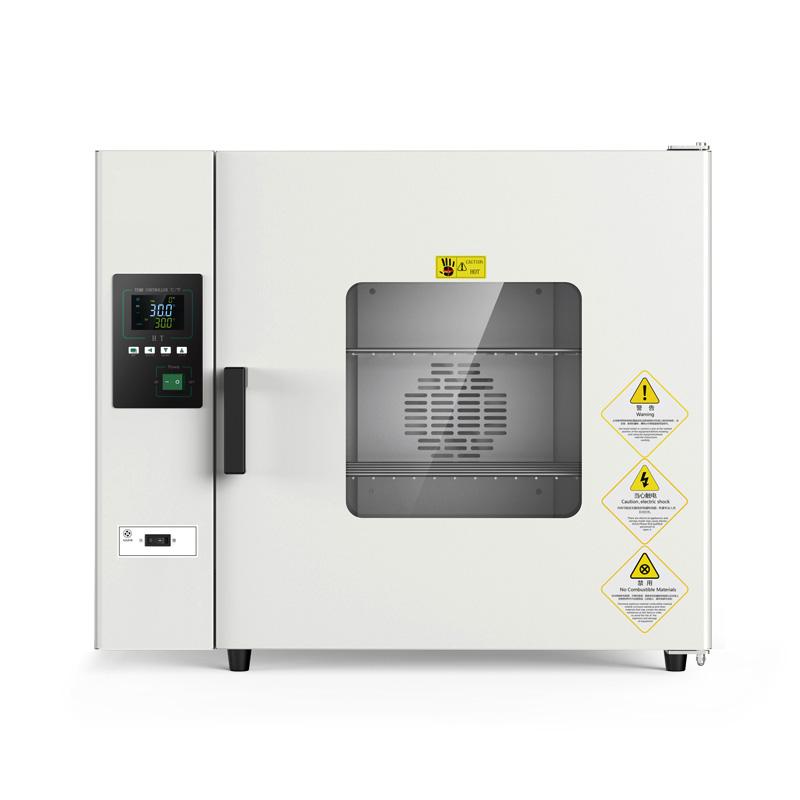

HUITAI DHG-9245A Blast drying oven Industrial oven 220L temperature control RT + 10~ 300 ℃

220L, temperature control RT + 10~ 300 ℃， +/- 1 ℃, 0.1 ℃, 2500W, 1~ 9999min, LCD display, fan speed control, air duct circulation system, microcomputer thermostat, mirror stainless steel liner, independent temperature limit alarm.

$752.00/set

PromotionLoading...

Coupon

Model：

DHG-9245A

Certificate

HTAIYQ

Manufacturer authorization

Contact

Details SPEC Con VIDEO CAT OI

HTAIYQ DHG-9245A Blast drying ovenSPEC

HTAIYQ DHG-9245A Blast drying ovenDetails

HTAIYQ DHG-9245A Blast drying ovenPacking list

SKU: NB006932

Power: AC 220V 50Hz

Temperature range: RT+10~300°C

Temperature fluctuation: ±1℃

temperature resolution: 0.1℃

Input power: 2500W

Interior size: 600*595*650mm

Dimensions: 880*800*830mm

Volume: 220L

Number of shelves (std.): 2pcs

Timer: 1~9999min

DHG-9245A

Blast drying oven

Overview

Huitai DHG-9245A Forced Air Drying Oven is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.

Features

1) Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2) The fan speed control method is adopted to improve the temperature uniformity of the studio.

3) The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, without the trouble of manual adjustment.

4) It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5) The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6) The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7) Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, to ensure the safe operation of the experiment without accidents. (optional)

8) With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional accessories

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

DHG series

model	Temperature control range	input power	volume
DHG-9030A	RT+10~250	850	30
DHG-9050A		1100	50
DHG-9070A		1550	80
DHG-9140A		2050	136
DHG-9240A		2500	220
DHG-9240A Heightening		2500	260
DHG-9035A	RT+10~300	850	30
DHG-9055A		1100	50
DHG-9075A		1550	80
DHG-9145A		2050	136
DHG-9245A		2500	220
Unit: °C, W, L
other parameters
Constant temperature fluctuation	±1℃
temperature resolution	0.1°C
Carrier	2pcs (standard configuration)
Timer Range	1~9999min

Library

FAQ

QConventional drying and stoving samples in the laboratory have a capacity of about 200 liters. Which one is recommended?

A It is recommended to choose this 220-liter one. It adopts a large-screen LCD display, which is intuitive to operate, has good Temperature uniformity, and has an automatic moisture removal function. It does not need to be adjusted manually. It is very suitable for daily batch drying and stoving.

QWe do sterilizing and melting wax, high temperature Stability requirements, this can not be guaranteed?

A This temperature control accuracy, temperature fluctuation in +/- 1 ℃, resolution 0.1 ℃, suitable for such experiments. Its microcomputer controller with over-temperature protection, can accurately stabilize temperature control, avoid overheating affect the sample, so feel free to use.

QIn addition to the basic drying, what other extensions can it be equipped with?

A It supports optional independent temperature limit alarm, RS485 interface connected to computer to record temperature, and can also add intelligent program temperature control or printer. These are suitable for different experimental needs, such as remote monitoring or complex program heating, just install corresponding options, which is very flexible.

QDo you have the blast drying oven required by JB/T5520 standard?

A This DHG-9245A blast drying oven will do.

QFind an oven with temperature control at 130 ° C and a size of about 200L

A Yes, DHG-9245A blast drying oven Temperature range 10~ 300 ℃, capacity 220L, to meet your requirements.
