HUITAI BPG-9140A Precision blast drying oven temperature accuracy +/- 0.5 ℃ Volume 136L

SE
Temperature accuracy +/- 0.5 ℃, Volume 136L, Temperature range RT + 10~ 300 ℃, Thermostatic Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Timer Range 1~ 9999min, LCD, Fan speed control, Air duct circulation automatic exhaust steam, liner mirror stainless steel, temperature limit alarm system, RS485 interface
$831.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

HTAIYQ BPG-9140A Precision blast drying ovenSPEC

HTAIYQ BPG-9140A Precision blast drying ovenDetails

HTAIYQ BPG-9140A Precision blast drying ovenPacking list

SKU
NB006934
Power
AC 220V 50Hz
Temperature range
RT+10~300℃
Temperature Fluctuation
±0.5℃
Temperature Resolution
0.1℃
Input Power
1550W
Interior size
450*550*550mm
Dimensions
640*710*905mm
Volume
136L
Shelf (std.)
2pcs
Timer
1~9999min
BPG-9140A
Precision blast drying oven
Temperature accuracy +/- 0.5 ℃, Volume 136L, Temperature range RT + 10~ 300 ℃, Thermostatic Fluctuation +/- 0.5 ℃, Temperature resolution 0.1 ℃, Timer Range 1~ 9999min, LCD, Fan speed control, Air duct circulation automatic exhaust steam, liner mirror stainless steel, temperature limit alarm system, RS485 interface

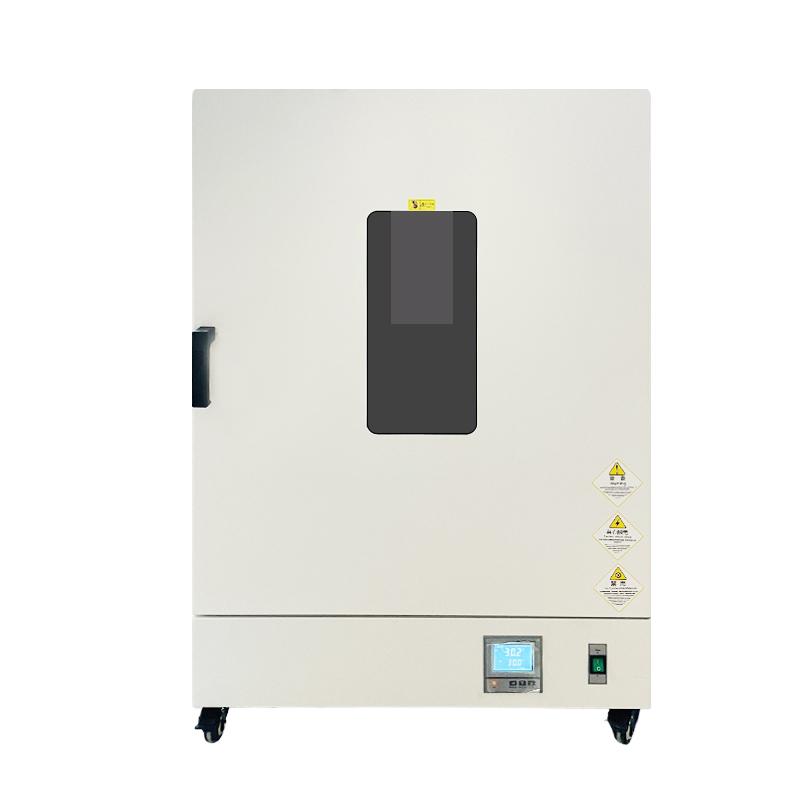

HUITAI BPG-9140A Precision blast drying oven temperature accuracy +/- 0.5 ℃ Volume 136L Picture

Applications

Huitai BPG-9140A precision Forced Air Drying Oven is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.

Features

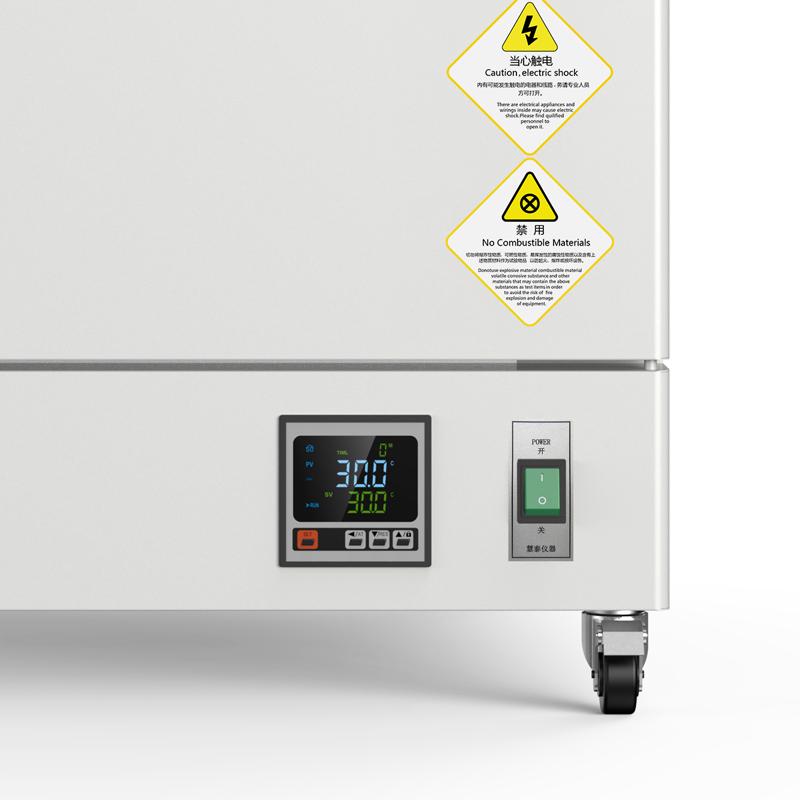

1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

2. The fan speed control mode is adopted to improve the temperature uniformity of the working room.

3. The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, and there is no trouble of manual adjustment.

4. It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.

5. The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.

6. The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.

7. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)

8. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

Embedded printer

RS485 interface and special software

Test hole 25mm/50mm

Comparison of parameters of BPG series precision Forced Air Drying Oven

project

BPG-9070A

BPG-9140ABPG-9240ABPG-9420ABPG-9620ABPG-9920A

Voltage

AC220V 50HZ

Temperature control range

RT+10~300℃

Constant temperature fluctuation

±0.5℃

temperature resolution

0.1°C

input power

1100W

1550W2050W3500W4000W5000W

Studio size  W×D×H(mm)

400×425×445

450×550×550500×600×750600×550×1300800×640×12801000×600×1600

Dimensions  W×D×H(mm)

545×580×800

640×710×905680×800×1205780×750×1850960×750×17501180×800×2150

volume

80L

136L225L420L620L1000L

Carrier (standard)

2pcs

3pcs4pcs

Timer Range

1~9999min

*Performance parameter test under no-load conditions, no strong magnetism, no vibration: ambient temperature 20°C, ambient humidity 50%RH.

Library
FAQ
QMy laboratory generally does sample drying and sterilizing, is this suitable for BPG-9140A?
A This one is suitable. Temperature range is room temperature plus 10 to 300 degrees. Fluctuation is only plus or minus 0.5 degrees, which can meet most of the drying and sterilizing needs. In addition, it has automatic moisture removal function, which is a lot more worry-free to operate.
QIf I am using it for electronic component aging testing and require a uniform temperature field, how should I choose this one?
A Then choose it. The internal air duct design plus the adjustable speed of the fan can ensure the temperature uniformity of the studio, which is very helpful for the Reliability of aging test. In addition, it also has a timing function, which can precisely control the test time.
QIf I want to record the temperature data to the computer later for easy traceability, what interface does this machine have?
A It comes standard with an RS485 interface, which can be equipped with special software to connect to a computer to record data. If you still need to print directly, there are also embedded printers available. It is equivalent to scalability and flexible, you can add accessories on demand.
QHelp me find a precision blast drying oven that meets the JB/T5520 standard
A This BPG-9140A precision blast drying oven is ok!
QFind an oven with temperature control at 170 ° C and a size of about 120L
A BPG-9140A Precision blast drying oven Temperature range 10~ 300 ℃, effective volume 136L meet.
