Coating adhesion test

Coating adhesion testing is an important method to evaluate the adhesion performance between coatings and substrates. Adhesion plays a key role in the durability, performance and appearance of coatings. The following are some commonly used coating adhesion testing methods:

Cross cut test: Test the adhesion between coating and substrate by shear stress. Shear force is applied between the coating and the substrate until the coating flakes off. The maximum shear force recorded in the test is the coating adhesion.

Pull-off test: The adhesion between the coating and the substrate is tested by pull-out stress. Apply tension between the coating and the substrate until the coating comes off. The maximum pull force recorded in the test is the coating adhesion.

Scratch Test: Adhesion is tested by scratching a set of parallel lines (usually 1mm apart) on the surface of the coating. Next, draw a set of parallel lines in the vertical direction to form a grid. Use tape to cover and stick to the grid, then quickly peel off the tape. Adhesion is assessed based on the degree of peeling of the coating.

Impact test: Adhesion is tested by measuring the degree of cracking and peeling off of the coating under impact force. Place the coated sample in the impact Tester and apply a certain impact force. Observe the degree of cracking and peeling of the coating to assess adhesion.

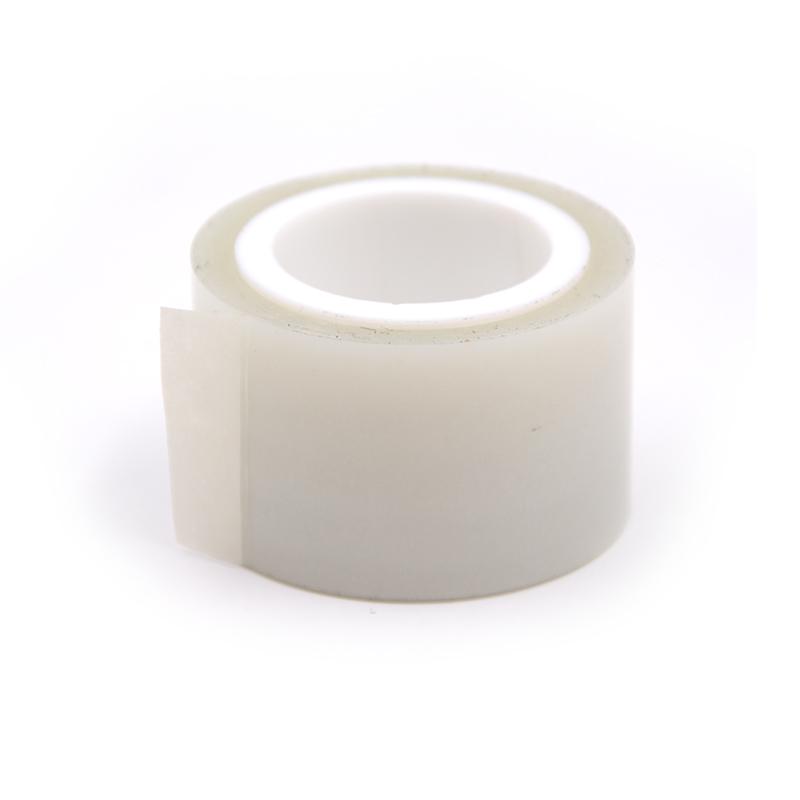

Tape Test: This method uses a special device to peel the coating off the substrate. Adhesion is assessed by measuring the force required to remove the coating.

Pinhole Test: This method involves using a conical needle to apply pressure on the coating until the coating is perforated or separated from the substrate. Measure the pressure required to assess adhesion.

Each method has its advantages and limitations. Which method to choose depends on the specific application, type of coating, type of substrate as well as required accuracy and available resources. Adhesion testing is a critical step in ensuring the quality of coated products, helping to improve product durability and performance.
