Germany

German HTechMT AT100-6A adhesion cutter ASTM standard set with 6 * 1 blade

SE
Germany HTechMT AT100-6A adhesion cutter is suitable for 0-50μm (0-2.0mils) Coating thickness, AT100-6A adhesion cutter has a number of teeth of 6, in line with ASTM D3359 standard.
Model：
Contact
Details SPEC CAT OI
Similar products

HTechMT AT100-6A Adhesion cutterSPEC

HTechMT AT100-6A Adhesion cutterDetails

HTechMT AT100-6A Adhesion cutterPacking list

SKU
NB010238
Number of teeth
6 teeth
Tooth spacing
1mm
Applicable film thickness environment
0~50μm
Cutter head material
stainless steel
Application standard
ASTM D3359
AT100-6A
Adhesion cutter

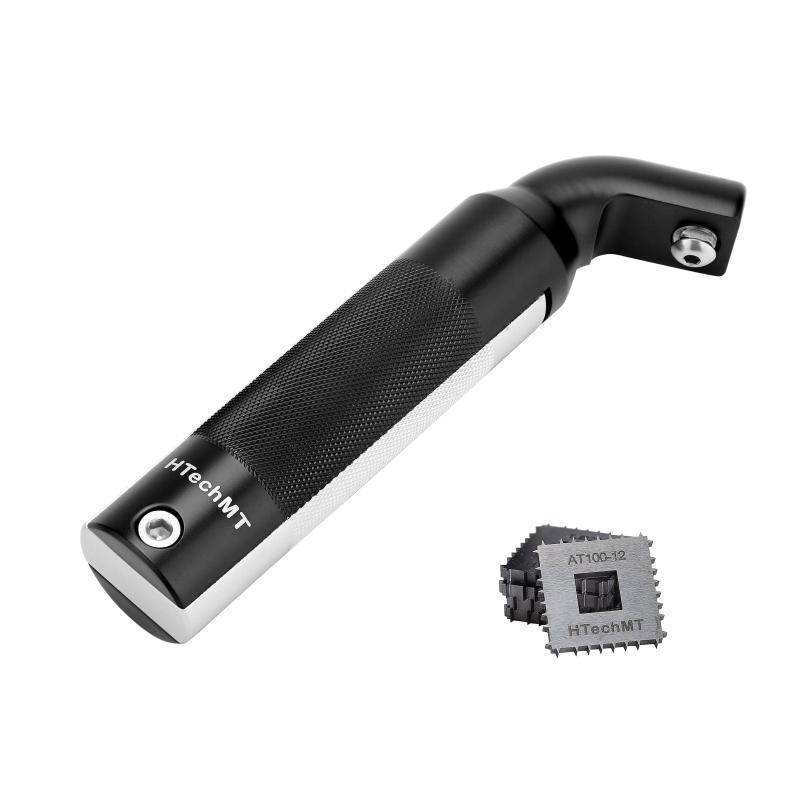

German HTechMT AT100-6A adhesion cutter ASTM standard set with 6 * 1 blade Picture

Introduction

The AT100 adhesion cutter is a simple and easy way to evaluate the adhesion between coatings and substrates. Implementation standards: ISO2409, ASTM D3359

Specifications

Product numberdescribeadhesive tape         coating thickness
AT100-6BThe basic set contains 6*1 blades---  0-60 μm (0-2.4mils)
AT100-6IStandard set contains 6*1 bladesISO  0-60 μm (0-2.4mils)
AT100-6AStandard set contains 6*1 bladesASTM  0-50 μm (0-2.0mils)
AT100-11BThe basic set contains 11*1 blades---  0-50 μm (0-2.0mils)
AT100-11AStandard set contains 11*1 bladeASTM  0-50 μm (0-2.0mils)
AT100-12BBasic set includes 6*2 blades---  0-125 μm (0-5.0mils)
AT100-12IStandard set includes 6*2 bladesISO  0-120 μm (0-5.0mils)
AT100-12AStandard set includes 6*2 bladesASTM  50-125 μm (2.0-5.0mils)
AT100-18BBasic set includes 6*3 blades---  121-250 μm (4.8-9.8mils)

Accessories　

Accessory model  describeAccessory modeldescribe
AT100-6  6*1mm bladeAT100-186*3mm blade
AT100-11  11*1mm bladeAT100-ISOISO tape
AT100-12  6*2mm bladeAT100-ASTMASTM tape
FAQ
QWhich specifications are used for cross-cut experiments of fluorocarbon zinc aluminum coatings?
A 6 teeth 1mm is recommended.
QI want to do a test on the ISO2409 standard, is this adhesion cutter okay?
A Sure
