CNSHP NDJ-8S Digital Rotational Viscometer

SE
CNSHP hengping NDJ-8S digital display Rotational Viscometer adopts high luminance LCD display, viscosity Measurement Instrument, Chinese/English Operating interface. The measurement error of NDJ-8S viscosity Measurement Instrument is 2%.
$484.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

hengping NDJ-8S Digital Rotational ViscometerSPEC

hengping NDJ-8S Digital Rotational ViscometerDetails

hengping NDJ-8S Digital Rotational ViscometerPacking list

SKU
NB010266
Display mode
digital
Measurement range
1~2000000mPa·s
Rotor specification
1 #, 2 #, 3 #, 4 #(0 #optional)
Rotor speed
0.3/0.6/1.5/3/6/12/30/60rpm
Measurement Accuracy
±2%FS
Power
AC 220V +/- 10% 50Hz +/- 10%
Interface
RS-232
Allowable operating temperature
5~35℃
Dimensions
380*320*390mm
Automatic scan function
Automatically select the appropriate rotor number and Rotation speed
Operating language
Chinese/English
Automatic stop for single measurement
After the measurement result is stable, the rotor automatically stops
Allowable Relative Humidity
≤80%
NDJ-8S
Digital Rotational Viscometer
CNSHP NDJ-8S Digital Rotational Viscometer Picture

Introduction

NDJ-8S digital display Rotational Viscometer is an upgraded product of our Rotational Viscometer. The instrument adopts professional mechanical design, manufacturing process and microcomputer control technology, and the data is collected correctly; the display adopts blue backlight and high-brightness LED display screen, and the data display is clear.

This instrument has the characteristics of high measurement sensitivity, reliable test results, convenient use and operation, and beautiful appearance. It is a satisfactory instrument for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids. It can be widely used in oils, paints, Measurement of the viscosity of various fluids such as plastics, medicines, food, paints, detergents, etc.

The instrument is also equipped with RS-232, temperature sensor, printer and other interface functions. After the optional PC connection line and the CD-ROM are installed, various test data can be recorded as required; the optional temperature sensor can measure the temperature of the liquid; the optional micro-printer can directly print the test results.

Features

  1. All-aluminum head, superior shielding performance;

  2. NDJ-5S/8S is equipped with a computer connection software CD

  3. High brightness LCD display;

  4. Equipped with RS-232 communication interface to connect to PC;

  5. Optional temperature sensor can measure the liquid temperature;

  6. The optional micro-printer can directly print the test results.

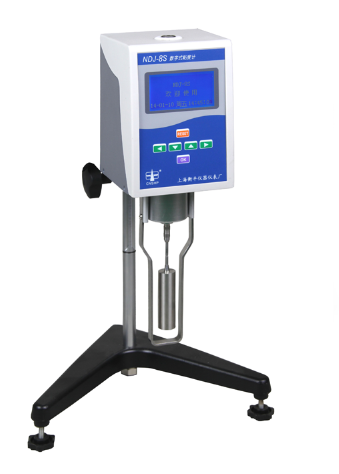

    HENGPINg NDJ-8S Digital Display Rotational Viscometer Details Figure 1

FAQ
QIndustrial coatings, epoxy polyurethane, these things, the range is larger, heating 50, can it be used?
A It can be used. Thermostatic bath is required for heating.
QAre all digital explicit rotational viscometers available for inspection in the JJG1002 standard?
A Not necessarily, but this NDJ-8S digital explicit rotational viscometer can be considered.
QDo Spinning & weaving dyestuff, want to find automatic digital display Viscometer, NDJ-8S Viscometer can?
A Hello, yes, but you need to confirm your test viscosity range again.
