FANGRUI Instrument SNB-1J-T Brinell Rotational Viscometer Linear dispersion

FANGRUI instrument SNB-1J-T Brinell Rotational Viscometer viscosity range of 10~200000mPa · s, sample dosage 15ml~ 25ml, SNB-1J-T Brinell Rotational Viscometer can save 30 sets of self-built measurement programs, optional printer.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

FangRui SNB-1J-T Cloth Rotational ViscometerSPEC

FangRui SNB-1J-T Cloth Rotational ViscometerDetails

FangRui SNB-1J-T Cloth Rotational ViscometerPacking list

SKU
NB010829
Display
5-Inch color touchscreen
Measurement range
10~200000mPa·s
Rotor speed
0.5/1/2/5/10/20/50rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
220V / 50Hz
Application standard
GB/T2794-1995；HG/T3660-1999T；JTG E20-2011
Dimensions
300*300*450mm
Weight
10kg
Capacity
15~25ml
Temperature range
RT+~250℃
Temperature Accuracy
0.1℃
Timer
Flexible setting according to sample conditions
Linear dispersion
Real-time display of viscosity Linear dispersion
Save measurement results
30 sets can be stored (including rotor, Rotation speed, temperature, time, etc.)
Interface
Data, Linear dispersion printable (standard with print interface, optional printer required)
SNB-1J-T
Cloth Rotational Viscometer

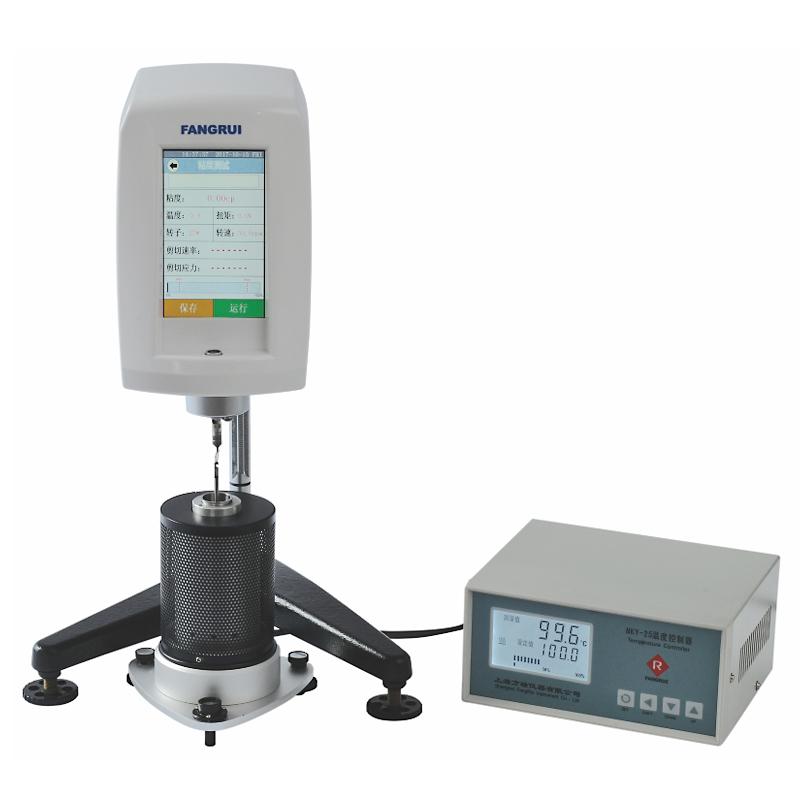

FANGRUI Instrument SNB-1J-T Brinell Rotational Viscometer Linear dispersion Picture

Introduction

SNB-1J-T Brinell Rotational Viscometer is a high-temperature rotational digital viscometer, which can measure the dynamic viscosity of substances that are solid at room temperature and melt into fluids after high temperature heating (such as hot-melt adhesives, asphalt, paraffin, polyethylene, etc.). With the advantages of accurate, fast, intuitive and simple measurement, the instrument has been compiled and recommended by the adhesive industry standard and selected by customers in related industries.

Meets standards

GB/T2794-1995 Determination of adhesive viscosity, HG/T3660-1999T determination of melt viscosity of hot melt adhesive, JTG E20-2011 test requirements for highway engineering asphalt and asphalt mixture test regulations.

Product display diagram

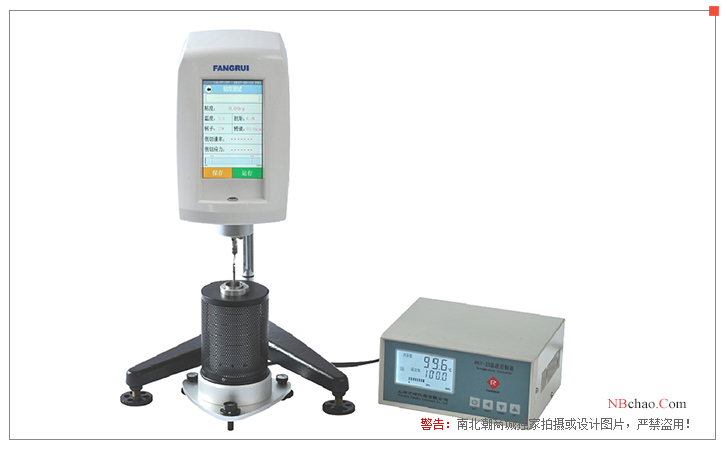

Fangrui Instrument SNB-1J-T Brinell Rotational Viscometer display diagram

FAQ
QMeet GB/T18856.4 cloth rotational viscometer
A SNB-1J-T cloth rotational viscometer, please refer to it.
QWhat is the dosage of Fangrui's SNB-1J-T Viscometer sample?
A Hello, it is 15~ 25ml.
QBuy a Viscometer capable of measuring small doses of slurry, about 10mlz
A Hello, according to your budget, you can consider using Fangrui's SNB-1J-T rotational viscometer.
QIs this snb-1j-t Brinell Viscometer a high temperature model? What temperature can it reach?
A Hello, yes, it is a high temperature digital Viscometer, the temperature range is room temperature~ 250 ℃.
QCan the Viscometer SNB-1J-T model be tested for high temperature hot melt adhesives?
A Hello, it can be tested, the maximum temperature can reach 250 ° C, and the viscosity range is 10~ 200000mPa · s.
