LEICI DDSJ-318 Conductivity Meter Automatic temperature compensation/calibrating/range switching

DDSJ-318

Conductivity Meter (smart)

Overview

The DDSJ-318 conductivity meter is a 0.5 intelligent conductivity meter, with a built-in microcomputer processor to realize the automation of calibration, range switching and temperature compensation, which simplifies the user's operation process, and realizes full-scale measurement through an electrode, with a measurement accuracy of ±0.5%FS.DDSJ-318 conductivity meter is a touch operation, providing continuous, timing, balance three measurement methods, can simultaneously measure conductivity, resistivity, salinity, temperature, TDS value, is a multi-functional conductivity meter, supporting T-818-B-6 temperature sensor, accurate measurement, generous appearance, simple operation.

Features and advantages

1. Built-in microprocessor, which can automatically calibrate, automatically compensate for temperature, and switch over range.

2、The DDSJ-318 conductivity meter has a 2-point calibration function, which can calibrate the electrode Changshu or TDS conversion coefficient.

3. The display screen is a 7.5-inch touch screen, the interface language is Chinese, the user experience is well designed, and the operation is simple.

4. It can be measured at the same timeConductivity, resistivity, salinity, current solution temperature, TDS value.
       5. The measurement is in line with GLP specifications.

6、DDSJ-318 conductivity meter has three methods: continuous measurement, timing measurement and balance measurement.

7. The back of the conductivity meter has standard RS-232 and USB interfaces, and can be connected to the PC computer by using the lightning data acquisition software.

8、When the DDSJ-318 conductivity meter is used, the parameters used in the current measurement mode and the calibration data of the previous measurement can be queried.

9. Support data operations such as printing, deleting, querying, and graphically displaying the stored measurement data.

Application examples

The DDSJ-318 conductivity meter is mainly used to measure the conductivity of the solution and evaluate the quality of the product. A common application is to useDDSJ-318 conductivity meter measures the conductive ash content of white sugar to evaluate the quality of white sugar, and if the ash content is too large, the quality will be degraded.

Operation method: dissolve a certain amount of white sugar in a certain volume of water and prepare it into a solutionDDSJ-318 conductivity meter is used to measure the conductivity of the solution, and then the ash content is determined according to the calculation formula of ash and conductivity value.

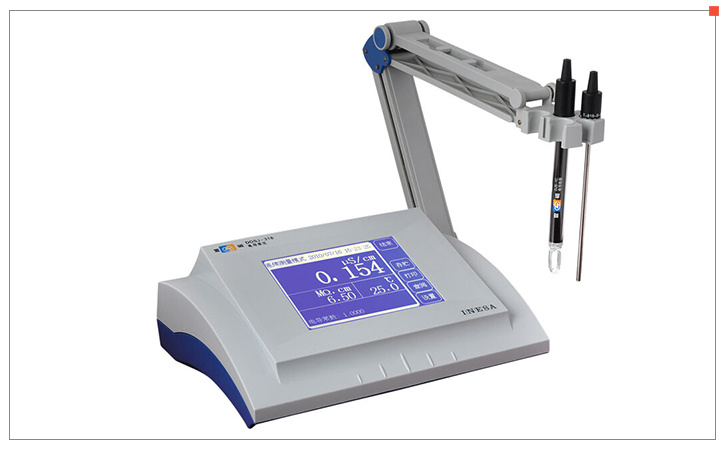

Actual picture of the product

Packing list：Host x1, DJS-1D type Conductivity detector electrode (platinum black) x1, T-818-B-6 type temperature electrode x1, REX-3 type multifunctional electrode holder x1, general power supply (9VDC, 800mA, inner positive and outer negative) x1, RS232 communication cable x1, USB interface cable x1, TP-16 type serial printer cable x1, data collection disc x1, AF30 touch pen x1, manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
